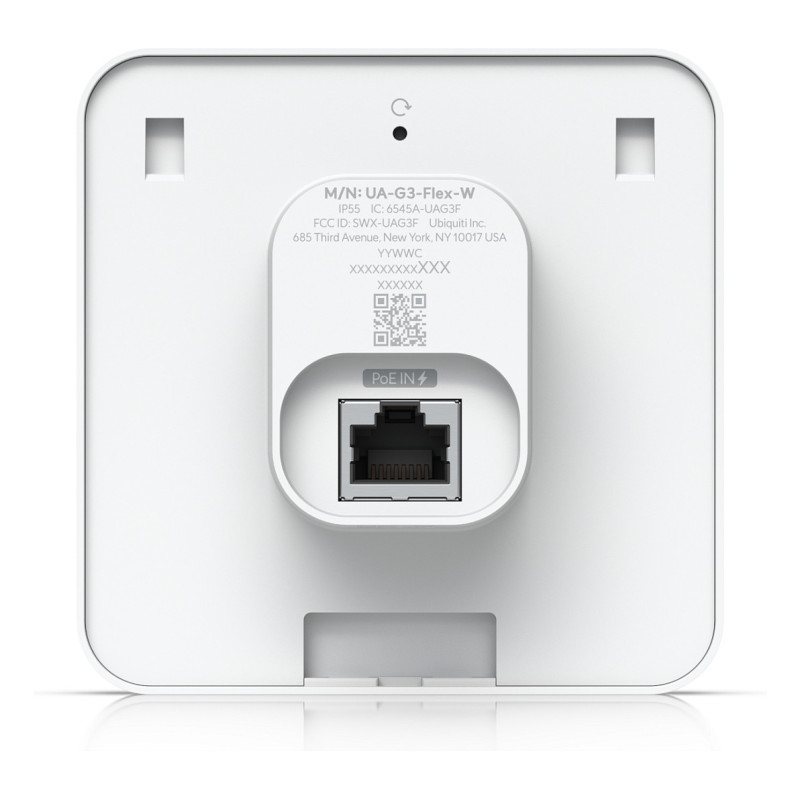

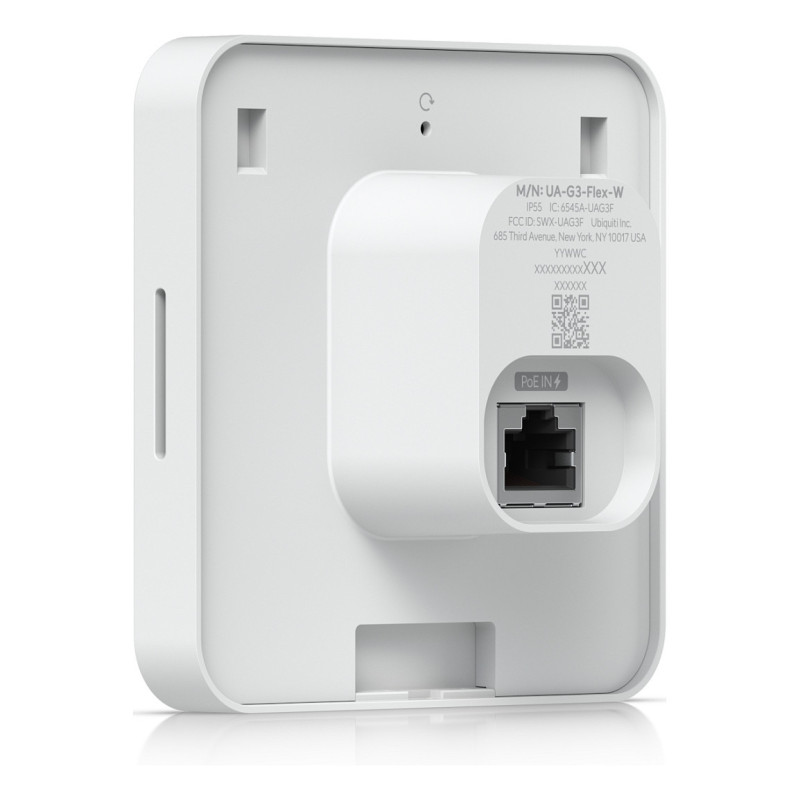

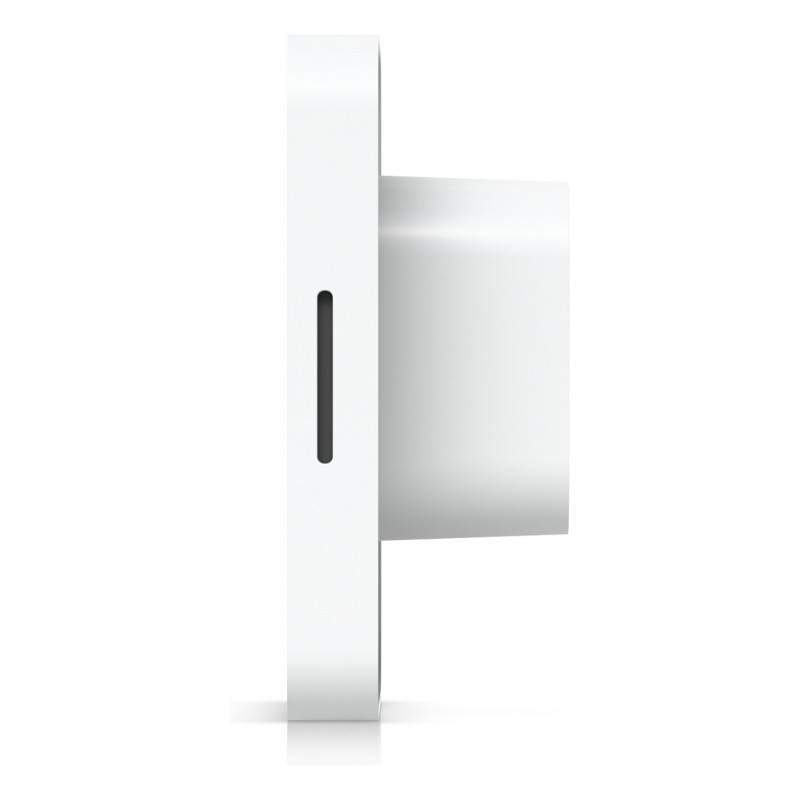

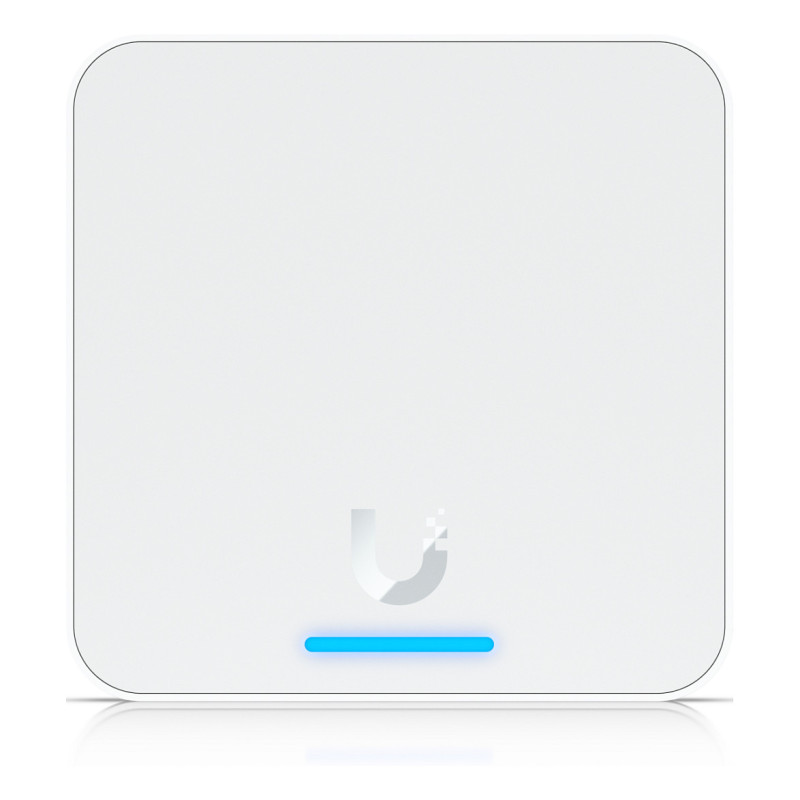

Ubiquiti Reader Flex

Ubiquiti Reader Flex. Speaker power: 1 W. Ethernet LAN data rates: 10,100 Mbit/s, Cabling technology: 10/100. Power consumption (max): 5 W, DC voltage range: 44 - 57 V. Width: 84 mm, Depth: 40.8 mm, Height: 84 mm

Third-generation NFC card reader with a keypad and Apple Touch Pass support.

Technical details

Type: Basic access control reader
Authentication type: Access chip/card, Password, Mobile app
LED indicators: Status
Feature: Access chip/card reader

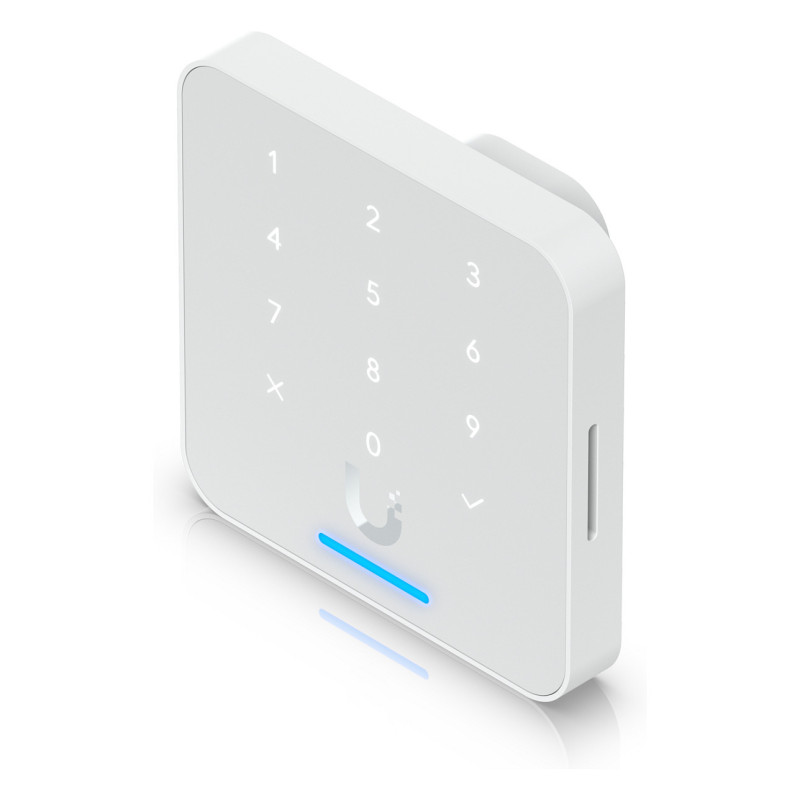

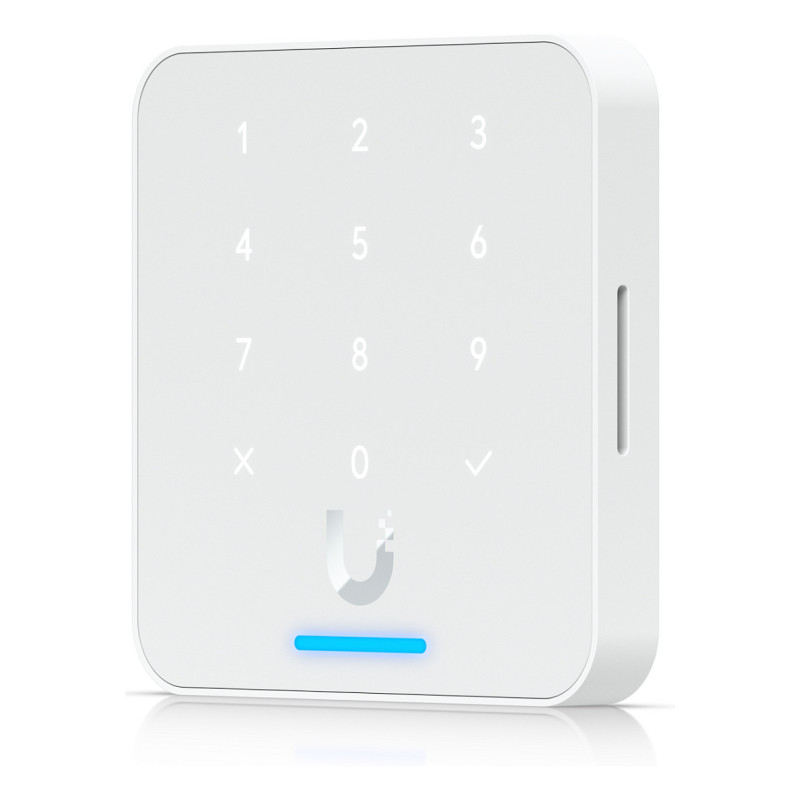

Feature: Keypad integrated
Keypad number of keys: 12
Feature: Keypad illumination
Recommended usage: Outdoor

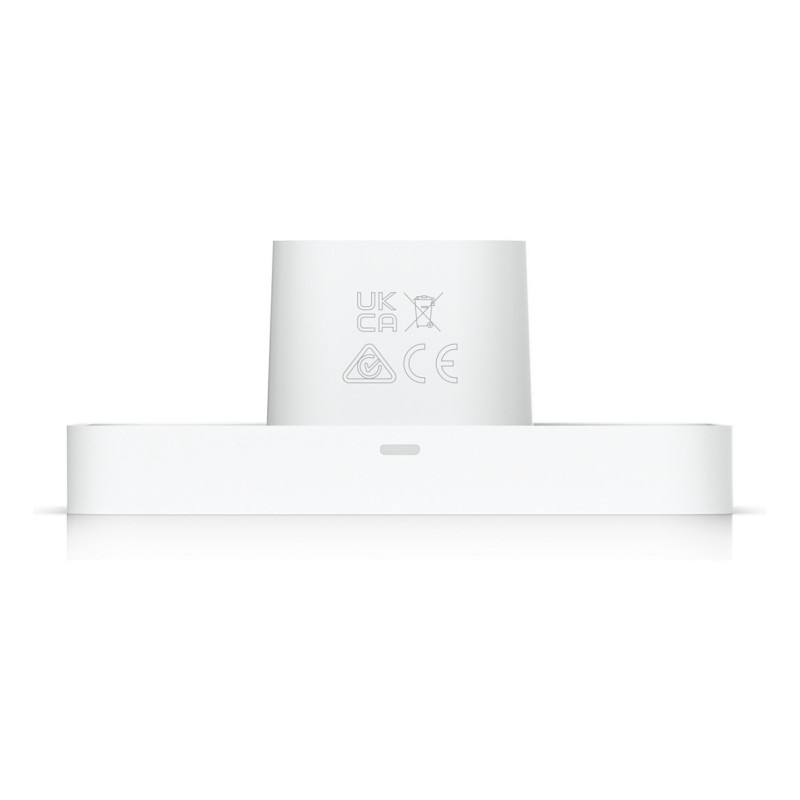

Compliance certificates: CE, Federal Communications Commission (FCC), Industry Canada (IC), UKCA
Product colour: White
Housing material: Aluminium, Glass, Polycarbonate (PC)
International Protection (IP) code: IP55

Performance

Feature: Built-in speaker(s)
Number of speakers: 1
Speaker power: 1 W

Ports & interfaces

Feature: Bluetooth
Bluetooth version: 4.1
Feature: Near Field Communication (NFC)
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100 Mbit/s
Cabling technology: 10/100

Power

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity: 1
Power consumption (max): 5 W
DC voltage range: 44 - 57 V

Weight & dimensions

Width: 84 mm
Depth: 40.8 mm
Height: 84 mm
Weight: 165 g

Packaging content

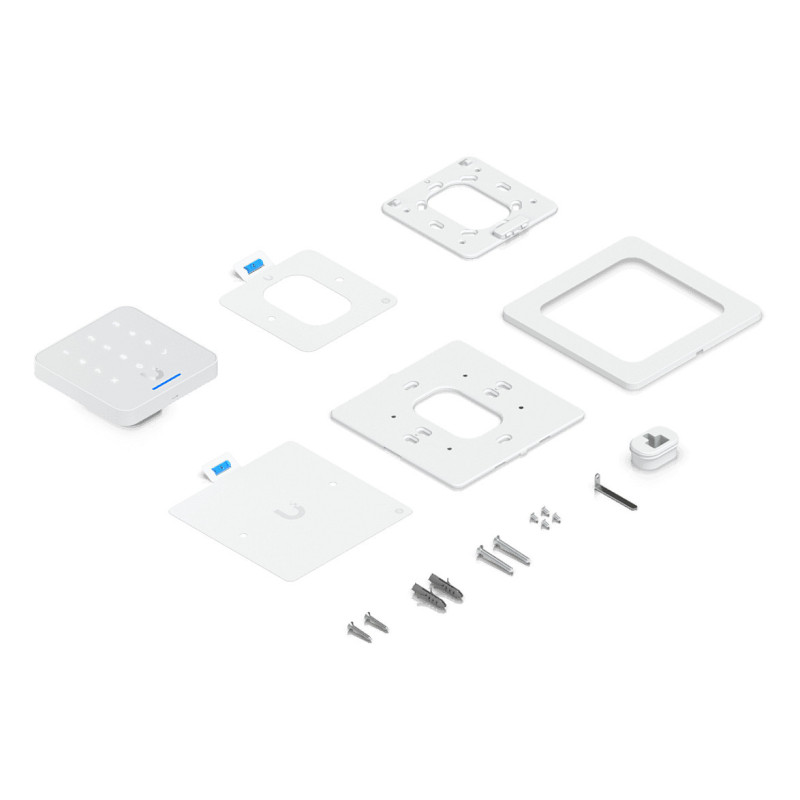

Feature: Mounting bracket(s) included

Operational conditions

Operating temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 5 - 90%
