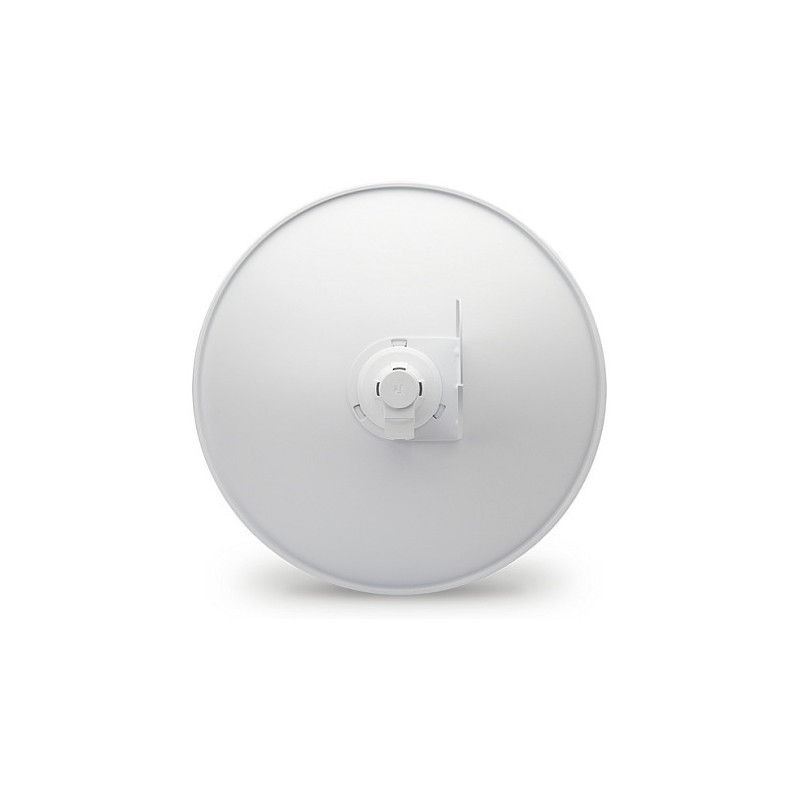

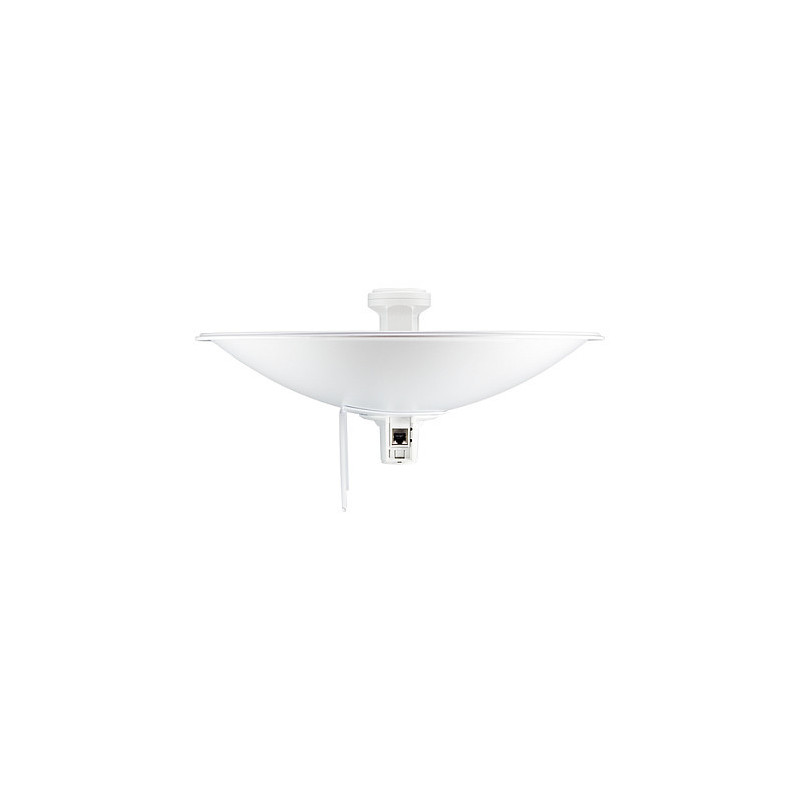

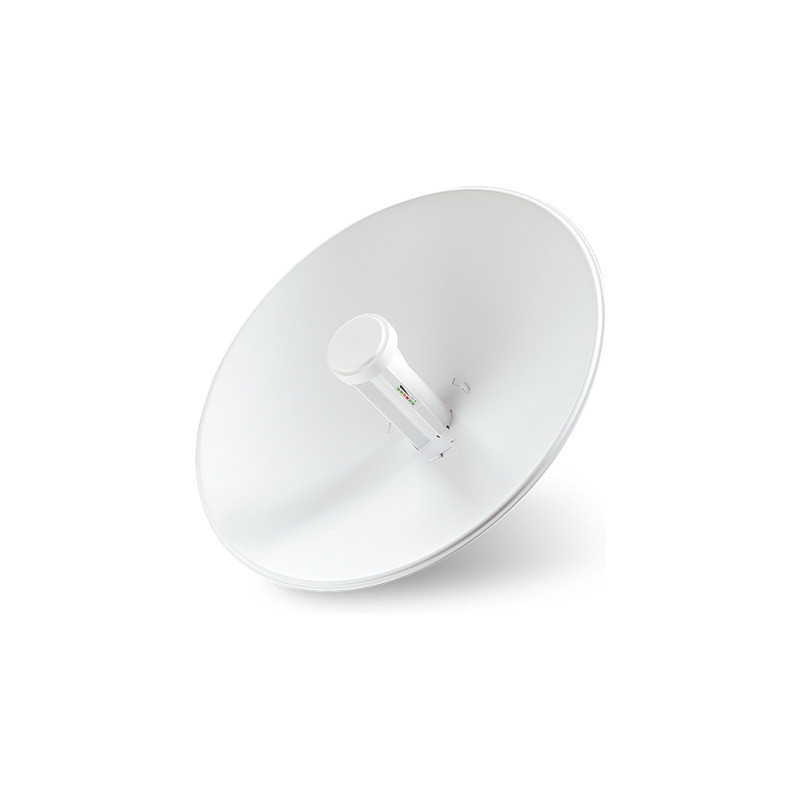

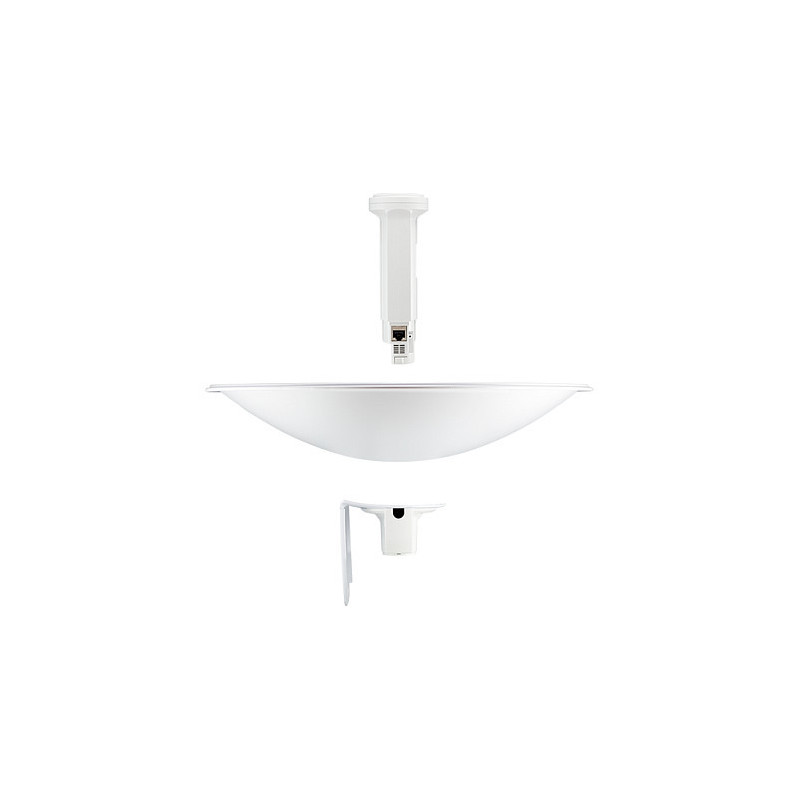

Ubiquiti PBE-M5-400 bridge / repeater

Ubiquiti PBE-M5-400. Maximum data transfer rate: 1000 Mbit/s. Antenna gain level (max): 25 dBi. Frequency band: 5 GHz. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s. Connectivity technology: Wired

Incorporating a dish reflector design with advanced technology, the PowerBeam™ is Ubiquiti airMAX® CPE for customer locations.

Data transmission

Maximum data transfer rate: 1000 Mbit/s

Antenna

Antenna gain level (max): 25 dBi

Wireless LAN features

Frequency band: 5 GHz

Network

Feature: Ethernet LAN
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s

Ports & interfaces

Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Power over Ethernet plus (PoE+) ports quantity: 1

Features

Product type: Network bridge
Material: Plastic
Mounting type: Pole
Product colour: White
LED indicators: LAN, Power, WLAN
Processor family: Atheros
Processor model: MIPS 74Kc
Processor frequency: 560 MHz
Internal memory: 64 MB
RAM type: DDR2

Power

Power source type: PoE
Power consumption (typical): 8 W
Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) voltage: 24 V
Power consumption (24V): 500 mA

Operational conditions

Operating temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 5 - 95%

Certificates

Certification: FCC, IC, CE, RoHS

Weight & dimensions

Antenna diameter: 42 cm
Depth: 275 mm
Weight: 1.75 kg

Packaging content

Feature: Mounting bracket(s) included

Memory

Flash memory: 8 MB

Logistics data

Harmonized System (HS) code: 85176990
