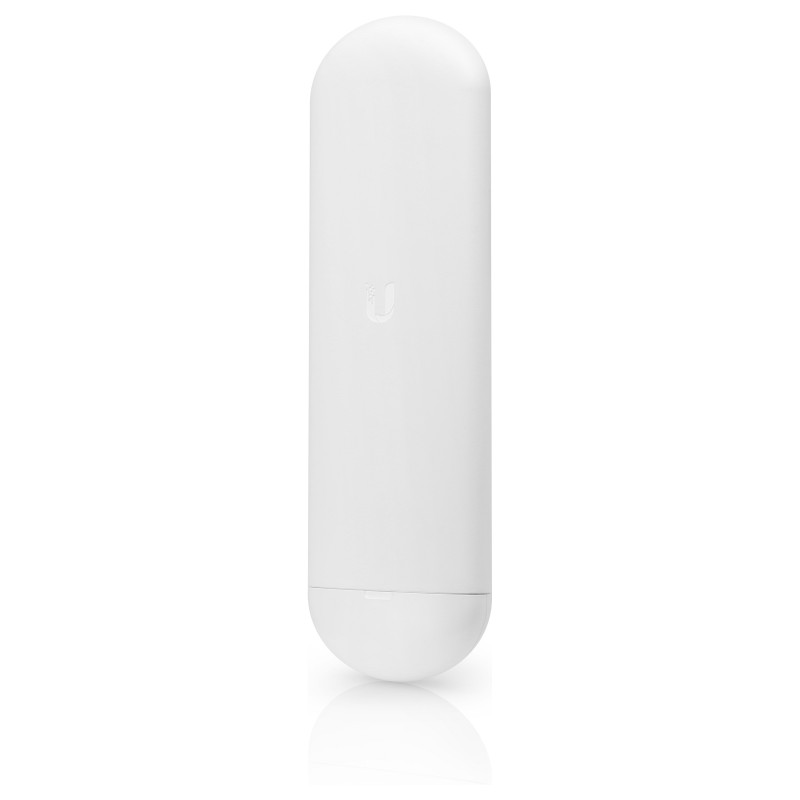

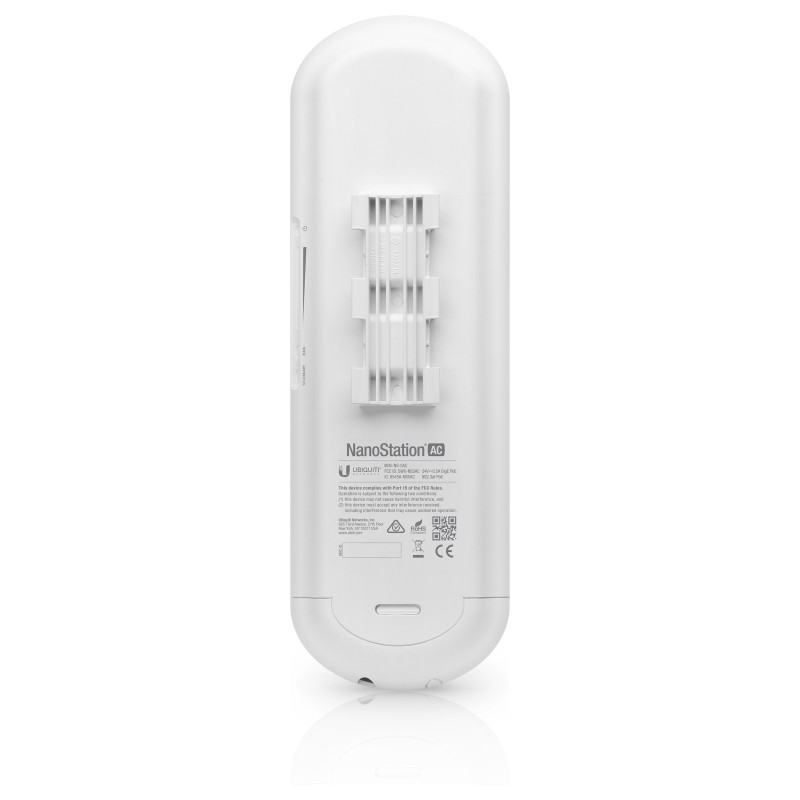

Ubiquiti NanoStation AC

Ubiquiti NanoStation AC. 5 GHz, Maximum data transfer rate: 1000 Mbit/s, Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White

The indoor/outdoor NanoStation® AC and NanoStation AC loco are compact, high-performance CPEs featuring airMAX® AC technology and a dedicated Wi-Fi radio for management.

Sleek Industrial Design
The NanoStation AC and NanoStation AC loco represent the next evolution of the iconic CPE design that revolutionized the Wireless ISP industry.

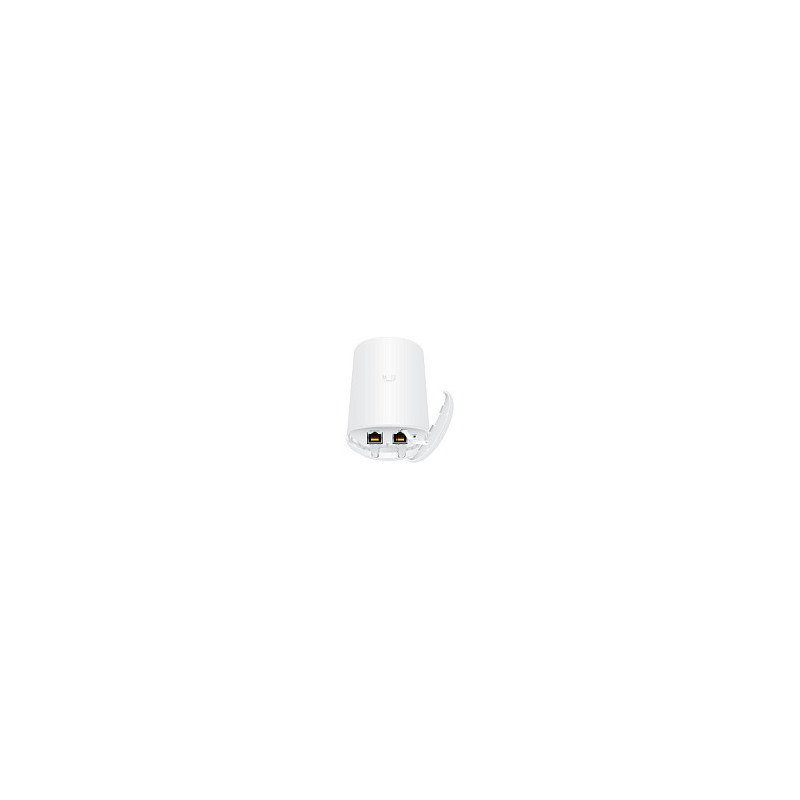

Dual Ethernet Connectivity
The NanoStation AC provides a secondary Ethernet port with software-enabled PoE. Use this port to conveniently power an external device, such as a PoE security camera, for seamless IP video integration.

Management Wi-Fi Radio
Each NanoStation AC model integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

Improved Surge Protection
The NanoStation AC and NanoStation AC loco feature enhanced protection against ESD events.

Now with airOS®8
airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

Features

Feature: 5 GHz
Maximum data transfer rate: 1000 Mbit/s
Ethernet LAN data rates: 10,100,1000 Mbit/s
Throughput data rate: 450 Mbit/s
Frequency band: 5.15 - 5.875 GHz
Channel bandwidth: 80 MHz
Modulation: 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK
Maximum outdoor range: 15000 m

Ports & interfaces

Ethernet LAN (RJ-45) ports: 2

Power

Feature: Power over Ethernet (PoE)
AC input voltage: 24 V
Input current: 0.5 A

Design

Placement: Ceiling
Product colour: White
LED indicators: Network, Power, Signal strength

Antenna

Antenna type: Internal
Antenna gain level (max): 16 dBi

Performance

Feature: Built-in processor
Processor frequency: 560 MHz
Processor architecture: MIPS 74Kc
Internal memory: 64 MB
Operating system installed: AirOS

Certificates

Certification: CE, FCC, IC

Weight & dimensions

Width: 257 mm
Depth: 84 mm
Height: 41 mm
Weight: 233 g

Packaging content

Quantity per pack: 1 pc(s)
Feature: PoE adapter included

Operational conditions

Operating relative humidity (H-H): 5 - 95%
Operating temperature (T-T): -40 - 70 °C

Logistics data

Harmonized System (HS) code: 85176990
