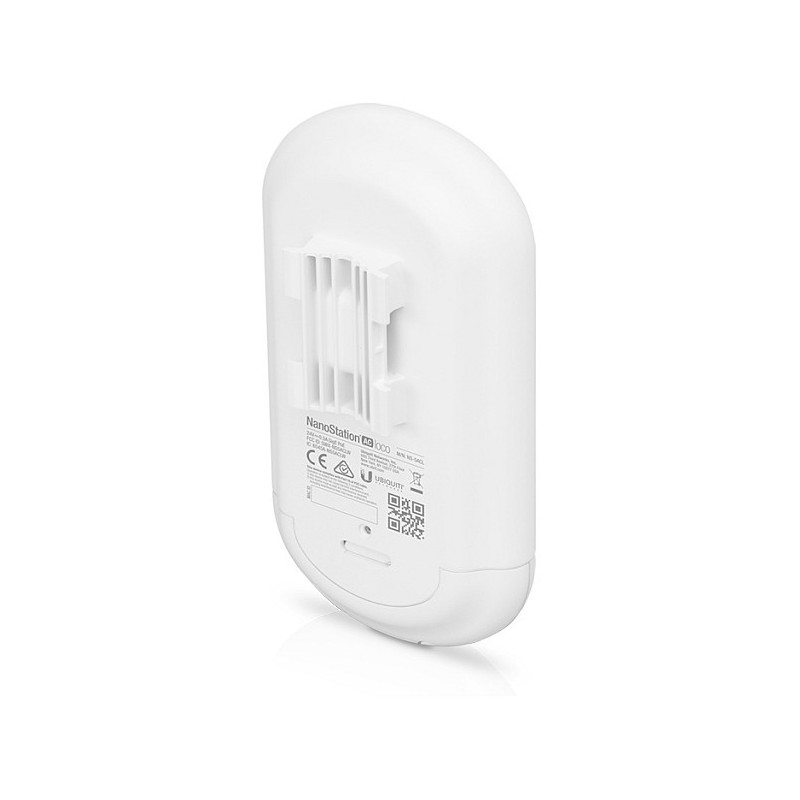

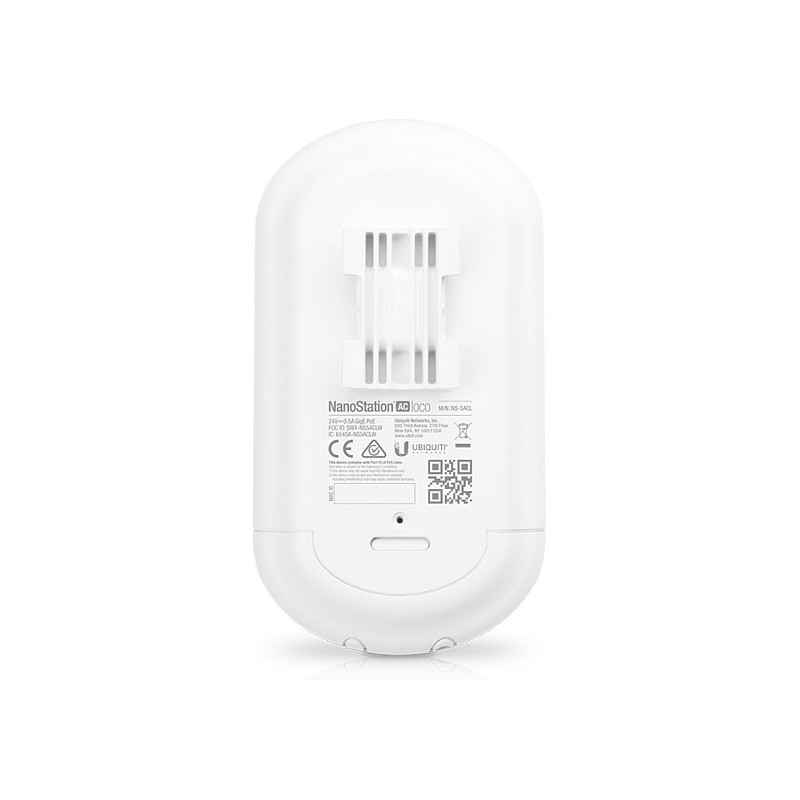

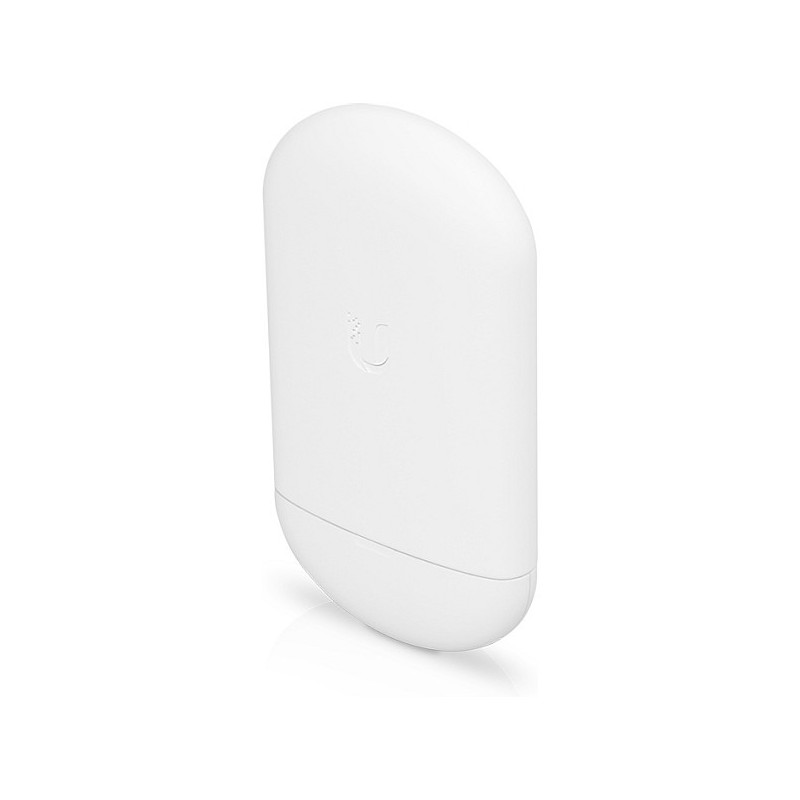

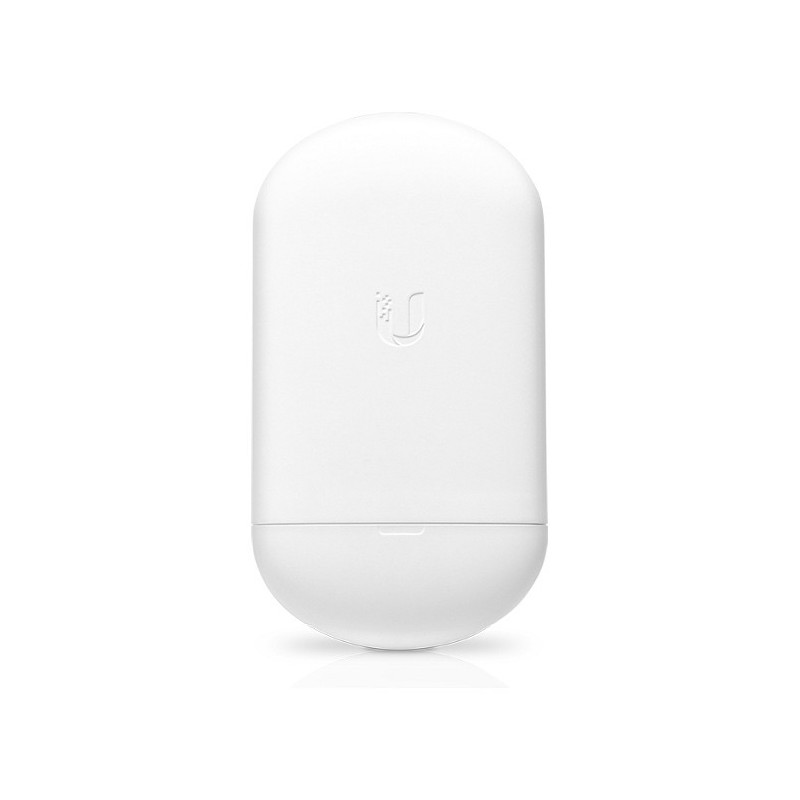

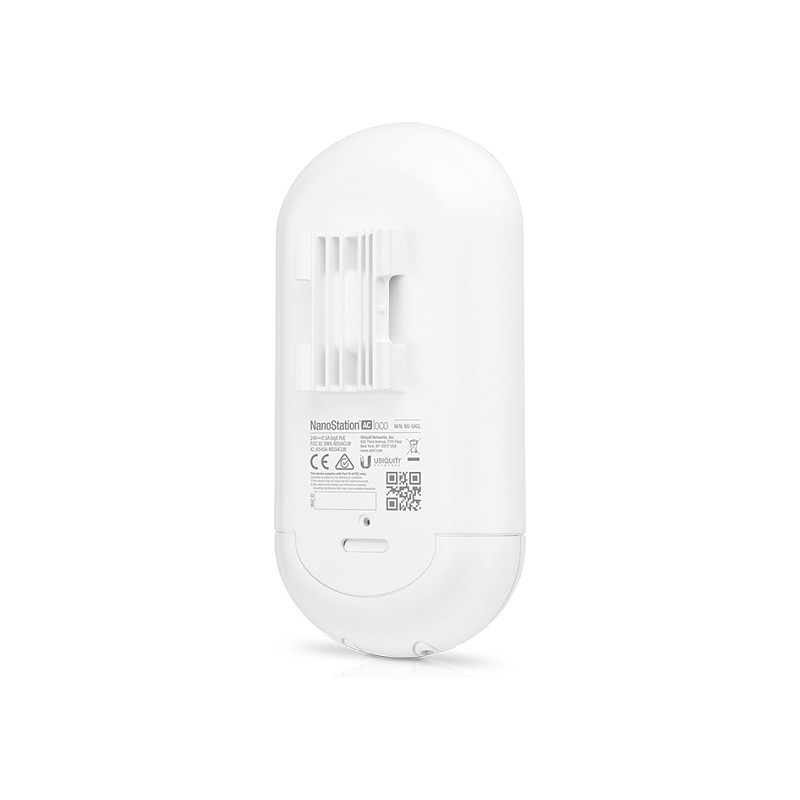

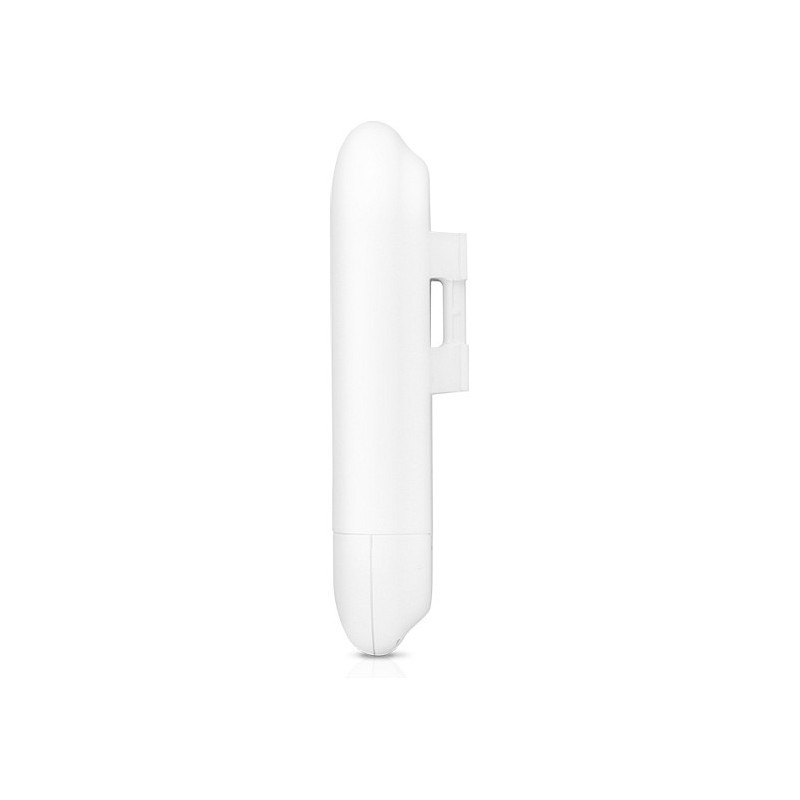

Ubiquiti NanoStation 5AC Loco

Ubiquiti NanoStation 5AC Loco. 5 GHz, Maximum data transfer rate: 450 Mbit/s. Security algorithms: WPA2. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 7 W
Classic NanoStation design with updated proprietary airMAX ac chipset and dedicated management Wi-Fi for easy UNMS mobile app support and fast setup. Excellent solution for a simple PtP bridge or use as a PtMP station (CPE).
Sleek Industrial Design
The NanoStation AC and NanoStation AC loco represent the next evolution of the iconic CPE design that revolutionized the Wireless ISP industry.
Improved Surge Protection
The NanoStation AC and NanoStation AC loco feature enhanced protection against ESD events.
Now with airOS®8
airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

Features

Feature: 5 GHz
Maximum data transfer rate: 450 Mbit/s
Ethernet LAN data rates: 10,100,1000 Mbit/s
Frequency band: 5 GHz
Feature: MIMO
Modulation: 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK
Feature: Quality of Service (QoS) support
Maximum outdoor range: 10000 m

Security

Security algorithms: WPA2

Management features

Feature: Web-based management

Ports interfaces

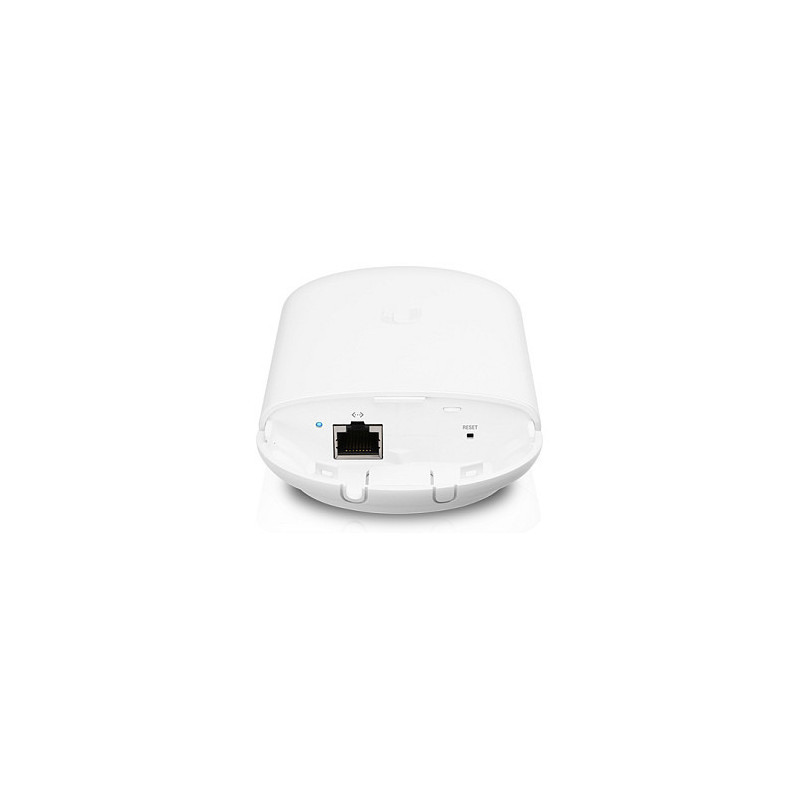

Ethernet LAN (RJ-45) ports: 1

Power

Feature: Power over Ethernet (PoE)
AC input voltage: 24 V
Input current: 0.3 A
Power consumption (max): 7 W

Design

Placement: Pole
Product colour: White
Housing material: Plastic
Feature: Reset button
LED indicators: Power

Antenna

Antenna type: Internal
Antenna features: Integrated antenna
Antenna gain level (max): 13 dBi
Polarization: Dual polarization

Performance

Feature: Built-in processor
Processor model: Qualcomm Atheros
Processor frequency: 560 MHz
Processor architecture: MIPS 74Kc
Internal memory: 64 MB
Operating system installed: AirOS

Certificates

Certification: CE, FCC, IC

Packaging content

Quantity per pack: 5 pc(s)
Feature: Mounting kit

Operational conditions

Operating relative humidity (H-H): 5 - 95%
Operating temperature (T-T): -40 - 70 °C
