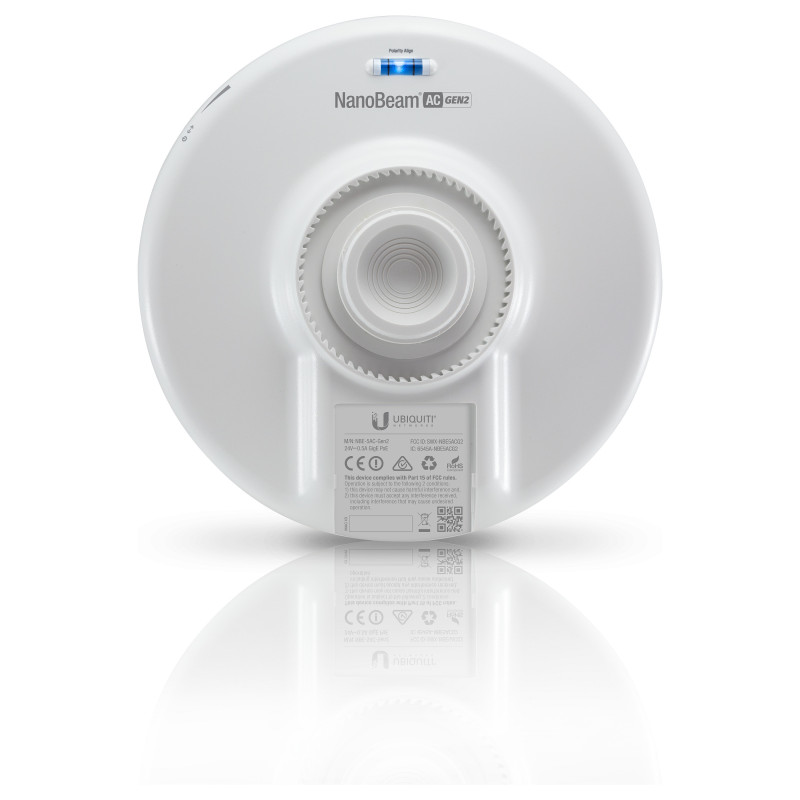

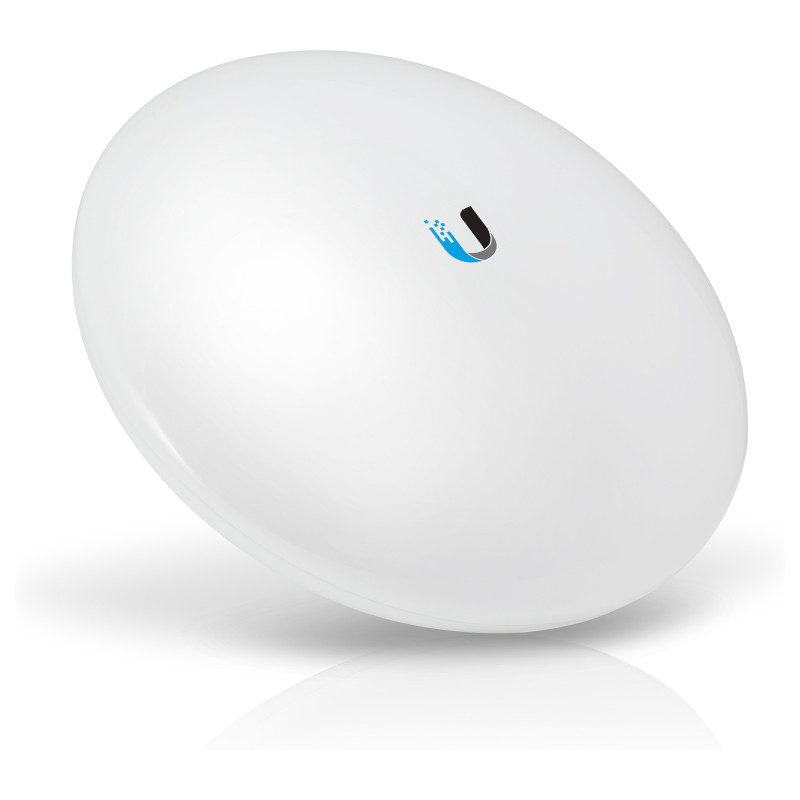

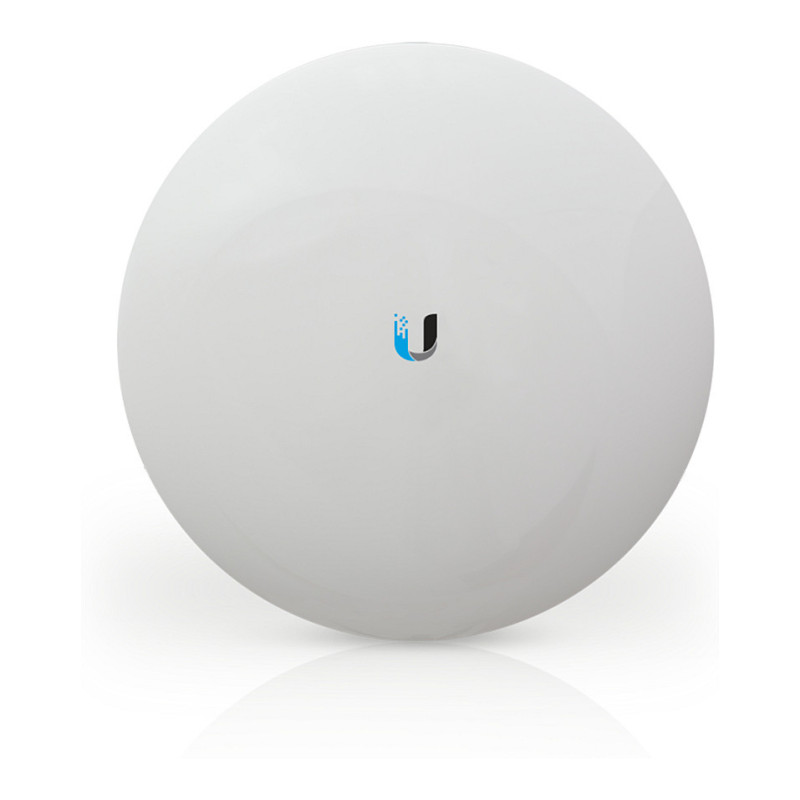

Ubiquiti NanoBeam 5AC Gen 2

Ubiquiti NanoBeam 5AC Gen 2. Maximum data transfer rate: 450 Mbit/s, Maximum transfer distance: 15000 m. Antenna gain level (max): 19 dBi. Frequency band: 5.15 - 5.875; 5.15 - 5.25; 5.25 - 5.35; 5.47 - 5.725; 5.725 - 5.85 GHz, Modulation: 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s. Security algorithms: WPA2

Incorporating innovative industrial design with proprietary airMAX ac technology, the NanoBeam AC is ideal for CPE deployments requiring maximum performance from the smallest possible footprint.

Management Wi-Fi Radio
The NanoBeam AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

Improved Surge Protection
The NanoBeam AC features enhanced protection against ESD events.

Superior Processing
Ubiquiti's airMAX engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.

Incredible Antenna "Beam" Performance
The form factor of the NanoBeam AC features the highest gain for its size. The NanoBeam AC's excellent beam directivity provides the best performance in high-noise environments.

Performance Breakthrough
airMAX ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance.

Advanced Software Technology
Ubiquiti's airMAX technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.

Plug and Play Installation

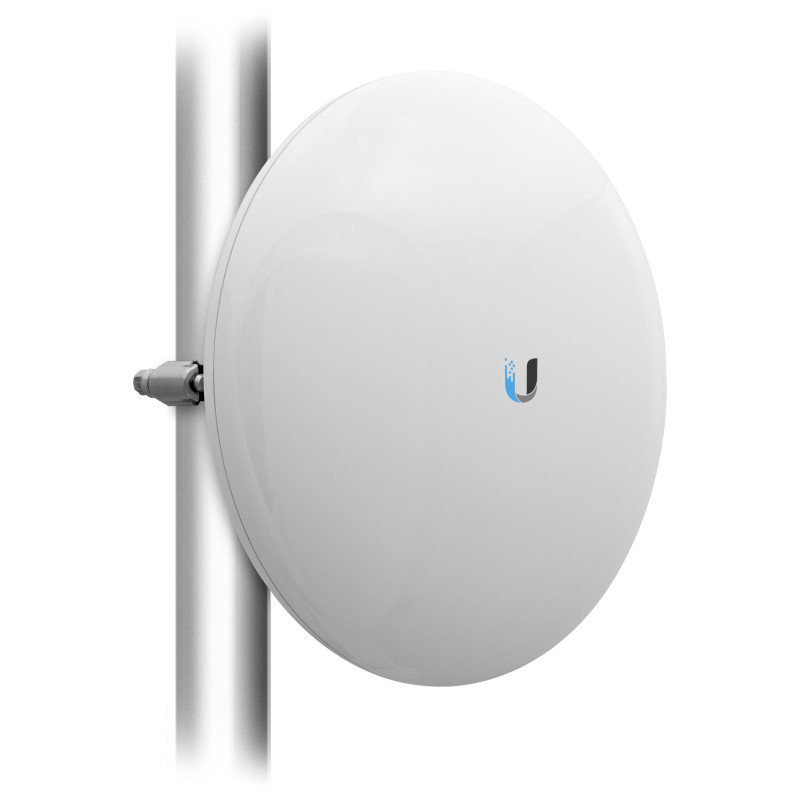

The NanoBeam AC mounts to a variety of surfaces including poles or walls, and offers the freedom of three-axis alignment. No screws are required for pole-mounting, and only a single wall screw (not included) is required for wall-mounting.

Now with airOS8
airOS®8 provides powerful features, including airMAX ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

Data transmission

Maximum data transfer rate: 450 Mbit/s
Maximum transfer distance: 15000 m

Antenna

Antenna gain level (max): 19 dBi

Wireless LAN features

Feature: Wi-Fi
Frequency band: 5.15 - 5.875; 5.15 - 5.25; 5.25 - 5.35; 5.47 - 5.725; 5.725 - 5.85 GHz
Modulation: 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK

Network

Feature: Ethernet LAN
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s

Ports & interfaces

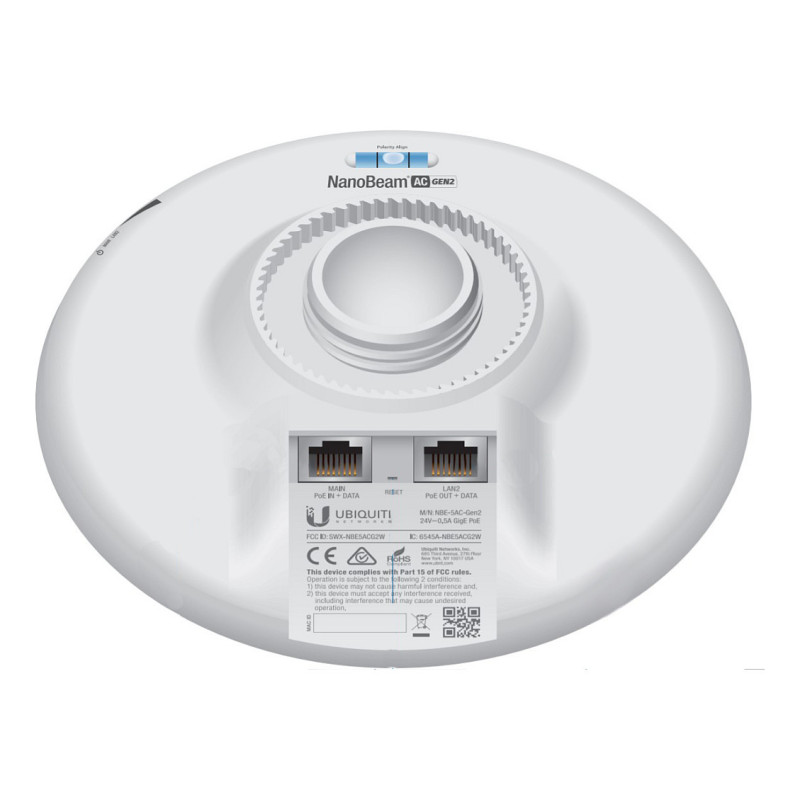

Ethernet LAN (RJ-45) ports: 2

Security

Security algorithms: WPA2

Management features

Feature: Web-based management

Features

Product type: Network bridge
Material: Plastic
Mounting type: Wall/Pole
Product colour: White

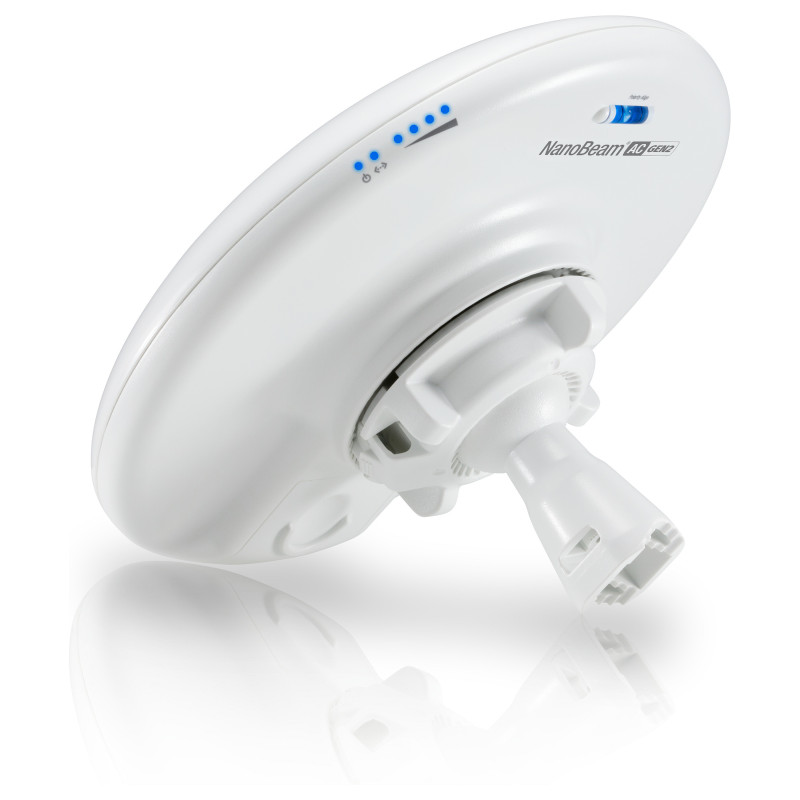

LED indicators: LAN, Power, Signal strength
Feature: Reset button
Feature: Surge protection
Processor family: Atheros
Processor model: MIPS 74Kc
Processor frequency: 720 MHz
Internal memory: 128 MB
RAM type: DDR2

Power

Power source type: PoE
Power consumption (max): 8.5 W
Feature: Power over Ethernet (PoE)
DC output voltage: 24 V
DC output current: 0.5 A

Operational conditions

Operating temperature (T-T): -40 - 80 °C
Operating temperature (T-T): -40 - 176 °F
Operating relative humidity (H-H): 5 - 95%

Certificates

Compliance certificates: CE, RoHS
Certification: CE, FCC, IC, RoHS

Weight & dimensions

Width: 189 mm
Depth: 189 mm
Height: 125 mm
Weight: 530 g

Packaging content

Feature: PoE+ Injector(s)
Feature: Mounting bracket(s) included
Cables included: AC

Memory

Flash memory: 8 MB

Packaging data

Quantity per pack: 1 pc(s)

Logistics data

Harmonized System (HS) code: 85176990
