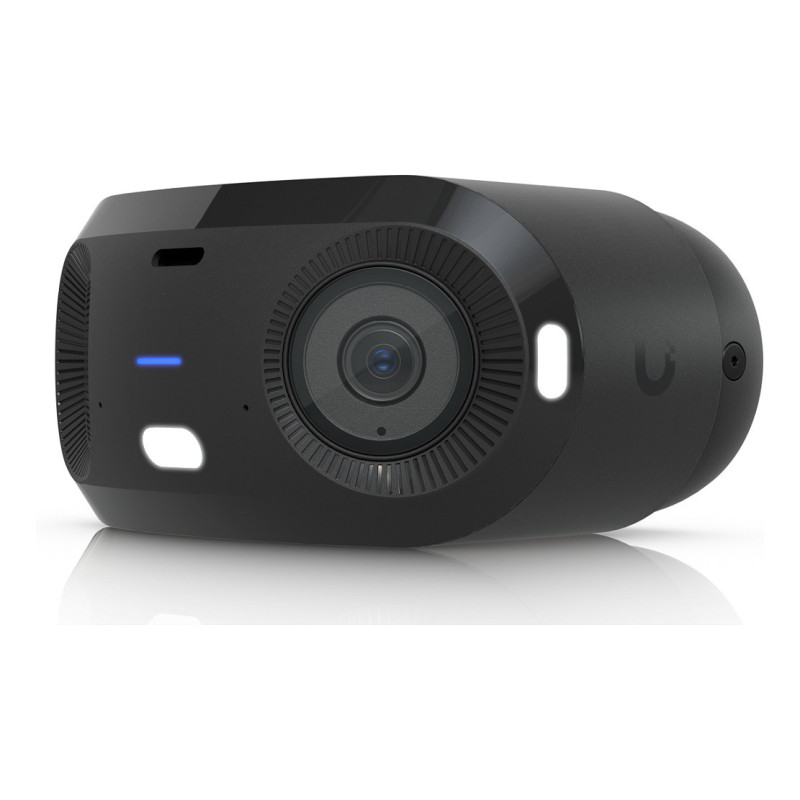

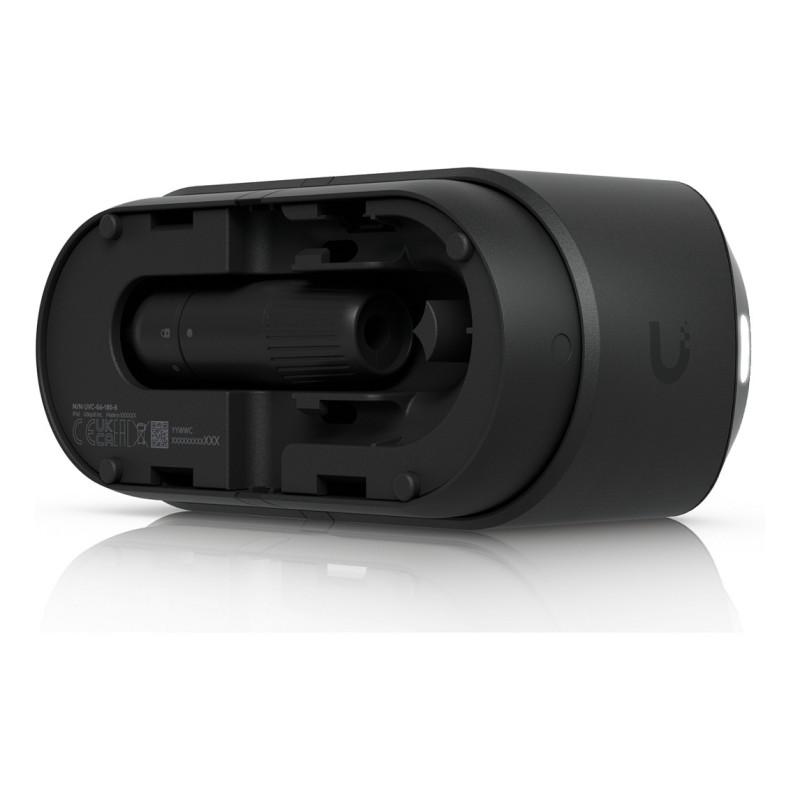

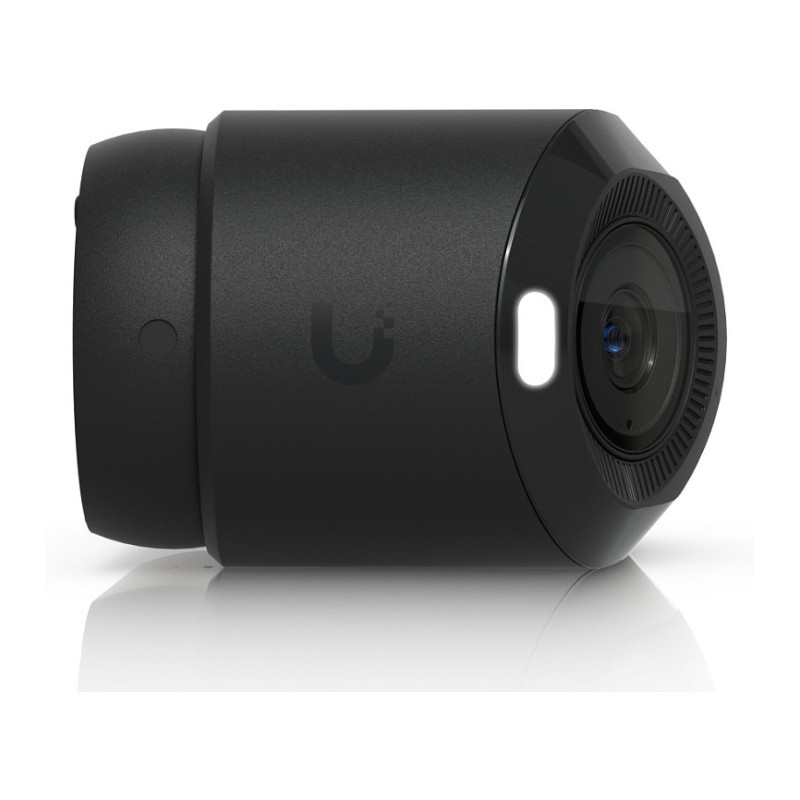

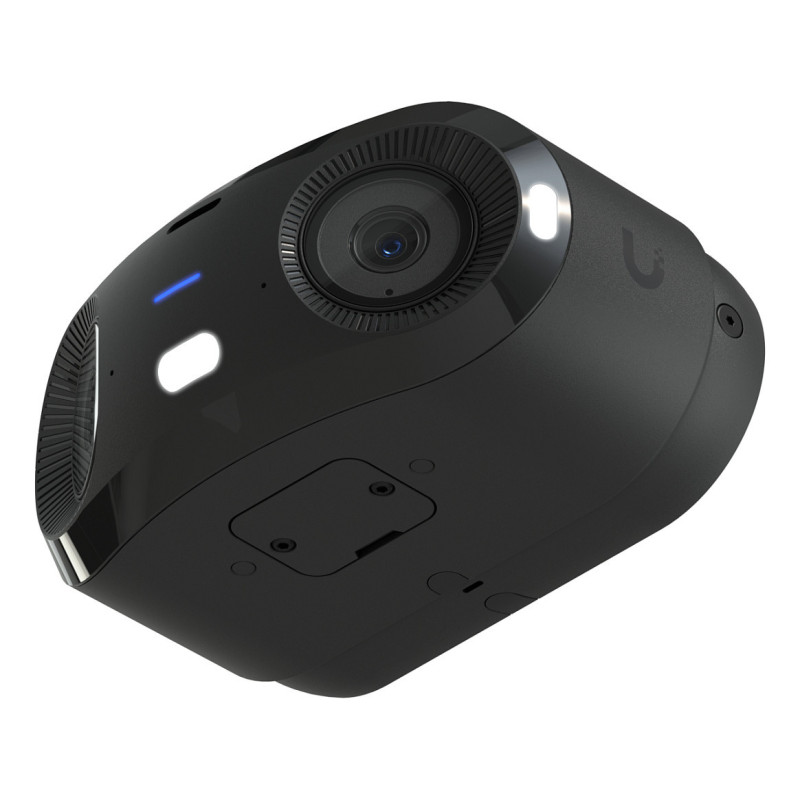

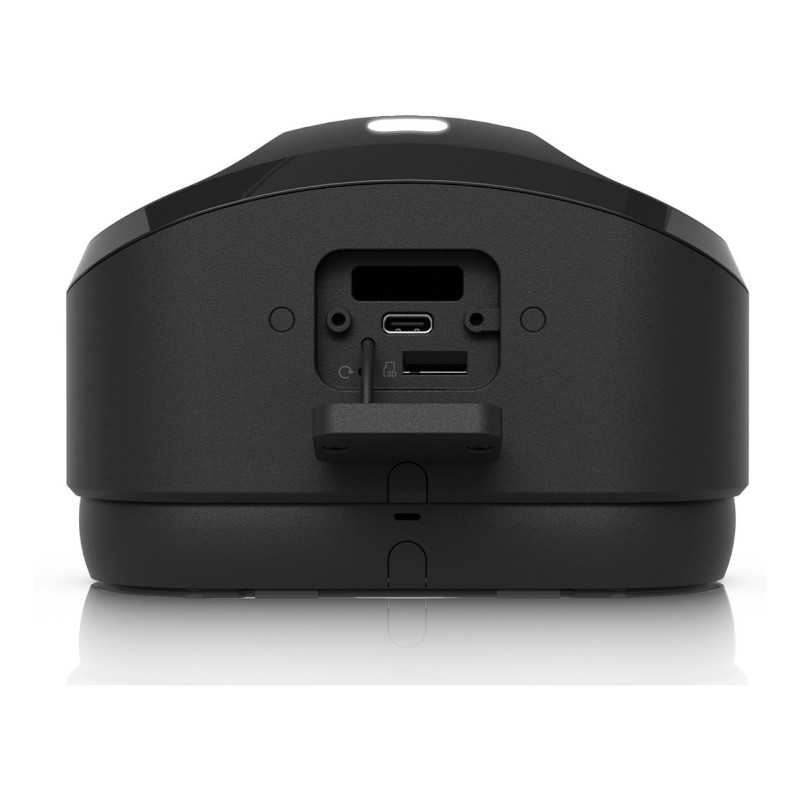

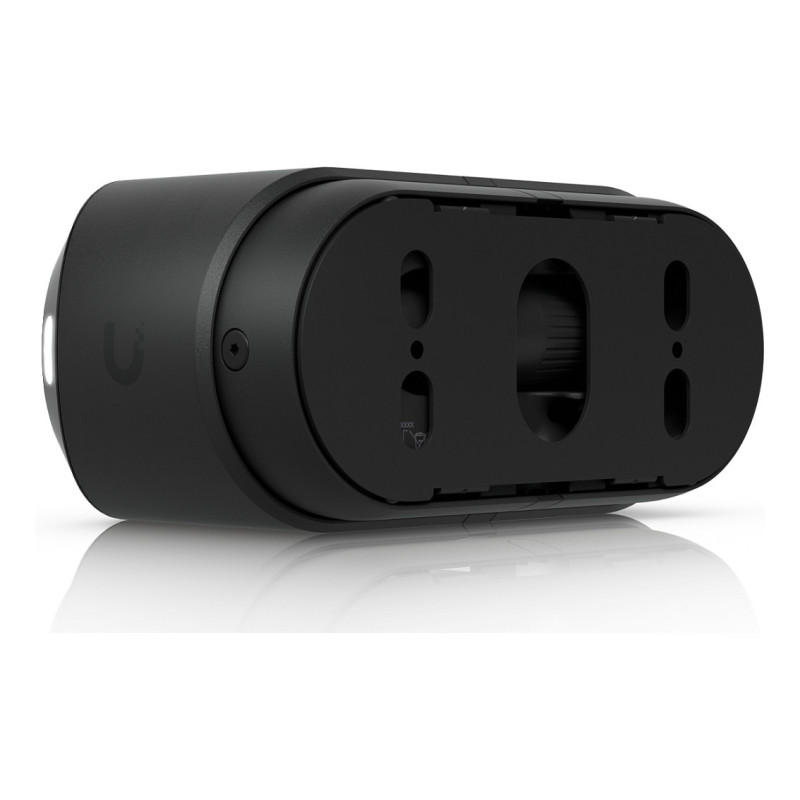

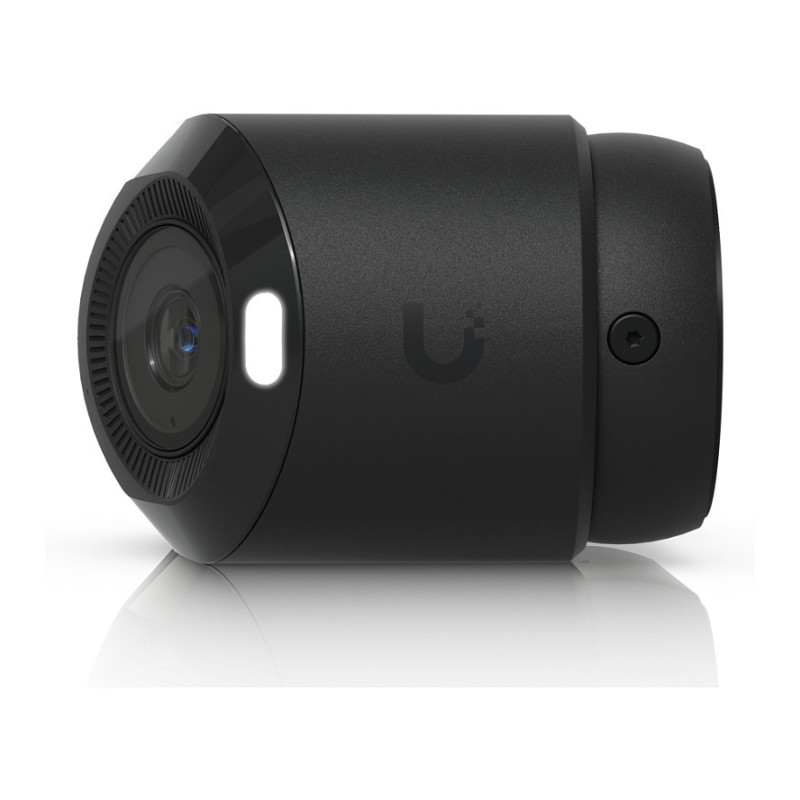

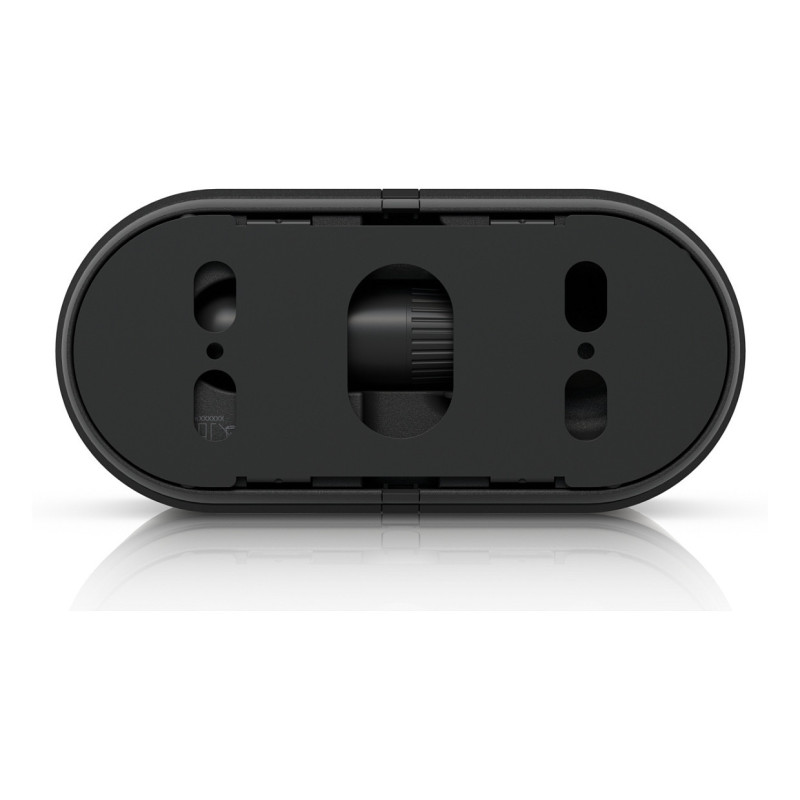

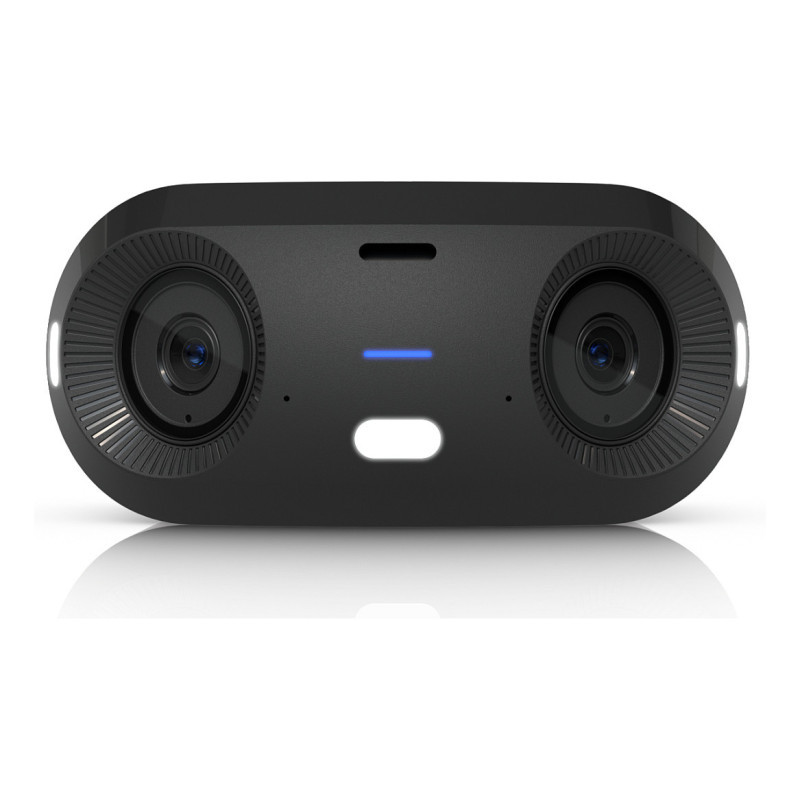

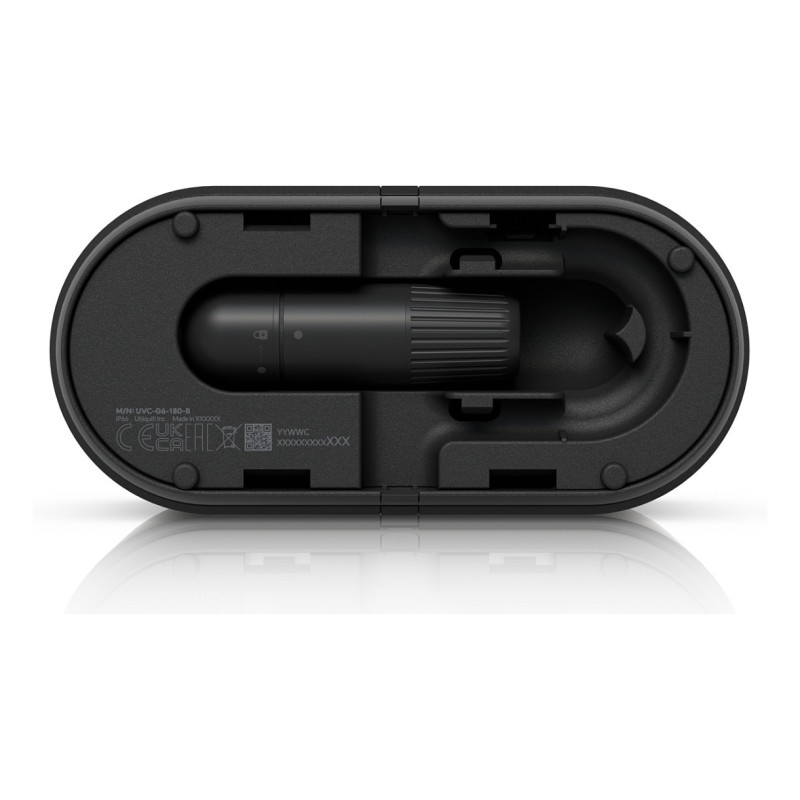

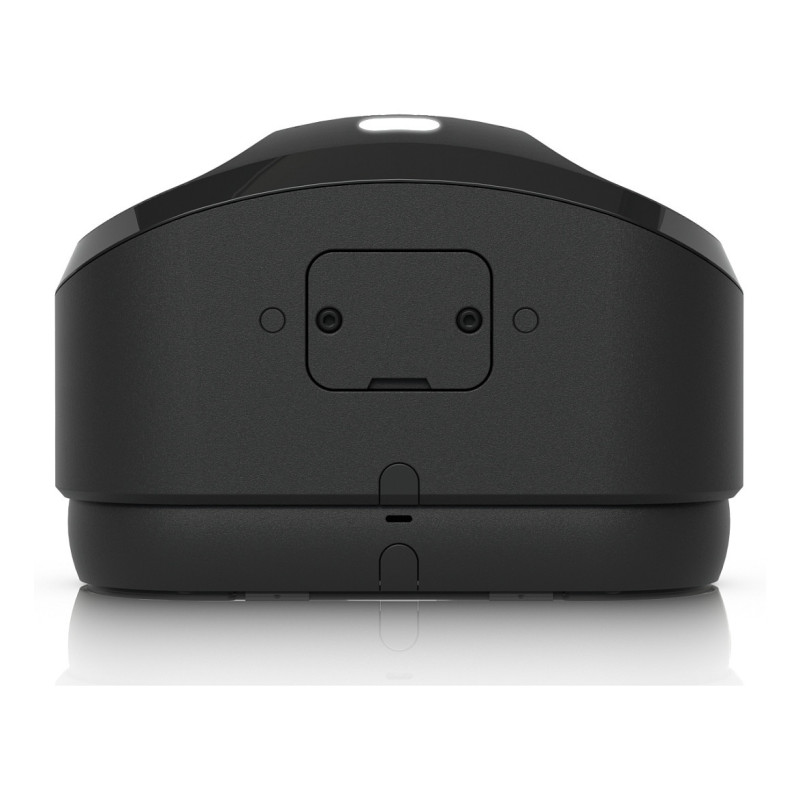

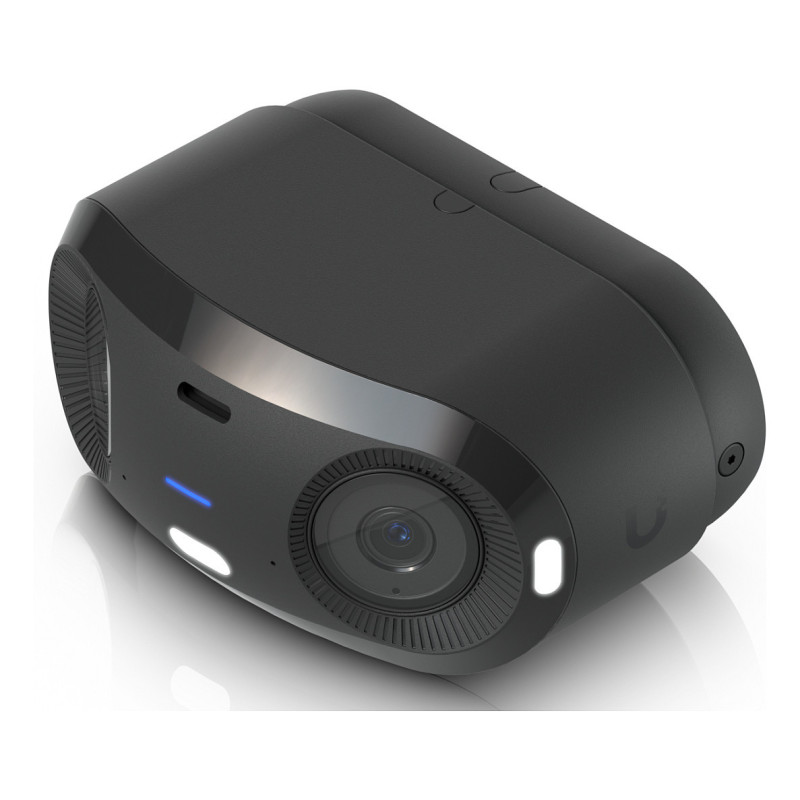

Ubiquiti G6 180

Ubiquiti G6 180. Type: IP security camera, Placement supported: Indoor outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Pole, Product colour: Black, Housing material: Aluminium, Polycarbonate (PC). Lens viewing angle, horizontal: 180°, Lens viewing angle, vertical: 56.7°. Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Night vision distance: 20 m, LED type: IR
Indoor/outdoor dual sensor 16MP 20 FPS PoE+ camera, with a Multi-TOPS AI Engine and panoramic 180° coverage.

Performance

Type: IP security camera
Placement supported: Indoor outdoor
Connectivity technology: Wired
Feature: Infrared (IR) cut-off filter
Processor model: ARM Cortex-A53
Feature: Built-in processor

Design

Mounting type: Ceiling/Pole
Product colour: Black
Housing material: Aluminium, Polycarbonate (PC)
International Protection (IP) code: IP66
IK code: IK04
Feature: Weatherproof

Camera

Lens viewing angle, horizontal: 180°
Lens viewing angle, vertical: 56.7°

Image sensor

Number of sensors: 2
Optical sensor size: 25.4 / 1.8 mm (1 / 1.8")

Lens system

Number of lenses: 2

Night vision

Feature: Night vision
Night vision distance: 20 m
LED type: IR

Video

Maximum resolution: 7680 x 2160 pixels
Total megapixels: 16 MP
Feature: Video recording
Frame rate: 20 fps
Feature: Noise reduction
Noise reduction technology: 2D noise reduction, 3D noise reduction
Image quality adjustment: Brightness, Contrast, HDR, Sharpness, White balance

Audio

Feature: Built-in speaker(s)
Audio system: 2-way
Feature: Built-in microphone

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash)

Ports interfaces

Ethernet LAN (RJ-45) ports: 1

Security

Feature: Human and vehicle targets classification

Management features

Feature: Reset button

Power

Power source type: PoE+
Power consumption (max): 15 W
DC output voltage: 37, 42.5, 48, 54, 57

Operational conditions

Operating temperature (T-T): -20 - 50 °C
Operating relative humidity (H-H): 0 - 90%

Weight dimensions

Width: 136 mm
Depth: 64 mm
Height: 92 mm
Weight: 839 g

Sustainability

Compliance certificates: CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)

Packaging content

Number of cameras: 1
Feature: Mounting kit
Feature: Manual
