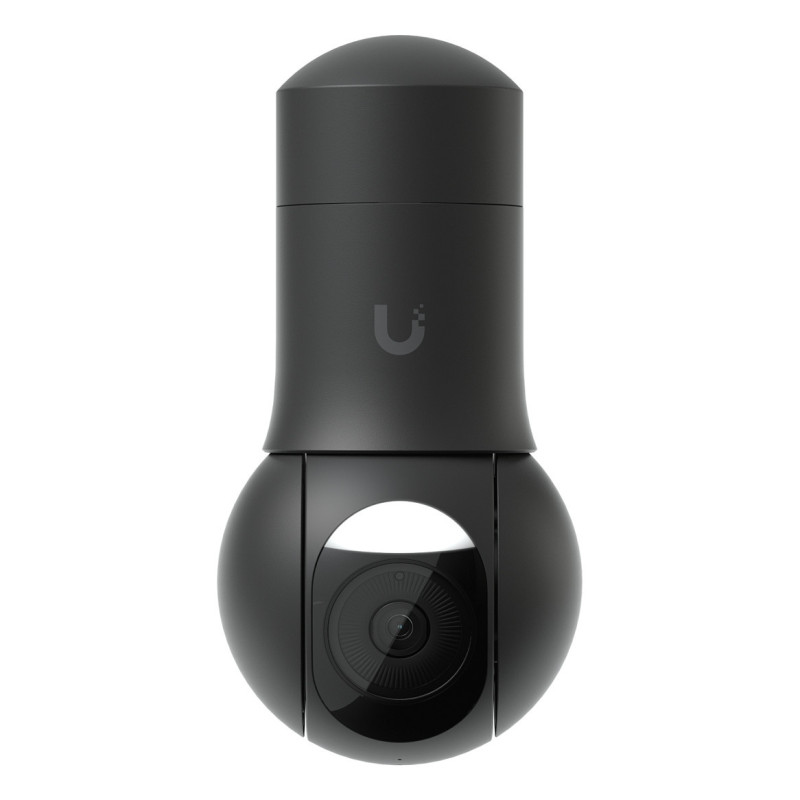

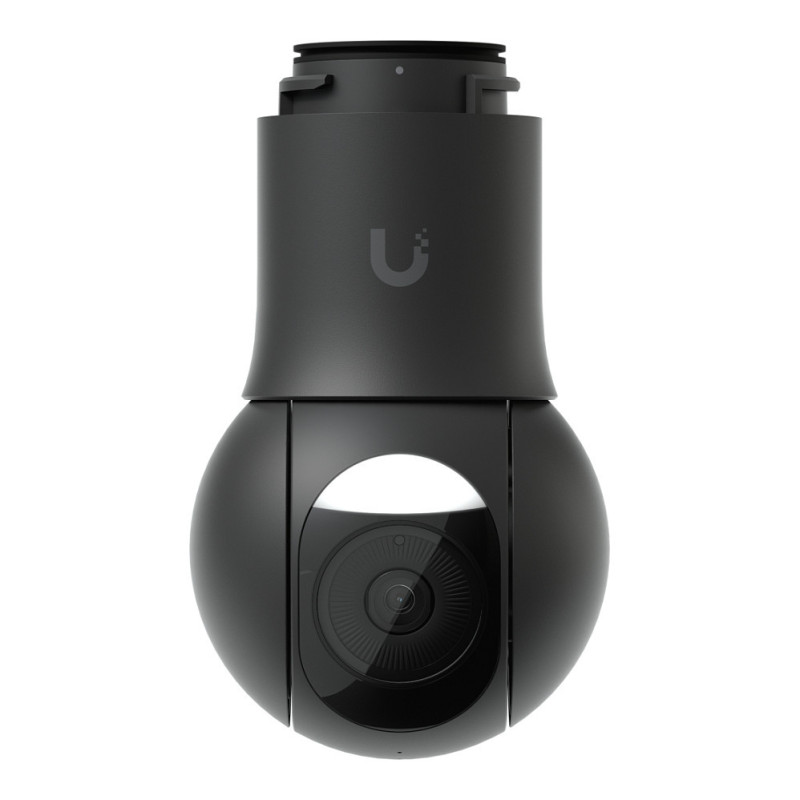

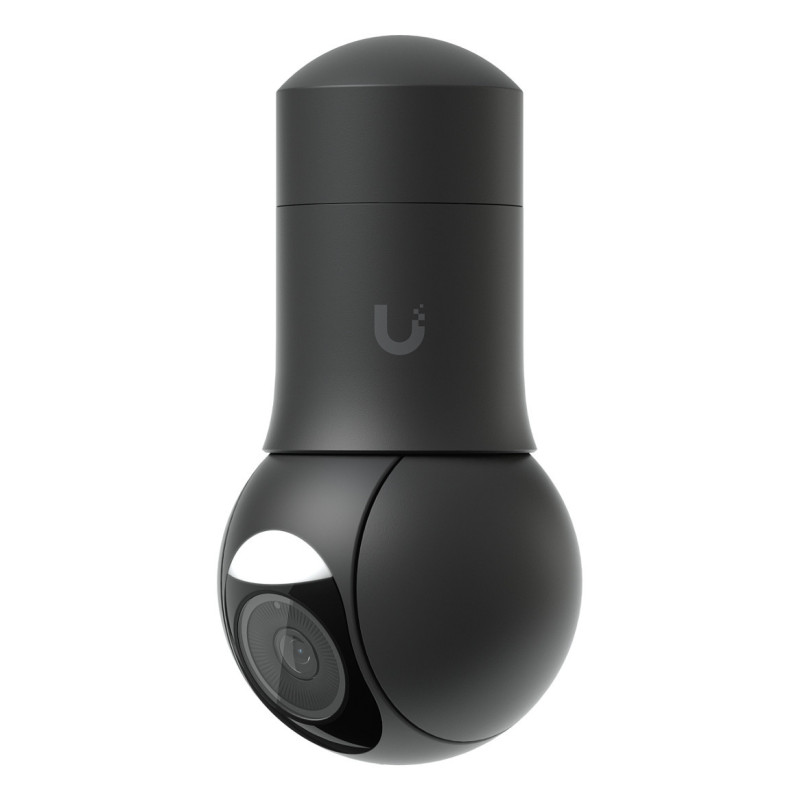

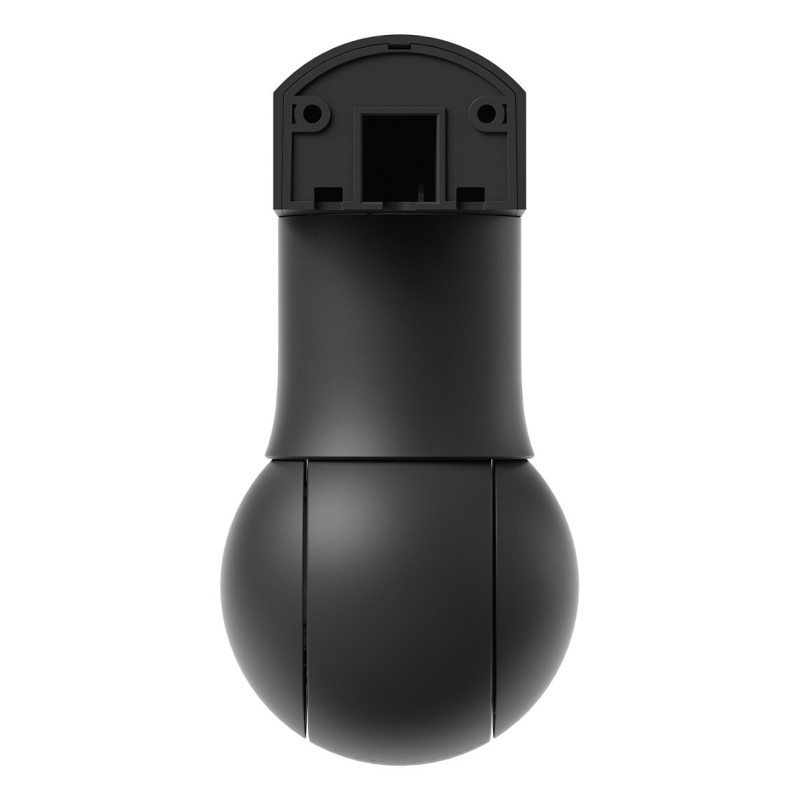

Ubiquiti G5 PTZ

Ubiquiti G5 PTZ. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Wall/Pole, Product colour: Black, Form factor: Dome. Lens viewing angle, horizontal: 99.7, 45.5°, Lens viewing angle, vertical: 51.9, 25.4°, Lens viewing angle, diagonal: 121, 52.4°. Sensor type: CMOS, Optical sensor size: 50.8 / 7 mm (2 / 7"). Optical zoom: 2x, Focal length range: 3.42-6.85

Compact, all-weather camera with ultra-low latency pan-tilt-zoom control and versatile mounting options.

Performance

Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired
Feature: PTZ control
Feature: Day/night mode
Feature: Infrared (IR) cut-off filter
Feature: Built-in light

Design

Form factor: Dome

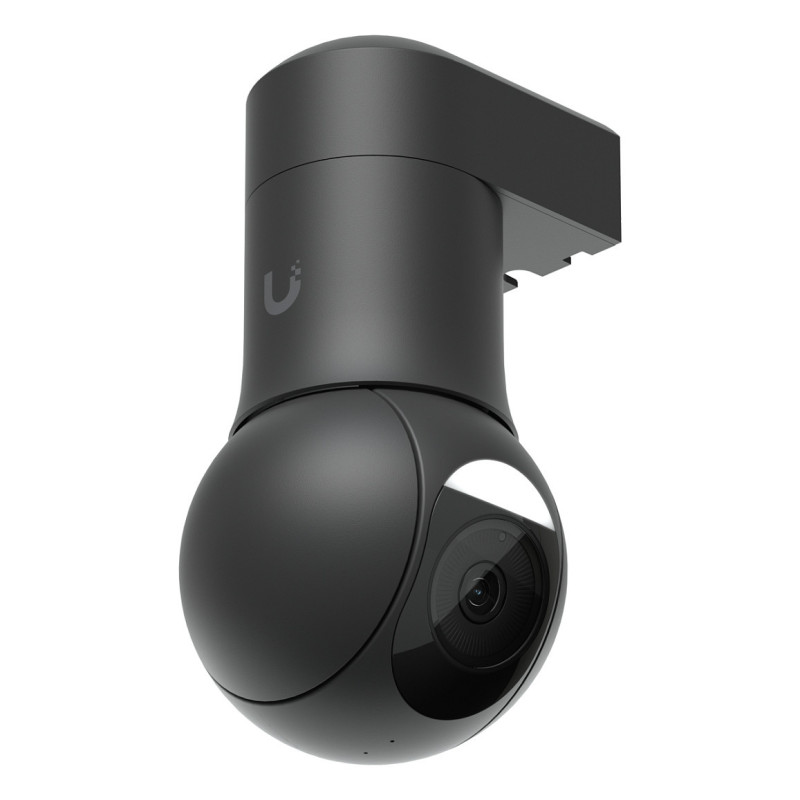

Mounting type: Wall/Pole
Product colour: Black
Housing material: Aluminium, Polycarbonate (PC)
Protection features: Tamper resistant, Weatherproof
International Protection (IP) code: IP66
IK code: IK04
Feature: Weatherproof

Camera

Feature: Camera pan control
Feature: Camera tilt control
Lens viewing angle, horizontal: 99.7, 45.5°
Lens viewing angle, vertical: 51.9, 25.4°
Lens viewing angle, diagonal: 121, 52.4°
Tilt angle range: 0 - 100°
Pan range: 0 - 350°

Image sensor

Number of sensors: 1
Optical sensor size: 50.8 / 7 mm (2 / 7")
Sensor type: CMOS

Lens system

Feature: Zoom capability
Optical zoom: 2x
Focal length range: 3.42-6.85
Maximum aperture number: 2.4
Minimum aperture number: 1.85

Night vision

Feature: Night vision
Night vision distance: 20 m
LED type: IR

Video

Maximum resolution: 2688 x 1512 pixels
Total megapixels: 4 MP
Frame rate: 30 fps

Audio

Feature: Built-in microphone

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet

Ports & interfaces

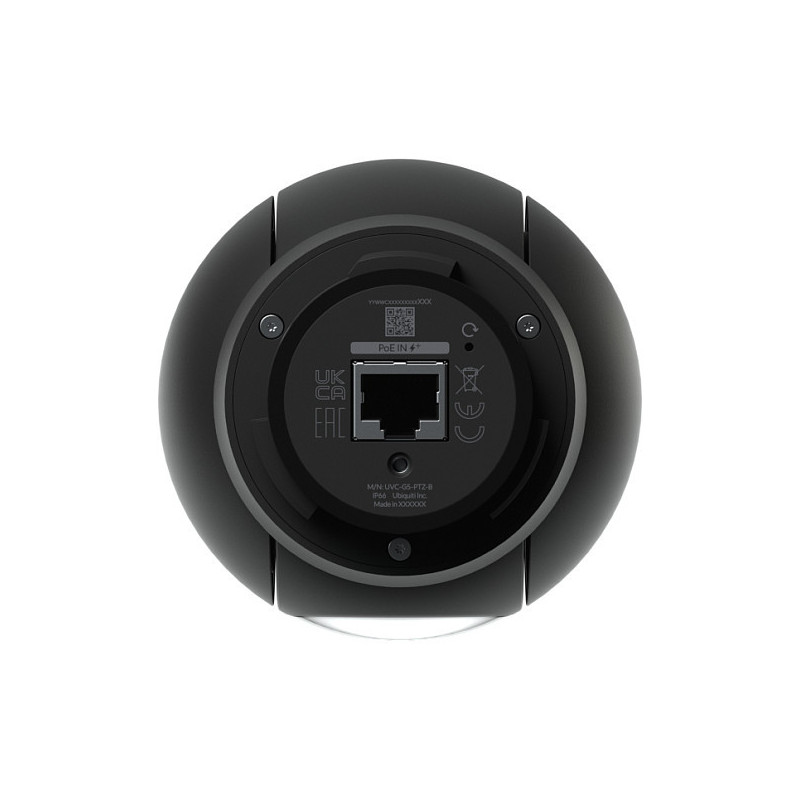

Ethernet LAN (RJ-45) ports: 1

Security

Intelligent Video Surveillance (IVS) system features: Human detection, Pet detection, Vehicle detection

Management features

Feature: Reset button

Power

Power source type: PoE+, DC
Power consumption (max): 14 W
DC output voltage: 37, 57

Operational conditions

Operating temperature (T-T): -30 - 45 °C
Operating relative humidity (H-H): 0 - 90%

Weight & dimensions

Height: 90 mm
Diameter: 15.2 cm
Weight: 580 g

Sustainability

Compliance certificates: CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)

Packaging content

Number of cameras: 1

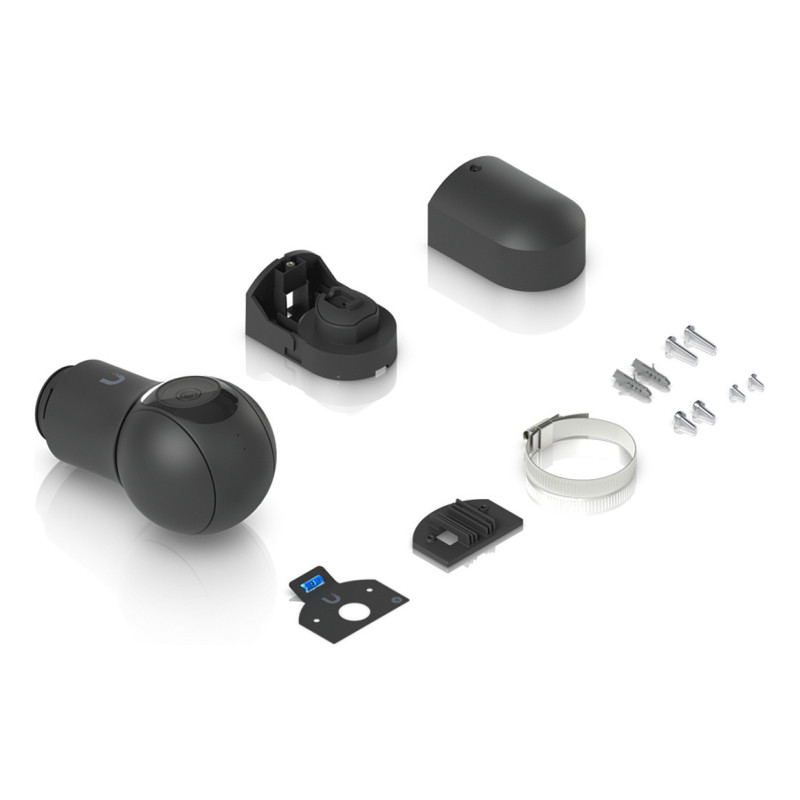

Feature: Mounting kit
Feature: Screws included
