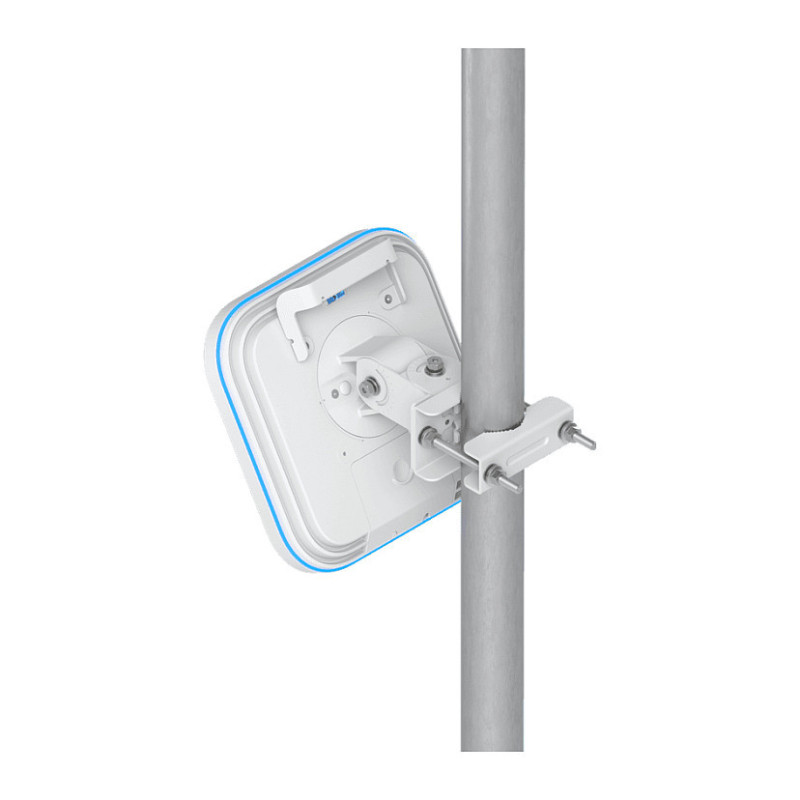

Ubiquiti E7 Campus

Ubiquiti E7 Campus. 2.4 GHz, 5 GHz, 6 GHz, Maximum data transfer rate: 11500 Mbit/s. Security algorithms: PPSK, TLS. Ethernet LAN data rates: 1000,10000 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 44 W

Features

Feature: 2.4 GHz
Feature: 5 GHz
Feature: 6 GHz
Maximum data transfer rate: 11500 Mbit/s
Maximum data transfer rate (2.4 GHz): 688 Mbit/s
Maximum data transfer rate (5 GHz): 8600 Mbit/s
Maximum data transfer rate (6 GHz): 11500 Mbit/s
Ethernet LAN data rates: 1000,10000 Mbit/s
Networking standards: IEEE 802.11be
Coverage area: 465 m²
Feature: MIMO
MIMO type: Multi User MIMO
Spatial streams: 10
Feature: Fast roaming
Feature: Rate limiting
Feature: Wireless meshing
Feature: Band steering
Feature: Dynamic Frequency Selection (DFS)
Maximum Tx power (2.4 GHz): 23 dBmW
Maximum Tx power (5 GHz): 30 dBmW
Maximum Tx power (6 GHz): 30 dBmW

Security

Security algorithms: PPSK, TLS
Feature: Remote Authentication Dial-In User Service (RADIUS)

Ports & interfaces

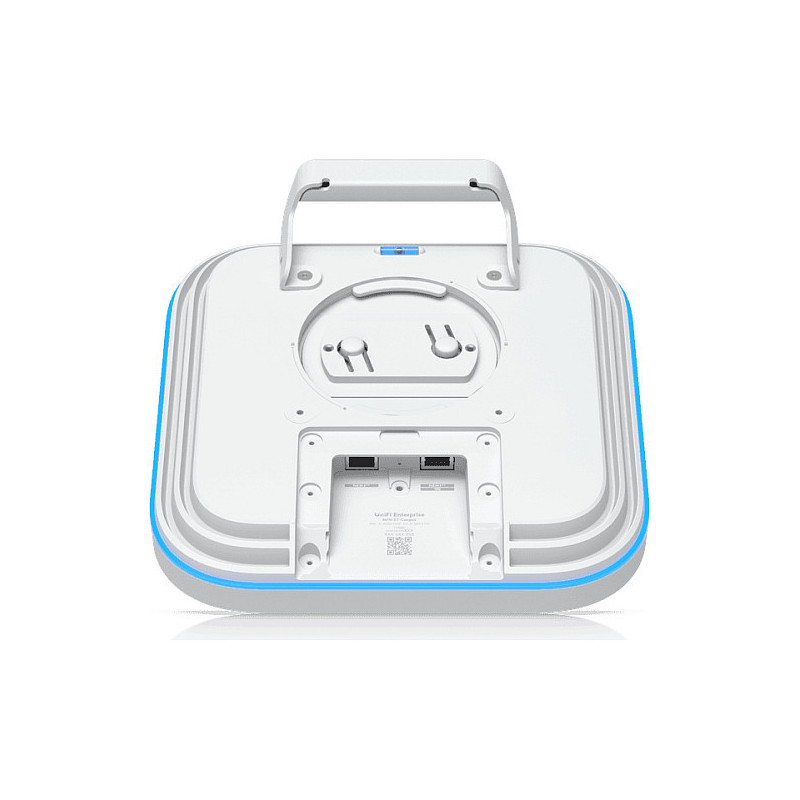

Ethernet LAN (RJ-45) ports: 2

Power

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported: PoE++ (4PPoE)
DC voltage range: 42.5 - 57 V
Power consumption (max): 44 W

Design

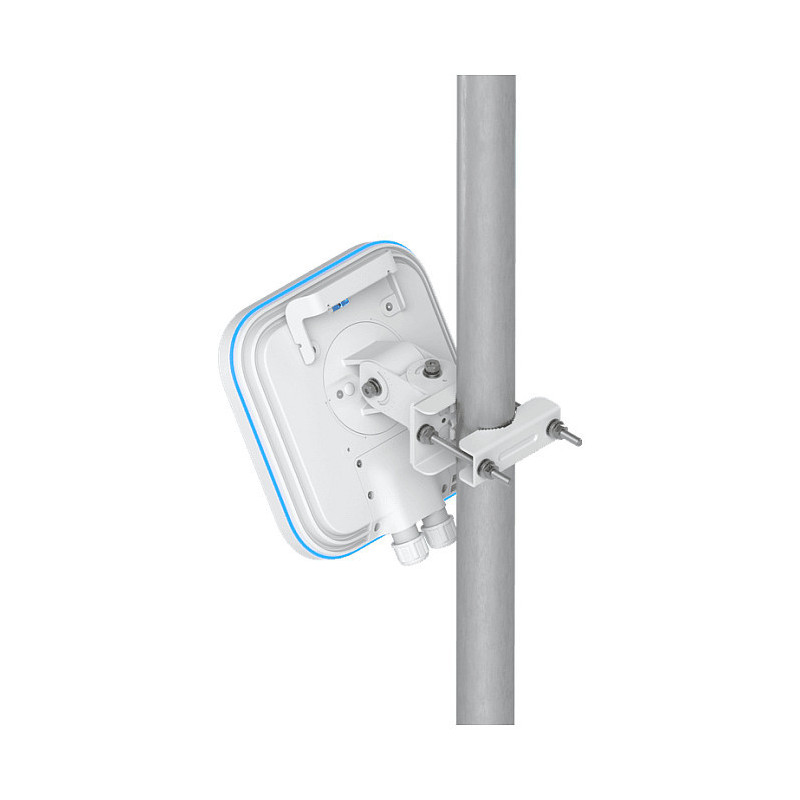

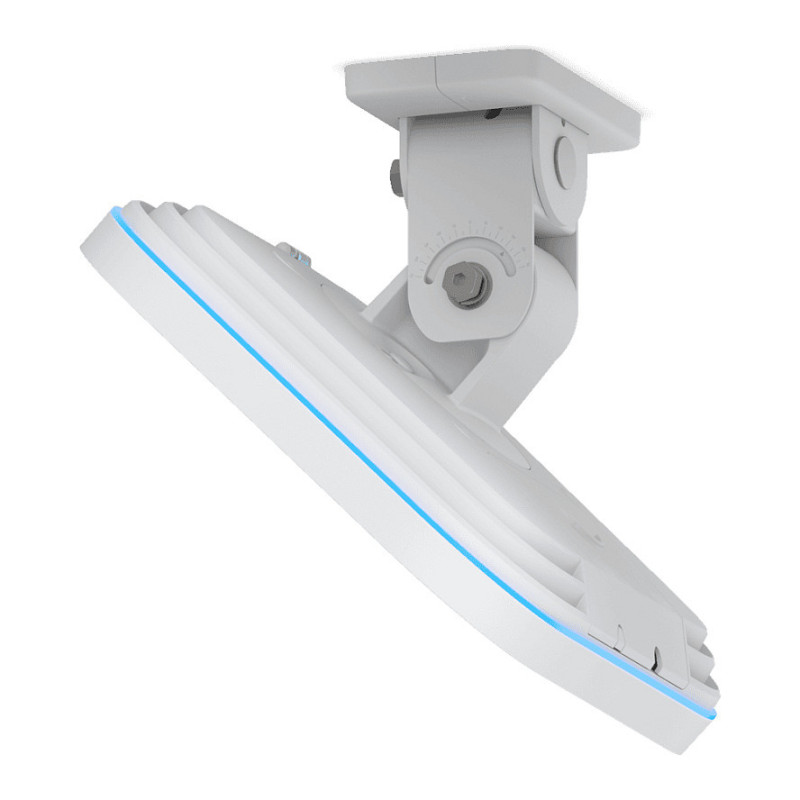

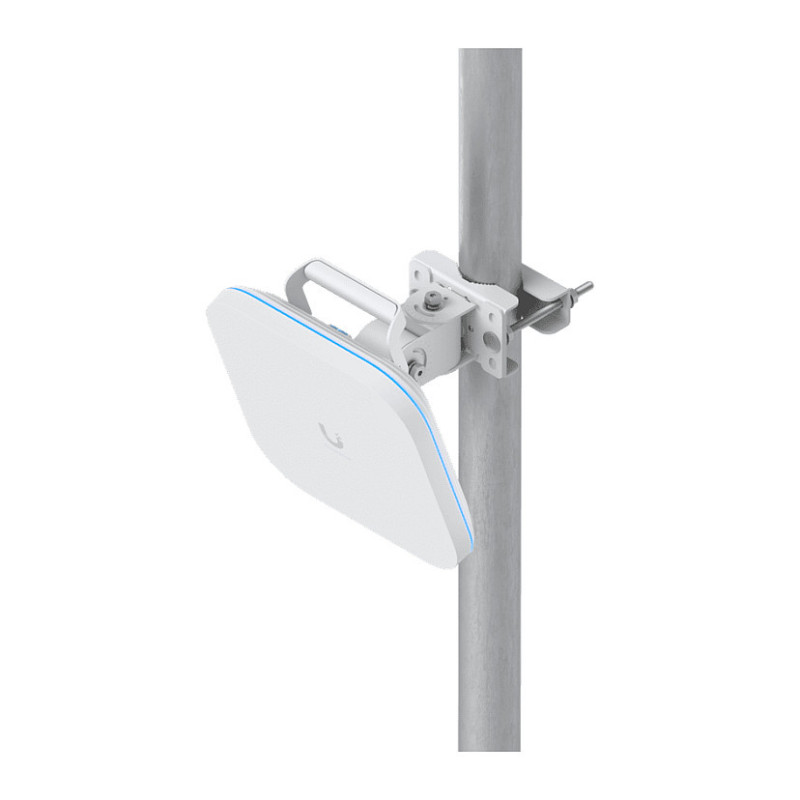

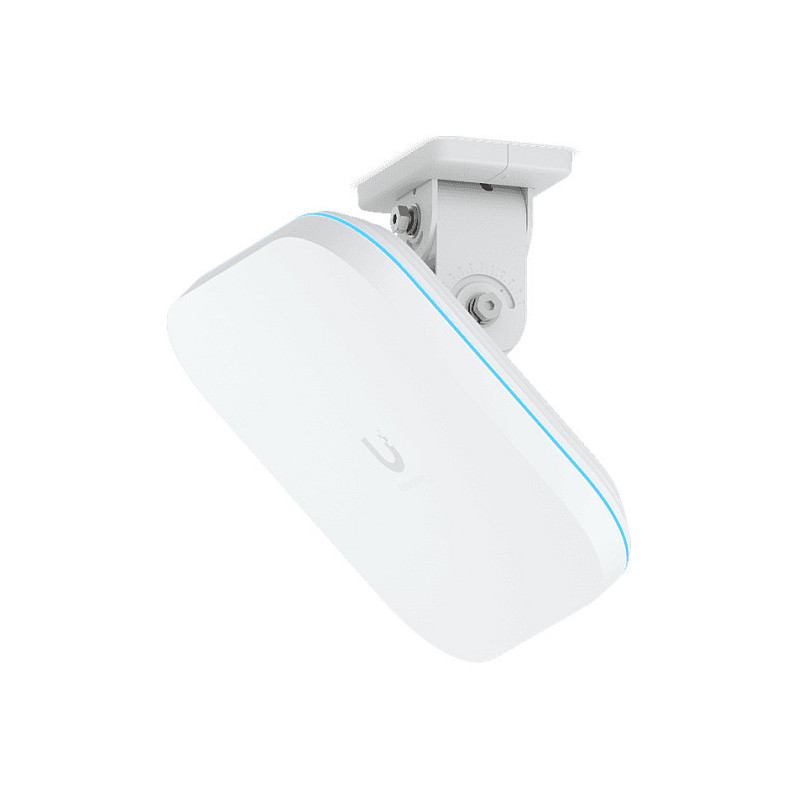

Placement: Ceiling, Pole, Wall
Product colour: White
Housing material: Polycarbonate (PC)
International Protection (IP) code: IPX6, IP67
LED indicators: Yes

Antenna

Antenna type: Internal
Antenna direction type: Directional
Antennas quantity: 1
Antenna gain level (max): 12 dBi

Performance

Mobile operating systems supported: Android, iOS

Certificates

Compliance certificates: National Defense Authorization Act (NDAA)
Certification: FCC, IC US/CA

Weight & dimensions

Width: 250 mm
Depth: 45.5 mm
Height: 250 mm
Weight: 2.2 kg

Operational conditions

Operating relative humidity (H-H): 5 - 95%
Operating temperature (T-T): -30 - 60 °C
