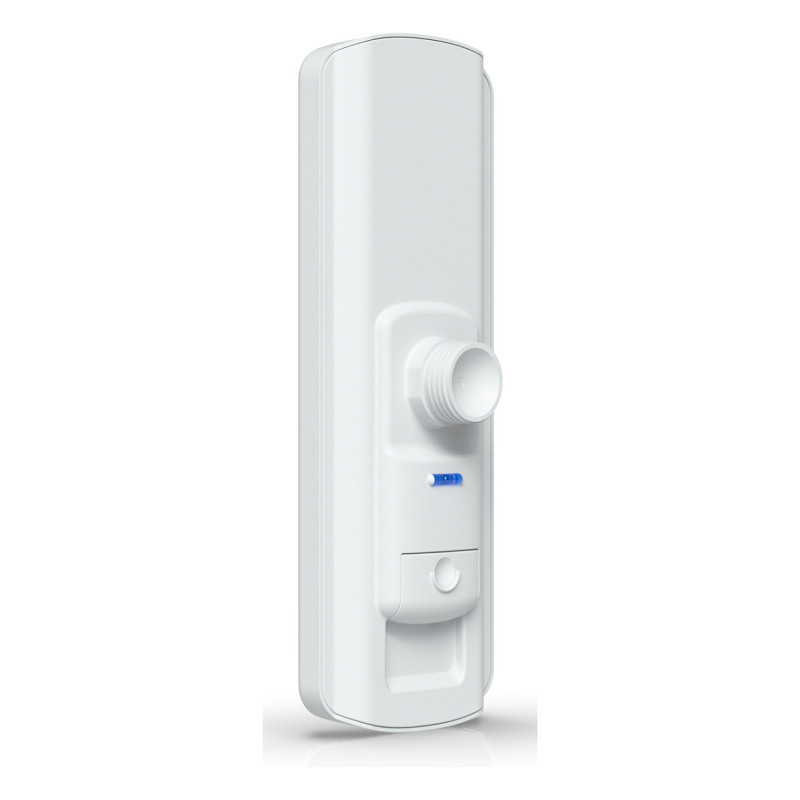

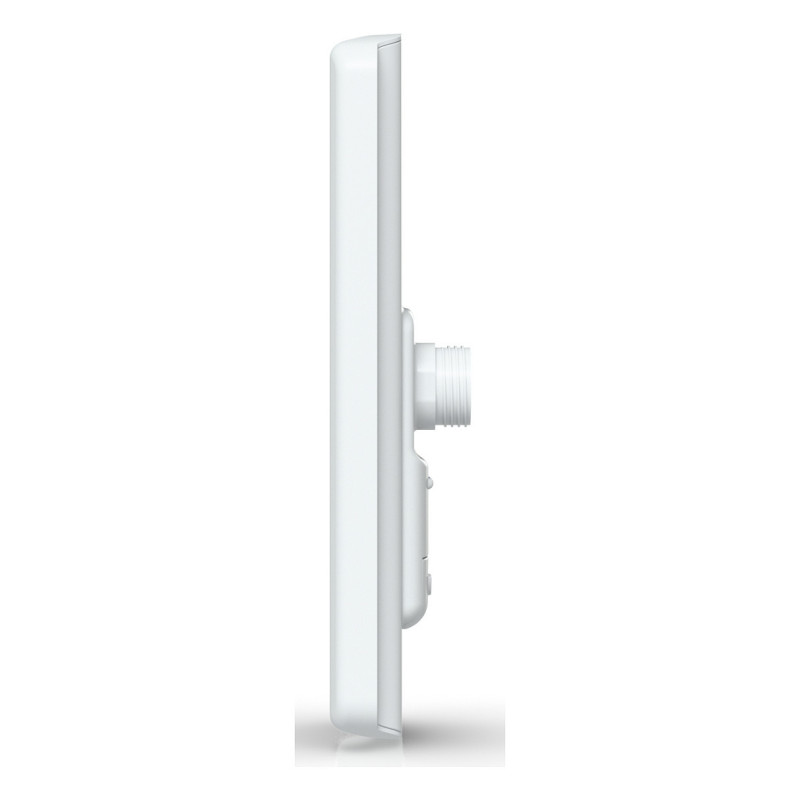

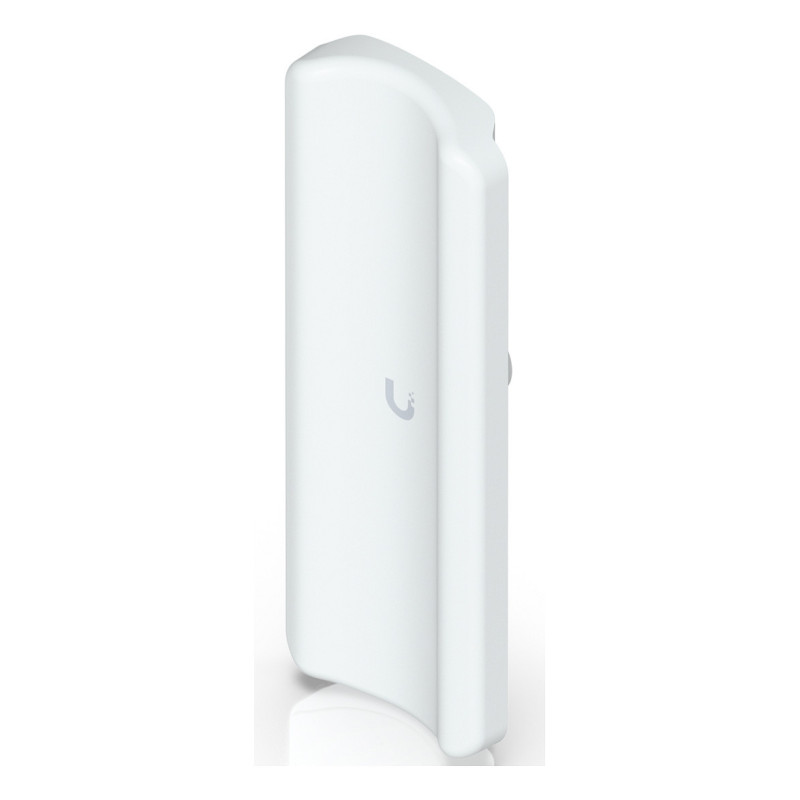

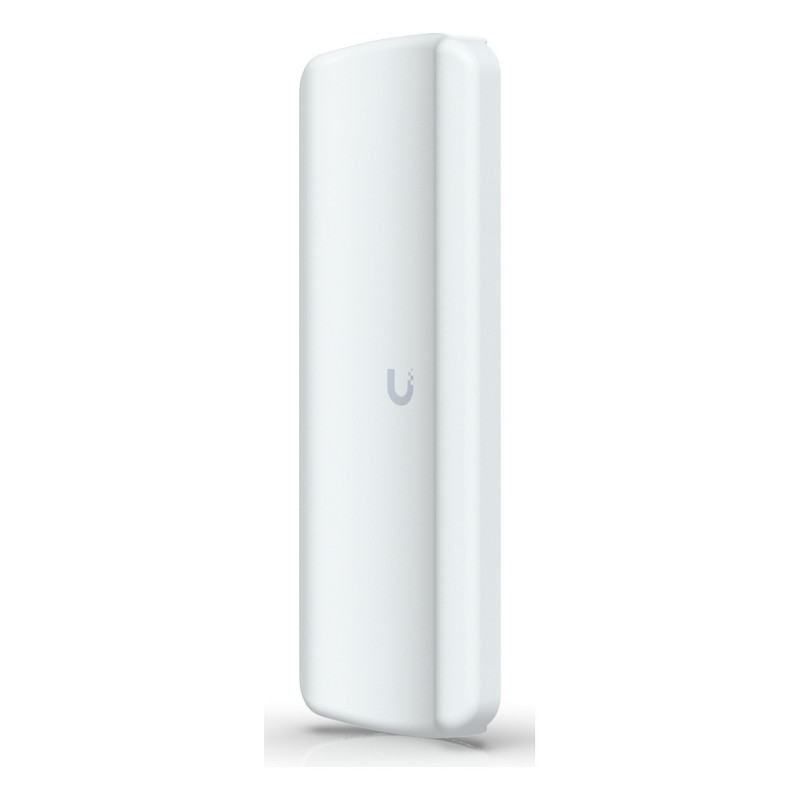

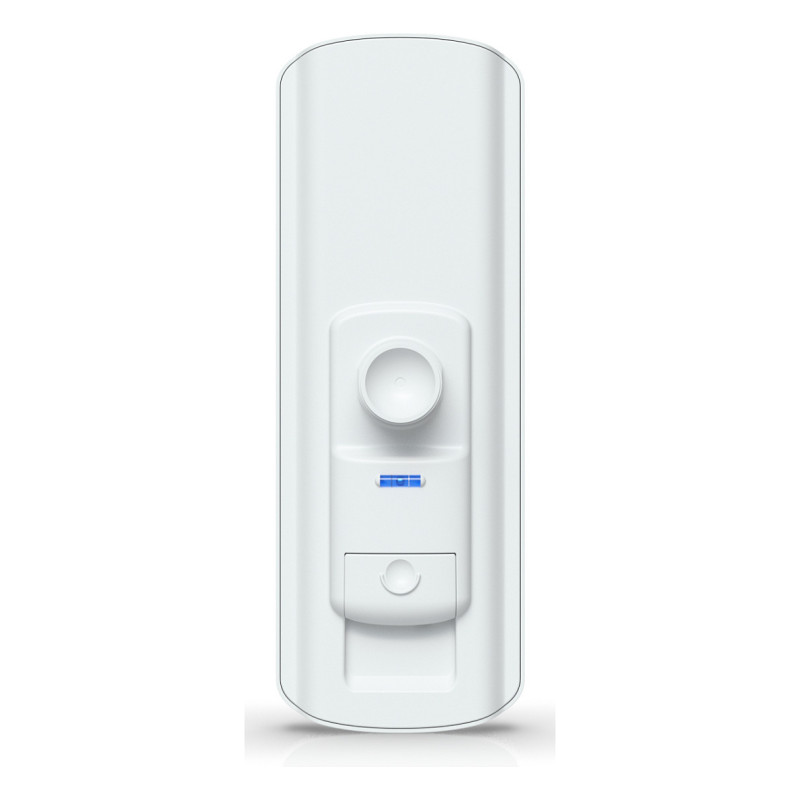

Ubiquiti Device Bridge Pro Sector

Ubiquiti Device Bridge Pro Sector. Maximum data transfer rate: 400 Mbit/s, Maximum transfer distance: 5000 m. Antenna design: Internal, Antenna type: 2x2, Antenna gain level (max): 17 dBi. Wi-Fi band: Single-band (5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), Signal strength: 25 dBm. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 1000 Mbit/s. Connectivity technology: Wired & Wireless

5 GHz point-to-multipoint access point that wirelessly bridges 40+ Device Bridge Pro clients at 5+ km distances.

Data transmission

Maximum data transfer rate: 400 Mbit/s
Maximum transfer distance: 5000 m

Antenna

Antenna design: Internal
Antenna type: 2x2
Antenna gain level (max): 17 dBi

Wireless LAN features

Feature: Wi-Fi
Wi-Fi band: Single-band (5 GHz)
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
Signal strength: 25 dBm

Network

Feature: Ethernet LAN
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN data rates: 1000 Mbit/s

Ports & interfaces

Connectivity technology: Wired & Wireless
Ethernet LAN (RJ-45) ports: 1

Security

Security algorithms: WPA2-AES

Features

Product type: Network bridge
Material: Polycarbonate (PC)
Mounting type: Pole
Product colour: White
LED indicators: LAN, Power
Feature: Reset button
International Protection (IP) code: IPX6

Power

Power source type: PoE
DC input voltage: 42.5 - 57 V
Power consumption (max): 6 W
Feature: Power over Ethernet (PoE)

Operational conditions

Operating temperature (T-T): -40 - 60 °C
Operating temperature (T-T): -40 - 140 °F
Operating relative humidity (H-H): 5 - 95%

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), Industry Canada (IC)

Weight & dimensions

Width: 129.6 mm
Depth: 71.4 mm
Height: 360.9 mm
Weight: 782 g

Packaging content

Feature: Manual

Packaging data

Quantity per pack: 1 pc(s)
