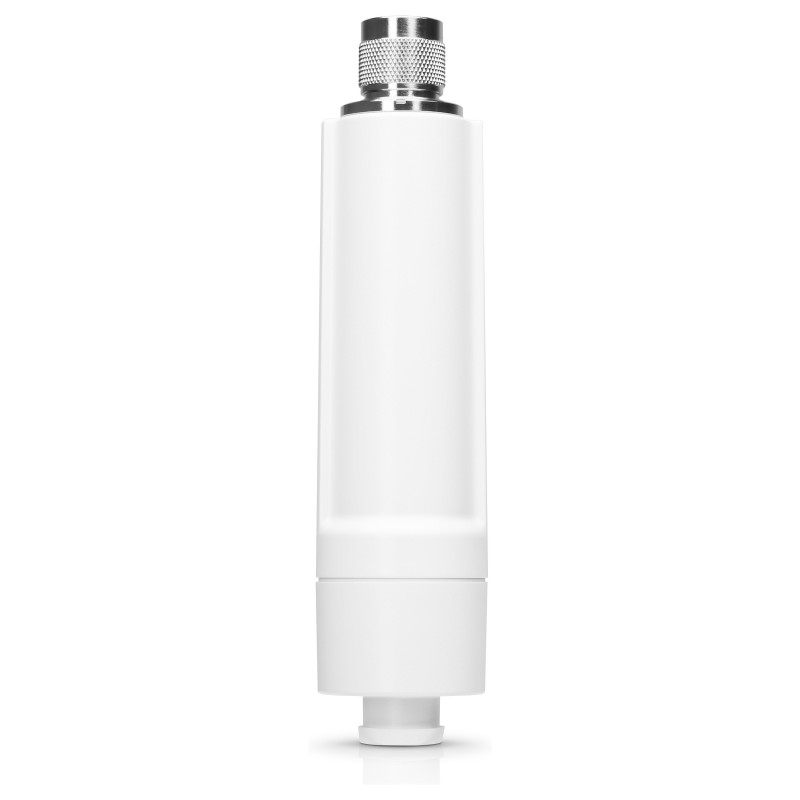

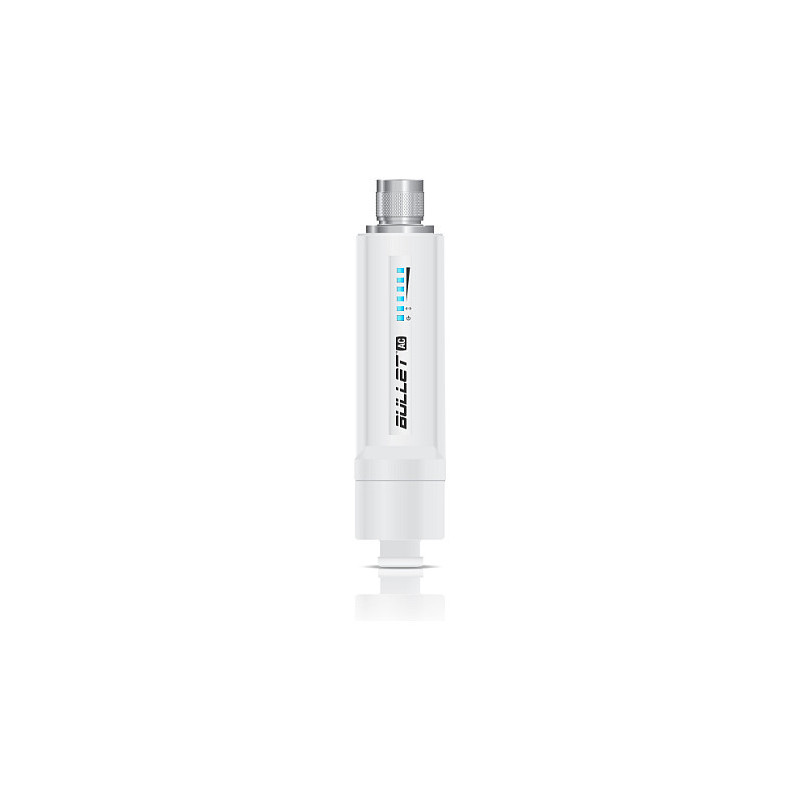

Ubiquiti B-DB-AC wireless access point

Ubiquiti B-DB-AC. 2.4 GHz, 5 GHz, Maximum data transfer rate: 300 Mbit/s, Ethernet LAN data rates: 1000 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 8 W

Fully Integrated Radio
Launched in 2008, the Bullet™ design helped transform the WISP industry. Its unique design upgrades link performance and reduces deployment complexity.

Carrier-Class Throughput
The Bullet™AC delivers up to 300+ Mbps real TCP/IP throughput.

Durability to Last Outdoors
The robust, weatherproof case withstands harsh outdoor conditions.

Performance Breakthrough
airMAX® ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance.

Advanced Software Technology
Ubiquiti's airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.

Plug and Play Integration

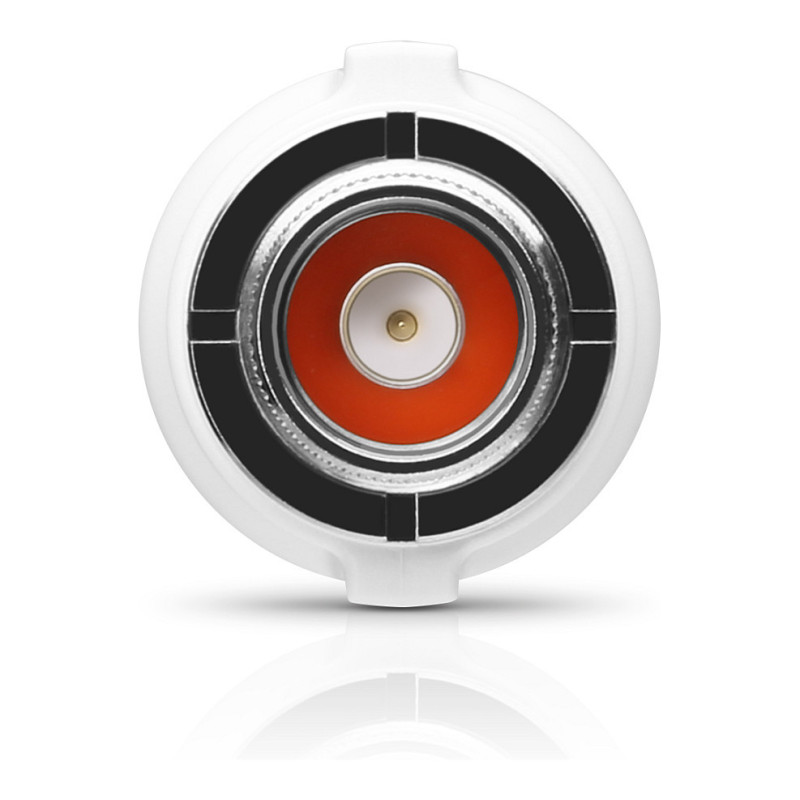

Connect the Bullet™AC to any existing antenna with an N-type female connector to create an airMAX® basestation.

Features

Feature: 2.4 GHz
Feature: 5 GHz
Maximum data transfer rate: 300 Mbit/s
Ethernet LAN data rates: 1000 Mbit/s
Throughput data rate: 300 Mbit/s
Channel bandwidth: 80 MHz
Feature: Quality of Service (QoS) support

Ports & interfaces

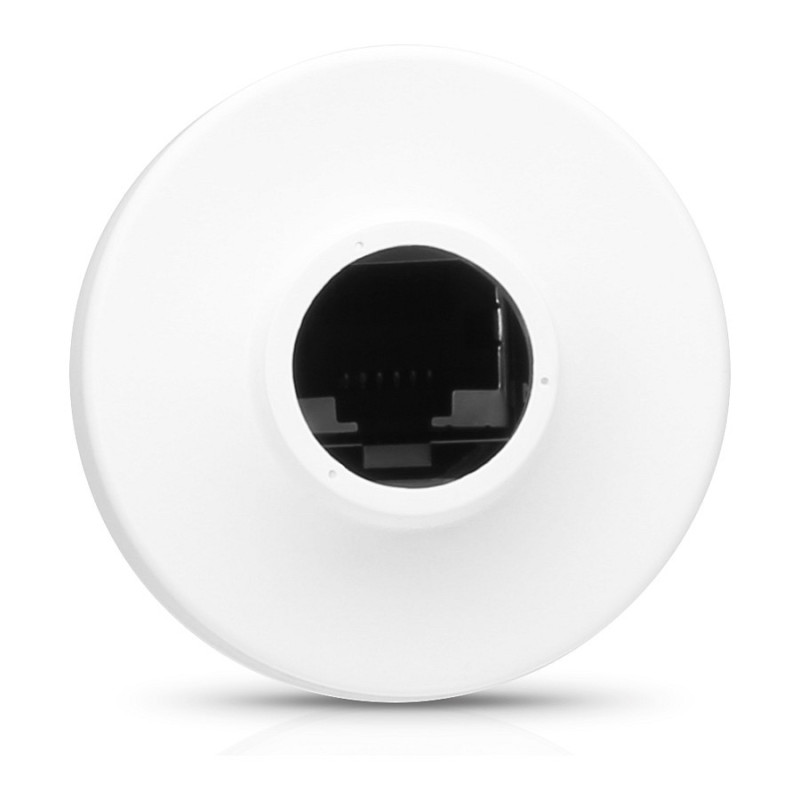

Ethernet LAN (RJ-45) ports: 1

Power

Feature: Power over Ethernet (PoE)
AC input voltage: 24 V
Input current: 0.5 A
Power consumption (max): 8 W

Design

Product colour: White
LED indicators: Network, Power, Signal strength

Antenna

Antenna connector type: N-type
Number of connectors: 1

Performance

Operating system installed: AirOS

Weight & dimensions

Width: 190 mm
Height: 46 mm
Weight: 196 g

Operational conditions

Operating relative humidity (H-H): 5 - 95%
Operating temperature (T-T): -40 - 70 °C
