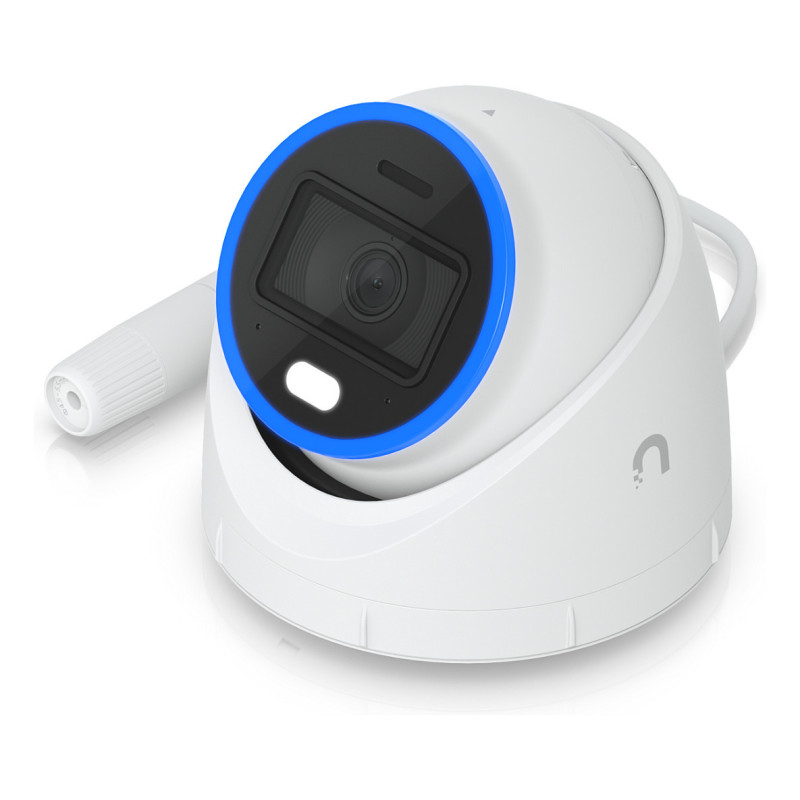

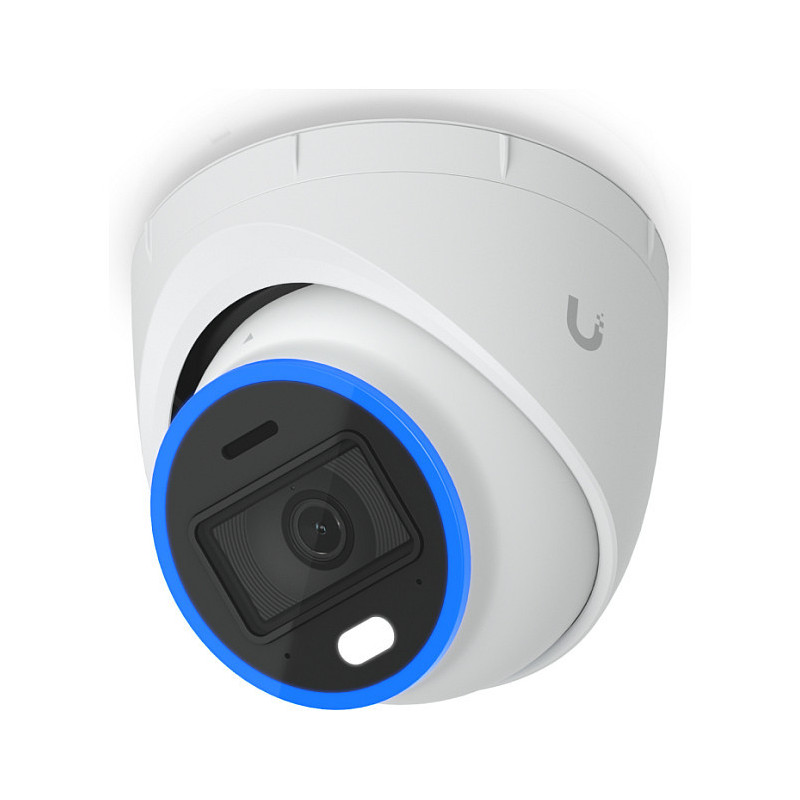

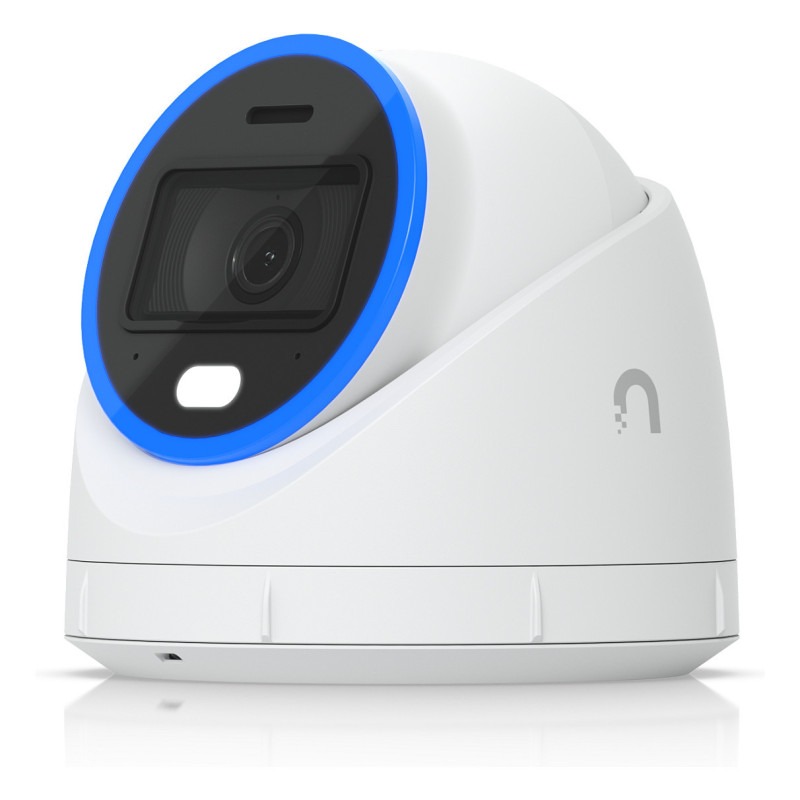

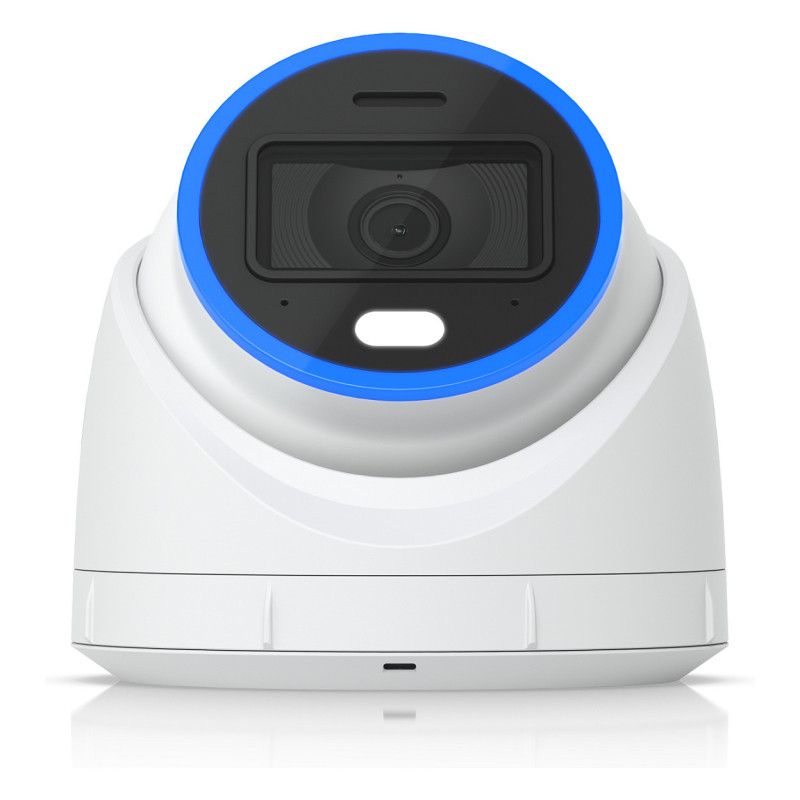

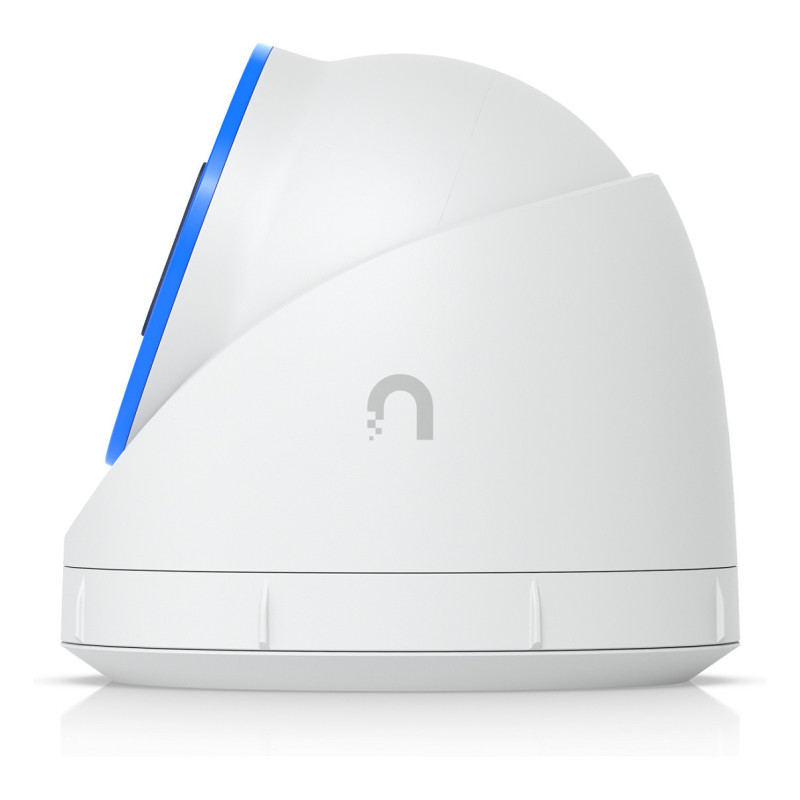

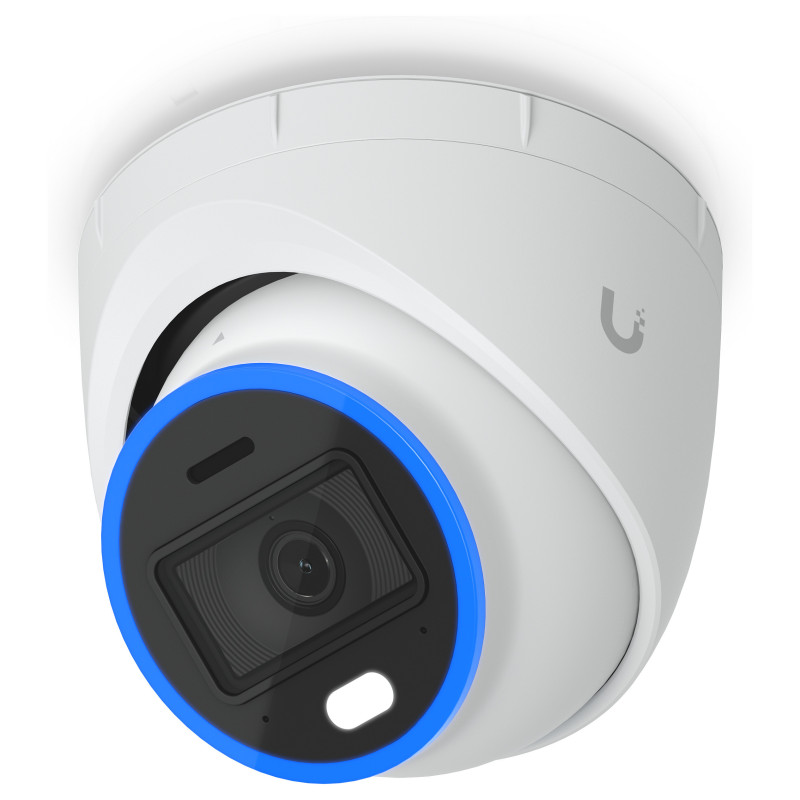

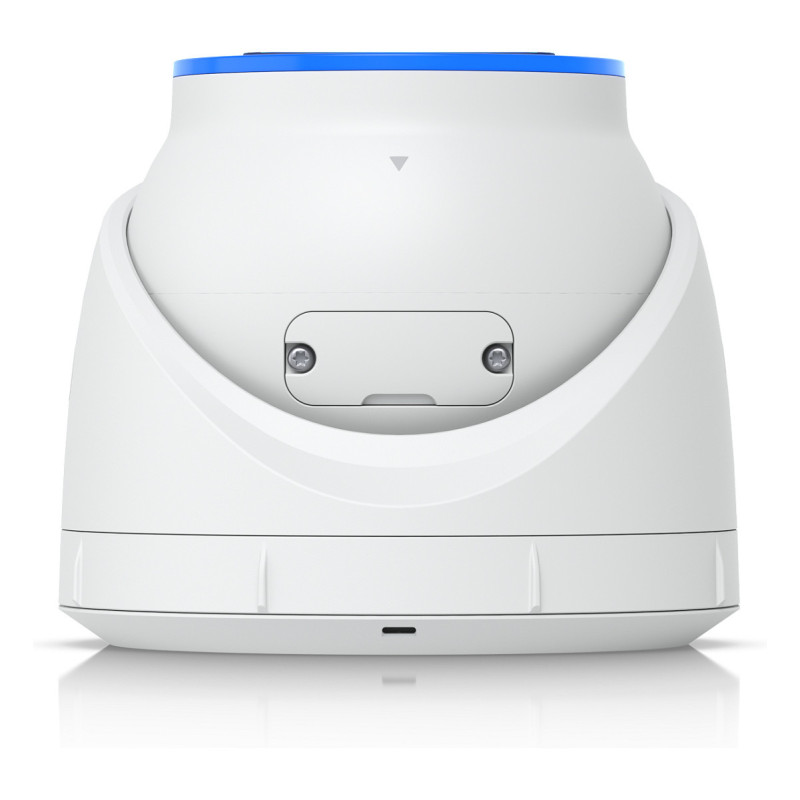

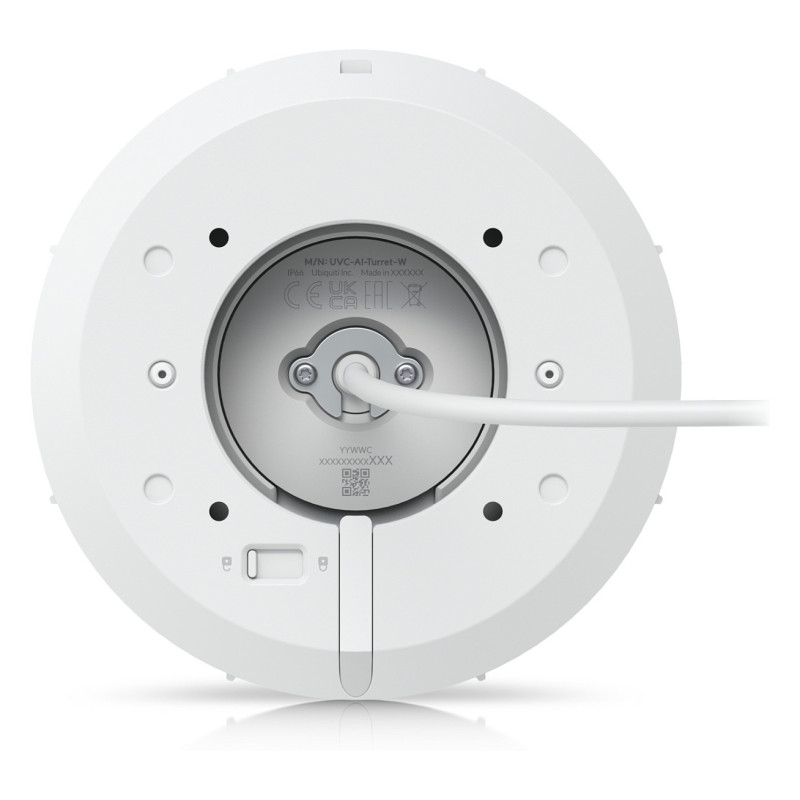

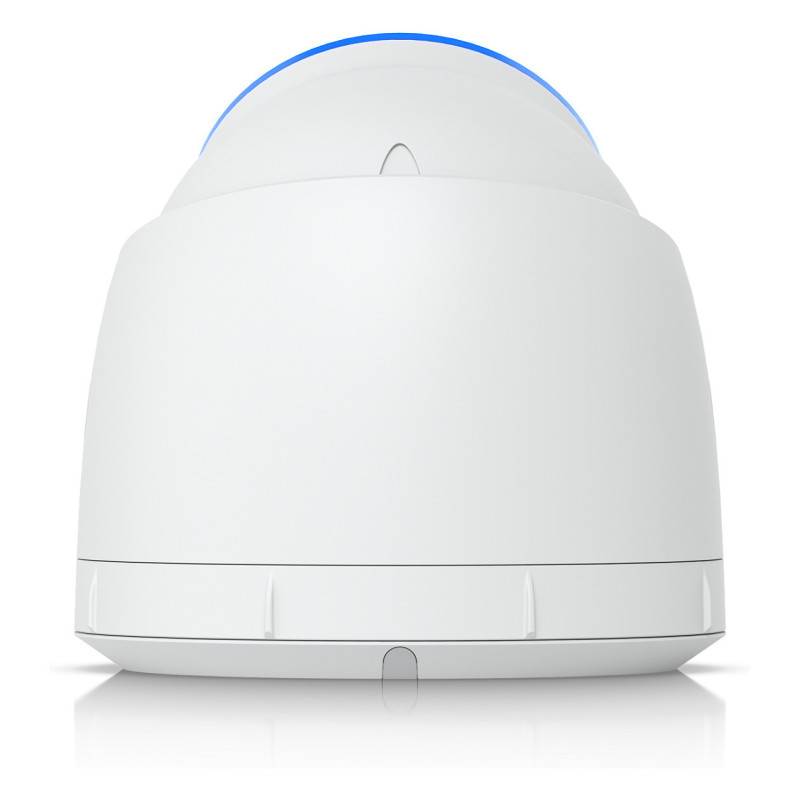

Ubiquiti AI Turret

Ubiquiti AI Turret. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Turret. Angle of rotation: 360°, Lens viewing angle, horizontal: 109.9°, Lens viewing angle, vertical: 56.7°. Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Night vision distance: 40 m, LED type: IR

All-weather, vandal-proof 4K PoE+ turret camera with enhanced AI capabilities and IR and visible LEDs for night vision.

Performance

Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired
Feature: PTZ control
Feature: Infrared (IR) cut-off filter
Feature: Remote viewing
Feature: Built-in light
Luminous flux: 400 lm
Processor model: ARM Cortex-A53
Feature: Built-in processor

Design

Form factor: Turret
Mounting type: Ceiling/wall
Product colour: White
LED indicators: Yes
Housing material: Aluminium, Polycarbonate (PC)
Protection features: Vandal proof
International Protection (IP) code: IP66
IK code: IK08
Feature: Weatherproof

Camera

Feature: Camera pan control
Feature: Camera tilt control
Angle of rotation: 360°
Lens viewing angle, horizontal: 109.9°
Lens viewing angle, vertical: 56.7°
Lens viewing angle, diagonal: 134.1°
Tilt angle range: 0 - 70°
Pan range: 0 - 360°

Image sensor

Optical sensor size: 25.4 / 1.8 mm (1 / 1.8")

Lens system

Number of lenses: 1

Night vision

Feature: Night vision
Night vision distance: 40 m
LED type: IR

Video

Maximum resolution: 3840 x 2160 pixels
Total megapixels: 8 MP
Supported video modes: 2160p
Frame rate: 30 fps
Image quality adjustment: Brightness, Colour depth, Contrast, DNR, Sharpness, HDR
Feature: Privacy masking
Feature: Text caption overlay

Audio

Feature: Built-in speaker(s)
Audio system: 2-way
Feature: Built-in microphone

Network

Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet

Storage

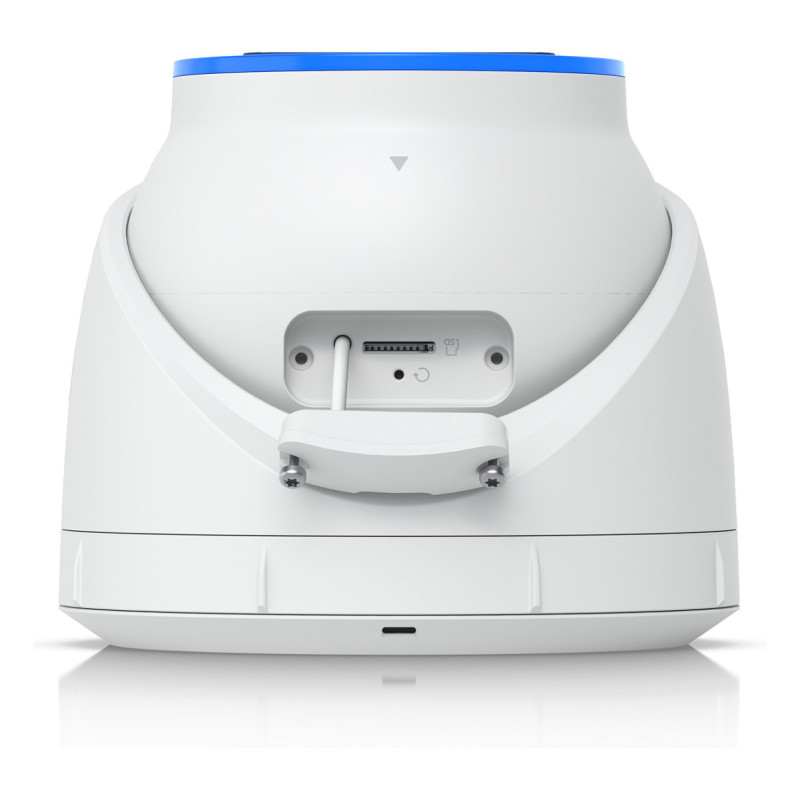

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash)

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1

Security

Feature: Light sensor

Management features

Feature: Web-based management
Feature: Reset button
Feature: Smartphone/tablet remote support

Power

Power source type: DC, PoE
Power consumption (max): 20 W
DC output voltage: 42.5, 57

Operational conditions

Operating temperature (T-T): -30 - 50 °C
Operating relative humidity (H-H): 10 - 90%

System requirements

Mobile operating systems supported: Android, iOS

Weight & dimensions

Height: 111 mm
Diameter: 11.8 cm
Weight: 990 g
Cable length: 0.3 m

Features

Feature: License plate recognition

Sustainability

Compliance certificates: CE, Federal Communications Commission (FCC), Industry Canada (IC)

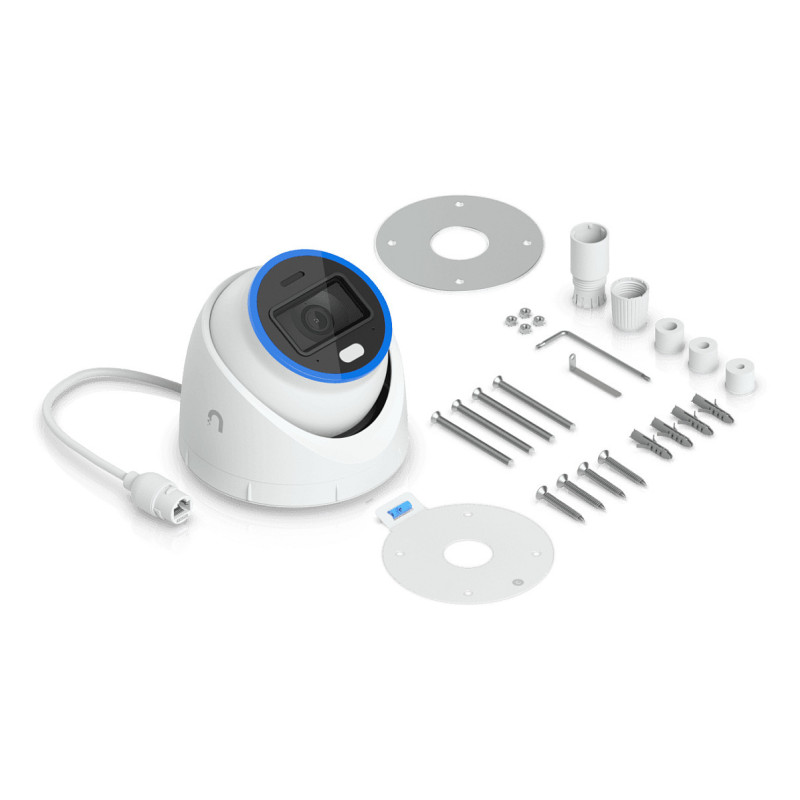

Packaging content

Number of cameras: 1
Feature: Mounting kit
Feature: Screws included
