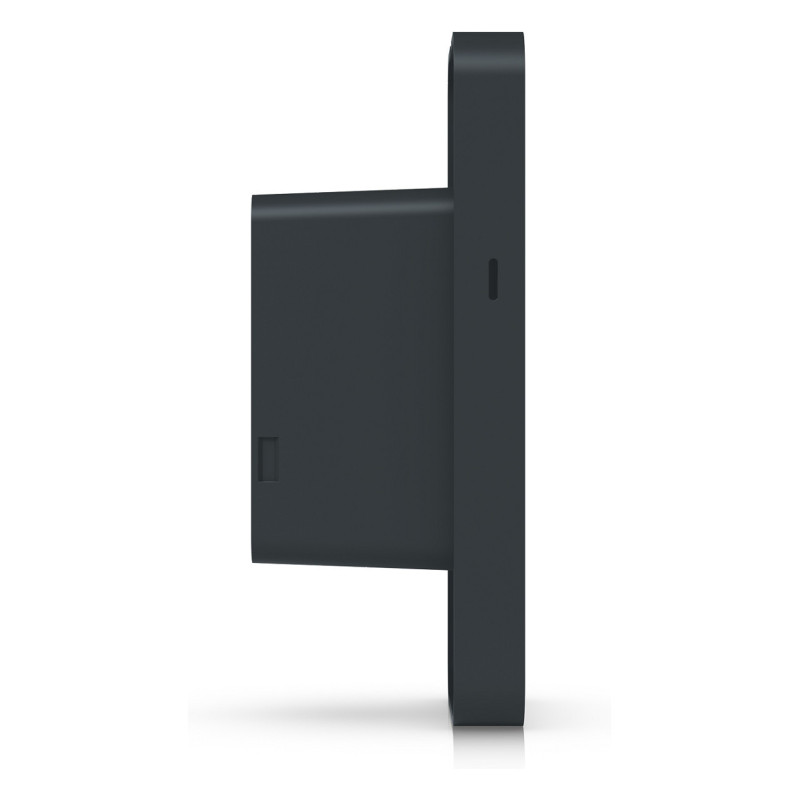

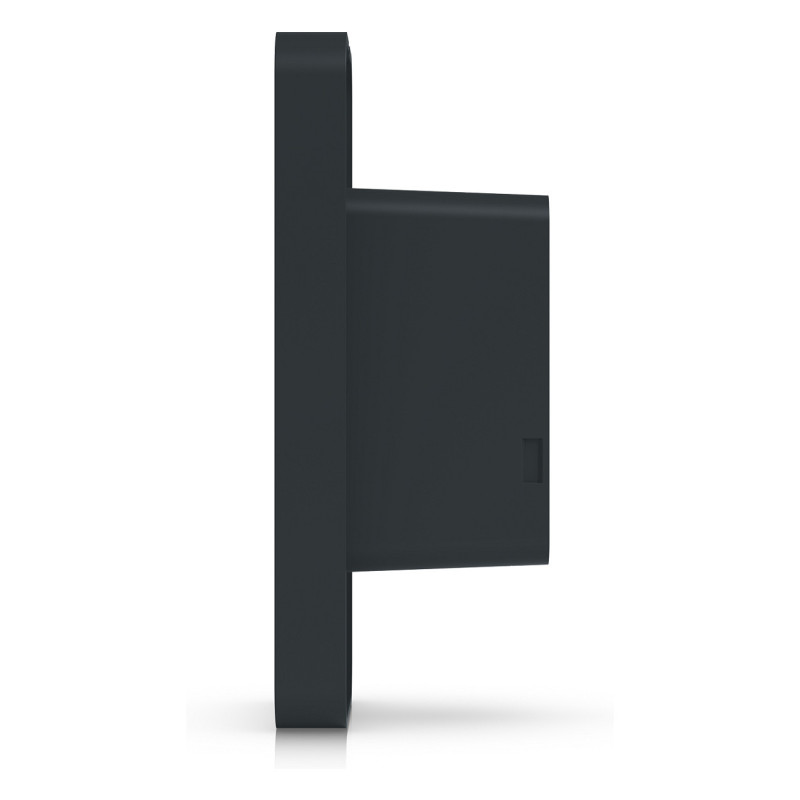

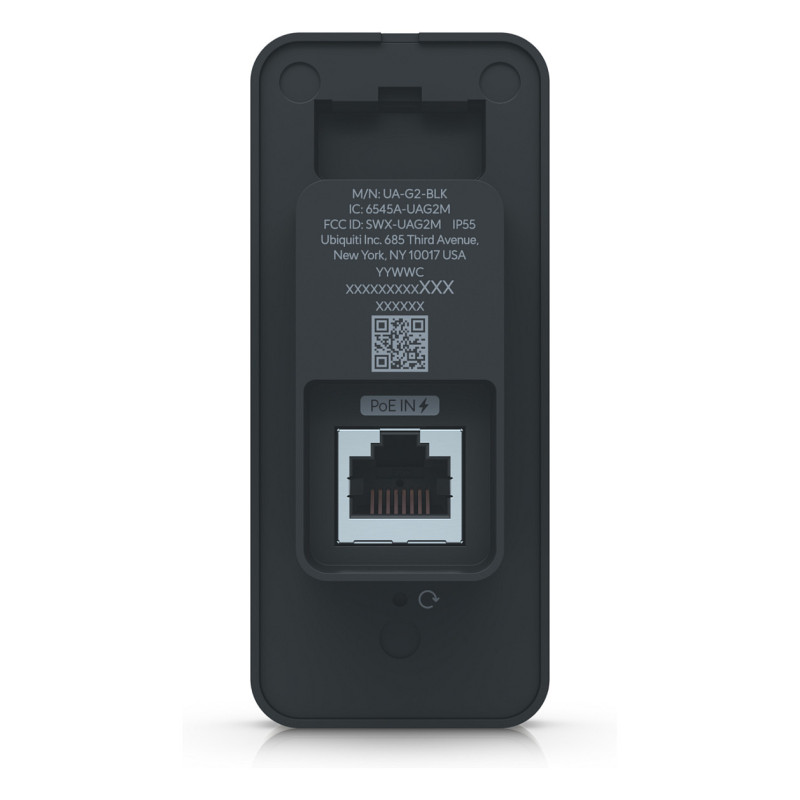

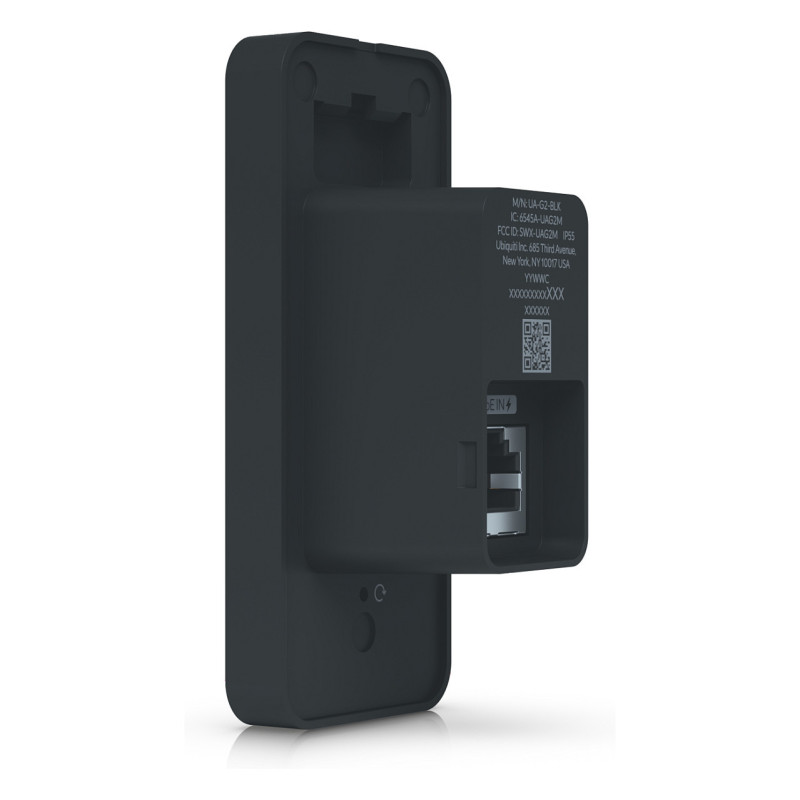

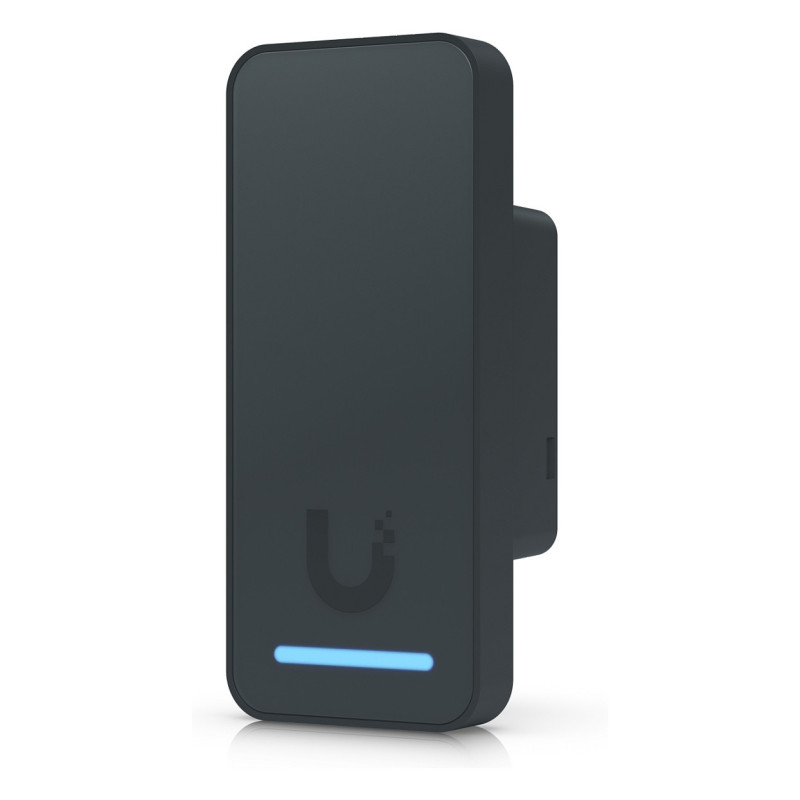

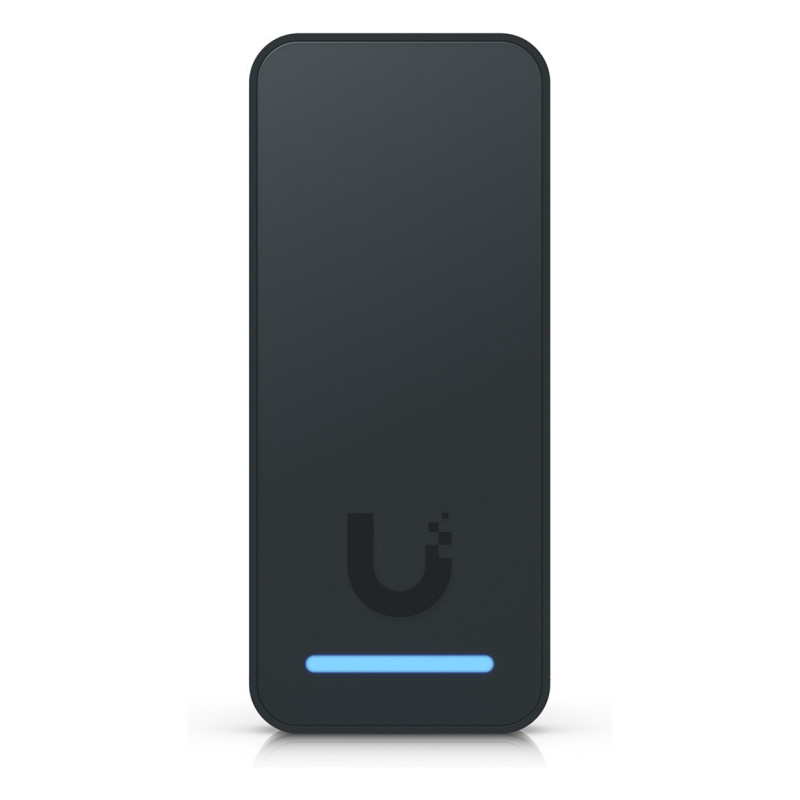

Ubiquiti Access Reader G2

Ubiquiti Access Reader G2. Speaker power: 0.7 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power consumption (max): 5 W, DC voltage range: 48 V. Width: 40 mm, Depth: 36.5 mm, Height: 93 mm

Compact, second-generation NFC card reader and request-to-exit device that supports hand-wave door unlocking.

Technical details

Type: Basic access control reader
Authentication type: Access chip/card
LED indicators: Status
Feature: Access chip/card reader
Compliance certificates: CE, Federal Communications Commission (FCC)
Product colour: Black
Housing material: Glass, Polycarbonate (PC)
International Protection (IP) code: IP55

Performance

Feature: Built-in speaker(s)
Number of speakers: 1
Speaker power: 0.7 W

Ports & interfaces

Feature: Bluetooth
Bluetooth version: 4.1
Feature: Near Field Communication (NFC)
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000 Mbit/s

Power

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity: 1
Power consumption (max): 5 W
DC voltage range: 48 V

Weight & dimensions

Width: 40 mm
Depth: 36.5 mm
Height: 93 mm
Weight: 82 g

Packaging content

Feature: Mounting bracket(s) included

Operational conditions

Operating temperature (T-T): -30 - 45 °C
Operating relative humidity (H-H): 5 - 90%

Sustainability

Feature: Sustainability compliance
