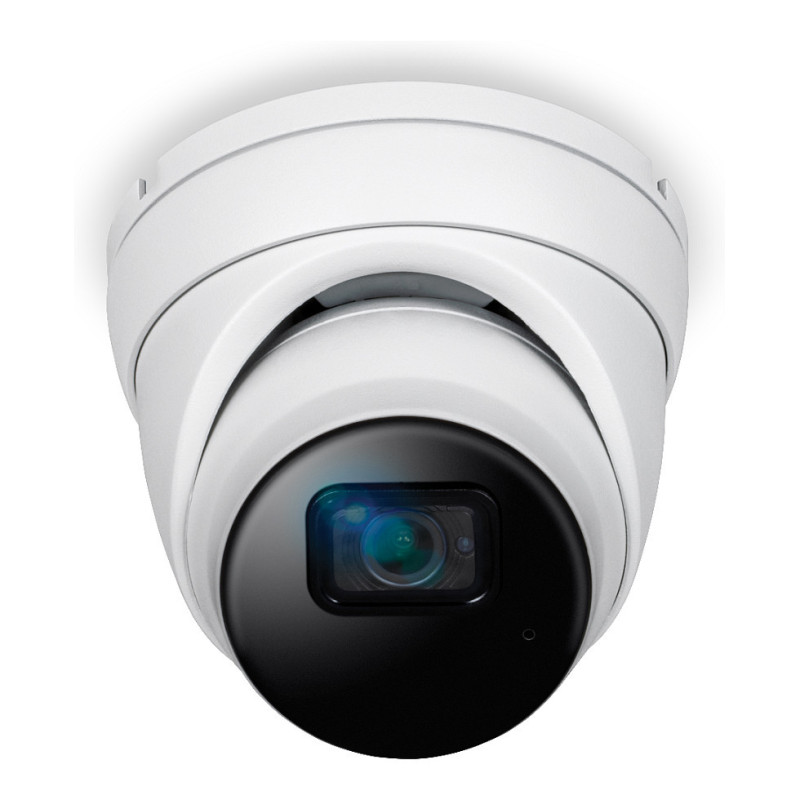

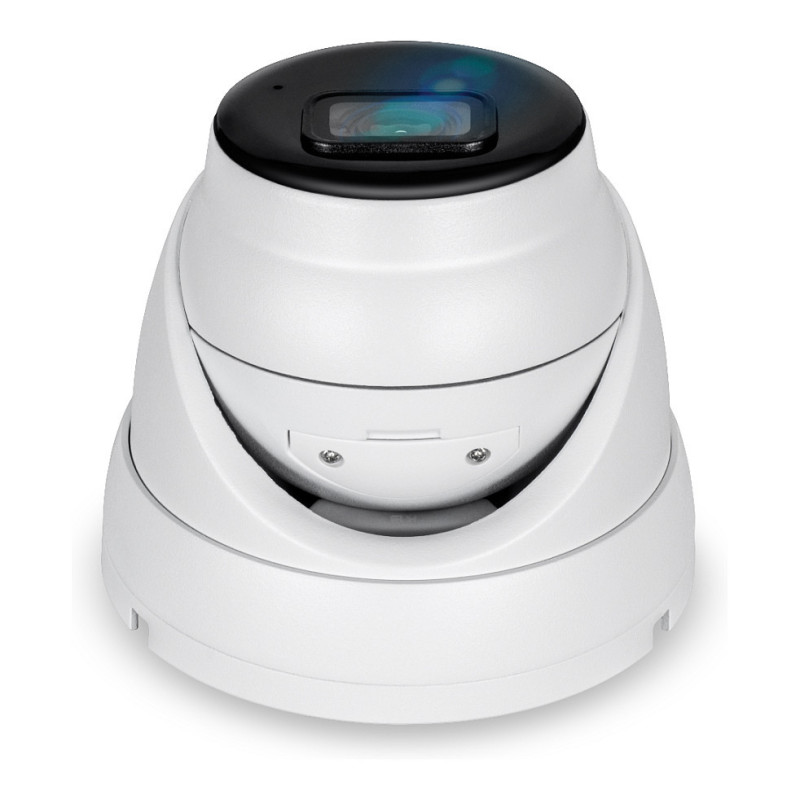

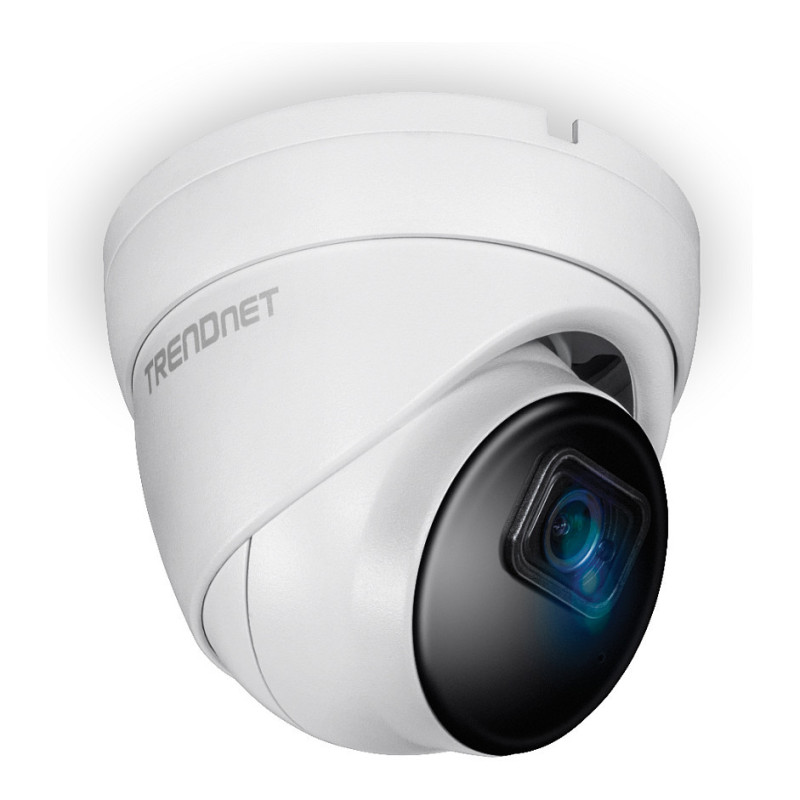

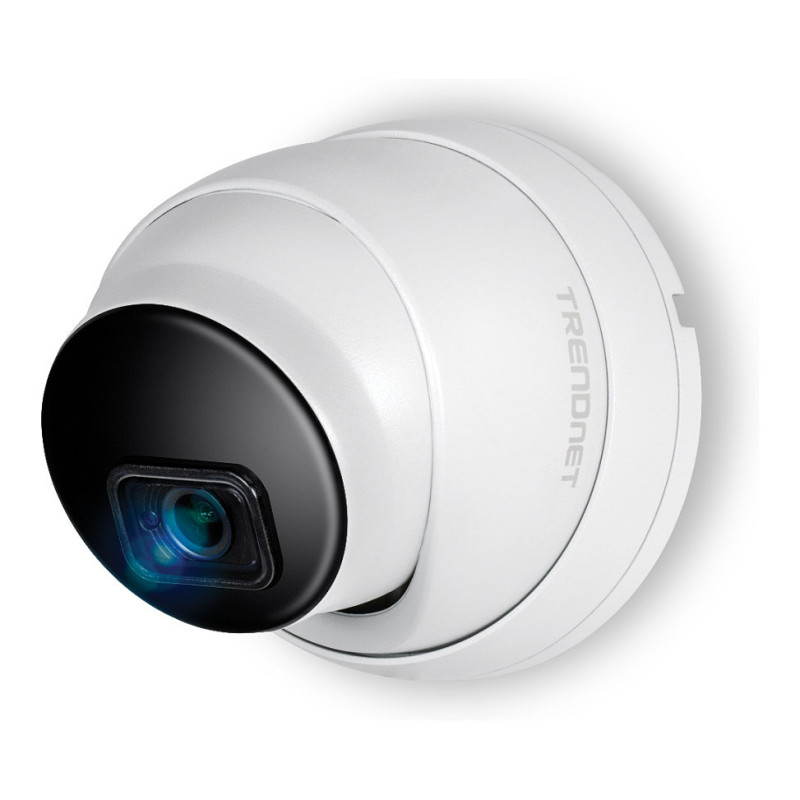

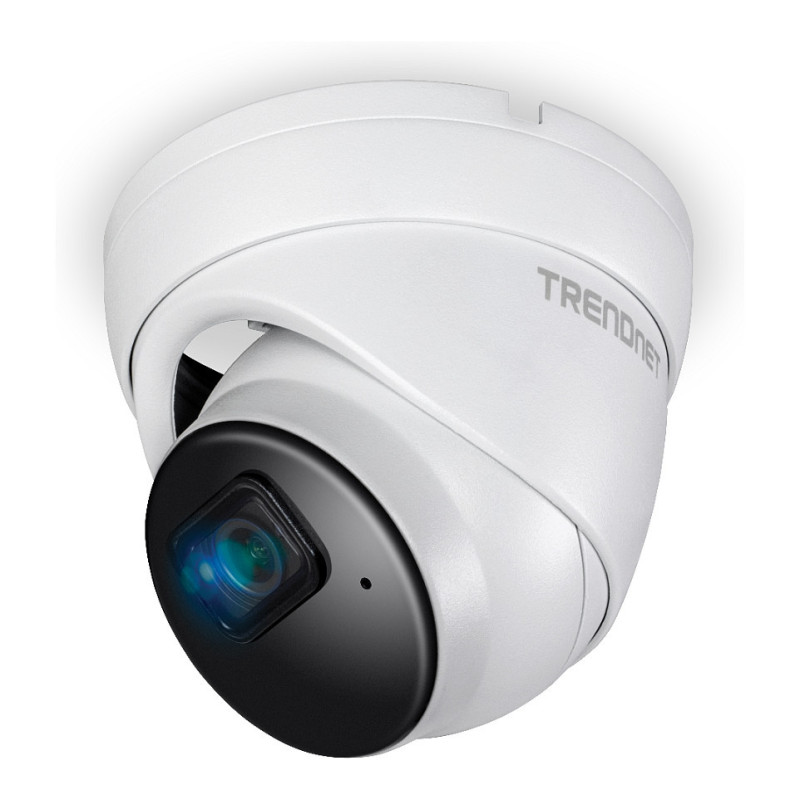

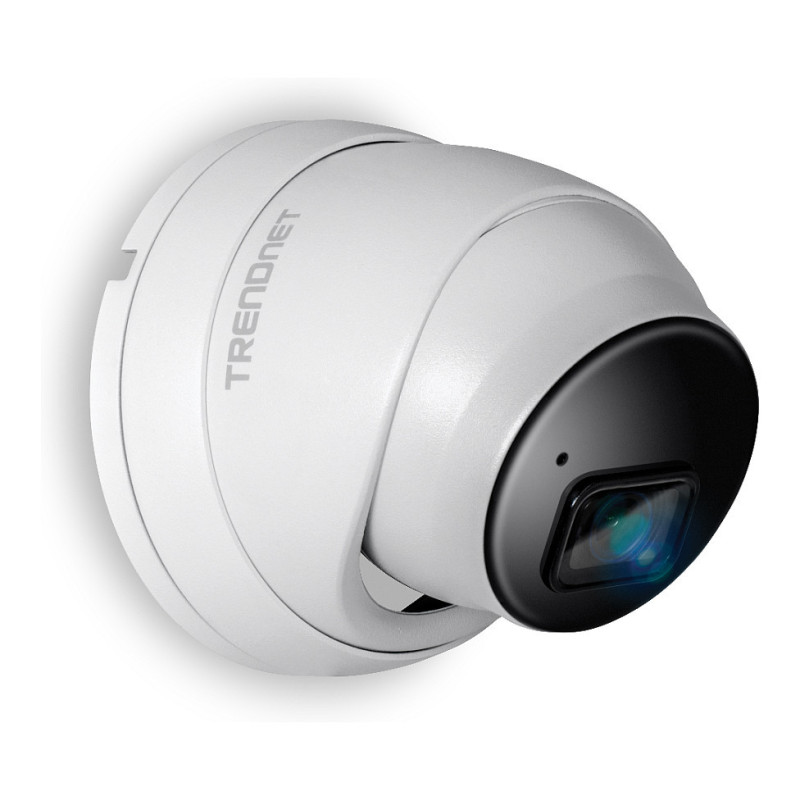

Trendnet TV-IP1515PI security camera

Trendnet TV-IP1515PI. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Turret. Lens viewing angle, horizontal: 79°, Lens viewing angle, vertical: 56°, Lens viewing angle, diagonal: 106°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Night vision distance: 30 m, LED type: IR, Infra-red wavelength: 850 nm

TRENDnet's Indoor/Outdoor 5MP H.265 PoE IR Fixed Turret Network Camera, model TV-IP1515PI, provides day and night surveillance with a night vision range of up to 30 meters (98 ft.). This fixed turret network camera delivers year-round surveillance with an IP66 weather rated housing to withstand outdoor environments. Record up to 5MP HD video at 20fps in a space saving H.265 compression format. Easily view live video from the 5MP turret camera on your mobile device using our free Sentinel mobile app, or on your PC with our free View Manager desktop camera video management software.

Night Vision HD Surveillance
Night-time viewing up to 30 meters (98 ft.) away, with night vision infrared (IR) LEDs that dynamically adjusts as needed.

Power over Ethernet (PoE)
PoE offers cost savings and the flexibility to install this 5MP turret camera up to 100m (328 ft.) from the PoE source equipment.

Outdoor Ready
Built for outdoor environments with an IP66 weather rating and an operating temperature range of -30° - 50° C (-22° - 122° F).

Performance

Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode

Design

Form factor: Turret
Mounting type: Ceiling
Product colour: White
International Protection (IP) code: IP67

Camera

Lens viewing angle, horizontal: 79°
Lens viewing angle, vertical: 56°
Lens viewing angle, diagonal: 106°
Pan range: 0 - 360°

Image sensor

Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
Sensor type: CMOS

Lens system

Number of lenses: 1

Night vision

Feature: Night vision
Night vision distance: 30 m
LED type: IR
Infra-red wavelength: 850 nm

Video

Maximum resolution: 2592 x 1920 pixels
Total megapixels: 5 MP
Video compression formats: H.264, H.265, M-JPEG
Frame rate: 20 fps
Noise reduction technology: 3D noise reduction
Feature: Privacy masking
Feature: Digital Wide Dynamic Range (DWDR)

Audio

Audio system: 1-way
Feature: Built-in microphone

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x, IEEE 802.1x

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 128 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1

Security

Feature: Video motion detection

Power

Power source type: AC, PoE
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 5 W
DC output voltage: 12
DC output current: 1 A

Operational conditions

Operating temperature (T-T): -30 - 50 °C

Weight & dimensions

Height: 90 mm
Diameter: 10 cm
Weight: 438 g

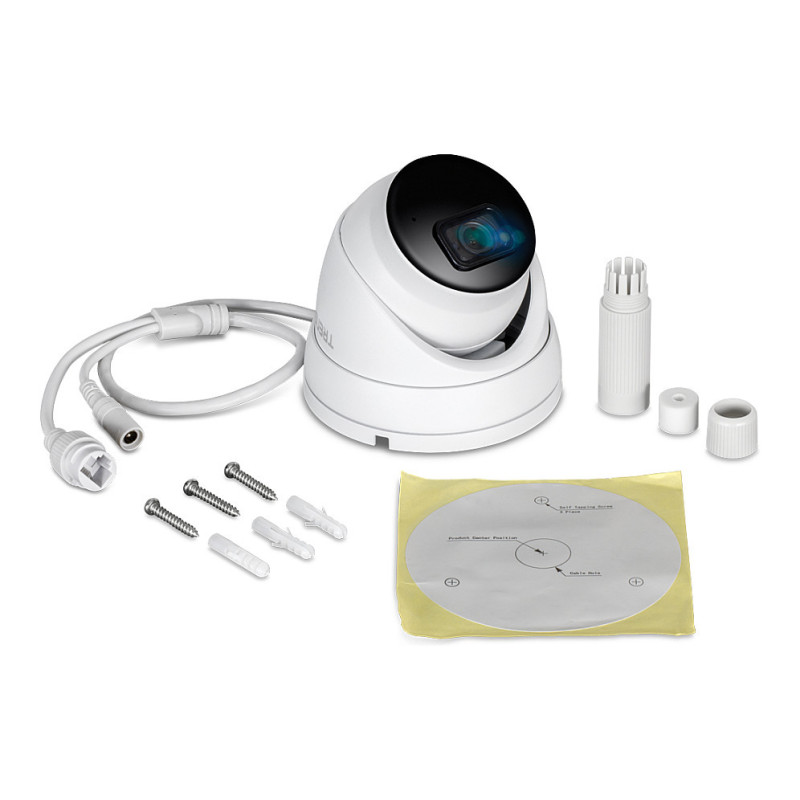

Packaging content

Number of cameras: 1
