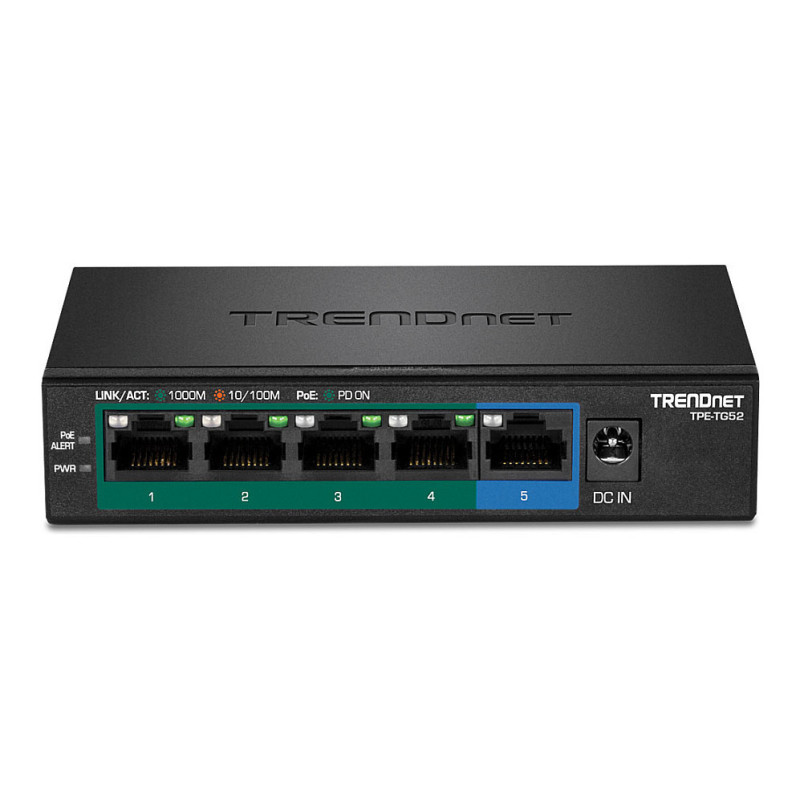

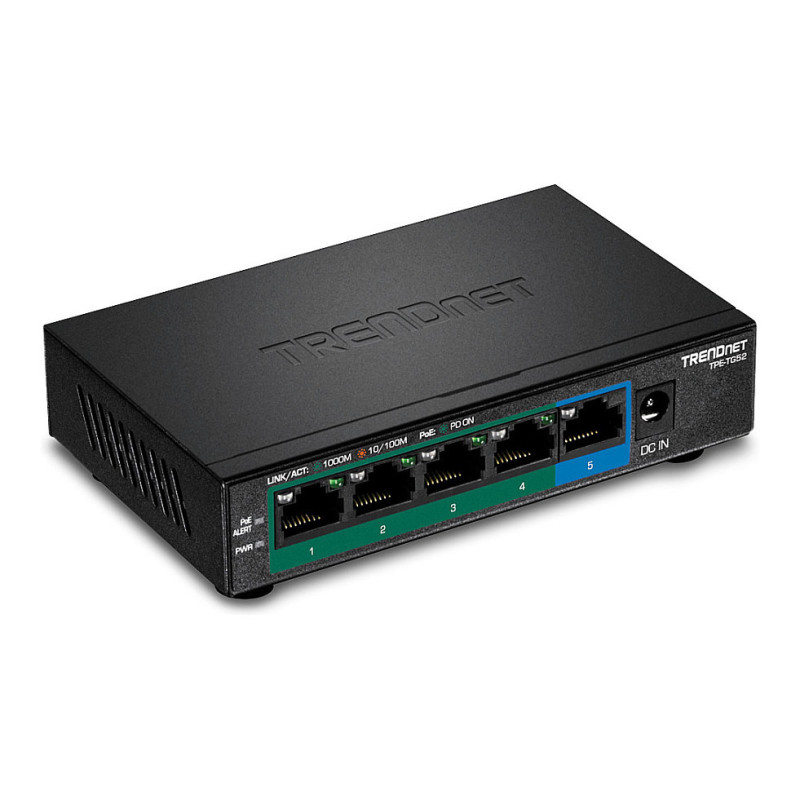

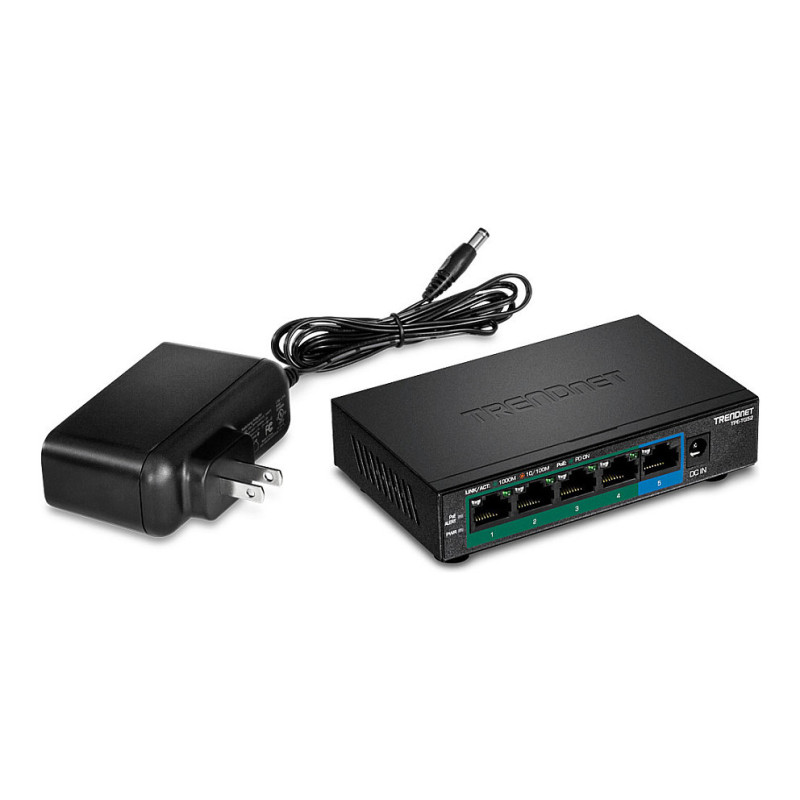

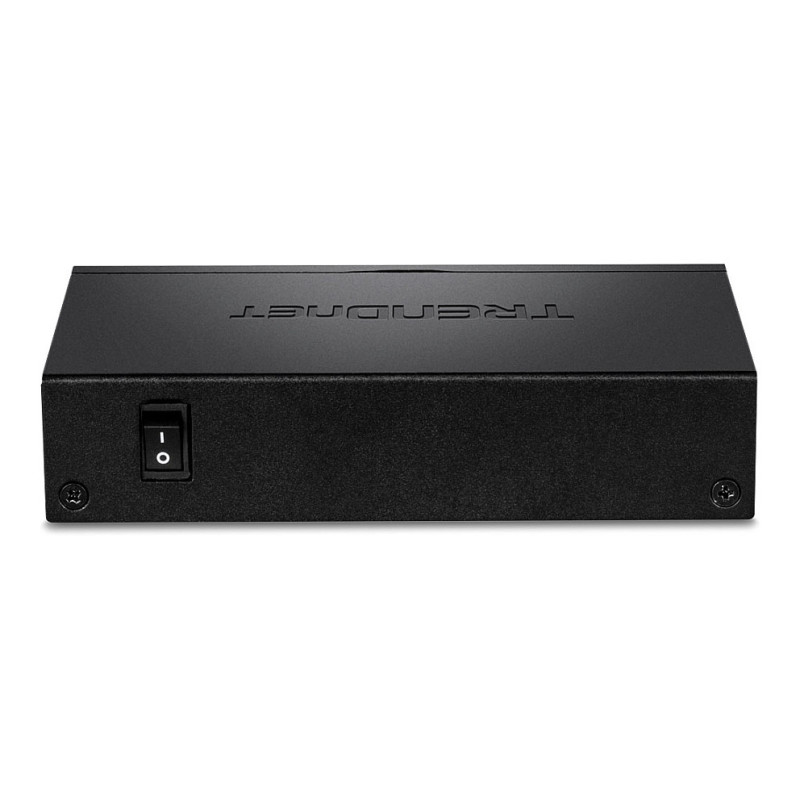

Trendnet TPE-TG52 network switch

Trendnet TPE-TG52. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Switching optical modules type: Gigabit Ethernet. Full duplex. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x. DC input voltage: 54 V. Power connector: DC-in jack. Power over Ethernet (PoE). Wall mountable

TRENDnet's 5-Port Gigabit PoE+ Switch, model TPE-TG52, reduces equipment and installation costs by delivering data and power over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power. This compact network switch features four gigabit PoE+ ports and one gigabit port, with a 32W total PoE power budget. The TPE-TG52 PoE+ switch allows you to network PoE devices, such as wireless access points, IP cameras, VoIP phones, IP video encoders, access controls, and more. It features a fanless design, and has a convenient option for wall mounting.

PoE+
A 32W PoE power budget supports up to four Power over Ethernet devices.

Gigabit Ports
Five gigabit ports provide a 10Gbps switching capacity to support edge network installations.

Compact Design
Compact, lightweight, and fanless, this switch is designed for desktops and quiet environments.

Jumbo Frame
Sends Jumbo Frames (up to 9KB) for increased performance

Fanless
Fanless design is ideal for quiet environments that require silent operation

Management features

Switch type: Unmanaged
Feature: Quality of Service (QoS) support

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Power connector: DC-in jack

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x
Feature: Full duplex
Feature: Half duplex
Feature: VLAN support

Optical fiber

Switching optical modules type: Gigabit Ethernet

Data transmission

Switching capacity: 10 Gbit/s
Forwarding rate: 7.44 Mpps
MAC address table: 2000 entries
Feature: Jumbo frames support
Jumbo frames: 9000
Packet buffer memory: 0.128 MB

Design

Product colour: Black
Housing material: Metal
LED indicators: Activity, Link, PoE, Power

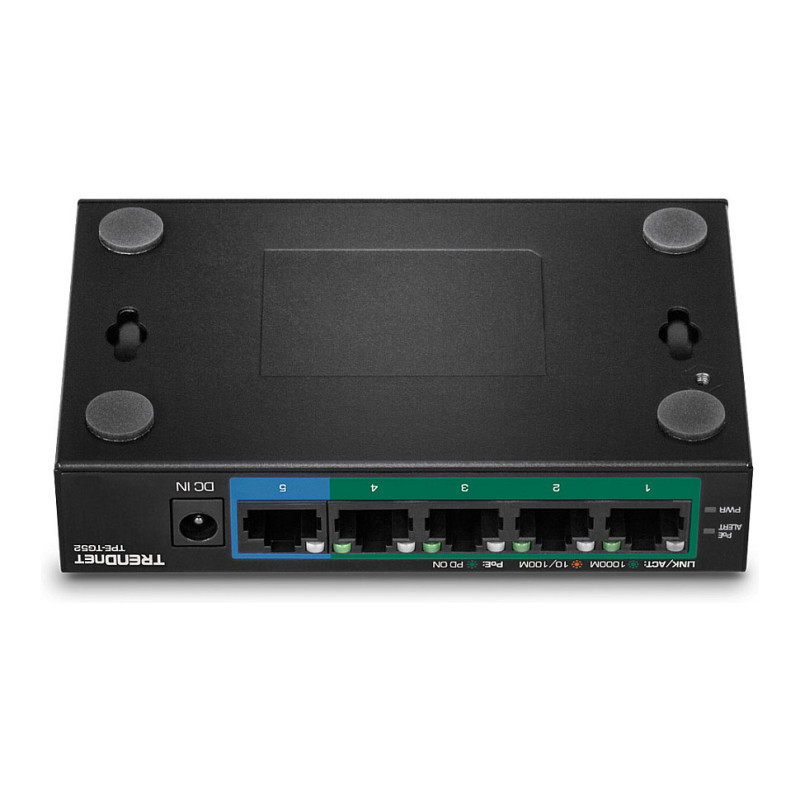

Feature: Wall mountable

Performance

Feature: Fanless
MTBF (PoE): 3516000 h

Power

Power source: AC/DC
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
DC input voltage: 54 V
Input current: 1.2 A
Power consumption (max): 36 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 4
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 32 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 0 - 90%

Weight & dimensions

Width: 121 mm
Depth: 75 mm
Height: 26 mm
Weight: 246 g

Certificates

Certification: CE, FCC, LVD

Logistics data

Harmonized System (HS) code: 85176990
