Trendnet TPE-TG160G network switch

Trendnet TPE-TG160G. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE). Rack mounting, Form factor: 1U

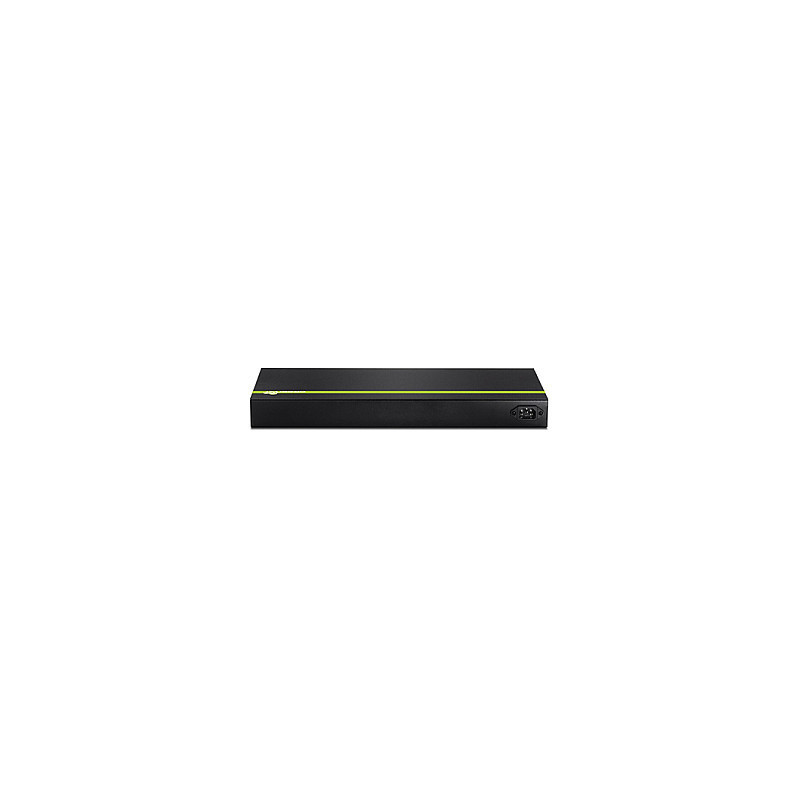

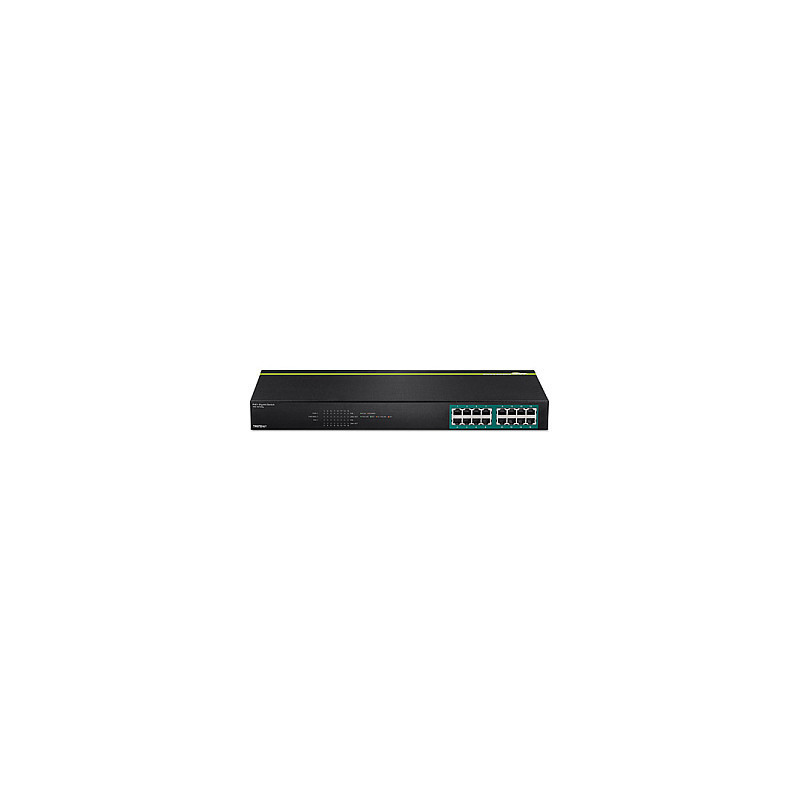

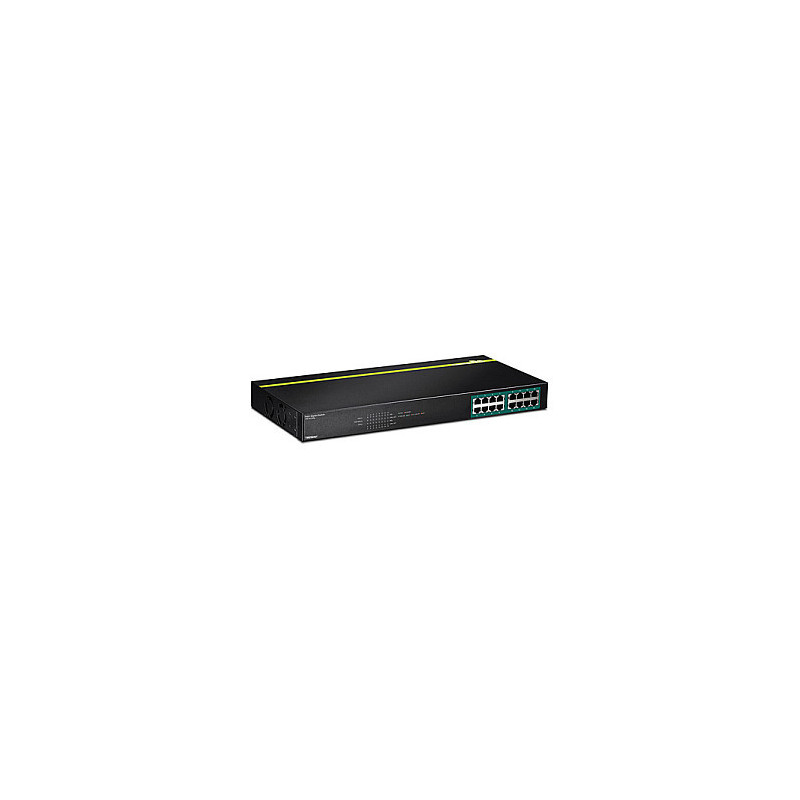

TRENDnet's 16-Port Gigabit PoE+ Switch, model TPE-TG160g, offers 16 x Gigabit PoE+ ports, a 32 Gbps switching capacity, and a PoE power budget of 246 Watts. This rugged metal switch comes with a rack mount kit.

PoE Camera Flexibility

The switch recognizes non-PoE, PoE (15.4 W), and PoE+ (30 W) cameras (or other PoE devices) and supplies the required amount of power automatically.

Full PoE Power

The large 246 Watt PoE power budget supplies full PoE power to every port, thereby maximizing the number of allowable connected PoE devices.

Gigabit Networking

All Gigabit ports produce a 32 Gbps switching capacity and support Jumbo Frames up to 10 KB.

Management features

Switch type: Unmanaged
Switch layer: L2

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 16
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 16

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology: 1000BASE-T, 100BASE-TX, 10BASE-T
Feature: Full duplex
Feature: Flow control support

Data transmission

Switching capacity: 32 Gbit/s
Throughput: 23.8 Mpps
MAC address table: 8000 entries

Design

Feature: Rack mounting
Form factor: 1U
Product colour: Black
Housing material: Metal
LED indicators: Yes

Performance

Buffer size: 512 KB

Power

Power consumption (typical): 36 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 16
Total Power over Ethernet (PoE) budget: 246 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C

Weight & dimensions

Width: 440 mm
Depth: 210 mm
Height: 44 mm
Weight: 3 kg

Certificates

Certification: CEFCC

Logistics data

Harmonized System (HS) code: 85176990
