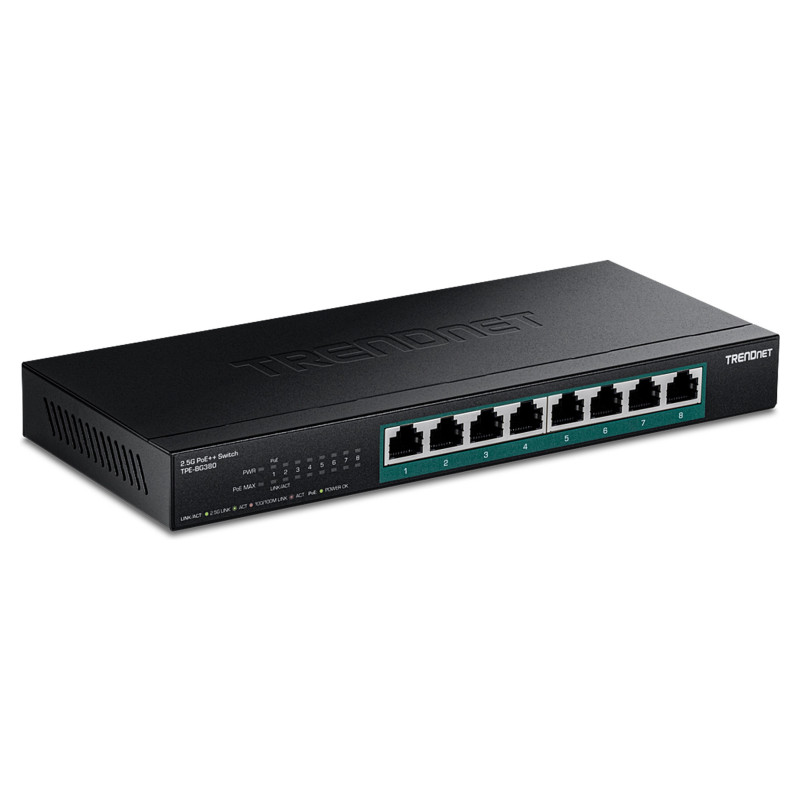

Trendnet TPE-BG380 network switch

Trendnet TPE-BG380. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 4000 entries, Switching capacity: 40 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u,.... DC input voltage: 46 - 54 V. Power over Ethernet (PoE). Wall mountable

Expand your network's bandwidth and reduce traffic bottlenecks with TRENDnet's 8-Port 2.5G PoE++ Switch, model TPE-BG380. This 2.5G PoE++ switch is equipped with 2.5GBASE-T RJ-45 ports that provide multi-gigabit speeds capable of up to 2.5Gbps over your existing Cat5e or better cabling. This multi-gigabit PoE++ switch features a durable metal enclosure and can be mounted to the wall for setup flexibility. The fanless design lowers energy consumption and eliminates distracting operating noise.

TRENDnet's reliable 2.5G PoE++ switches are cost-effective solutions to increase your network's throughput. A 230W total PoE power budget on this multi-gig PoE++ switch supplies up to eight PoE devices with up to 95W per port. Easily network PoE devices such as high-power wireless access points, cameras, digital signage, IPTV decoders, access controls, and more with this high-power 2.5 gigabit PoE++ switch.

Management features

Switch type: Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
Feature: Full duplex
Feature: Half duplex

Data transmission

Switching capacity: 40 Gbit/s
Forwarding rate: 29.76 Mpps
MAC address table: 4000 entries
Feature: Jumbo frames support
Jumbo frames: 12000

Design

Product colour: Black

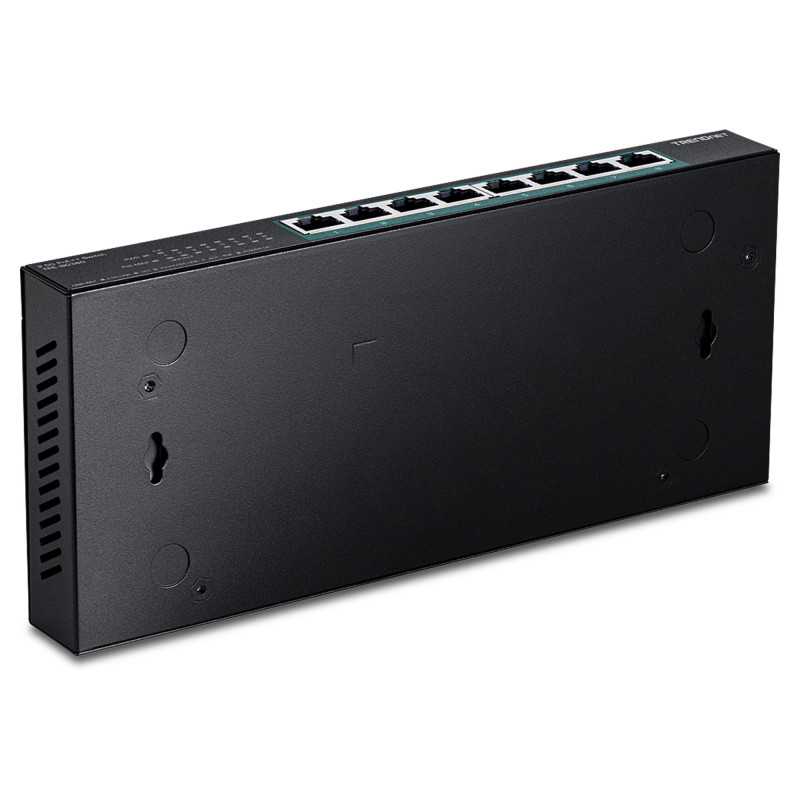

Feature: Wall mountable

Performance

Mean time between failures (MTBF): 288800 h

Power

Power source: AC/DC/PoE
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
DC input voltage: 46 - 54 V
Input current: 4.7 A
Power consumption (max): 9.5 W
Power protection features: Over current, Short circuit

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 8
Power over Ethernet (PoE) power per port: 95 W
Total Power over Ethernet (PoE) budget: 230 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C

Weight & dimensions

Width: 240 mm
Depth: 105 mm
Height: 27 mm
Weight: 716 g

Certificates

Certification: CEFCC
