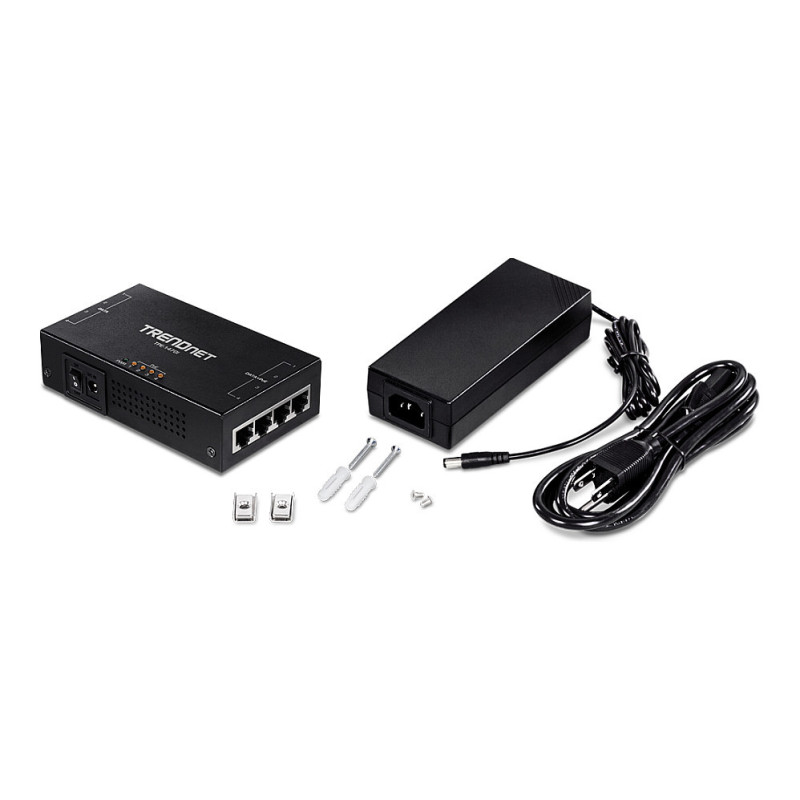

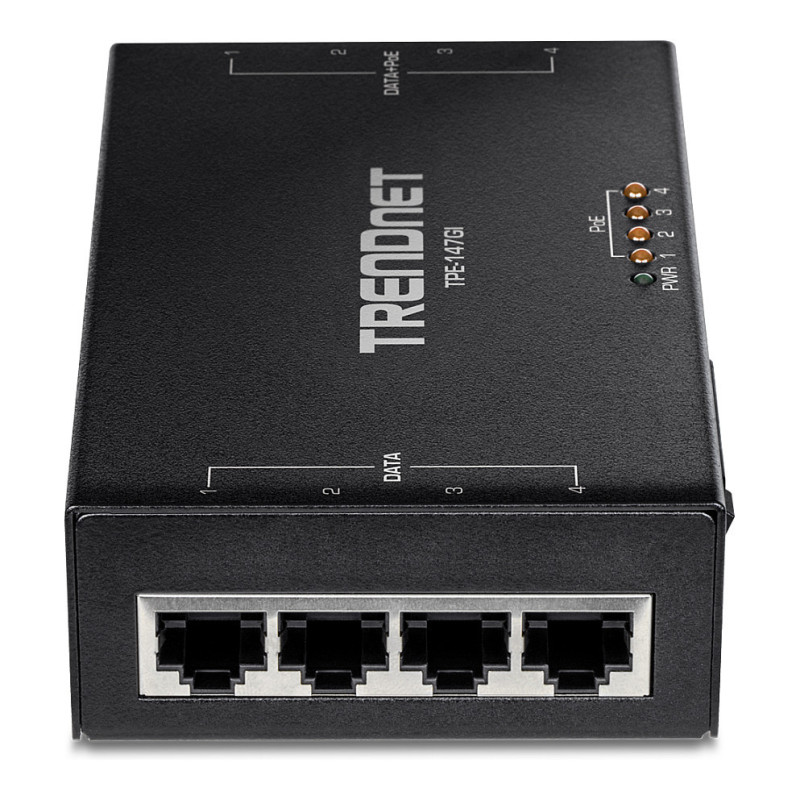

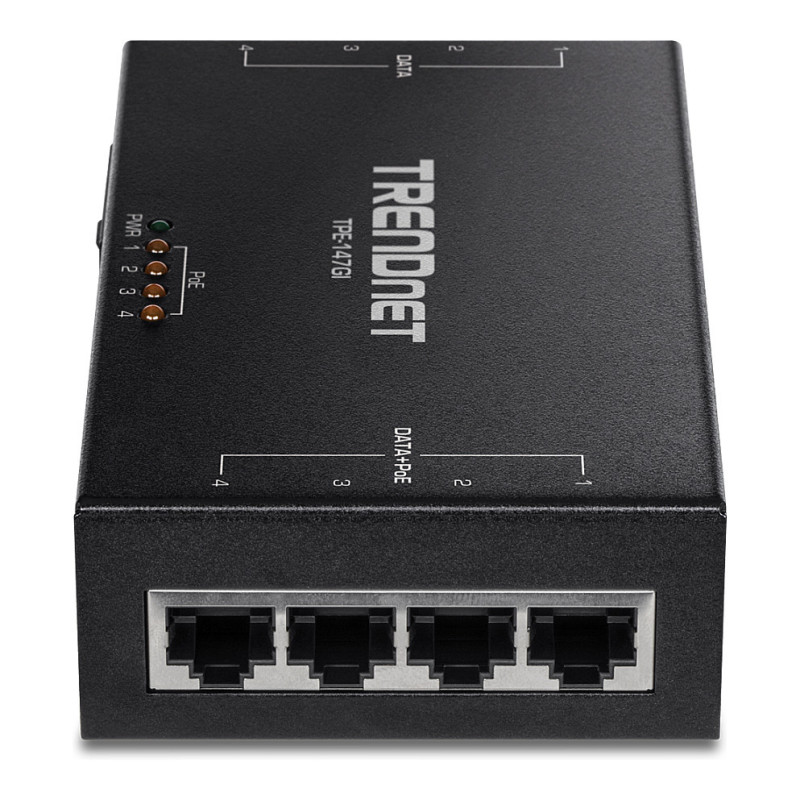

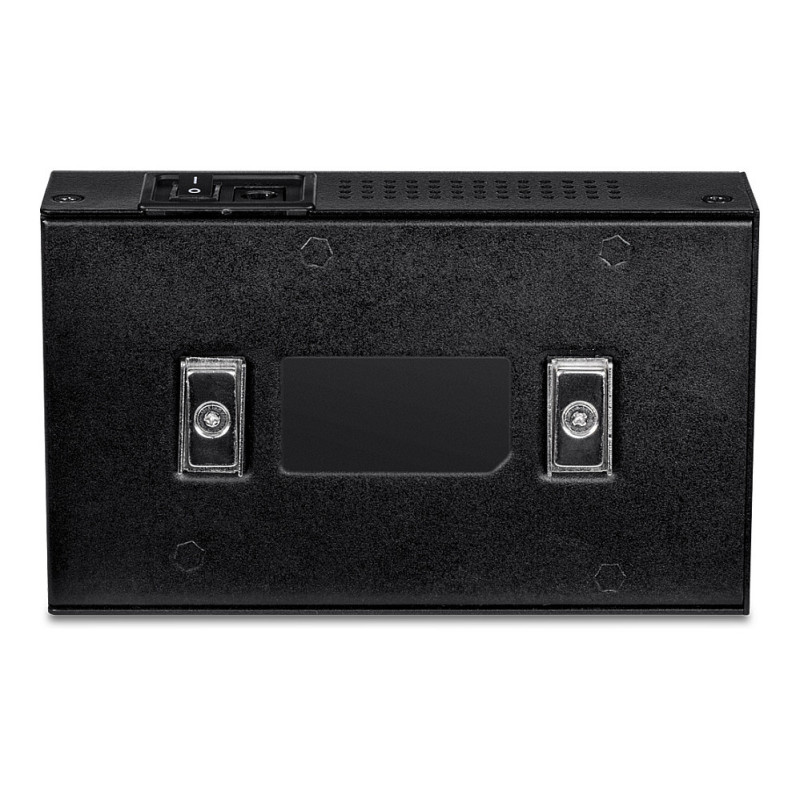

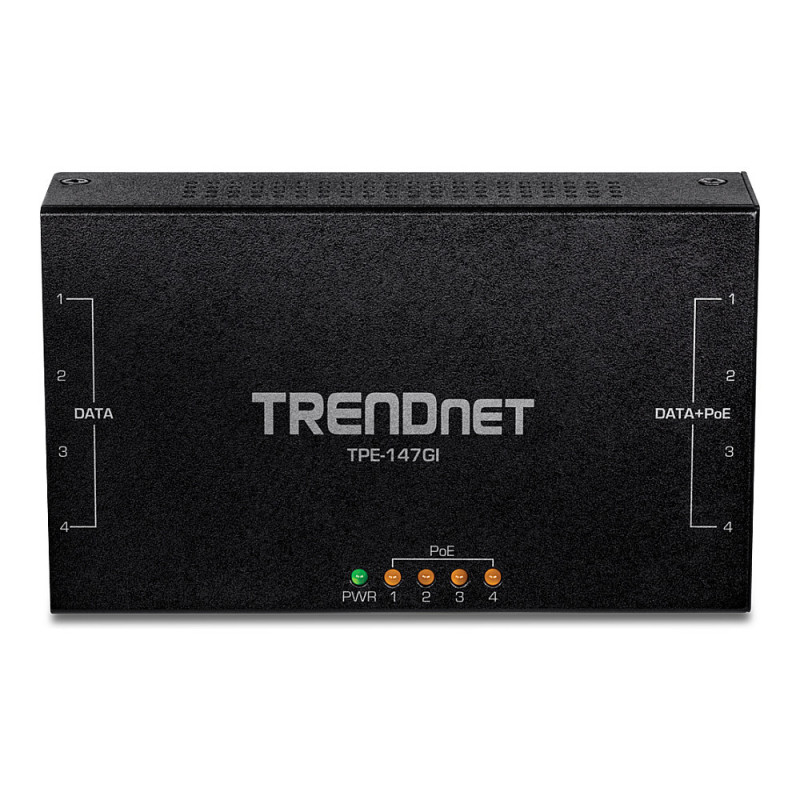

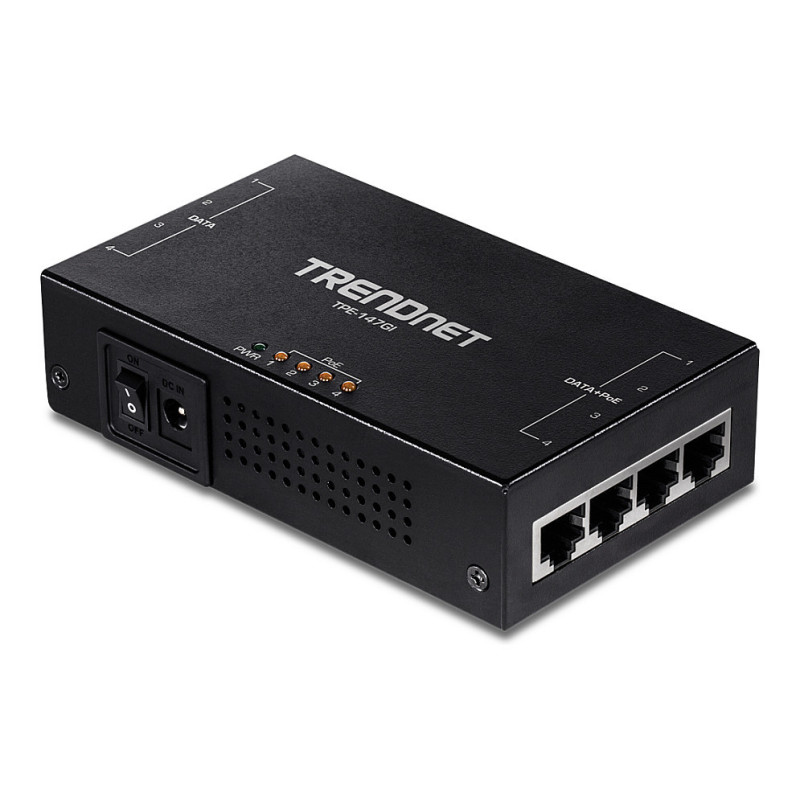

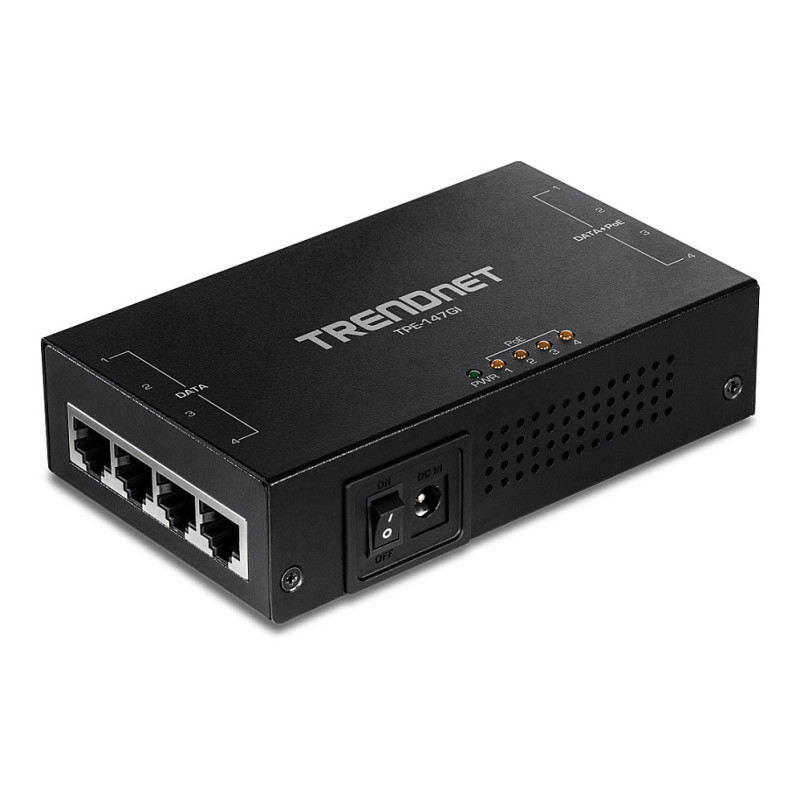

Trendnet TPE-147GI PoE adapter

Trendnet TPE-147GI. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u. Product colour: Black. AC adapter input voltage: 100 - 240 V, AC adapter frequency: 50/60 Hz, Output current: 1.3 A. Certification: CE, FCC. Width: 126.4 mm, Depth: 74 mm, Height: 32 mm

TRENDnet's 65W 4-Port Gigabit PoE+ Injector, model TPE-147GI, allows users to add PoE+ power to a non-PoE switch. Connect the 4-port PoE+ injector to a non-PoE Gigabit switch, and then run Ethernet cables up to 100 meters (328 ft.) to network four PoE devices. This multi-port gigabit PoE+ injector supplies up to 30W of power to four PoE or PoE+ devices. The fanless design on the 4-port PoE+ injector conveniently eliminates operating noise and lowers energy consumption.

4-Port PoE
The 4-port gigabit PoE+ injector supplies up to 30W of power to four PoE or PoE+ devices.

Gigabit Ports
Features 4 x gigabit ports (data in) and 4 x gigabit PoE+ ports (data + PoE out).

Fanless Design
The fanless design of the 4-port PoE+ injector eliminates operating noise and lowers energy consumption.

4-Port PoE
The 4-port PoE+ injector supplies up to 30W of power to four PoE (IEEE 802.3af) or PoE+ (IEEE 802.3at) devices.

Easy Installation
No configuration needed, simply connect a PoE network devices to this 4-port PoE+ injector

Gigabit Ports
4 x gigabit ports (data in) and 4 x gigabit PoE ports (data + PoE out).

PoE Distance
Provides four PoE network connections up to 100m (328 ft.) away from the 4-port PoE injector

LED Indicators
LEDs on the 4-port PoE+ injector indicate PoE connectivity and power status

Network

Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 1000 Mbit/s
Feature: Power over Ethernet (PoE)
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u

Features

Product colour: Black

Ports & interfaces

Ethernet LAN (RJ-45) ports: 4
Feature: DC-in jack

Power

AC adapter input voltage: 100 - 240 V
AC adapter frequency: 50/60 Hz
Output current: 1.3 A
Total Power over Ethernet (PoE) budget: 65 W

Certificates

Certification: CE, FCC

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating temperature (T-T): 32 - 104 °F
Operating relative humidity (H-H): 0 - 90%

Weight & dimensions

Width: 126.4 mm
Depth: 74 mm
Height: 32 mm
Weight: 322 g

Packaging content

Number of products included: 1 pc(s)
Feature: Power cord included
Feature: Quick installation guide

Logistics data

Harmonized System (HS) code: 85044095
