Trendnet TPE-119GI PoE adapter

Trendnet TPE-119GI. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u. Product colour: Black, LED indicators: PoE, Power. AC adapter input voltage: 100 - 240 V, AC adapter frequency: 50/60 Hz, Power consumption (max): 3 W. Certification: CE, FCC, ETL. Width: 154 mm, Depth: 73 mm, Height: 36 mm

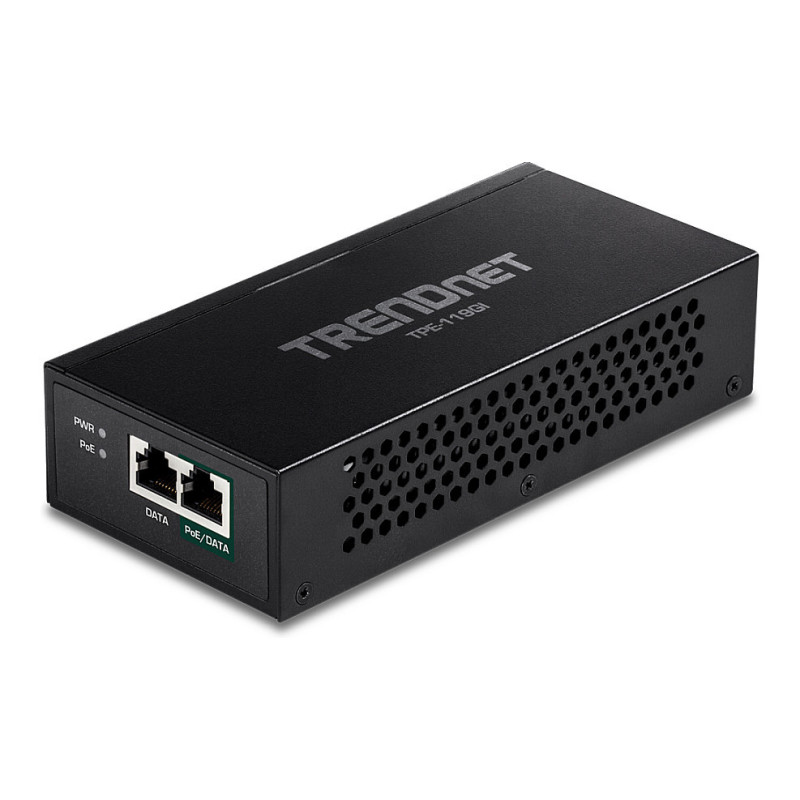

TRENDnet's Gigabit PoE++ Injector, model TPE-119GI, is an 802.3bt PoE injector that combines electrical power with a gigabit network connection to produce a high-powered 95W PoE++ network signal. Auto-sensing technology conveniently delivers the correct wattage needed to power your PoE, PoE+, and PoE++ devices. Connect the Gigabit PoE++ injector to a non-PoE switch, and then run an Ethernet cable with data + power to network a PoE device up to 100 meters (328 ft.) away. Network PoE devices such as wireless access points, IP cameras, VoIP phone systems, IPTV decoders, access controls, and more with this 802.3btbt PoE injector.

Network

Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u

Features

Product colour: Black

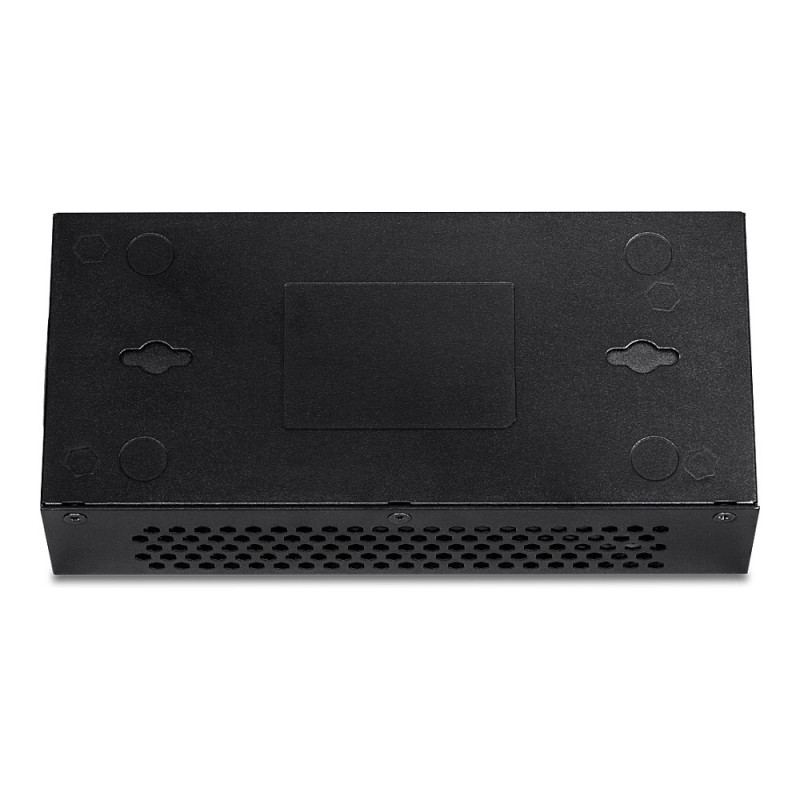

Feature: Wall mountable

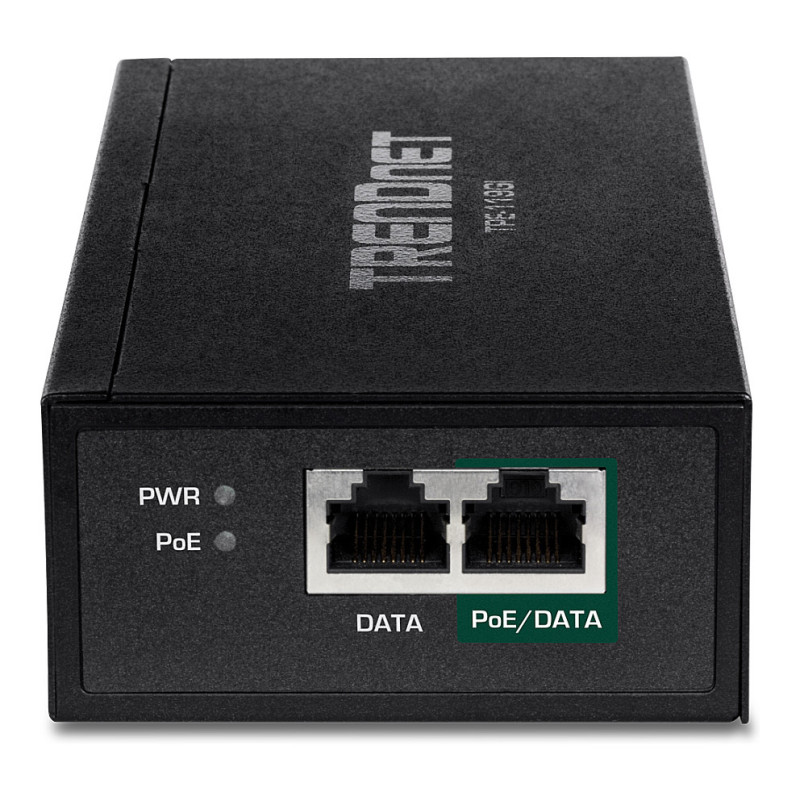

LED indicators: PoE, Power

Ports & interfaces

Ethernet LAN (RJ-45) ports: 2

Power

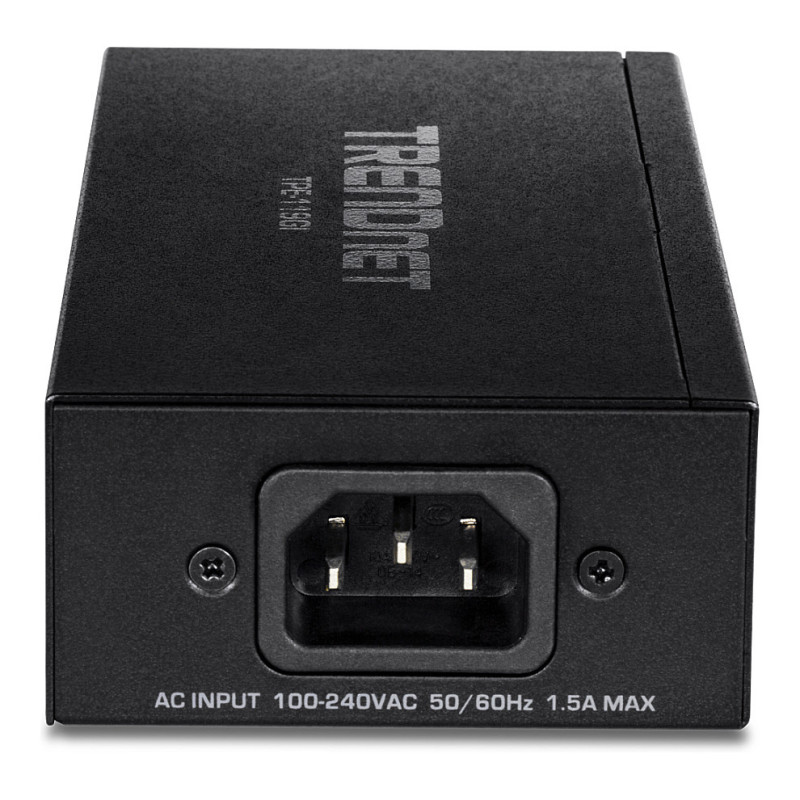

AC adapter input voltage: 100 - 240 V
AC adapter frequency: 50/60 Hz
Power consumption (max): 3 W
Total Power over Ethernet (PoE) budget: 95 W

Certificates

Certification: CE, FCC, ETL

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating temperature (T-T): 32 - 104 °F
Operating relative humidity (H-H): 0 - 90%

Weight & dimensions

Width: 154 mm
Depth: 73 mm
Height: 36 mm
Weight: 422 g

Packaging content

Number of products included: 1 pc(s)
Feature: Power cord included
Feature: Quick installation guide

Logistics data

Harmonized System (HS) code: 85044095
