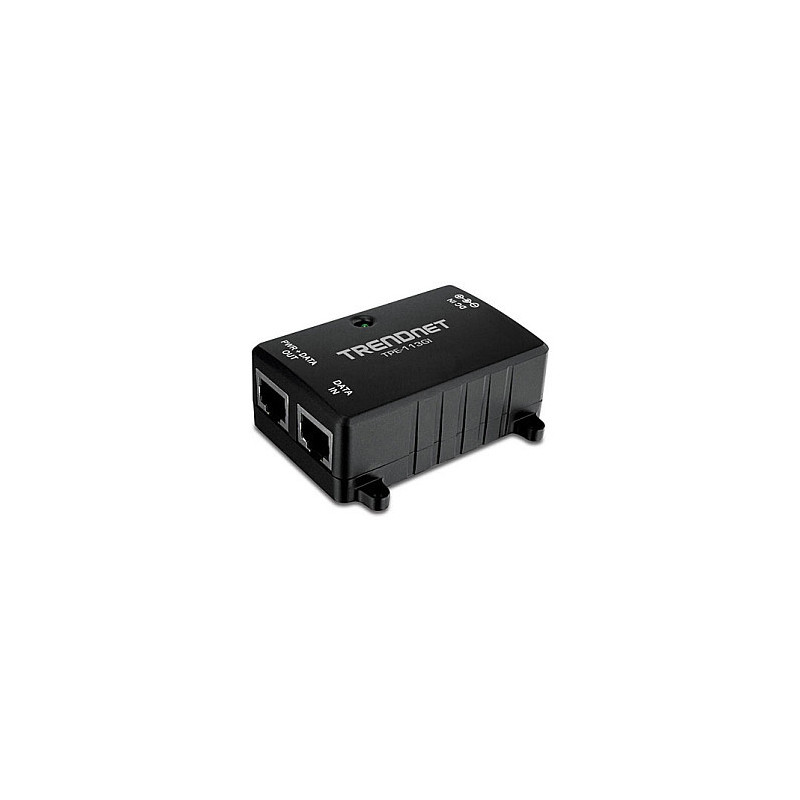

Trendnet TPE-113GI PoE adapter

Trendnet TPE-113GI. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10Base-T, 100Base-TX. LED indicators: Power. Power over Ethernet (PoE) voltage: 48 V, AC adapter input voltage: 100 - 240 V, AC adapter frequency: 50/60 Hz. Compliance industry standards: IEEE 802.3, IEEE802.3u, IEEE 802.3ab, IEEE 802.3af, Certification: CE, FCC. Weight: 45 g, Dimensions (WxDxH): 70 x 45 x 25 mm

The Gigabit Power over Ethernet Injector, model TPE-113GI, combines electrical power with a Gigabit network connection to produce a Gigabit Power over Ethernet (PoE) signal.
Connect this device to a non-PoE switch and then run an Ethernet cable for up to 100 meters (328 Ft.) to network PoE devices.
No need to buy a PoE switch—use an existing open port from a non-PoE switch to save installation and equipment costs when installing TRENDnet PoE access points and IP cameras in remote locations. This compact device safeguards valuable network equipment with short circuit protection. Quickly create an integrated PoE and non-PoE network at Gigabit speeds.

Network

Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cabling technology: 10Base-T, 100Base-TX
Feature: Power over Ethernet (PoE)

Features

LED indicators: Power

Ports & interfaces

Ethernet LAN (RJ-45) ports: 2

Power

Power over Ethernet (PoE) voltage: 48 V
AC adapter input voltage: 100 - 240 V
AC adapter frequency: 50/60 Hz
Power consumption (typical): 15.4 W

Certificates

Compliance industry standards: IEEE 802.3, IEEE802.3u, IEEE 802.3ab, IEEE 802.3af
Certification: CE, FCC

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Operating temperature (T-T): 32 - 122 °F
Storage temperature (T-T): -20 - 60 °C

Weight & dimensions

Weight: 45 g
Dimensions (WxDxH): 70 x 45 x 25 mm

Logistics data

Harmonized System (HS) code: 85044095
