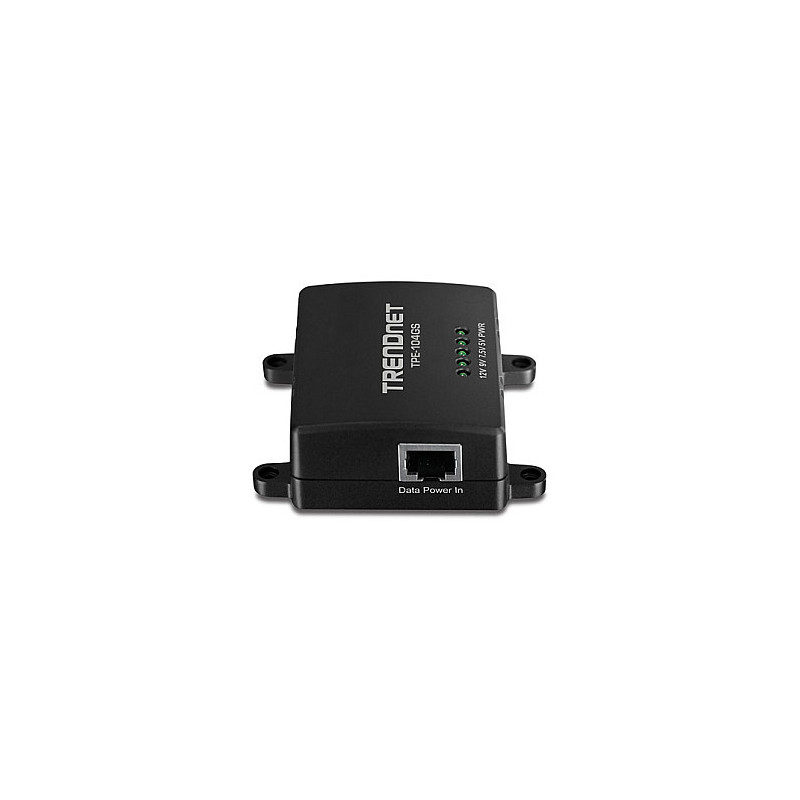

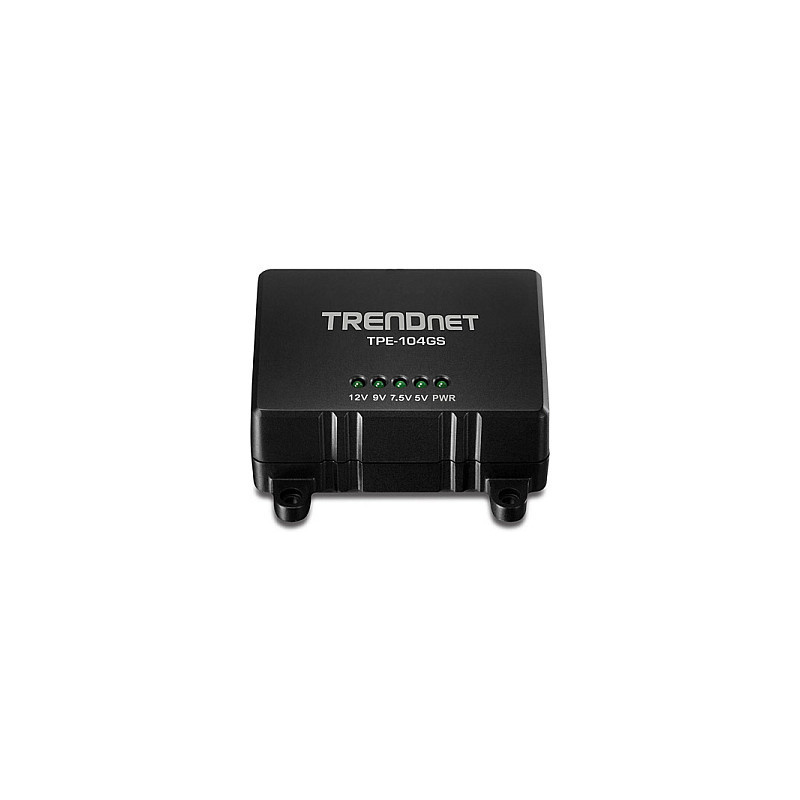

Trendnet TPE-104GS network splitter

Trendnet TPE-104GS. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x, Cabling technology: 10/100/1000Base-T(X), Product colour: Black. Certification: CE, FCC. Width: 70 mm, Depth: 45 mm, Height: 25 mm. Quantity per pack: 1 pc(s). Input voltage: 48 DC, Output voltage: 5, 7.5, 9, 12 V, Output current (5V): 2 A

TRENDnet's Gigabit PoE Splitter, model TPE-104GS, networks a non-PoE device in a remote location using a PoE network connection. The TPE-104GS splits a Gigabit PoE connection into separate power and Gigabit data sources. A handy toggle switch adjusts output power to 5 V, 7.5 V, 9 V, or 12 V in order to match non-PoE device power requirements. The included 2 and 2.5 mm jumper cables increase power pin device compatibility.

PoE
Compatible with PoE (802.3af ) network connections.

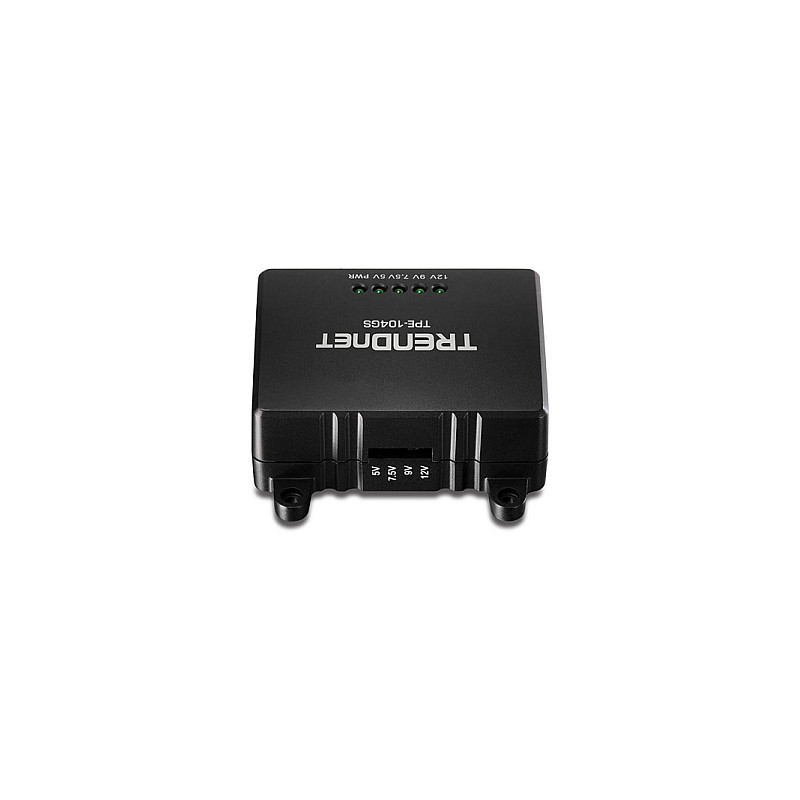

Adjustable Dip Switch
A handy toggle switch adjusts output power to 5 V, 7.5 V, 9 V, or 12 V in order to match non-PoE device power requirements.

Jumper Cables
The included 2 and 2.5 mm jumper cables increase power pin device compatibility with the non-PoE networked device.

No Power Adapter
The TPE-104GS is powered by the PoE connection.

Mounting
Built-in mounting points increase installation flexibility.

Features

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x
Cabling technology: 10/100/1000Base-T(X)
Feature: Power over Ethernet (PoE)
Product colour: Black
Duplex system: Full, Half
LED indicators: Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports: 2
RJ-45 input ports: 1
RJ-45 output ports: 1

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Operating relative humidity (H-H): 0 - 90%

Certificates

Certification: CE, FCC

Weight & dimensions

Width: 70 mm
Depth: 45 mm
Height: 25 mm
Weight: 60 g

Packaging content

Quantity per pack: 1 pc(s)

Power

Input voltage: 48 DC
Output voltage: 5, 7.5, 9, 12 V
Output current (5V): 2 A
Output current (9V): 1.7 A
Output current (12V): 1.2 A
