Trendnet TI-SG104 network splitter

Trendnet TI-SG104. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, Cabling technology: 10/100/1000Base-T(X), Product colour: Black. Certification: FCC, CE, IEC EN60950-1, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6. Width: 104 mm, Depth: 82 mm, Height: 32 mm. Output voltage: 12 - 48 V

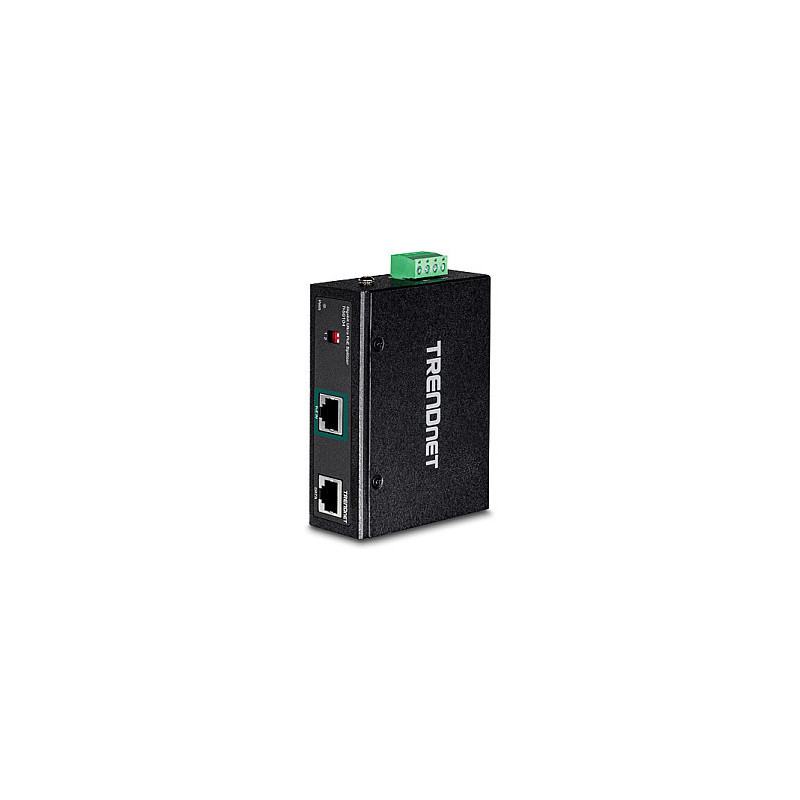

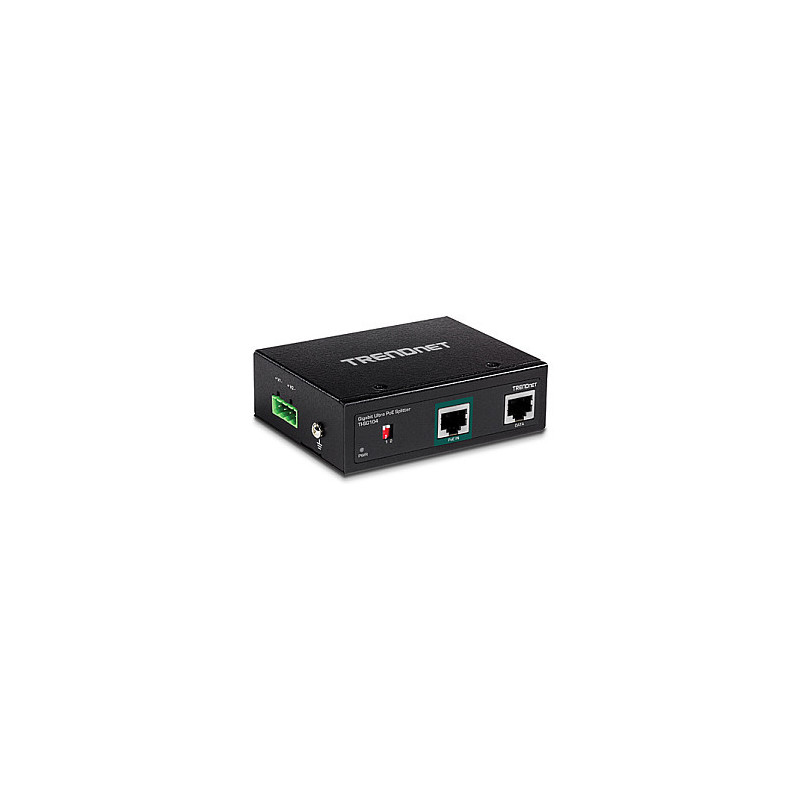

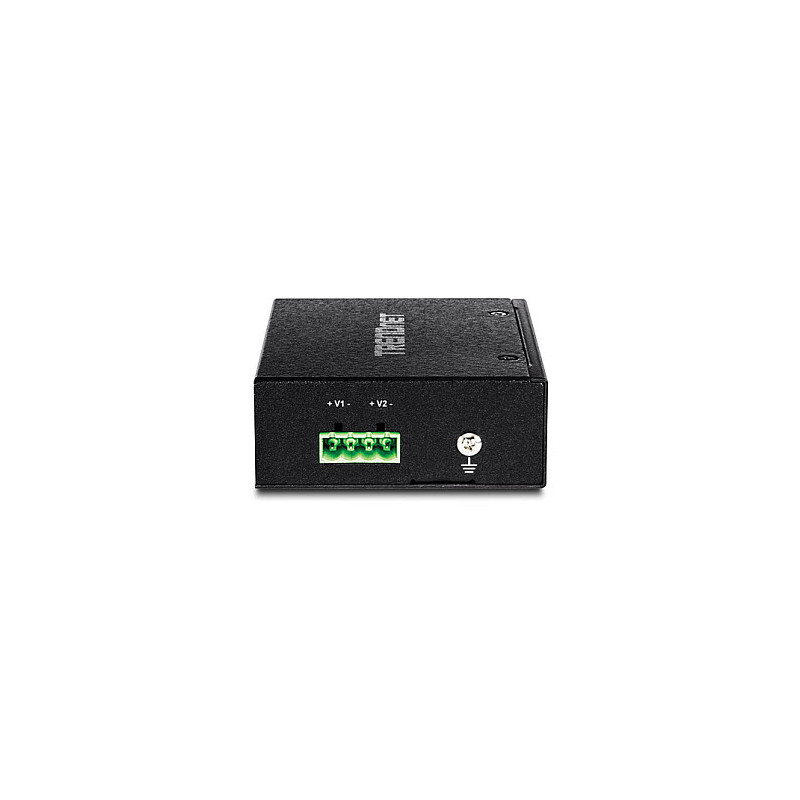

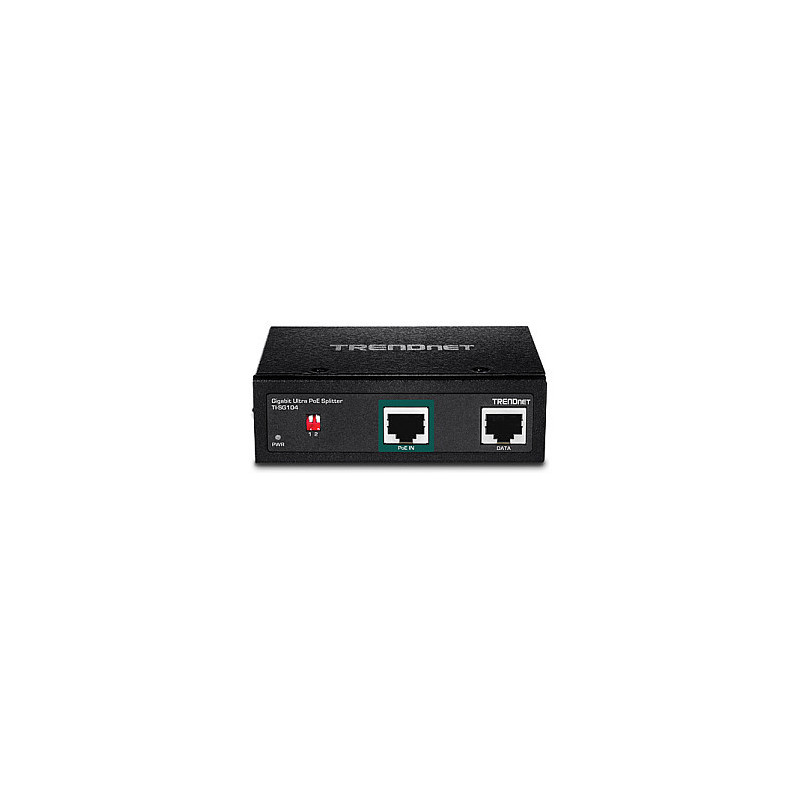

TRENDnet's Industrial Gigabit UPoE Splitter, model TI-SG104, networks a non-PoE device by using a Gigabit Ultra PoE connection and splitting it into separate power and gigabit data sources. The industrial gigabit UPoE splitter can power to up to two devices from a single UPoE source. A convenient DIP switch adjusts output power to 12V, 16V, 24V, or 48V in order to match power requirements for non-PoE devices. The UPoE splitter's dual DC power output provides greater device compatibility.

Features

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u
Cabling technology: 10/100/1000Base-T(X)
Feature: Power over Ethernet (PoE)
Product colour: Black
Housing material: Metal

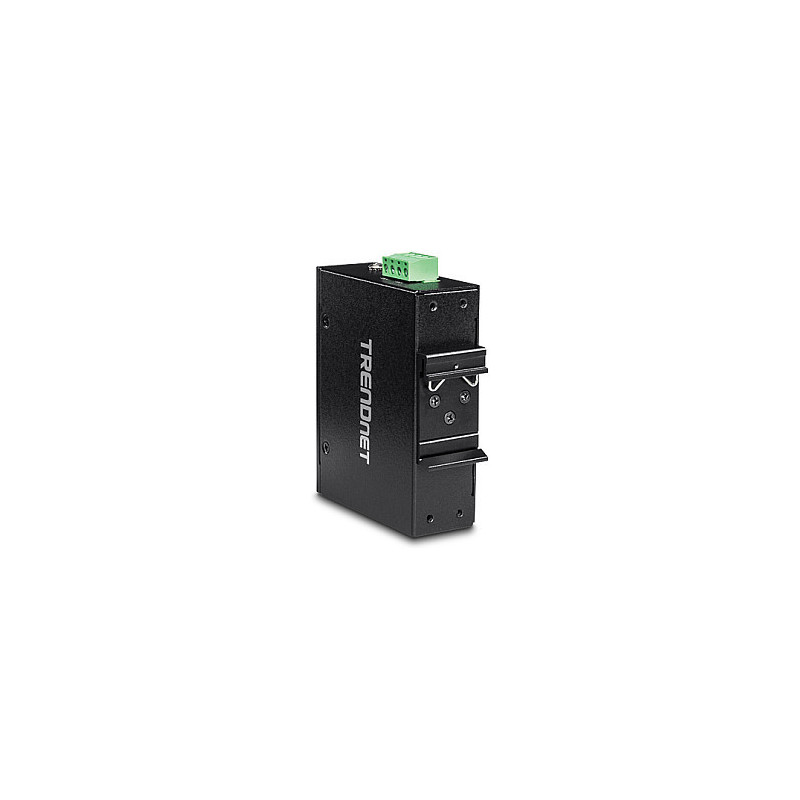

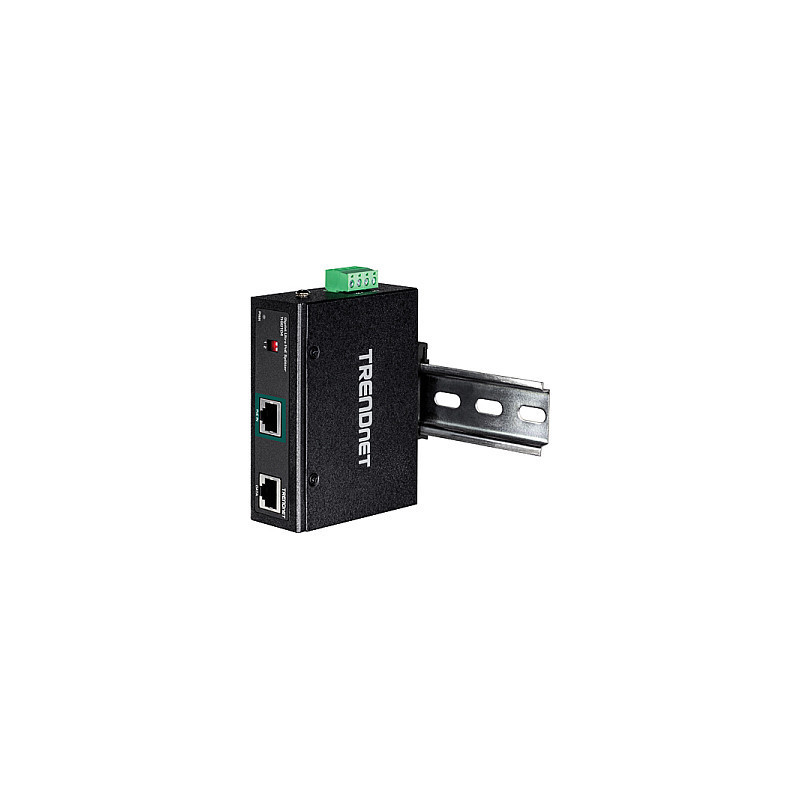

Feature: Wall mountable
Duplex system: Full, Half
AWG wire size: 12/24, 14/22
International Protection (IP) code: IP30
LED indicators: Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports: 2

Operational conditions

Operating temperature (T-T): -40 - 75 °C
Operating relative humidity (H-H): 0 - 95%

Certificates

Certification: FCC, CE, IEC EN60950-1, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6

Weight & dimensions

Width: 104 mm
Depth: 82 mm
Height: 32 mm
Weight: 172 g

Packaging content

Feature: Quick installation guide

Power

Feature: Adjustable output voltage
Output voltage: 12 - 48 V
