Trendnet TI-PG80 network switch

Trendnet TI-PG80. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE). Wall mountable

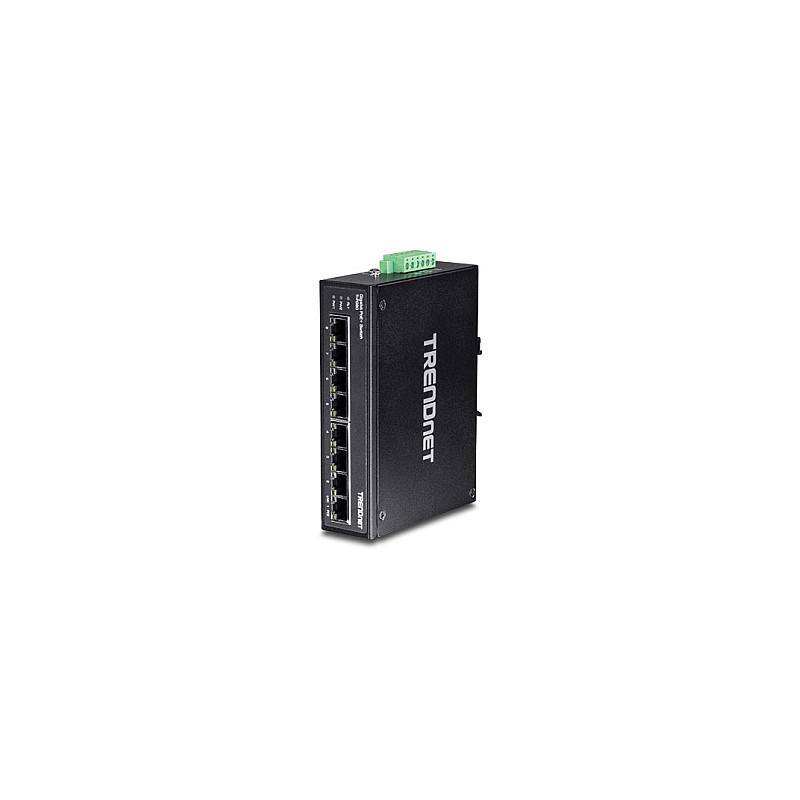

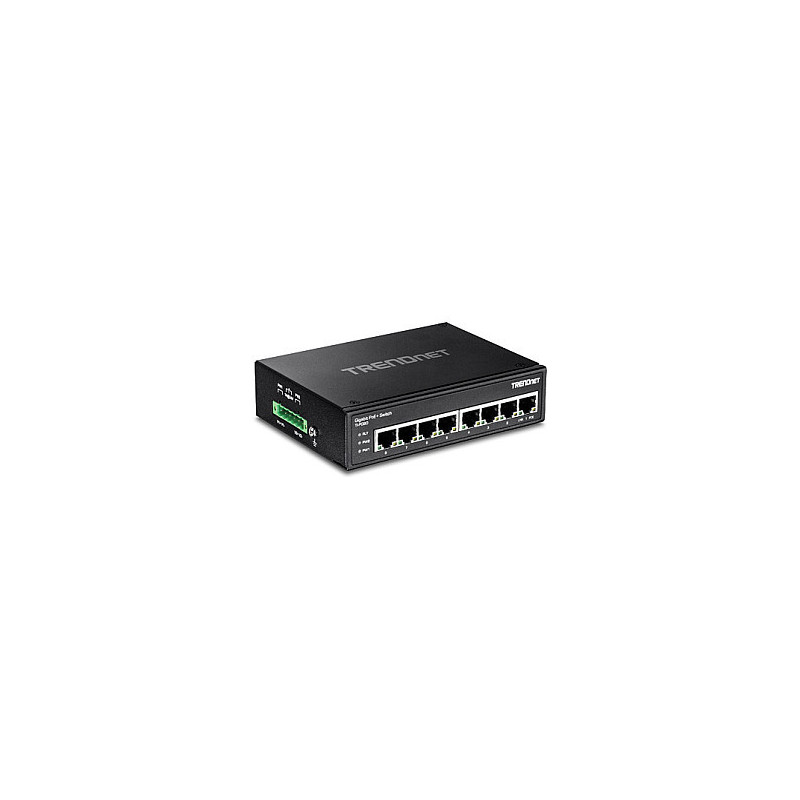

TRENDnet's TI-PG80 is a reliable IP30 unmanaged PoE+ DIN-rail switch with hardened components rated for extreme industrial environments. It offers 8 Gigabit PoE+ ports (802.3at/802.3af) and a PoE power budget of up to 200 Watts. Dual redundant power inputs (power supply sold separately: TI-S24048) and a power failure alarm output trigger support zero downtime applications.

- 8 x Gigabit PoE+ Ethernet ports
- Up to a 200 Watt full PoE+ power budget
- 16 Gbps switching capacity
- Hardened IP30 rated metal switch

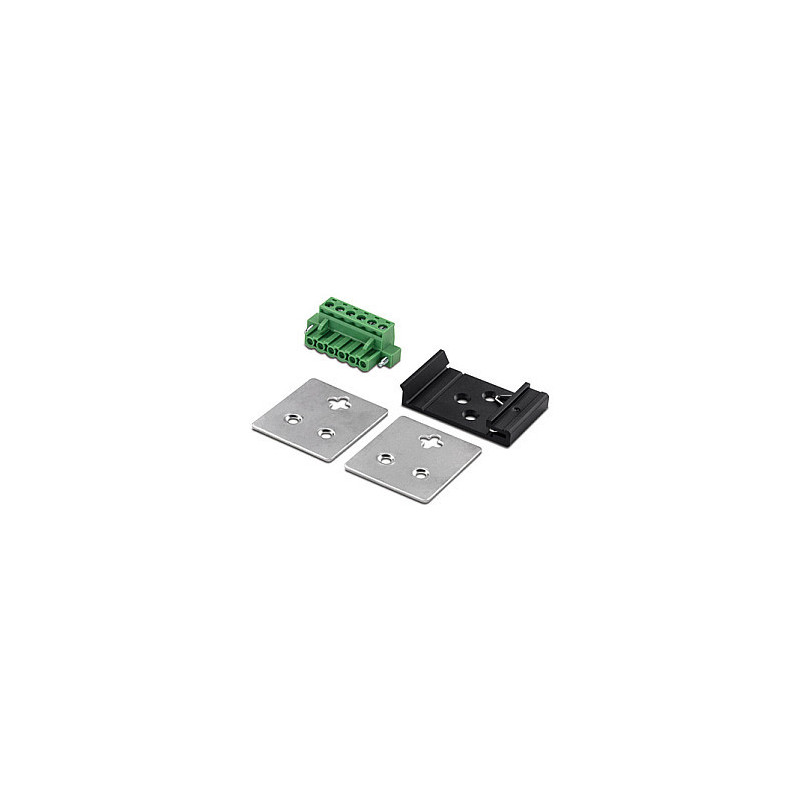

- Includes DIN-rail and wall mounts
- Extreme -40 to 75 ºC (-40 to 167 ºF) operating temperature range
- Dual redundant power inputs with overload current protection
- Alarm output triggered by power failure
- Powers supply sold separately

Management features

Switch type: Unmanaged
Switch layer: L2

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 8

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology: 1000BASE-T, 100BASE-TX, 10BASE-T
Feature: Full duplex
Feature: Flow control support

Data transmission

Switching capacity: 16 Gbit/s
Throughput: 11.9 Mpps
MAC address table: 8000 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Packet buffer memory: 1 MB

Design

Product colour: Black
Housing material: Metal
LED indicators: Yes
International Protection (IP) code: IP30
Feature: Wall mountable

Performance

Mean time between failures (MTBF): 510304 h

Power

Feature: Redundant power supply (RPS) support
Power consumption (max): 5.76 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 8
Total Power over Ethernet (PoE) budget: 200 W

Operational conditions

Operating temperature (T-T): -40 - 75 °C

Weight & dimensions

Width: 104 mm
Depth: 36 mm
Height: 143 mm
Weight: 554 g

Packaging content

Feature: Quick start guide

Packaging data

Feature: Wall mounting kit

Certificates

Certification: FCC, CE

Logistics data

Harmonized System (HS) code: 85176990
