Trendnet TI-PG62B network switch

Trendnet TI-PG62B. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 4. Full duplex. MAC address table: 1024 entries, Switching capacity: 12 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. Power over Ethernet (PoE). Wall mountable

TRENDnet's TI-PG62B is a reliable IP30 unmanaged hardened DIN-rail PoE+ switch with a rugged housing rated for extreme industrial environments. It offers 4 Gigabit PoE+ ports, two dedicated SFP slots and a 12 Gbps switching capacity. Dual redundant 12 - 56 VDC power inputs and a power failure alarm relay.

Management features

Switch type: Unmanaged
Switch layer: L2

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 4
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 4
SFP module slots quantity: 2

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Feature: Full duplex
Feature: Auto-negotiation

Data transmission

Switching capacity: 12 Gbit/s
Throughput: 8.9 Mpps
MAC address table: 1024 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Jumbo frames: 9000

Design

Product colour: Black
Housing material: Metal
LED indicators: Yes
International Protection (IP) code: IP30
Feature: Wall mountable

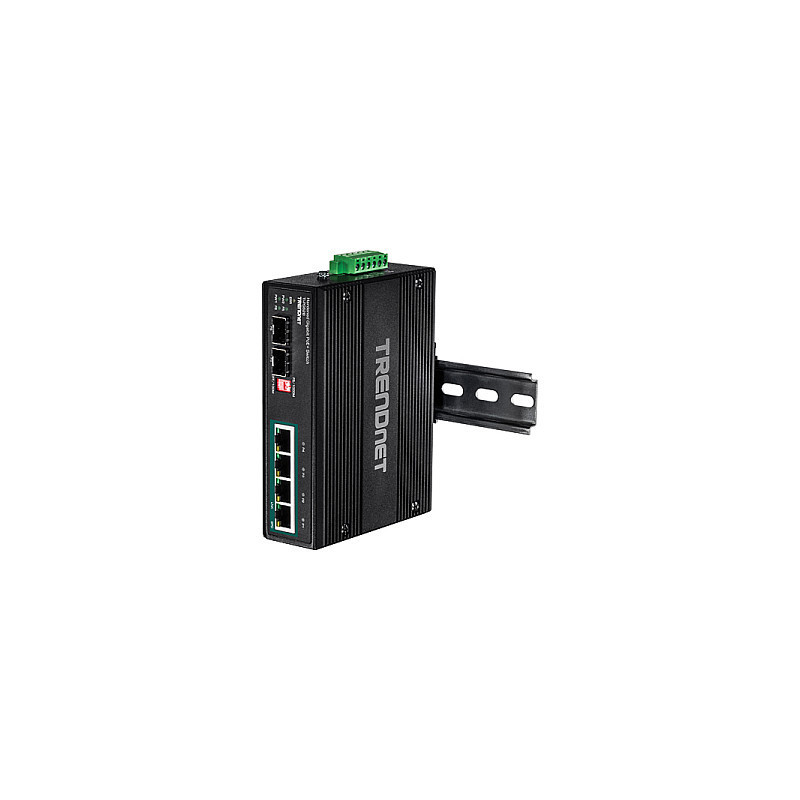

Feature: DIN rail mounting

Performance

Buffer size: 1024 KB
Mean time between failures (MTBF): 510304 h

Power

Feature: Redundant power supply (RPS) support
Input voltage: 12 - 56
Power consumption (max): 5.76 W
Power protection features: Overload

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 4
Total Power over Ethernet (PoE) budget: 120 W

Other features

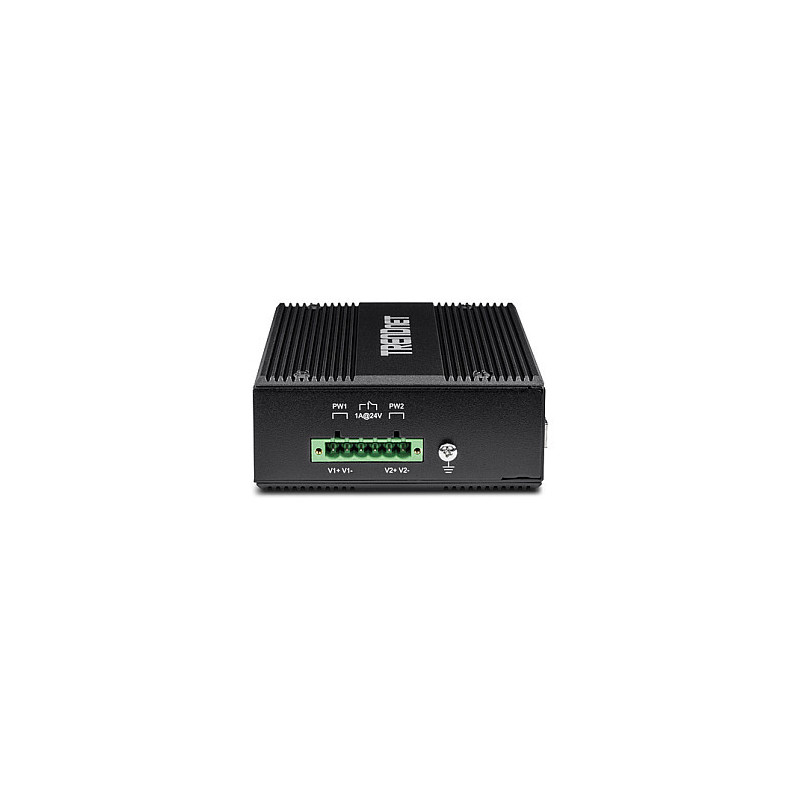

Feature: Terminal block port

Operational conditions

Operating temperature (T-T): -40 - 75 °C

Weight & dimensions

Width: 143 mm
Depth: 105 mm
Height: 45 mm
Weight: 700 g

Packaging content

Feature: Quick start guide

Packaging data

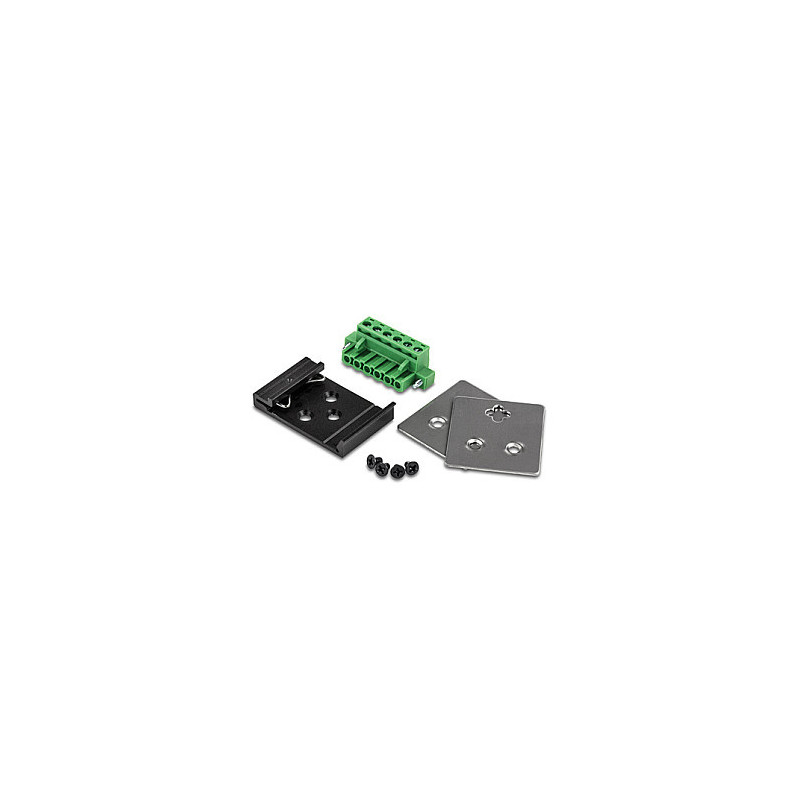

Feature: Mounting brackets included

Certificates

Certification: FCC, CERoHS

Logistics data

Harmonized System (HS) code: 85176990
