Trendnet TI-PG50F network switch

Trendnet TI-PG50F. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE)
TRENDnet's Industrial Gigabit PoE+ Wall-Mounted Front Access Switch Series are well suited for IP surveillance, IoT, and automation networks for homes and businesses. These hardened industrial gigabit flat switches provide front access to ports and power interfaces for easier installation. The flat and compact size make them ideal for cabinet installations where space is limited. Each hardened industrial front access switch features gigabit PoE+ ports for connecting devices such as wireless access points, IP cameras, and IoT appliances. These hardened front access switches come equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75° C (-40° - 167° F) for industrial environments.

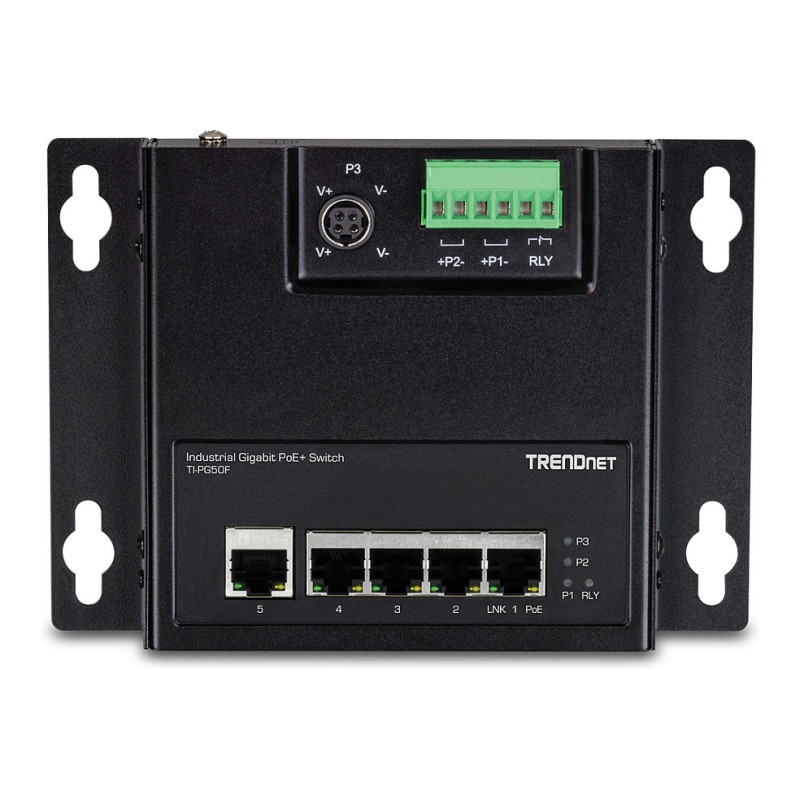

Wall-Mounted Front Access Switch
The wall mountable flat switch provides front access to ports and power interfaces for easier installation. It's flat and compact size make it ideal for cabinet installations where space is limited.
PoE+ Power
A 120W PoE power budget supplies PoE power from the hardened industrial front access switch to up to five Power over Ethernet devices.
Hardened Industrial Design
Equipped with an IP30 rated metal enclosure, this front access switch is designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75° C (-40° - 167° F) for industrial environments.
Network Ports
4 x Gigabit PoE+ ports and 1 x Gigabit port
PoE Power
Supplies up to 30W of PoE+ power per port with a 120W power budget

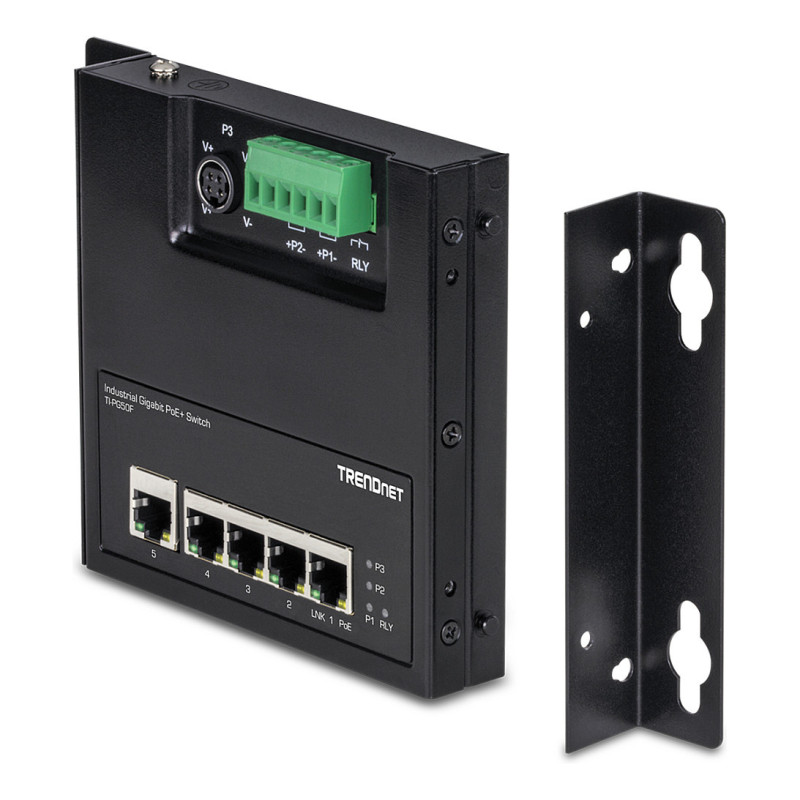

Hardware Design
Wall mountable hardware design provides front access to ports and power interfaces for easier installation
Compact
The flat and compact size makes the front access switch ideal for cabinet installations where space is limited

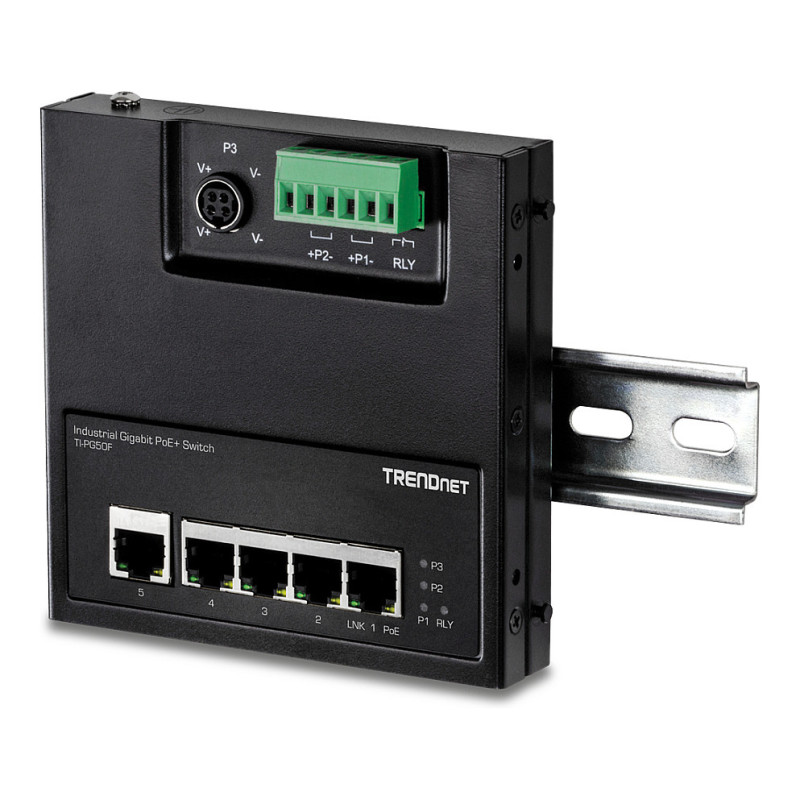

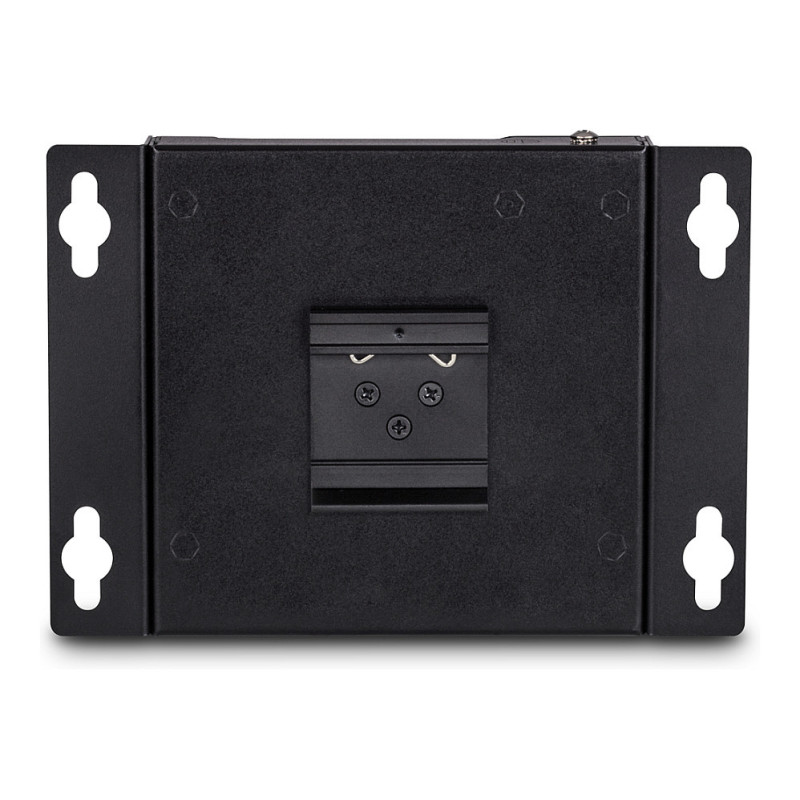

DIN-Rail Mount
Includes DIN-Rail mounting bracket
Switching Capacity
16Gbps switching capacity
Redundant Power
Dual redundant power inputs with overload current protection (power supply sold separately: TI-S12048, TI-S24048, and 48VDC3000)
Alarm Relay
Alarm relay output triggered by power failure of primary or secondary power inputs
Jumbo Frames
Sends larger packets, or jumbo frames (up to 9KB), for increased performance
Wide Temperature Range
Hardened industrial housing offers a wide operating temperature range of -40° - 75° C (-40° - 167° F), allowing for installations in extreme hot and cold environments
Shock and Vibration Resistant
Hardened design rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6) for industrial settings
Grounding Point
Grounding point protects equipment from external electrical surges
LED Indicators
Front access switch with LED indicators that convey power and port status

Management features

Switch type: Unmanaged

Ports interfaces

Basic switching RJ-45 Ethernet ports quantity: 5

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Port mirroring: Yes

Data transmission

Switching capacity: 10 Gbit/s
Forwarding rate: 7.44 Mpps
MAC address table: 2000 entries
Jumbo frames support: Yes
Jumbo frames: 9000
Packet buffer memory: 64 MB

Security

MAC address filtering: Yes

Design

Rack mounting: No
Stackable: No
Product colour: Black

Performance

Mean time between failures (MTBF): 454556 h

Power

AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Input current: 2 A

Power over Ethernet (PoE)

Power over Ethernet (PoE): Yes
Power over Ethernet plus (PoE+) ports quantity: 4
Total Power over Ethernet (PoE) budget: 200 W

Operational conditions

Operating temperature (T-T): -40 - 75 °C
Storage relative humidity (H-H): 0 - 95%

Weight dimensions

Width: 118 mm
Depth: 23.5 mm
Height: 118 mm
Weight: 425 g

Packaging content

Quick start guide: No
Rack mount kit: Yes

Certificates

Certification: CEFCCULShock (IEC 60068-2-27)Freefall (IEC 60068-2-32)Vibration (IEC 60068-2-6)

Logistics data

Harmonized System (HS) code: 85176990
