Trendnet TI-PG50 network switch

Trendnet TI-PG50. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 4. Full duplex. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x. DC input voltage: 48 - 56 V. Power over Ethernet (PoE). Wall mountable, Rack mounting

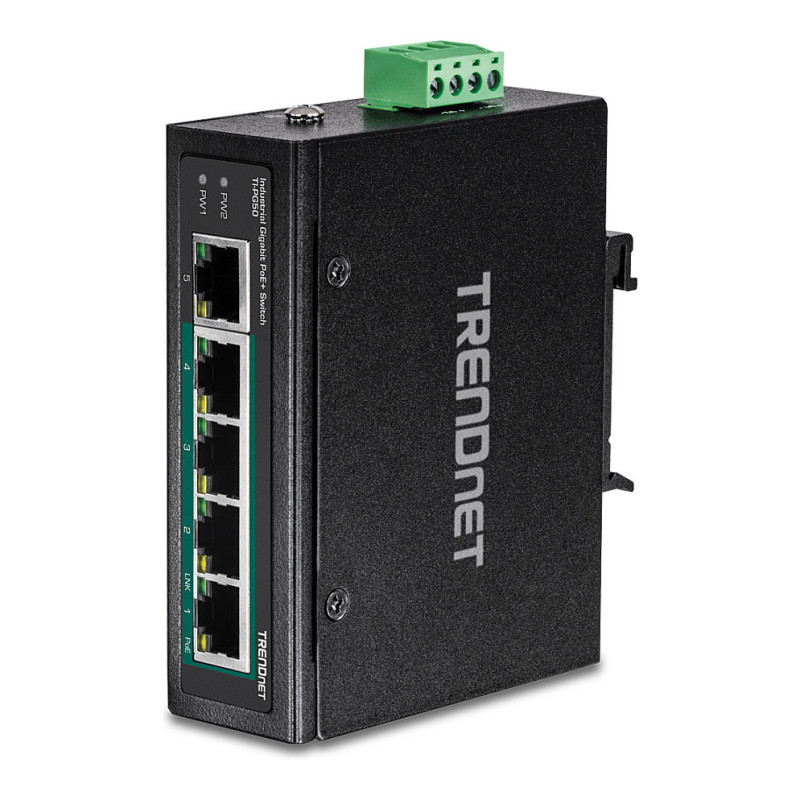

TRENDnet's 5-Port Industrial Gigabit PoE+ DIN-Rail Switch, model TI-PG50, has four gigabit PoE+ ports with a 120W PoE power budget. Users are able to connect four PoE+ devices to this industrial switch, while simultaneously providing a non-PoE gigabit port for connectivity to the network. The TI-PG50 industrial switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75° C (-40° - 167° F) for industrial environments.


PoE Power
A 120W PoE+ power budget for up to four Power over Ethernet devices with PoE+ power.

Fault Tolerance
The industrial switch features redundant power inputs with overload current protection.

Industrial Design
Equipped with a rugged IP30 rated housing, designed to withstand a high degree of vibration and shock, and operate within a wide temperature range of -40° - 75° C (-40° - 167° F).

PoE+ Power Budget
Supplies up to 30W of PoE/PoE+ power per port on the industrial PoE switch with a 120W PoE power budget

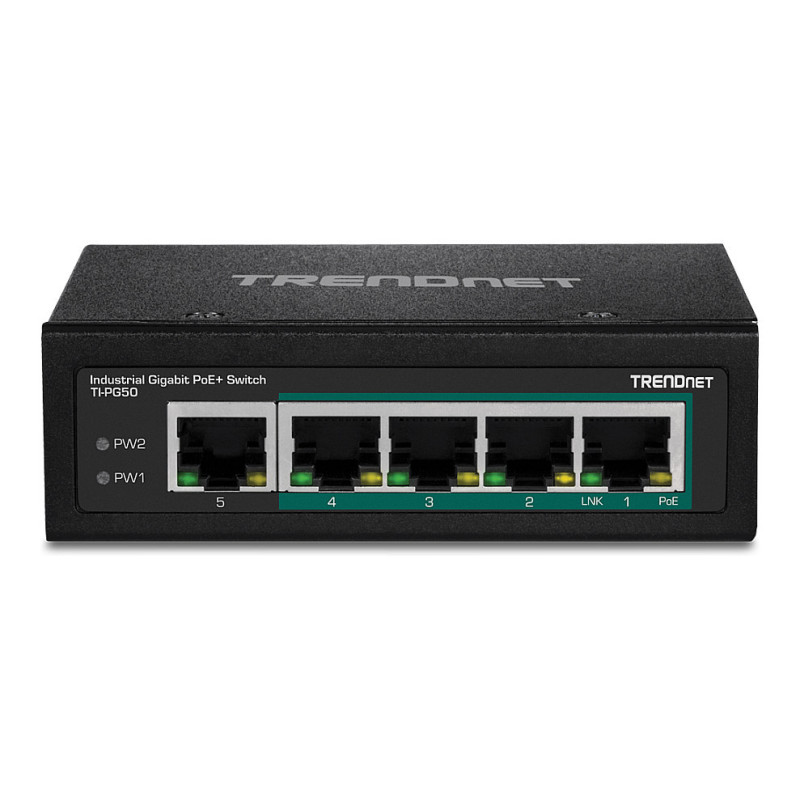

Network Ports
4 x Gigabit PoE+ ports and 1 x Gigabit port

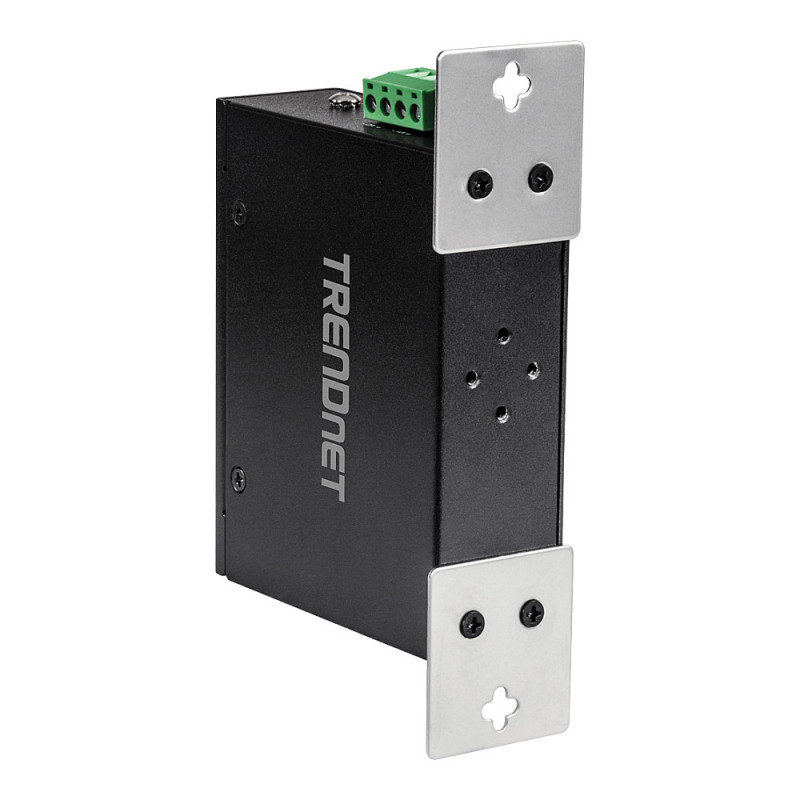

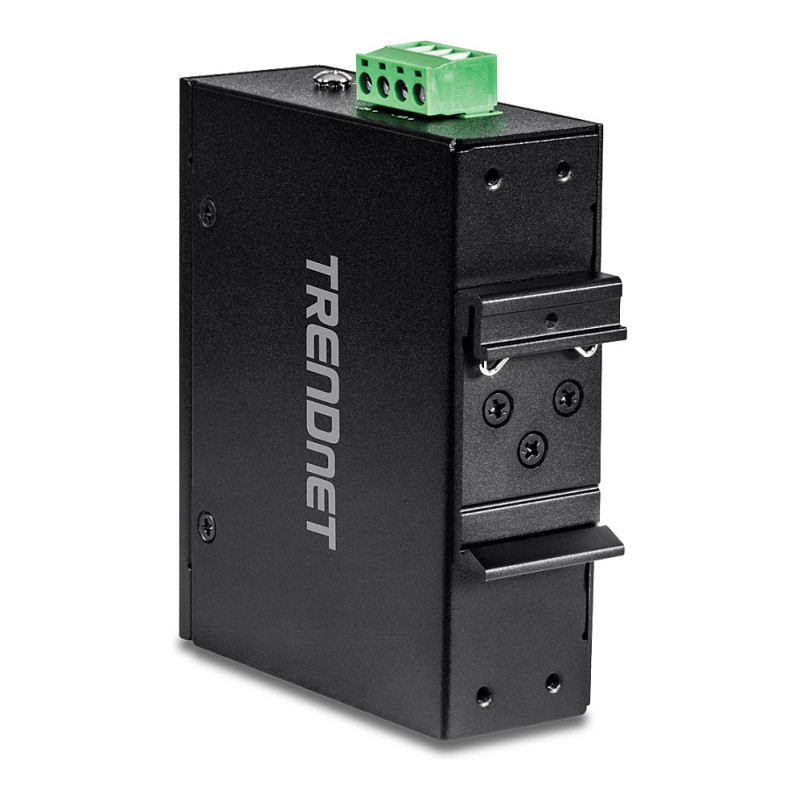

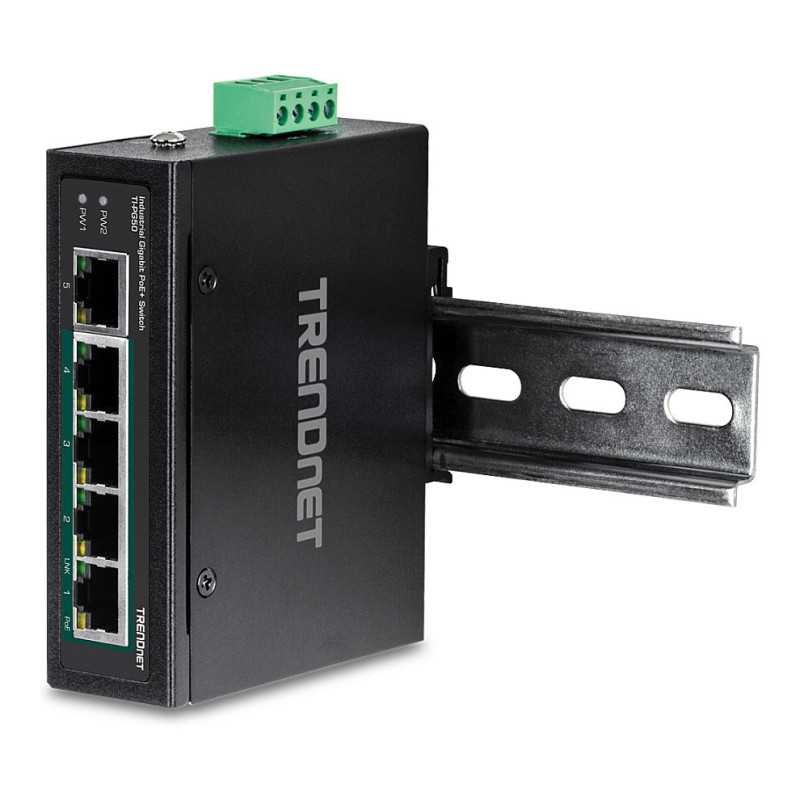

DIN-Rail/Wall Mounts

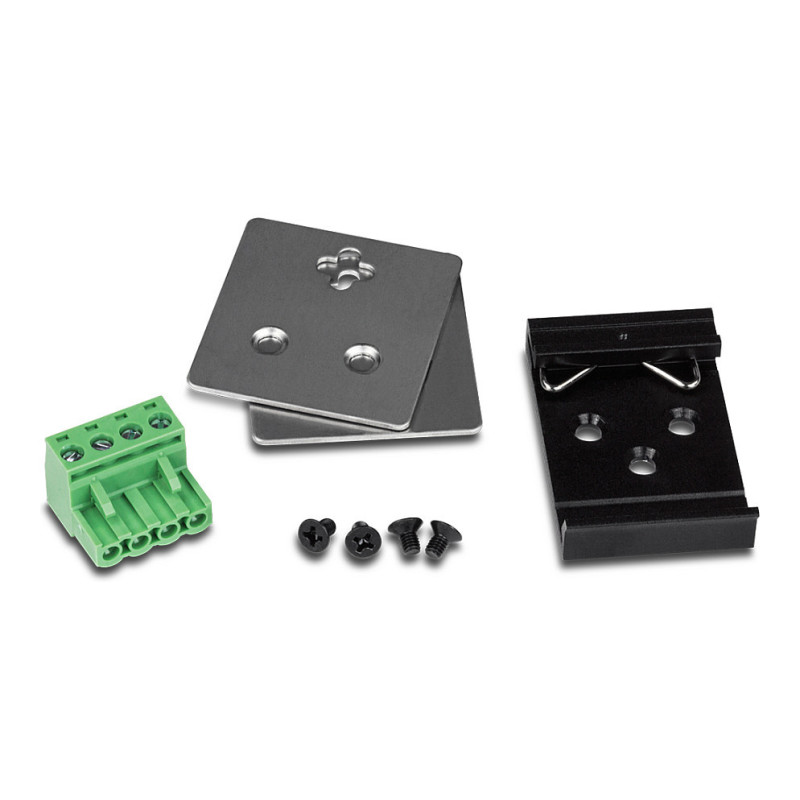

IP30 rated metal enclosure with included DIN-Rail and wall mount hardware

Switching Capacity
10Gbps switching capacity

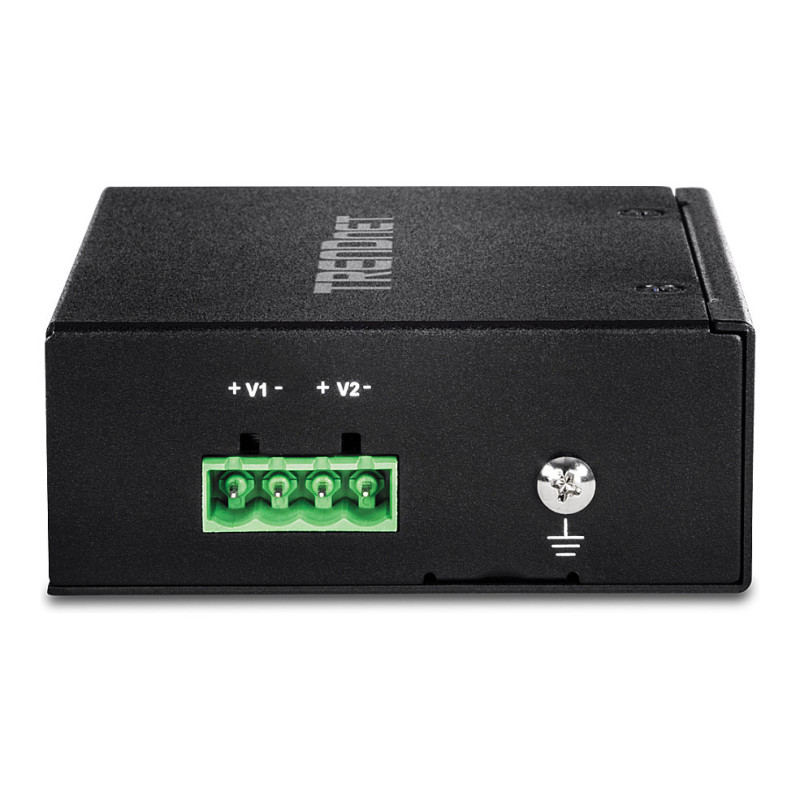

Redundant Power
Redundant power inputs with overload current protection (compatible power supply sold separately models: TI-S12048 / TI-S24048)

Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance

Extreme Temperatures
Industrial switch rated for an operating temperature range of -40° - 75° C (-40° - 167° F)

Shock and Vibration Resistant
Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)

Grounding Point
Grounding point on the industrial switch protects equipment from external electrical surges

Management features

Switch type: Unmanaged
Feature: Quality of Service (QoS) support
Feature: Configuring Location Settings (CLI)
Feature: System event log
Feature: User operation log

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 4
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology: 1000BASE-T
Feature: Port mirroring
Feature: Full duplex
Feature: IP routing
Feature: Policy-based routing
Feature: Flow control support
Feature: Link aggregation
Feature: Auto MDI/MDI-X
Ethernet LAN data rates: 10,100,480,800,1000 Mbit/s
Feature: Auto-negotiation
Feature: VLAN support

Data transmission

Switching capacity: 10 Gbit/s
Forwarding rate: 7.44 Mpps
MAC address table: 2000 entries
Feature: Store-and-forward
Feature: Static route
Feature: Jumbo frames support
Jumbo frames: 9000
Packet buffer memory: 0.128 MB

Security

DHCP features: DHCP client, DHCP server
Feature: Access Control List (ACL)
Feature: IGMP snooping
Feature: IP-MAC-Port binding
Feature: Password protection

Design

Feature: Rack mounting
Product colour: Black
LED indicators: Yes
Feature: Wall mountable

Performance

Mean time between failures (MTBF): 538451 h

Power

DC input voltage: 48 - 56 V
Power consumption (max): 2.24 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported: Active PoE
Power over Ethernet plus (PoE+) ports quantity: 4
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 120 W

Operational conditions

Operating temperature (T-T): -40 - 75 °C
Operating relative humidity (H-H): 10 - 95%

Weight & dimensions

Width: 104 mm
Depth: 32 mm
Height: 82 mm
Weight: 190 g

Packaging content

Feature: Quick start guide
Feature: Rack mount kit

Certificates

Certification: CE, FCC, UL, Shock (IEC 60068-2-27), Freefall (IEC 60068-2-32), Vibration (IEC 60068-2-6), IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5

Logistics data

Harmonized System (HS) code: 85176990
