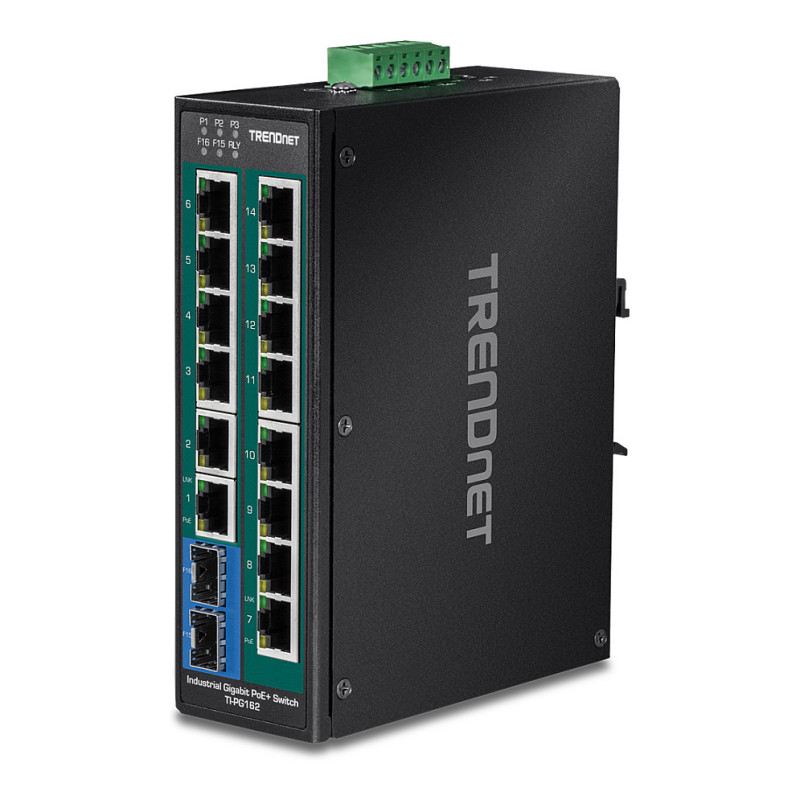

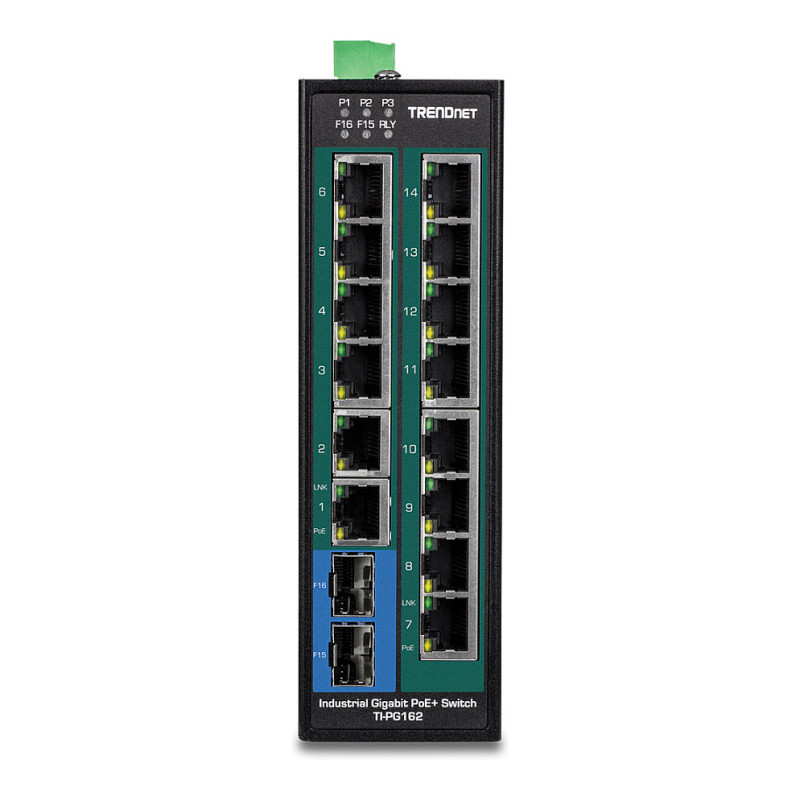

Trendnet TI-PG162 network switch

Trendnet TI-PG162. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 14. Full duplex. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. DC input voltage: 48 - 56 V. Power over Ethernet (PoE). Wall mountable
TRENDnet's Industrial Gigabit PoE+ DIN-Rail Switches provide network connectivity in rugged environments, while saving you on installation costs and setup time using Power over Ethernet technology. The Industrial Gigabit PoE+ DIN-Rail Switches each feature a rugged IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° - 75° C (-40° - 167° F). Our hardened industrial PoE+ switch models feature copper Gigabit PoE+ ports for high-speed device connections, and SFP slots that support 1000Base-FX modules for long distance fiber networking applications.

Management features

Switch type: Unmanaged

Ports interfaces

Basic switching RJ-45 Ethernet ports quantity: 14
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP module slots quantity: 2

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support: No
Full duplex: Yes

Data transmission

Switching capacity: 32 Gbit/s
Forwarding rate: 23.8 Mpps
MAC address table: 8000 entries
Jumbo frames support: Yes
Jumbo frames: 9000
Packet buffer memory: 0.5 MB

Design

Rack mounting: No
Product colour: Black
Housing material: Metal
LED indicators: Yes
International Protection (IP) code: IP30
Wall mountable: Yes

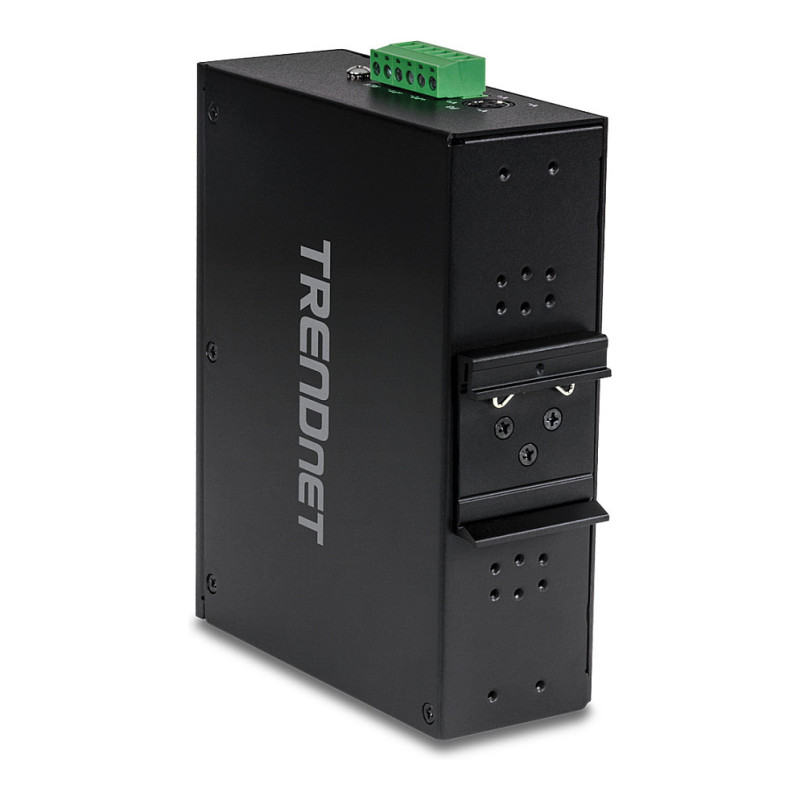

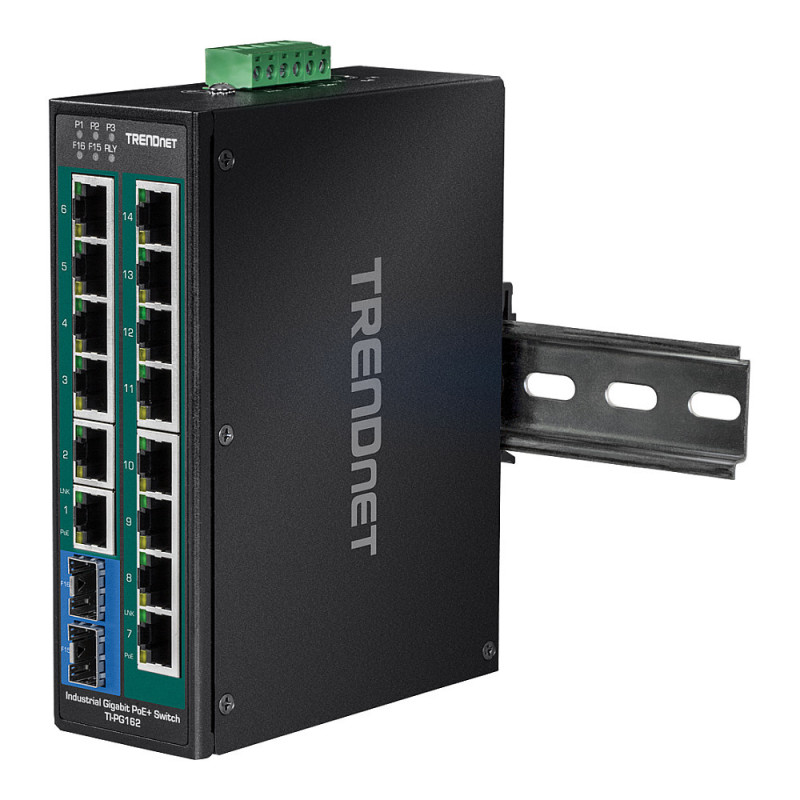

DIN rail mounting: Yes

Performance

Mean time between failures (MTBF): 514167 h

Power

Power supply included: No
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz

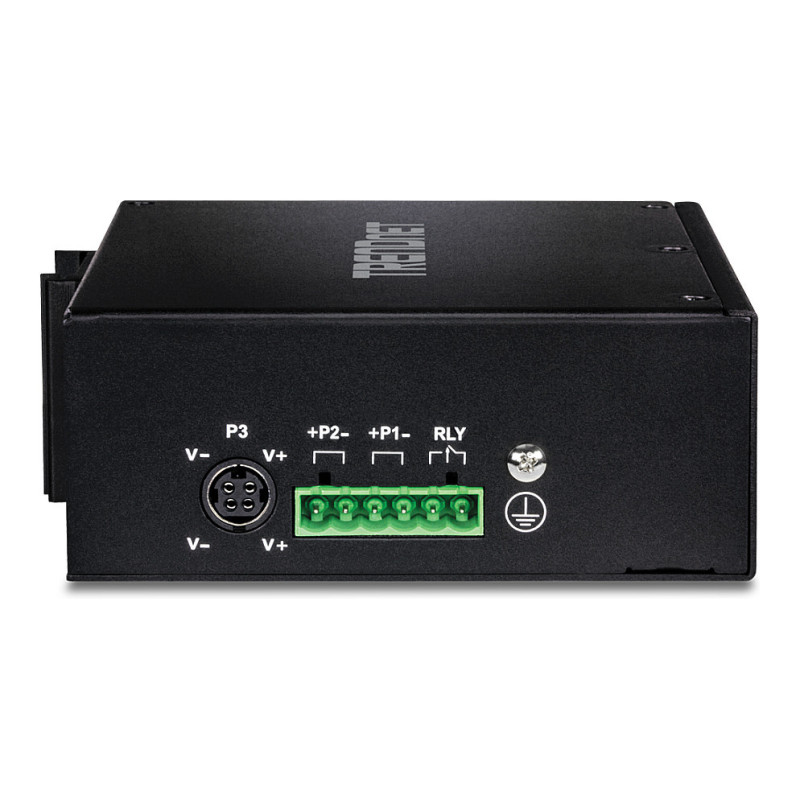

DC input voltage: 48 - 56 V
Input current: 2 A
Power consumption (max): 13 W

Power over Ethernet (PoE)

Power over Ethernet (PoE): Yes
Power over Ethernet plus (PoE+) ports quantity: 14

Operational conditions

Operating temperature (T-T): -40 - 75 °C
Operating relative humidity (H-H): 0 - 95%

Weight dimensions

Width: 120 mm
Depth: 155 mm
Height: 48 mm
Weight: 536 g

Packaging content

Quick start guide: Yes

Certificates

Certification: CEFCCMETIEC 60068-2-27IEC 60068-2-32IEC 60068-2-6

Logistics data

Harmonized System (HS) code: 85176990
