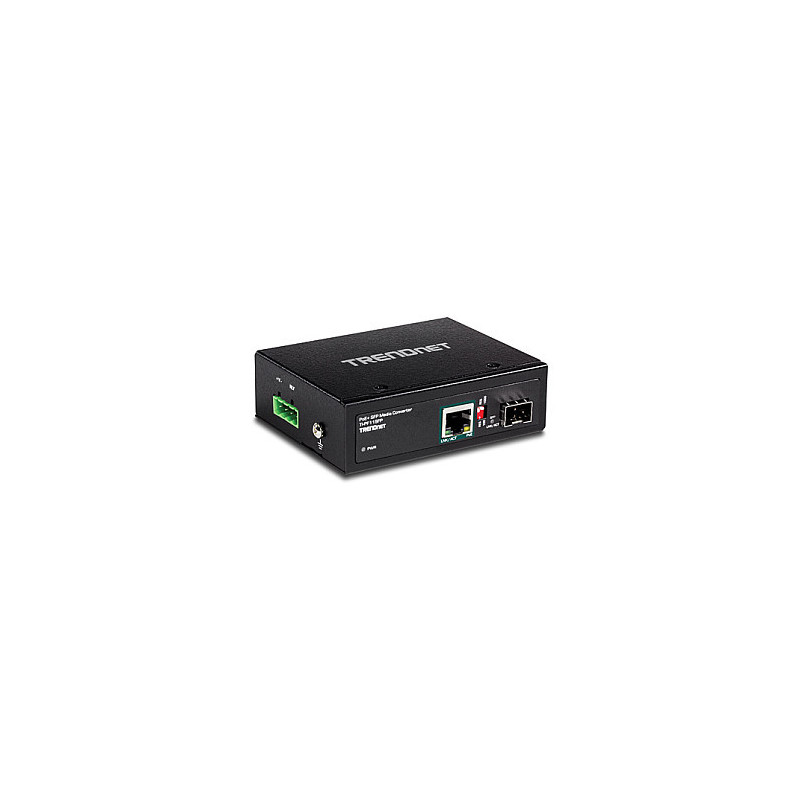

Trendnet TI-PF11SFP network media converter

Trendnet TI-PF11SFP. Maximum data transfer rate: 2000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, Ethernet interface type: Gigabit Ethernet. Wavelength: 0.56 nm, Buffer size: 1000 KB, Mean time between failures (MTBF): 500000 h. Product colour: Black, Housing material: Aluminium, International Protection (IP) code: IP30. Fiber optic connector: SFP, Connectivity technology: Wired. Input voltage: 48 - 56 V, Power consumption (typical): 2 W, Total Power over Ethernet (PoE) budget: 30 W
TRENDnet's Industrial SFP to Gigabit PoE+ Media Converter, model TI-PF11SFP, converts fiber to copper while providing power to PoE and PoE+ compliant devices such as IP cameras, VoIP phones, and wireless access points. The hardened IP30 rated housing is suitable for extreme industrial environments. Dual redundant power inputs (power supply sold separately: TI-S12048) with overload current protection minimizes downtime.
Industrial Applications
Networks devices for manufacturing, general industrial, warehousing, surveillance, and corporate applications.
PoE+ Output
Converts fiber to copper while providing power to PoE and PoE+ compliant devices such as IP cameras, VoIP phones, and wireless access points.
Extreme Environments
Hardened IP30 converter, with a -40 to 75 ºC (-40 to 167 ºF) operating temperature range.

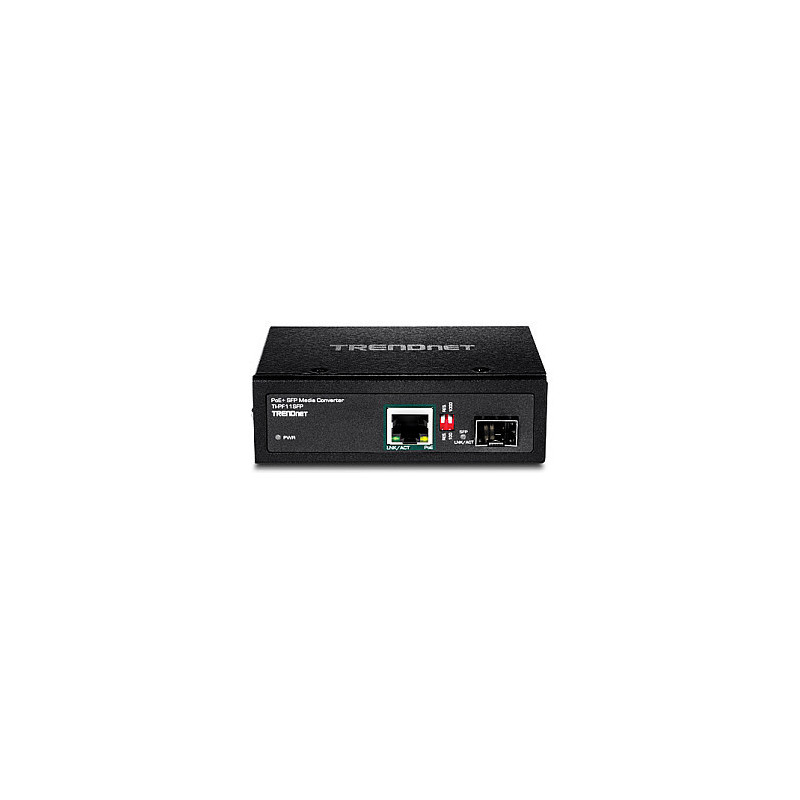

Network Ports
1 x Gigabit PoE+ Ethernet port and 1 x SFP slot

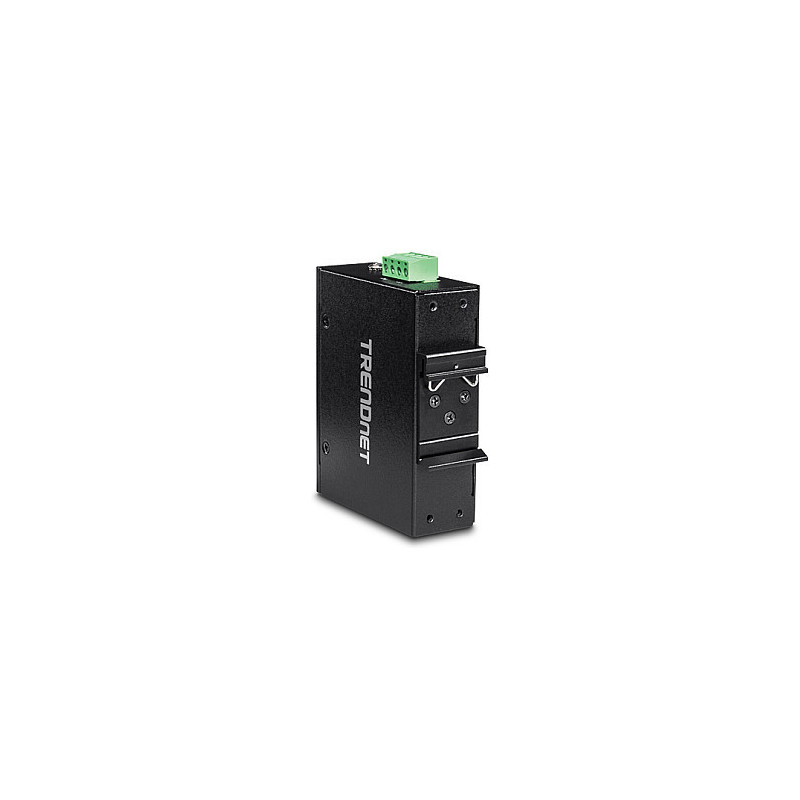

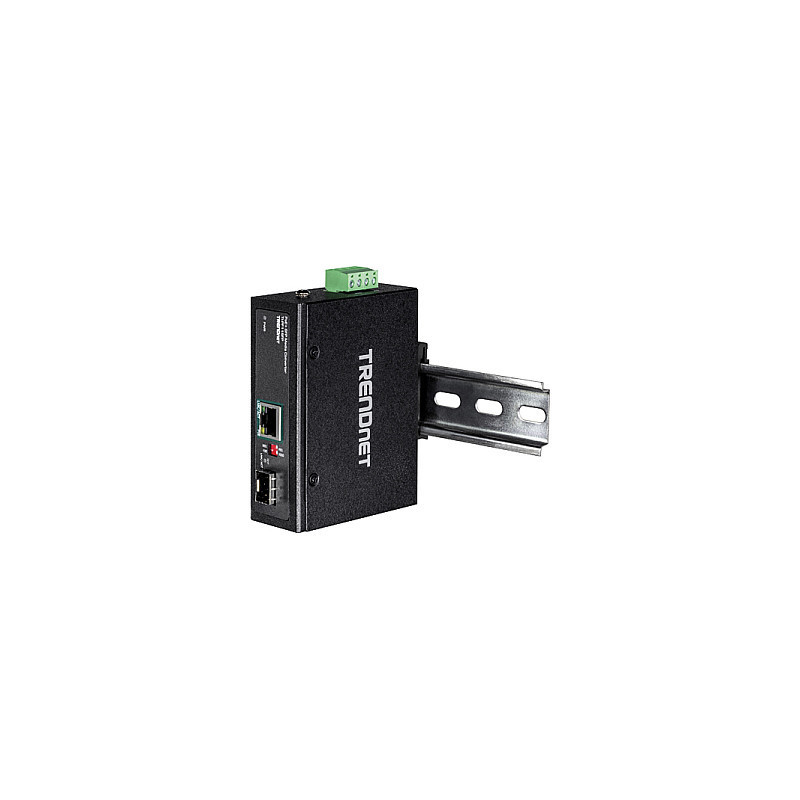

DIN-Rail/Wall Mounts

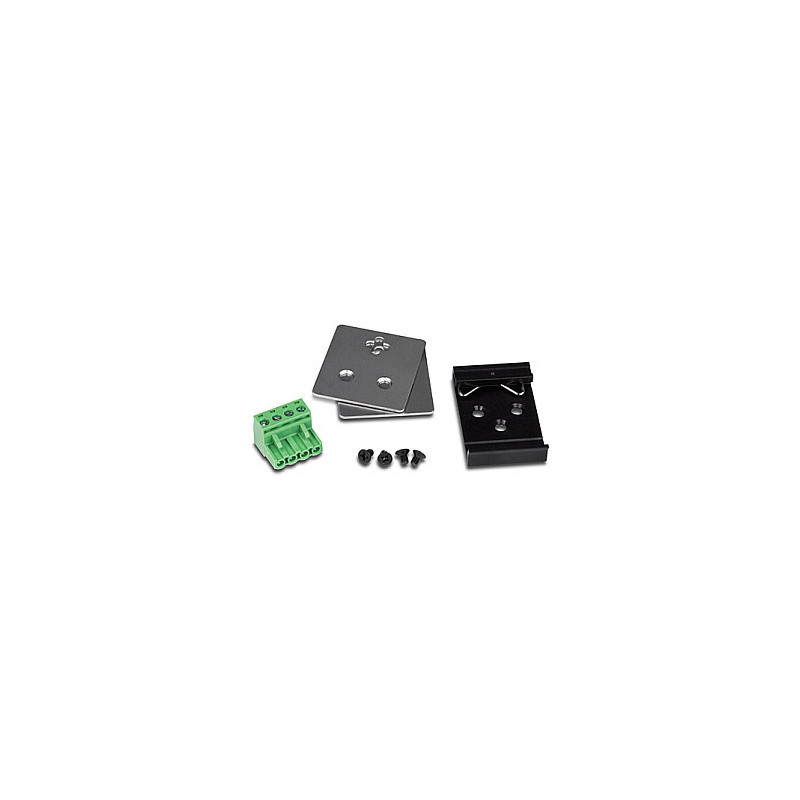

IP30 rated metal enclosure with included DIN-rail and wall mount hardware
Switching Capacity
2Gbps switching capacity

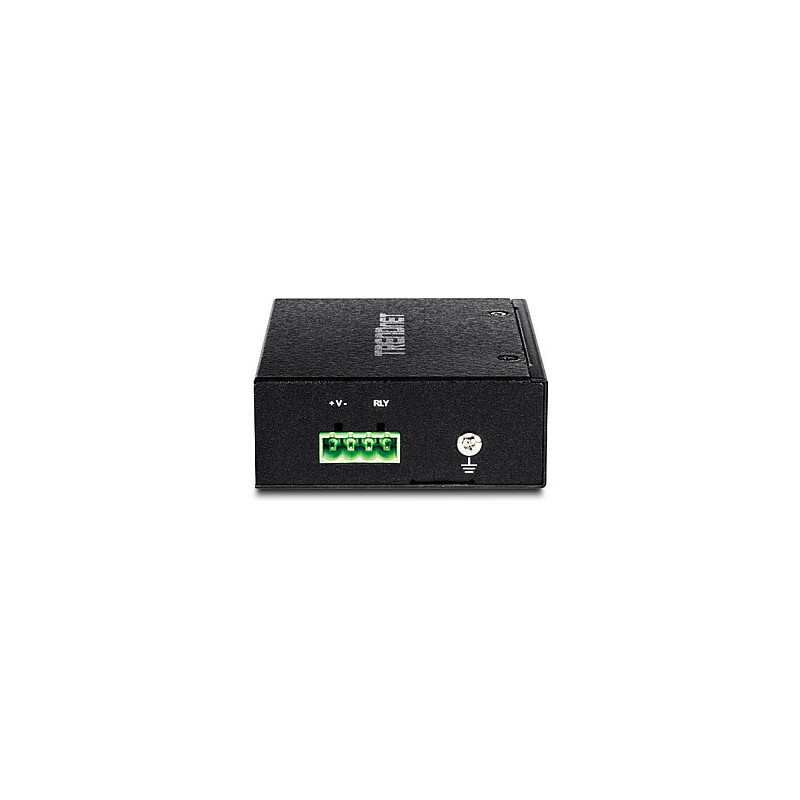

Redundant Power
Dual redundant power inputs with overload current protection (power supply sold separately: model TI-S12048)
Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance
Extreme Temperatures
Hardened converter is rated for a wide operating temperature range of -40 to 75 °C (-40 to 167 °F)
Electromagnetic Compliance
Complies with FCC Part 15 Subpart B Class A and CE EN 55022 Class A standards
Certifications
Rated for information technology (ITE) equipment (EN55022/24) and industrial, scientific, and medical (ISM) Equipment (EN55011)
Shock and Vibration Resistant
Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and vibration (IEC 60068-2-6)
Grounding Point
Grounding point protects equipment from external electrical surges

Network

Maximum data transfer rate: 2000 Mbit/s
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Jumbo frames support: Yes
Jumbo frames: 9
Auto-negotiation: Yes
Store-and-forward: Yes
Duplex system: Full, Half

Performance

Wavelength: 0.56 nm
Buffer size: 1000 KB
Mean time between failures (MTBF): 500000 h

Features

Internal: No
LED indicators: Yes
Product colour: Black
Housing material: Aluminium
International Protection (IP) code: IP30
DIN rail mounting: Yes

Ports interfaces

Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Fiber ports quantity: 1
Fiber optic connector: SFP
Power over Ethernet plus (PoE+) ports quantity: 1

Power

Input voltage: 48 - 56 V
Power consumption (typical): 2 W
Power over Ethernet (PoE): Yes
Total Power over Ethernet (PoE) budget: 30 W

Weight dimensions

Width: 32 mm
Depth: 81 mm
Height: 104 mm
Weight: 154 g

Operational conditions

Operating temperature (T-T): -40 - 75 °C

Packaging content

Quick installation guide: Yes

Certificates

Certification: CE, FCC, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, EN60950-1

Logistics data

Harmonized System (HS) code: 85176990
