Trendnet TI-M12 gateway/controller

Trendnet TI-M12. Product colour: Black, Enclosure material: Metal, Mounting type: DIN-rail. Mean time between failures (MTBF): 521243 h. Ethernet LAN data rates: 10,100 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x. Serial interface type: RS-232. Power consumption (max): 3.84 W, Input voltage: 12 - 56 V

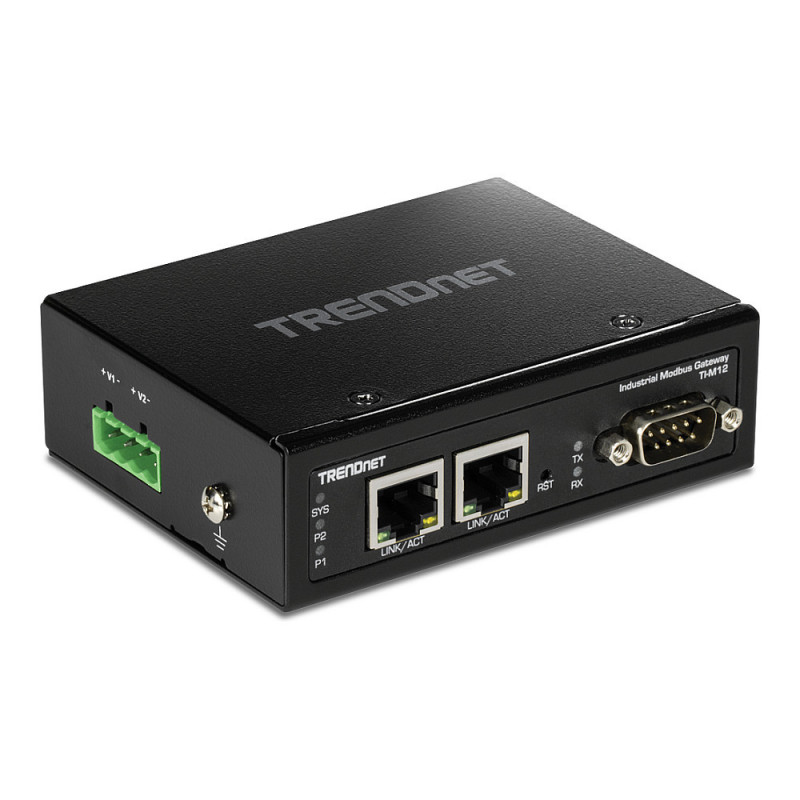

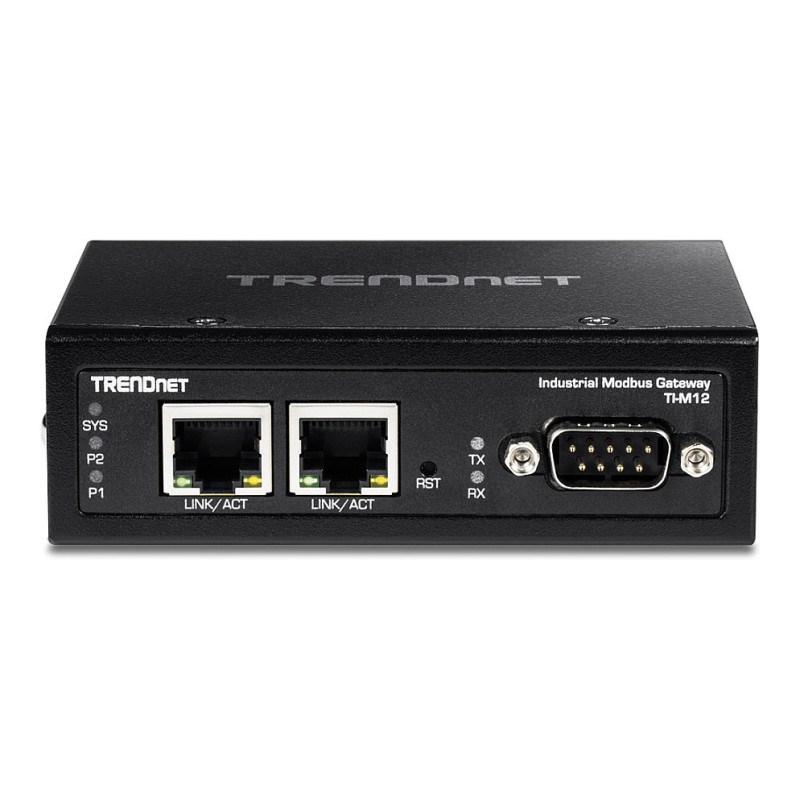

TRENDnet's Industrial Modbus Gateway, model TI-M12, provides one port serial connection and two fast Ethernet ports at distances up to 100m (328 ft.) using Cat5e cabling. This industrial modbus gateway allows users to connect a modbus serial device to a network.

Design

Product colour: Black
Enclosure material: Metal

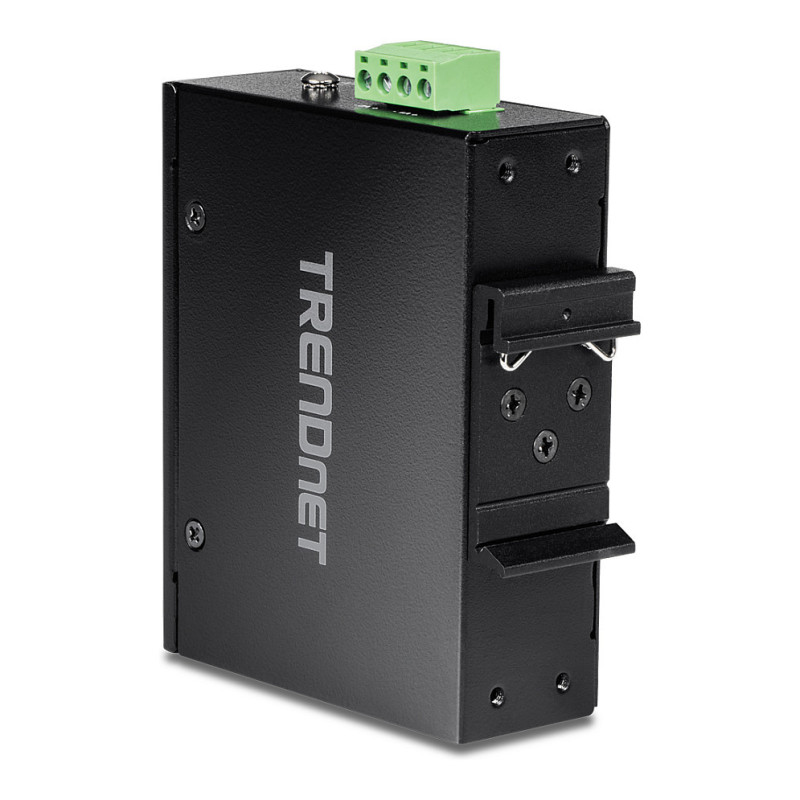

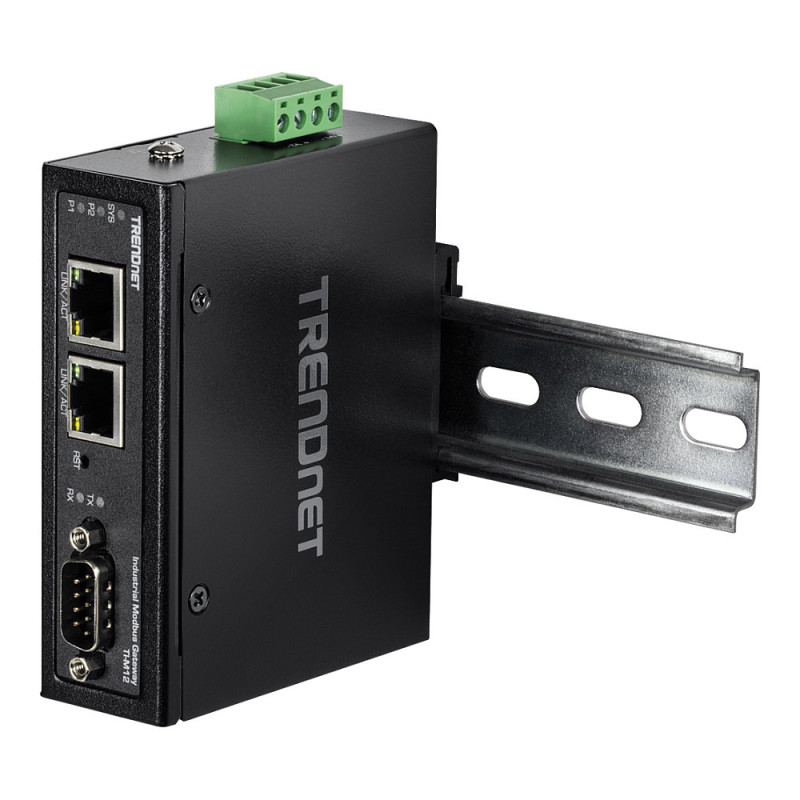

Mounting type: DIN-rail
LED indicators: Yes
International Protection (IP) code: IP30

Features

Mean time between failures (MTBF): 521243 h

Protocols

Feature: DHCP server

Network

Ethernet LAN data rates: 10,100 Mbit/s
Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Feature: Flow control support
Feature: Full duplex

Ports & interfaces

Ethernet LAN (RJ-45) ports: 2
Serial interface type: RS-232

Power

Power consumption (max): 3.84 W

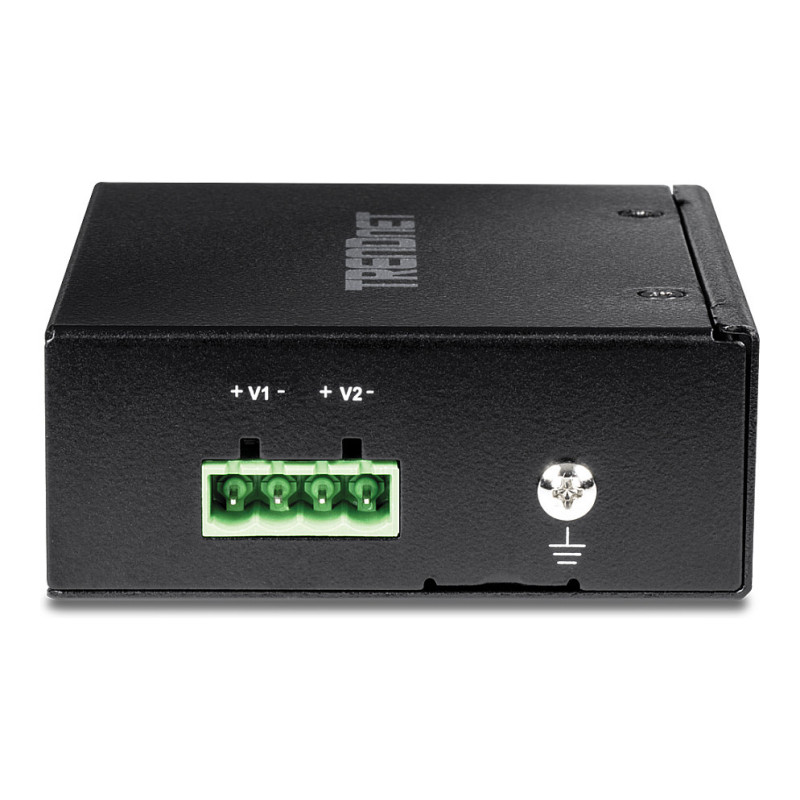

Input voltage: 12 - 56 V

Weight & dimensions

Width: 31 mm
Depth: 80 mm
Height: 103 mm
Weight: 154 g

Packaging content

Feature: Quick installation guide

Operational conditions

Operating temperature (T-T): -40 - 75 °C

Sustainability

Feature: Sustainability compliance

Certificates

Compliance certificates: CE
Certification: FCCIEC 60068-2-27IEC 60068-2-32IEC 60068-2-6IEC 61000-4-2IEC 61000-4-4IEC 61000-4-5
