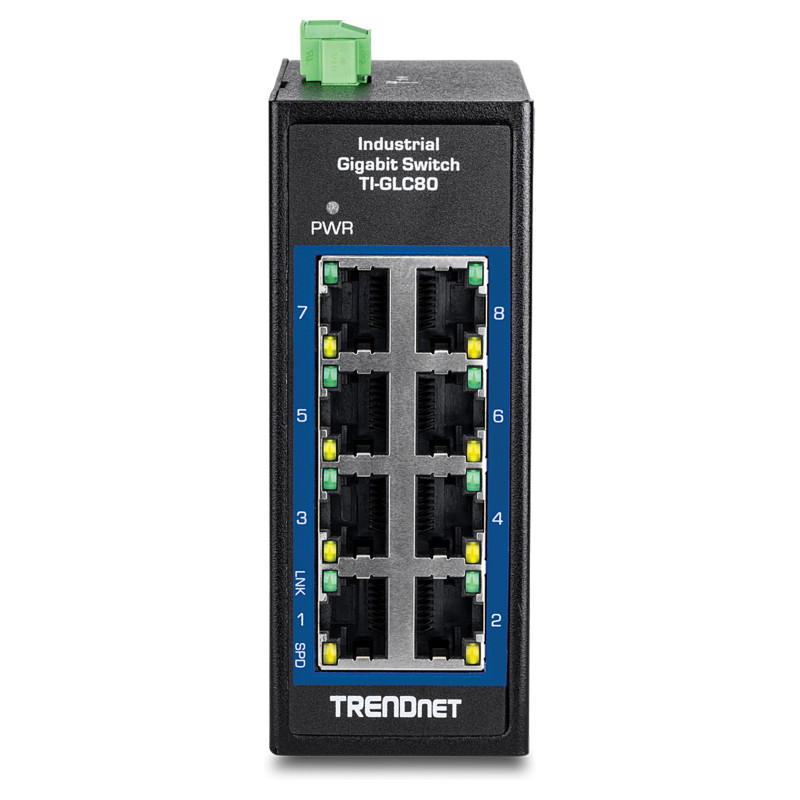

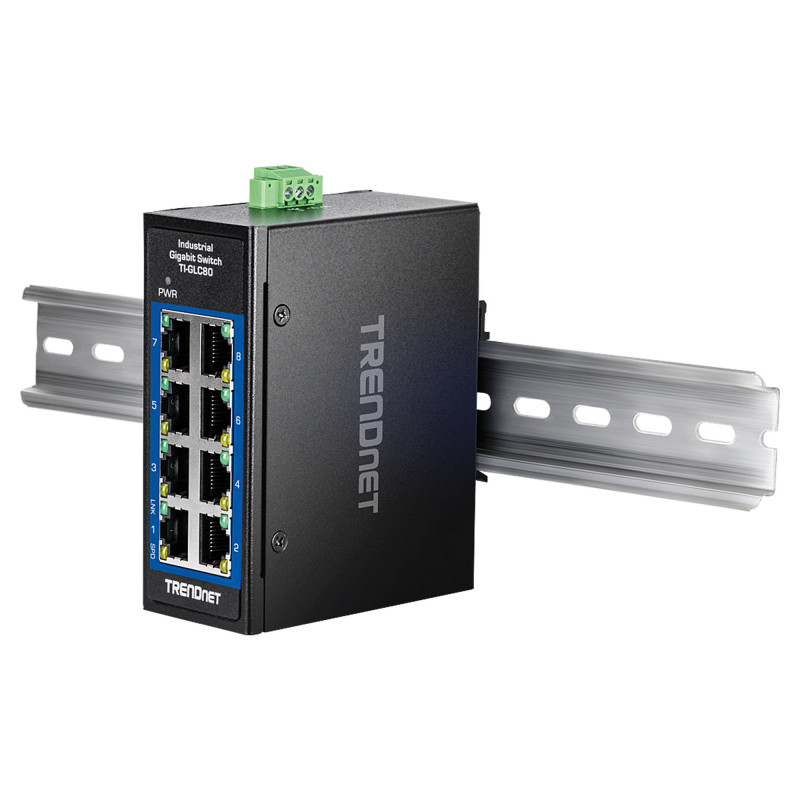

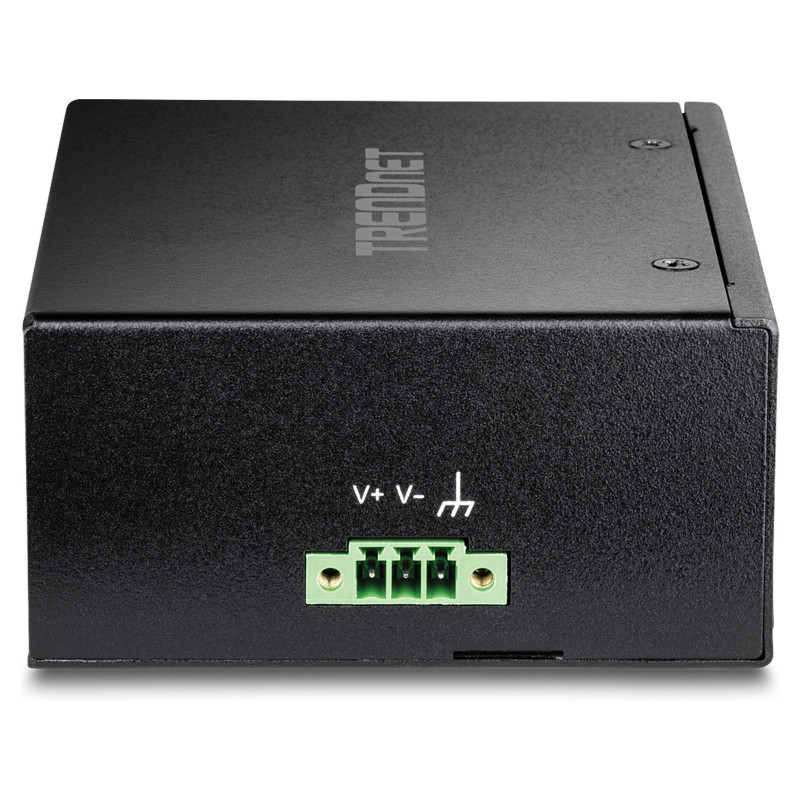

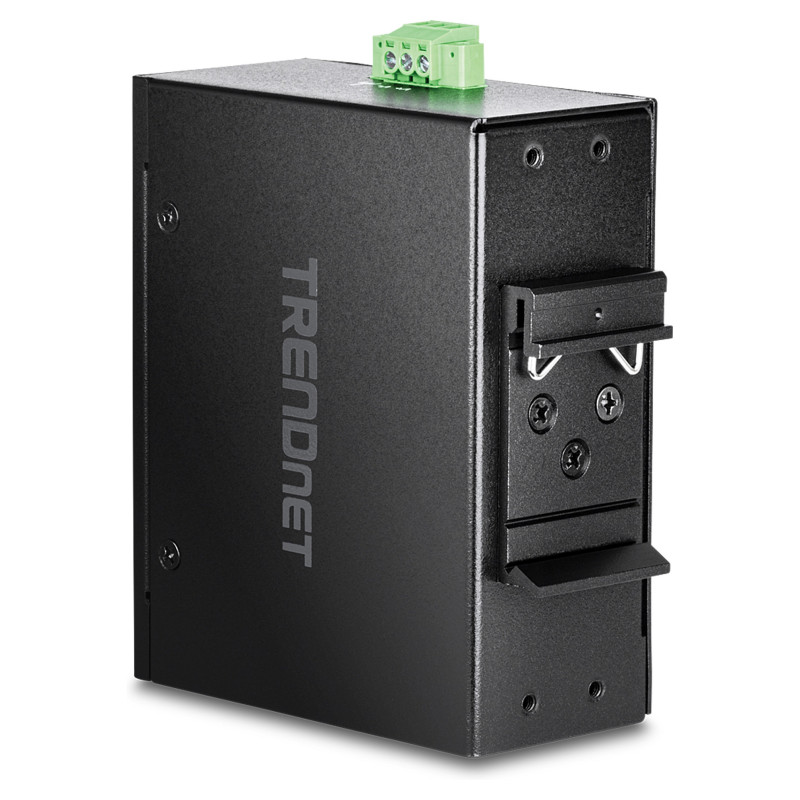

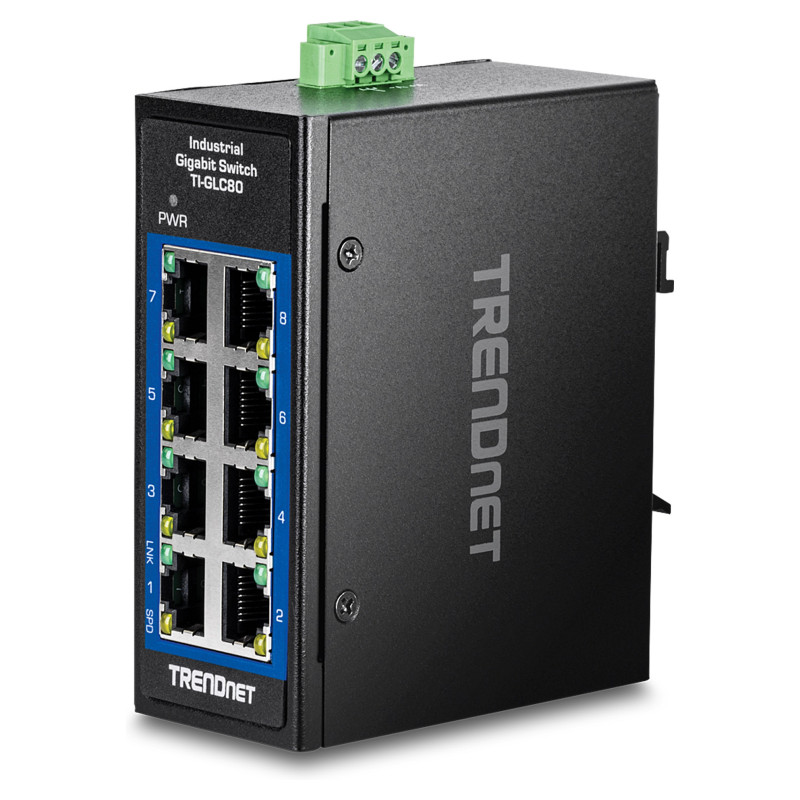

Trendnet TI-GLC80 network switch

Trendnet TI-GLC80. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 4000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. DC input voltage: 9.6 - 60 V. Wall mountable

TRENDnet's 8-Port Industrial Gigabit DIN-Rail Mini Switch, model TI-GLC80, is a reliable and rugged networking solution that is designed for use in both extreme and demanding environments. This compact industrial switch features a rugged IP30 rated metal enclosure, and is designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° - 75° C (-40° - 167° F). The hardened industrial mini switch features eight copper Gigabit ports for high-speed device connections. The mini-sized housing is designed to fit into most compact installation areas.

Management features

Switch type: Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Feature: Full duplex
Feature: Half duplex
Feature: Auto-negotiation

Data transmission

Switching capacity: 16 Gbit/s
Forwarding rate: 11.58 Mpps
MAC address table: 4000 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Jumbo frames: 9000

Design

Product colour: Black
Housing material: Metal
International Protection (IP) code: IP30
Feature: Wall mountable
Feature: DIN rail mounting

Performance

Mean time between failures (MTBF): 556940 h

Power

Power source: DC
DC input voltage: 9.6 - 60 V
Power consumption (max): 3.36 W

Operational conditions

Operating temperature (T-T): -40 - 75 °C

Weight & dimensions

Width: 100 mm
Depth: 80.5 mm
Height: 39 mm
Weight: 356 g

Certificates

Certification: CEFCC
