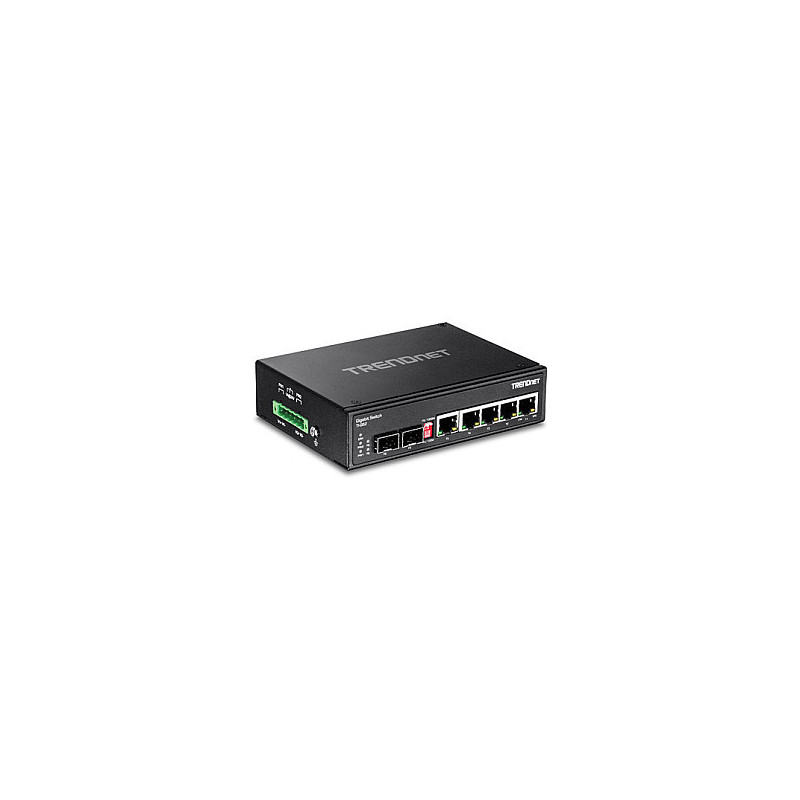

Trendnet TI-G62 network switch

Trendnet TI-G62. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2048 entries, Switching capacity: 12 Gbit/s. Networking standards: IEEE 802.3u, IEEE 802.3x, IEEE 802.3, IEEE 802.3z, IEEE 802.3ab. Wall mountable
TRENDnet's TI-G62 is a reliable IP30 unmanaged DIN-rail switch with hardened components rated for extreme industrial environments. It offers 5 Gigabit Ethernet ports, one shared SFP slot, one dedicated SFP slot, and a 12 Gbps switching capacity. DIP switches toggle between the shared Gigabit port and SFP slot and set supported throughput to either 100 Mbps or 1 Gbps. Dual redundant power inputs (power supply sold separately: TI-M6024) and a power failure alarm output trigger support zero downtime applications.

Management features

Switch type: Unmanaged
Switch layer: L2

Ports interfaces

Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity: 1
SFP module slots quantity: 1

Network

Networking standards: IEEE 802.3u, IEEE 802.3x, IEEE 802.3, IEEE 802.3z, IEEE 802.3ab
10G support: No
Full duplex: Yes
Flow control support: Yes

Data transmission

Switching capacity: 12 Gbit/s
MAC address table: 2048 entries
Store-and-forward: Yes
Jumbo frames support: Yes

Design

Product colour: Black
Housing material: Metal
LED indicators: Yes
International Protection (IP) code: IP30
Wall mountable: Yes

Performance

Buffer size: 1024 KB
Mean time between failures (MTBF): 510304 h

Power

Redundant power supply (RPS) support: Yes
Power consumption (max): 3.84 W

Power over Ethernet (PoE)

Power over Ethernet (PoE): No

Operational conditions

Operating temperature (T-T): -40 - 75 °C

Weight dimensions

Width: 143 mm
Depth: 104 mm
Height: 36 mm
Weight: 514 g

Packaging content

Quick start guide: No

Packaging data

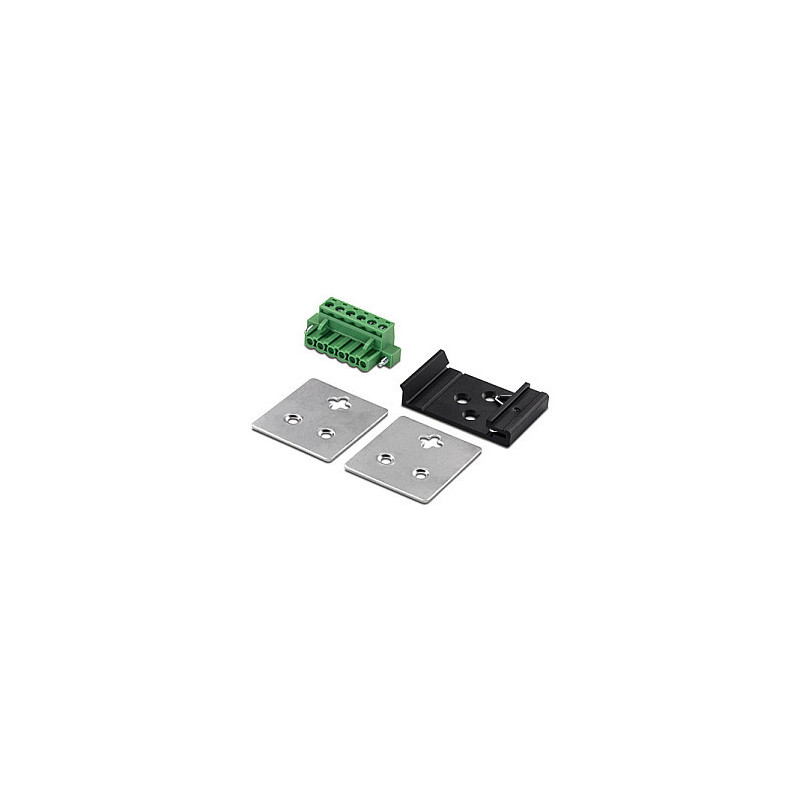

Wall mounting kit: Yes
Terminal block included: Yes

Certificates

Certification: FCCCE

Logistics data

Harmonized System (HS) code: 85176990
