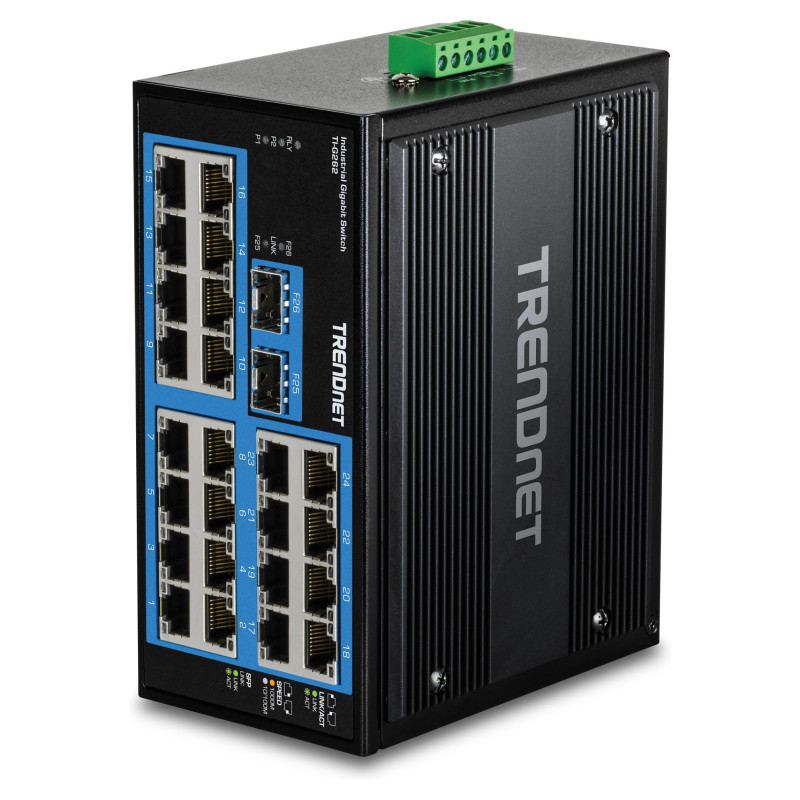

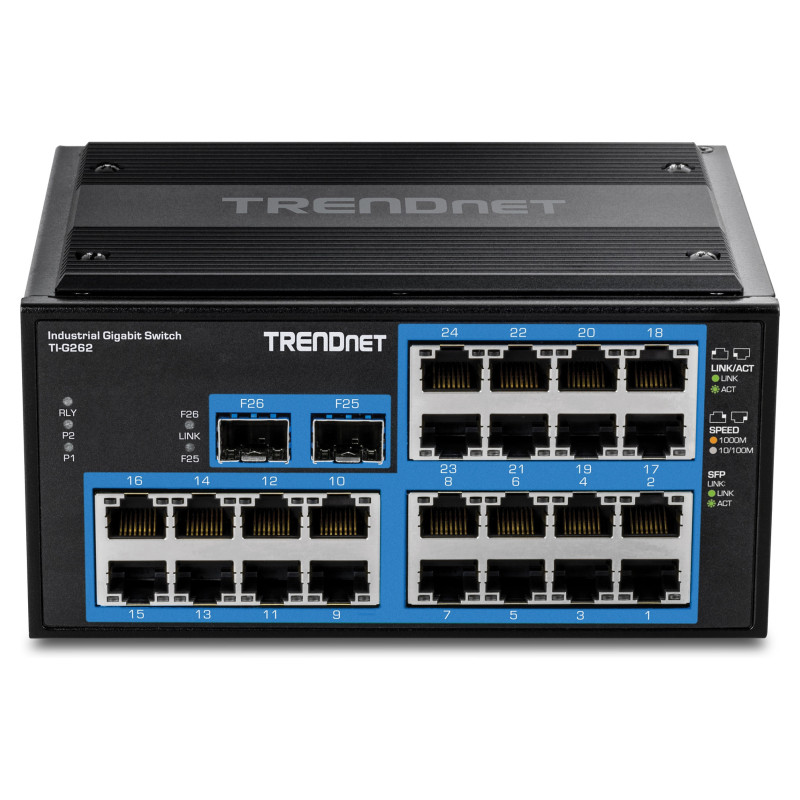

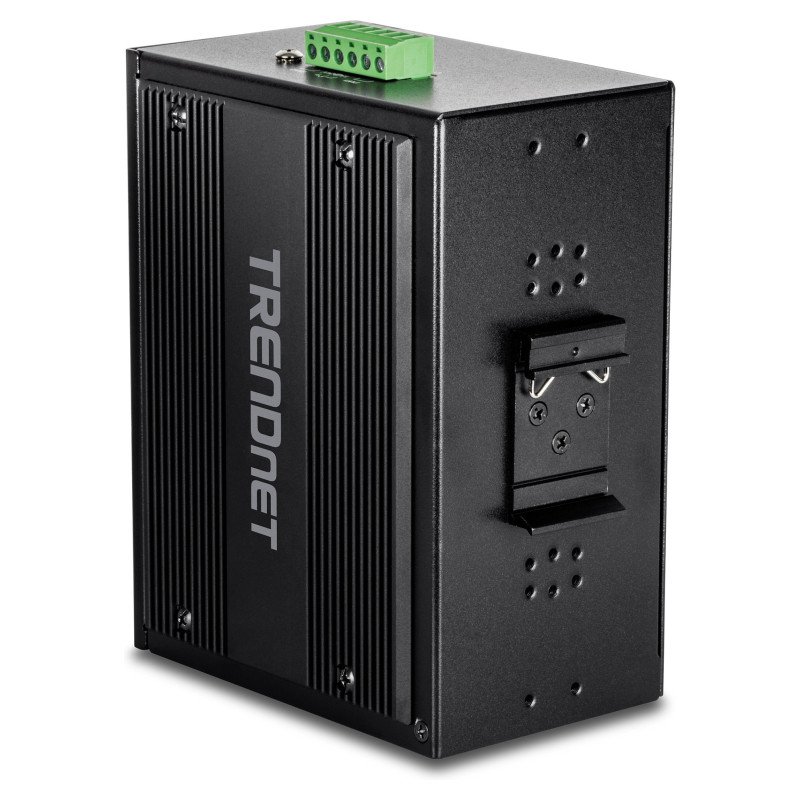

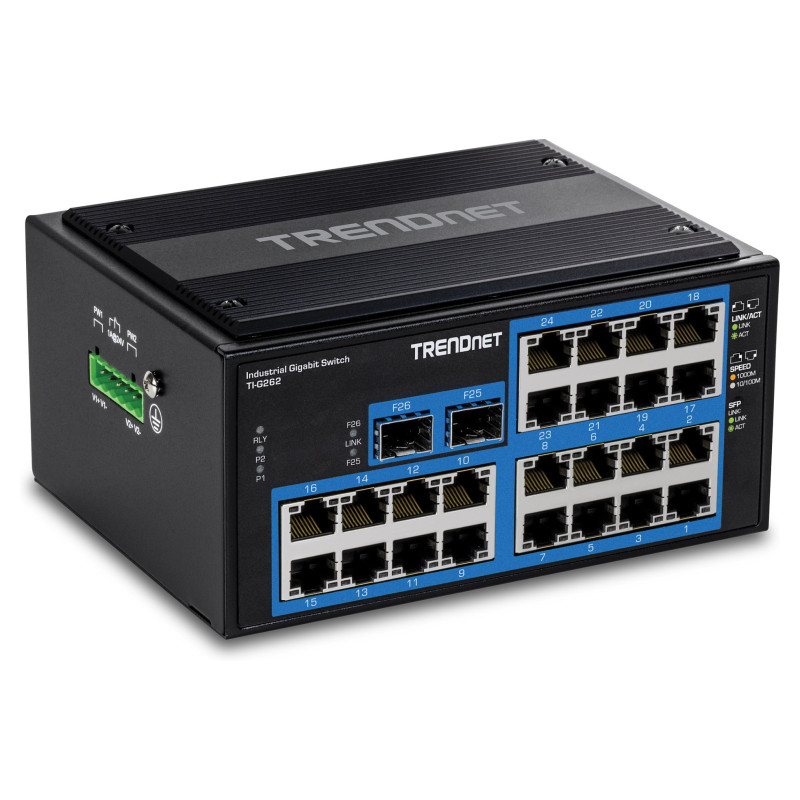

Trendnet TI-G262 network switch

Trendnet TI-G262. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8000 entries, Switching capacity: 52 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. DC input voltage: 12 - 56 V

TRENDnet's Industrial Gigabit DIN-Rail Switches feature a rugged IP30 rated metal enclosure and are designed to work in the harshest networking environments. This Industrial Unmanaged Switch is designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° - 75° C (-40° - 167° F). Redundant power inputs with overload current protection on the industrial unmanaged switch minimizes network downtime. This hardened industrial switch features copper gigabit ports for high-speed device connections, and gigabit SFP ports for long distance fiber networking applications.

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 24
SFP module slots quantity: 2

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Feature: Half duplex

Data transmission

Switching capacity: 52 Gbit/s
Forwarding rate: 38.69 Mpps
MAC address table: 8000 entries
Feature: Jumbo frames support
Jumbo frames: 9000
Packet buffer memory: 0.5 MB

Design

LED indicators: Yes

Performance

Mean time between failures (MTBF): 520000 h

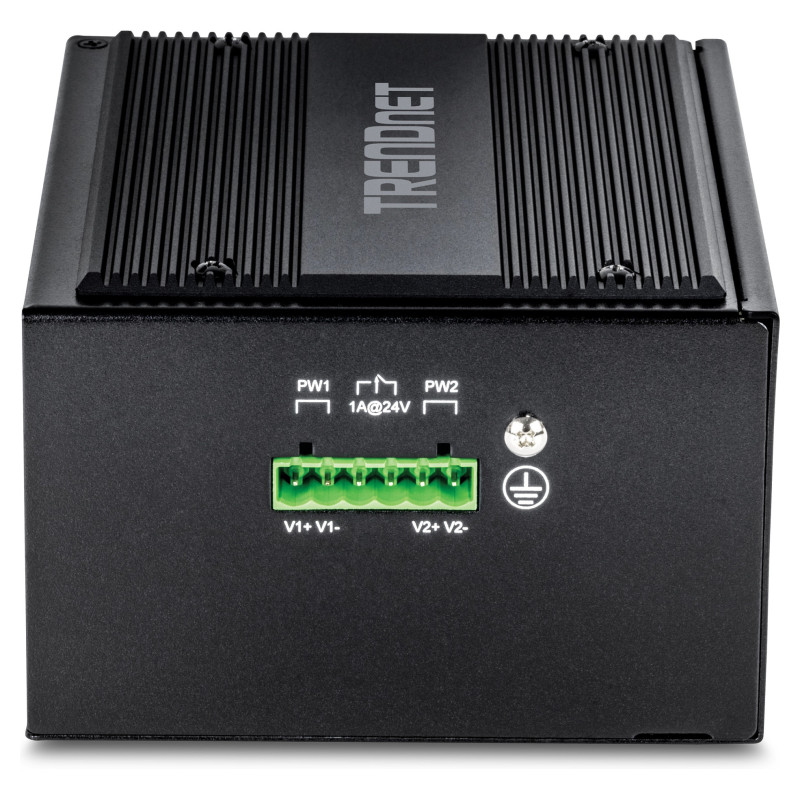

Power

Power source: DC
DC input voltage: 12 - 56 V
Power consumption (max): 10.64 W

Operational conditions

Operating temperature (T-T): -40 - 75 °C

Weight & dimensions

Width: 163 mm
Depth: 120 mm
Height: 77 mm
Weight: 936 g

Packaging content

Feature: Quick start guide

Certificates

Certification: CEFCCLVD
