Trendnet TI-G162 network switch

Trendnet TI-G162. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 14. Full duplex. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. DC input voltage: 48 - 56 V. Wall mountable

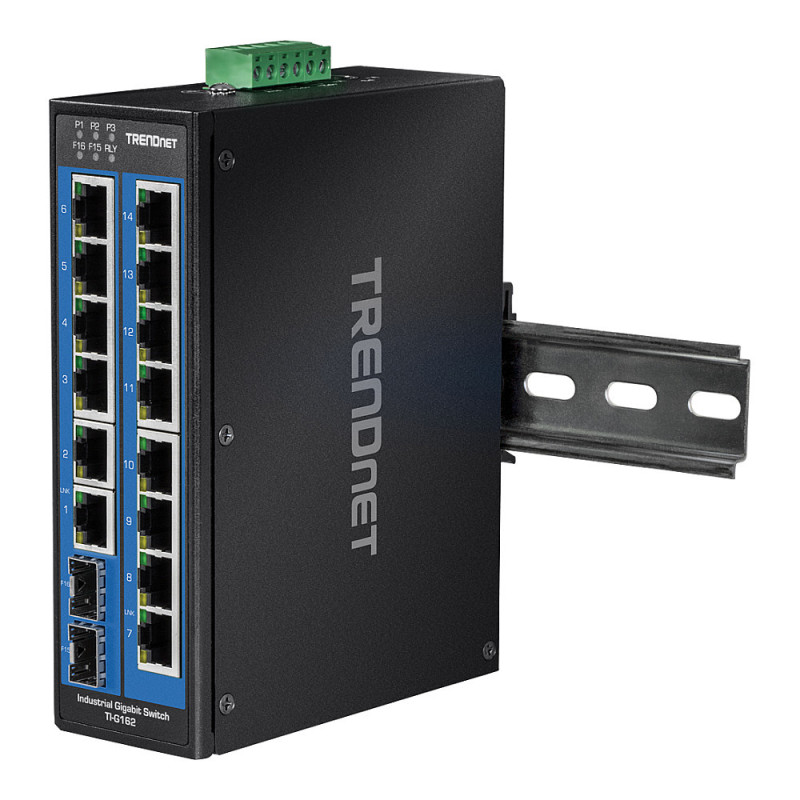

TRENDnet's Industrial Gigabit DIN-Rail Switches are reliable and rugged networking solutions that are designed for use in both extreme and demanding environments. Each Industrial Gigabit DIN-Rail Switch features a rugged IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° - 75° C (-40° - 167° F). Our hardened industrial switch models feature copper Gigabit ports for high-speed device connections, and Gigabit SFP slots that supports 1000Base-FX modules for long distance fiber networking applications.

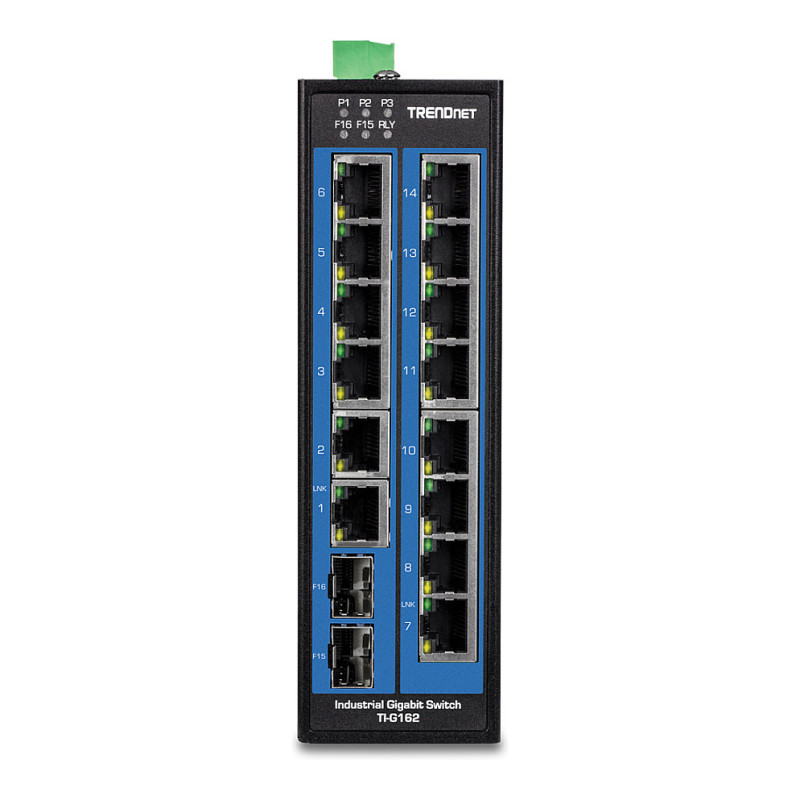

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 14
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP module slots quantity: 2

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Feature: Full duplex

Data transmission

Switching capacity: 32 Gbit/s
Forwarding rate: 23.8 Mpps
MAC address table: 8000 entries
Feature: Jumbo frames support
Jumbo frames: 9000
Packet buffer memory: 0.5 MB

Design

Product colour: Black
Housing material: Metal
LED indicators: Yes
International Protection (IP) code: IP30

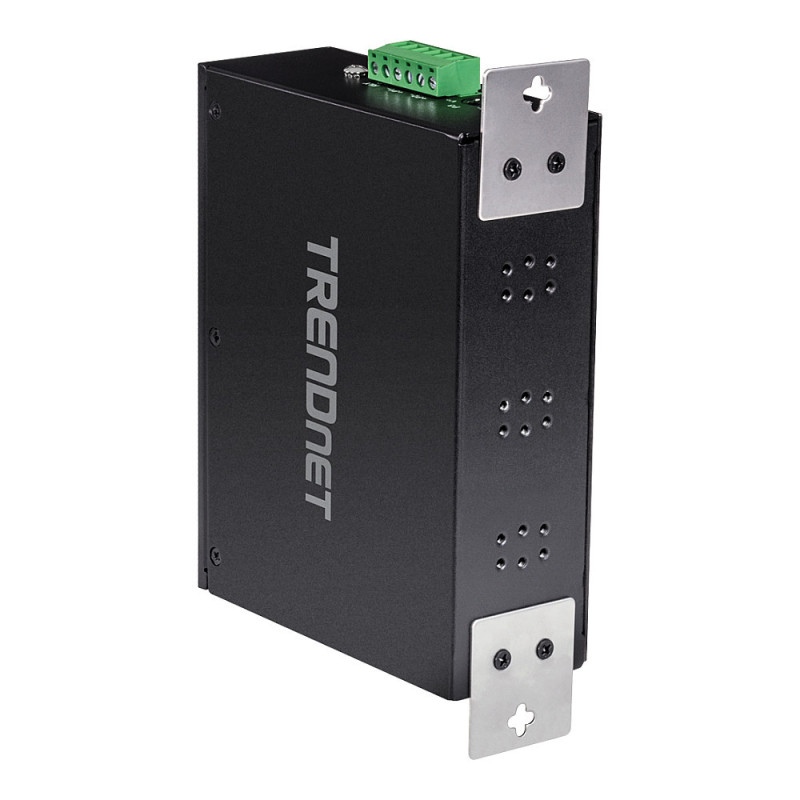

Feature: Wall mountable

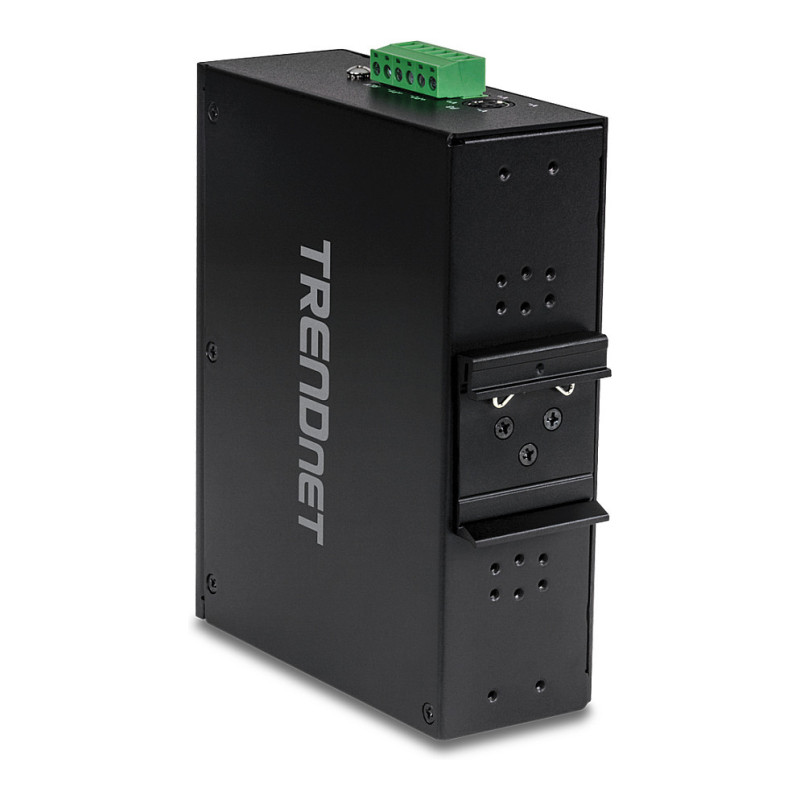

Feature: DIN rail mounting

Performance

Mean time between failures (MTBF): 514167 h

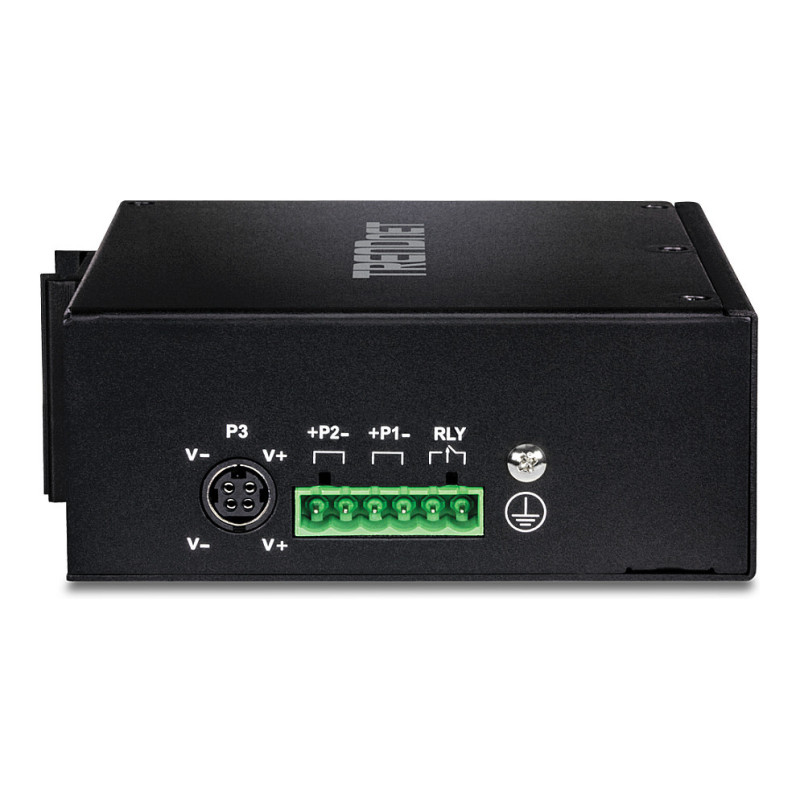

Power

AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
DC input voltage: 48 - 56 V
Input current: 2 A
Power consumption (max): 13 W

Operational conditions

Operating temperature (T-T): -40 - 75 °C
Operating relative humidity (H-H): 0 - 95%

Weight & dimensions

Width: 120 mm
Depth: 155 mm
Height: 48 mm
Weight: 536 g

Packaging content

Feature: Quick start guide

Certificates

Certification: CEFCCMETIEC 60068-2-27IEC 60068-2-32IEC 60068-2-6

Logistics data

Harmonized System (HS) code: 85176990
