Trendnet TI-ELC50 network switch

Trendnet TI-ELC50. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 1000 entries, Switching capacity: 1 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x. DC input voltage: 9.6 - 60 V. Wall mountable

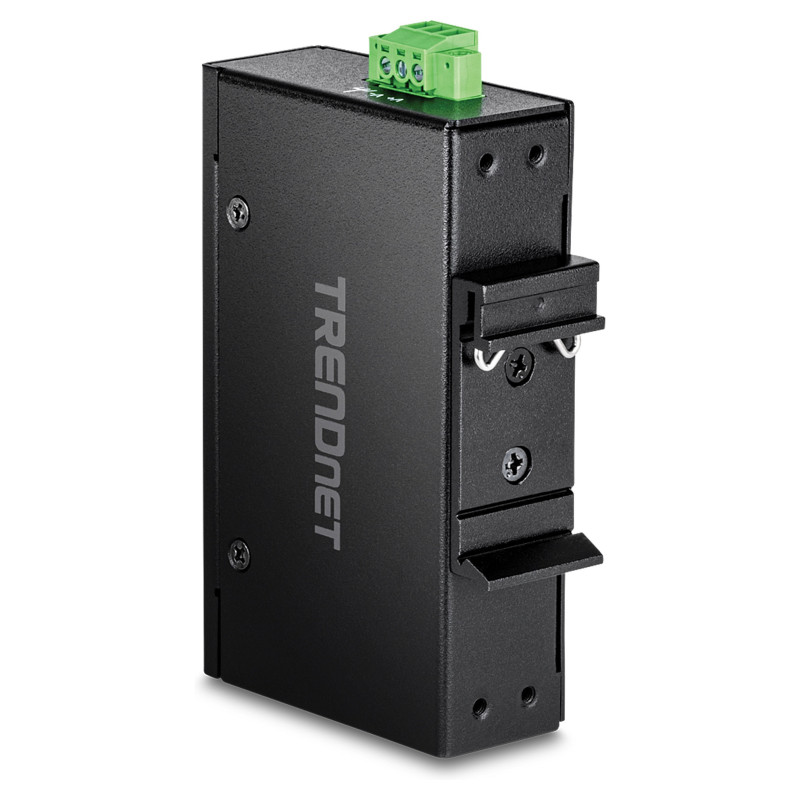

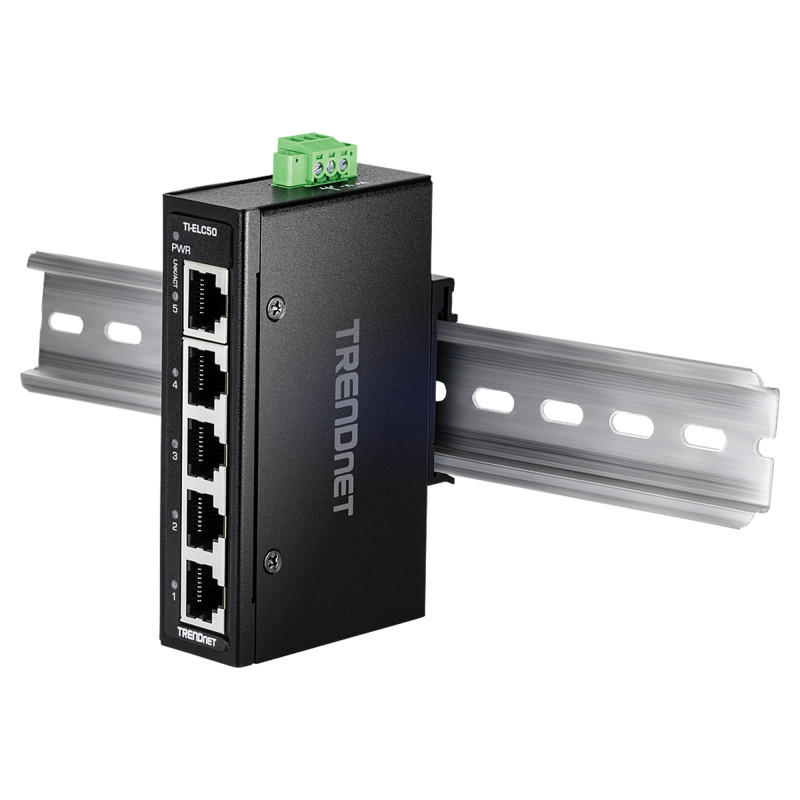

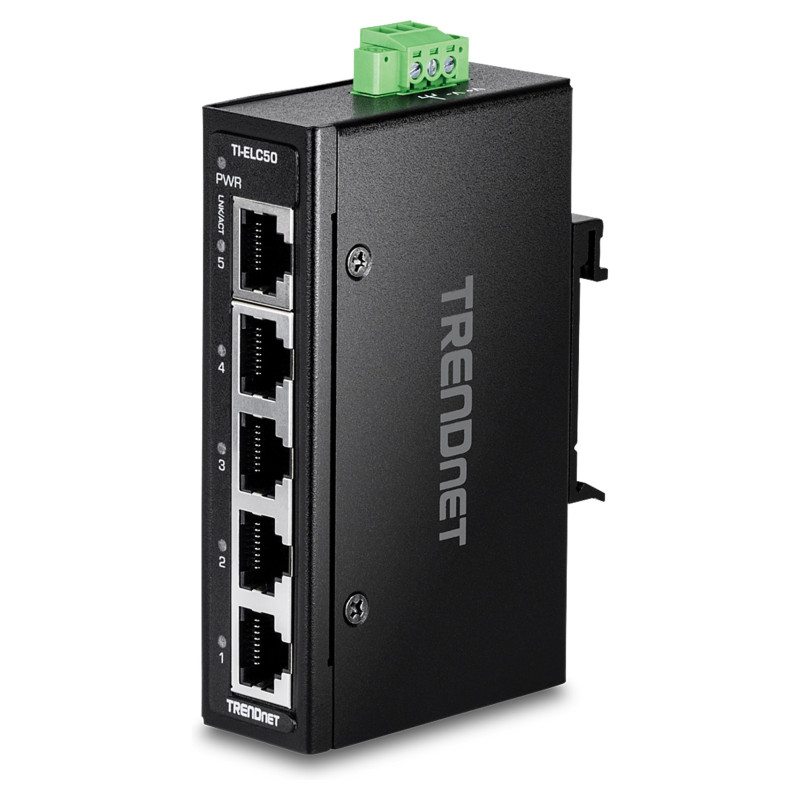

TRENDnet's 5-Port Industrial Fast Ethernet DIN-Rail Mini Switch, model TI-ELC50, is a reliable and rugged networking solution designed for use in both extreme and demanding environments. This industrial Fast Ethernet DIN-Rail mini switch features a rugged IP30 rated metal enclosure, and is designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° - 75° C (-40° - 167° F). The hardened industrial switch features five copper Ethernet ports for stable device connections. The mini-sized housing is designed to fit into most compact installation areas.

Management features

Switch type: Unmanaged

Ports & interfaces

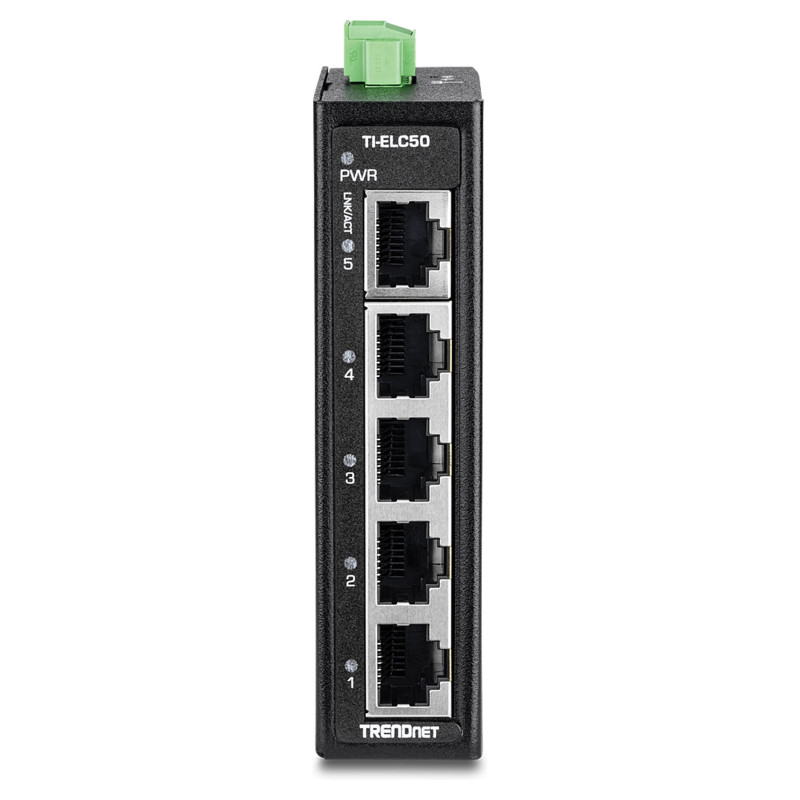

Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity: 5

Network

Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Feature: Full duplex
Feature: Half duplex

Data transmission

Switching capacity: 1 Gbit/s
Forwarding rate: 0.7 Mpps
MAC address table: 1000 entries

Design

Product colour: Black
Housing material: Metal
International Protection (IP) code: IP30
Feature: Wall mountable
Feature: DIN rail mounting

Performance

Mean time between failures (MTBF): 576653 h

Power

Power source: DC

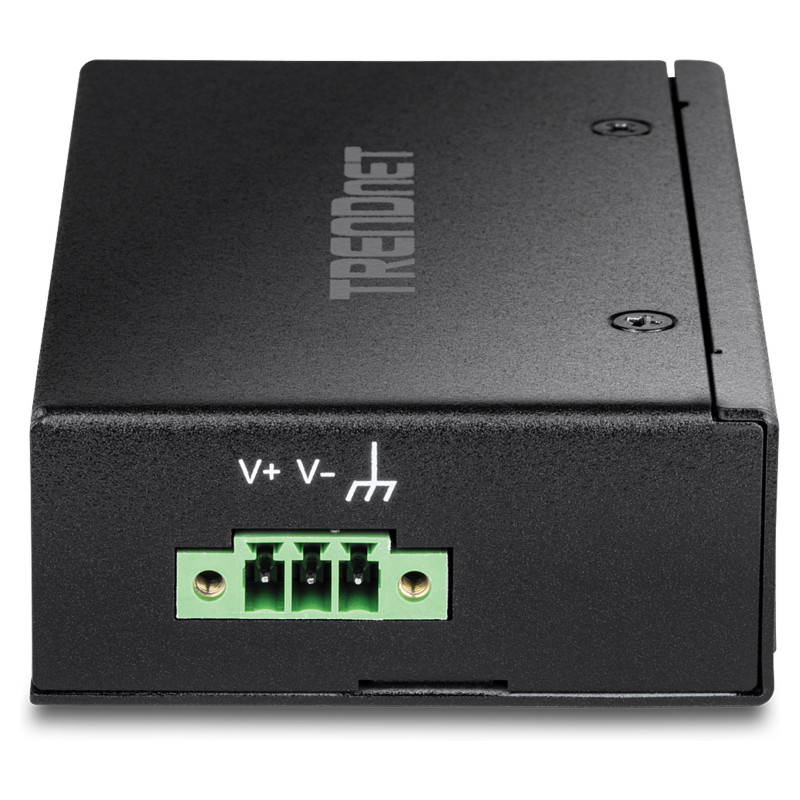

DC input voltage: 9.6 - 60 V
Power consumption (max): 1.23 W

Operational conditions

Operating temperature (T-T): -40 - 75 °C

Weight & dimensions

Width: 100.5 mm
Depth: 60 mm
Height: 25.5 mm
Weight: 214 g

Certificates

Certification: CELVD
