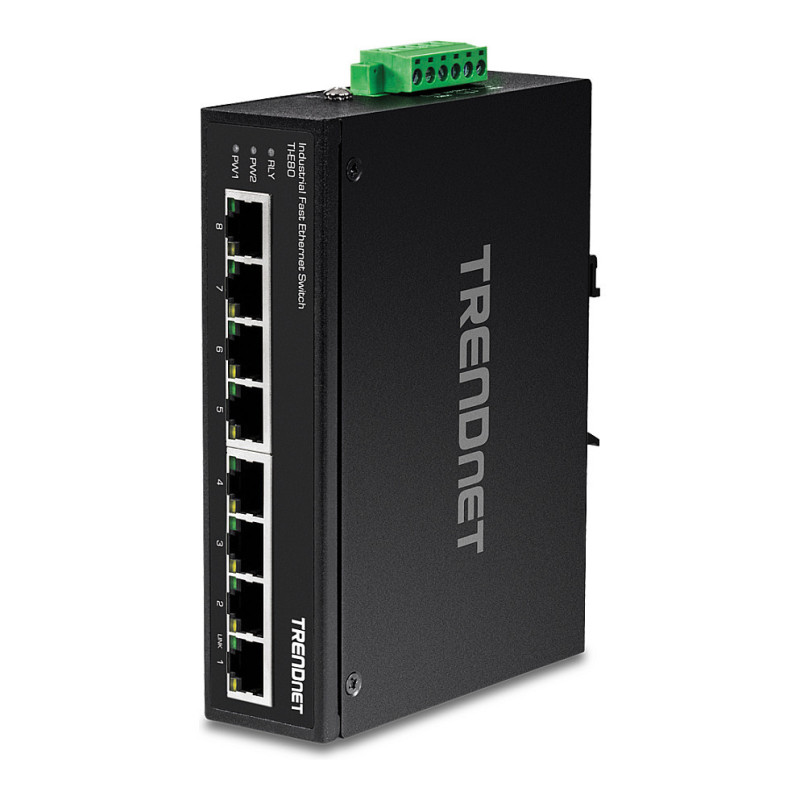

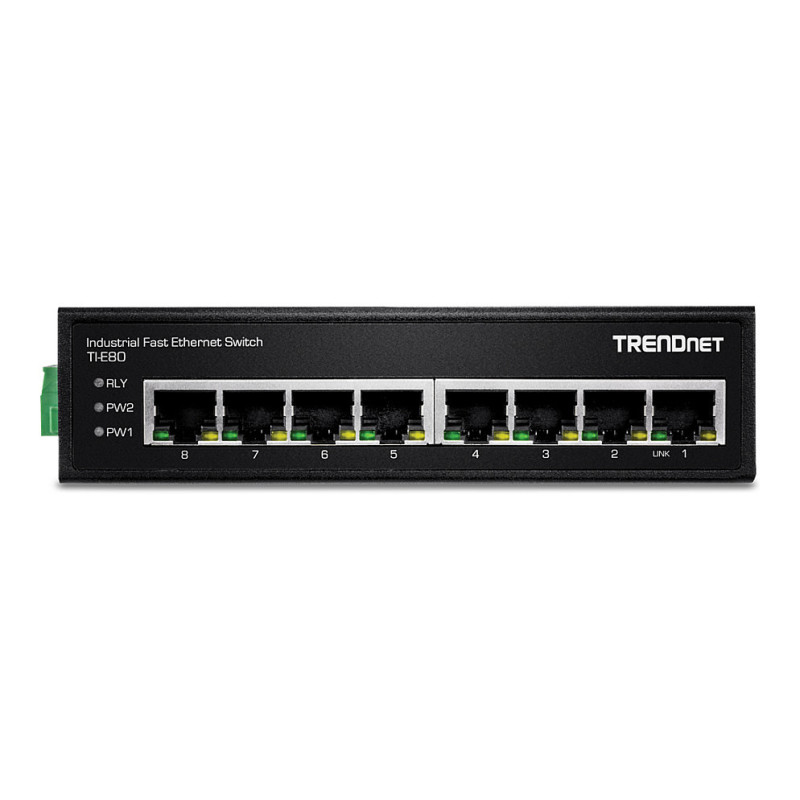

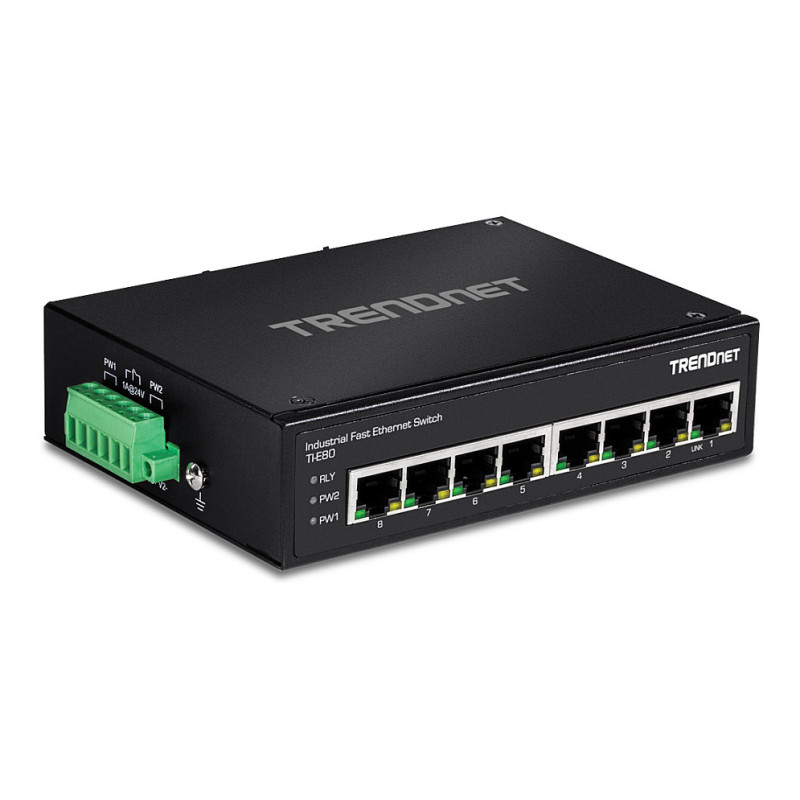

Trendnet TI-E80 network switch

Trendnet TI-E80. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 1000 entries, Switching capacity: 1.6 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. DC input voltage: 12 - 56 V. Wall mountable

TRENDnet's Industrial Fast Ethernet DIN-Rail Switches feature a rugged IP30 rated metal enclosure. These industrial Ethernet switches are designed to withstand high levels of vibration and shock, operate in both low and high temperatures for industrial environments within a -40° - 75° C (-40° - 167° F) wide-temperature range. Redundant power inputs with overload current protection on each industrial Ethernet switch minimizes network downtime.

Management features

Switch type: Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Feature: Full duplex

Data transmission

Switching capacity: 1.6 Gbit/s
Forwarding rate: 1.19 Mpps
MAC address table: 1000 entries
Packet buffer memory: 0.056 MB

Design

Product colour: Black
Housing material: Metal
LED indicators: Yes
International Protection (IP) code: IP30
Feature: Wall mountable

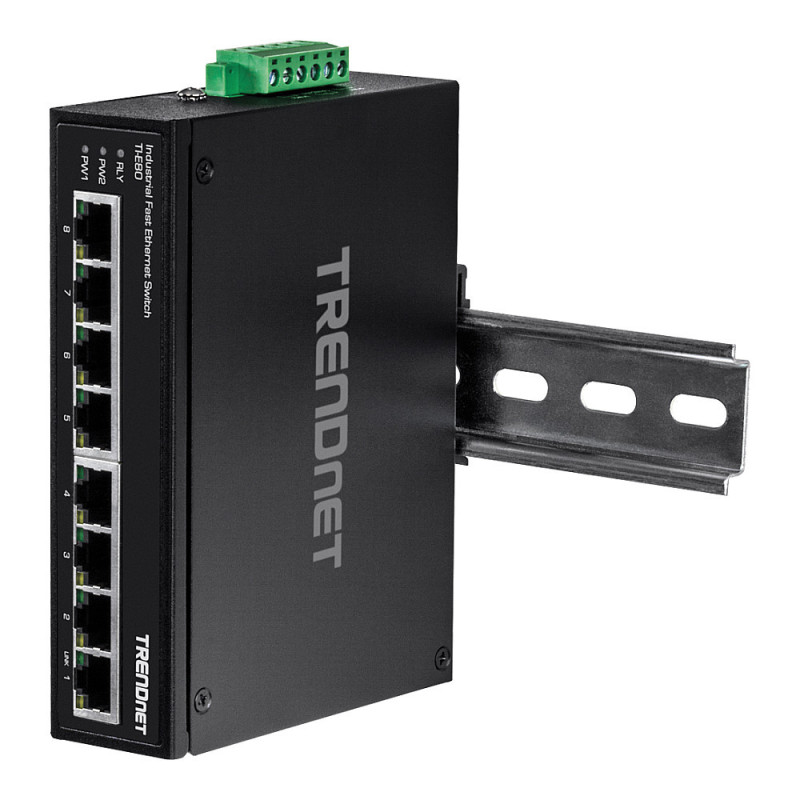

Feature: DIN rail mounting

Performance

Mean time between failures (MTBF): 510304 h

Power

Feature: Redundant power supply (RPS) support
DC input voltage: 12 - 56 V
Power consumption (max): 3 W

Operational conditions

Operating temperature (T-T): -40 - 75 °C
Operating relative humidity (H-H): 0 - 95%

Weight & dimensions

Width: 142 mm
Depth: 105 mm
Height: 37 mm
Weight: 486 g

Packaging content

Feature: Quick start guide

Certificates

Certification: CEFCCULIEC 60068-2-27IEC 60068-2-32IEC 60068-2-6IEC 61000-4-2IEC 61000-4-4IEC 61000-4-5

Logistics data

Harmonized System (HS) code: 85176990
