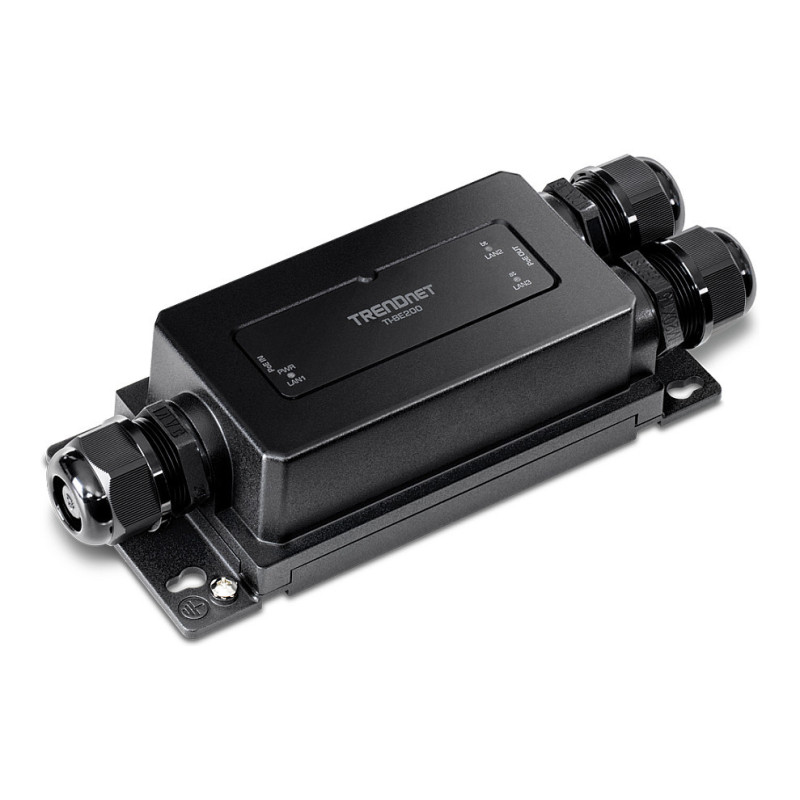

Trendnet TI-BE200 network extender

Trendnet TI-BE200. Type: Network transmitter receiver, Maximum transfer distance: 100 m, Data transfer rate: 2000 Mbit/s. Cabling technology: 10/100/1000Base-T(X), Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x. Product colour: Black, Mounting type: Wall, Certification: FCC IEC 61000-4-2 IEC 61000-4-4 IEC 61000-4-5 IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6. Power consumption (typical): 2.8 W, Total Power over Ethernet (PoE) budget: 60 W. Width: 167 mm, Depth: 74 mm, Height: 44 mm
TRENDnet's 2-Port Industrial Outdoor Gigabit PoE++ Extender, model TI-BE200, takes a single PoE++ (90W) connection and extends it an additional 100 meters (328 ft.) for up to two PoE+ devices. The industrial outdoor PoE++ extender auto-detects a PoE (15.4W), PoE+ (30W), or PoE++ (60W) signal, and extends it for a total distance of up to 200 meters (656 ft.) from the PoE source. Daisy chain up to four outdoor PoE++ extenders together for a total PoE network extension of up to 500 meters (1,640 ft.). This industrial PoE++ extender features a single PoE++ input port and two PoE+ output ports encased in an IP67 weather rated housing.
PoE++ Power
Extends a PoE++ (90W) connection up to 100 meters (328 ft.) to PoE (15.4W), PoE+ (30W), and PoE++ (60W) devices.
Gigabit Ports
Features one gigabit PoE++ input port and two gigabit PoE+ output ports that extend a single PoE++ connection an additional 100 meters (328 ft.) to two PoE+ devices.
Outdoor Rated
Built for outdoor and industrial environments, with an IP67 weather rated metal housing and an operating temperature range of -40°- 75° C (-40° - 167° F).
Extension Distance
Extends a PoE, PoE+, or PoE++ network connection an additional 100 meters for a total distance of up to 200 meters (656 ft.) from the PoE source
PoE/PoE+/PoE++
The industrial PoE++ extender conveniently auto detects PoE (15.4W), PoE+ (30W), and PoE++ (60W) network connections
Gigabit Ports
1 x Gigabit PoE++ input port, 2 x Gigabit PoE++ output ports, with a 60W PoE budget and a 90W PoE++ input
Daisy Chain
Connect up to 4 outdoor PoE++ repeaters for a total PoE network extension of up to 500m (1,640 ft.)*
PoE Powered
No external power required—saves installation time and cost
Outdoor Ready
The outdoor PoE++ extender features a rugged IP67 outdoor weather rated metal housing

Performance

Type: Network transmitter receiver
Maximum transfer distance: 100 m
Data transfer rate: 2000 Mbit/s
Ethernet LAN data rates: 10,100,1000 Mbit/s
Jumbo frames support: Yes
Duplex system: Full, Half
MAC address table: 2048 entries
International Protection (IP) code: IP67

Network

Cabling technology: 10/100/1000Base-T(X)
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x

Ports interfaces

Ethernet LAN (RJ-45) ports: 3

Design

Product colour: Black
Mounting type: Wall
LED indicators: Yes
Certification: FCCIEC 61000-4-2IEC 61000-4-4IEC 61000-4-5IEC 60068-2-27IEC 60068-2-32 IEC 60068-2-6

Power

Power consumption (typical): 2.8 W
External power adapter: No
Power over Ethernet (PoE): Yes
Total Power over Ethernet (PoE) budget: 60 W

Operational conditions

Operating temperature (T-T): -40 - 75 °C

Weight dimensions

Width: 167 mm
Depth: 74 mm
Height: 44 mm
Weight: 364 g

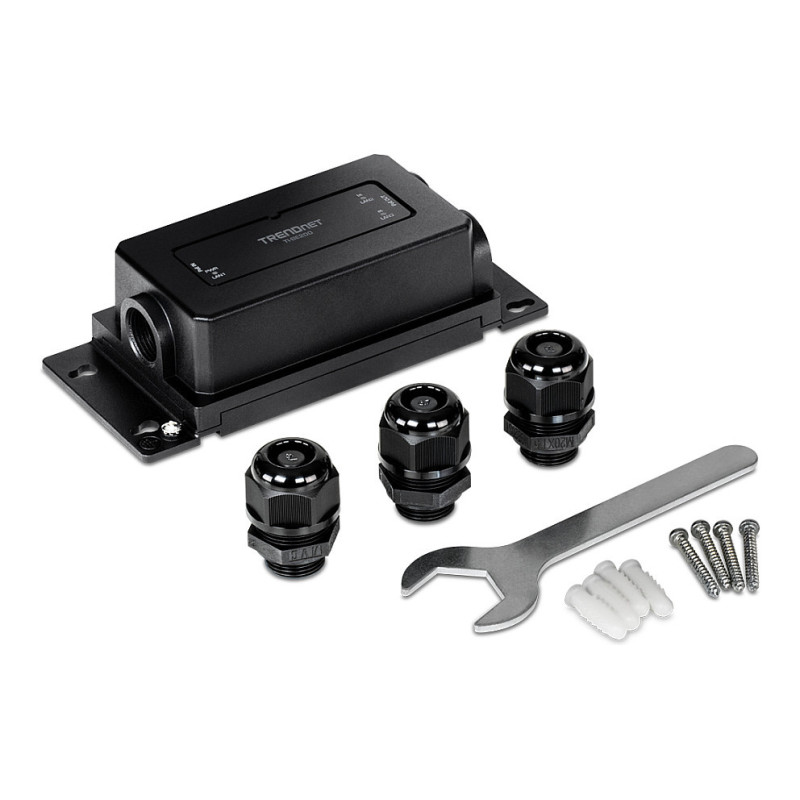

Packaging content

Quick start guide: Yes
Wall mounting kit: Yes
AC adapter included: No

Sustainability

Sustainability compliance: Yes

Certificates

Compliance certificates: CE
