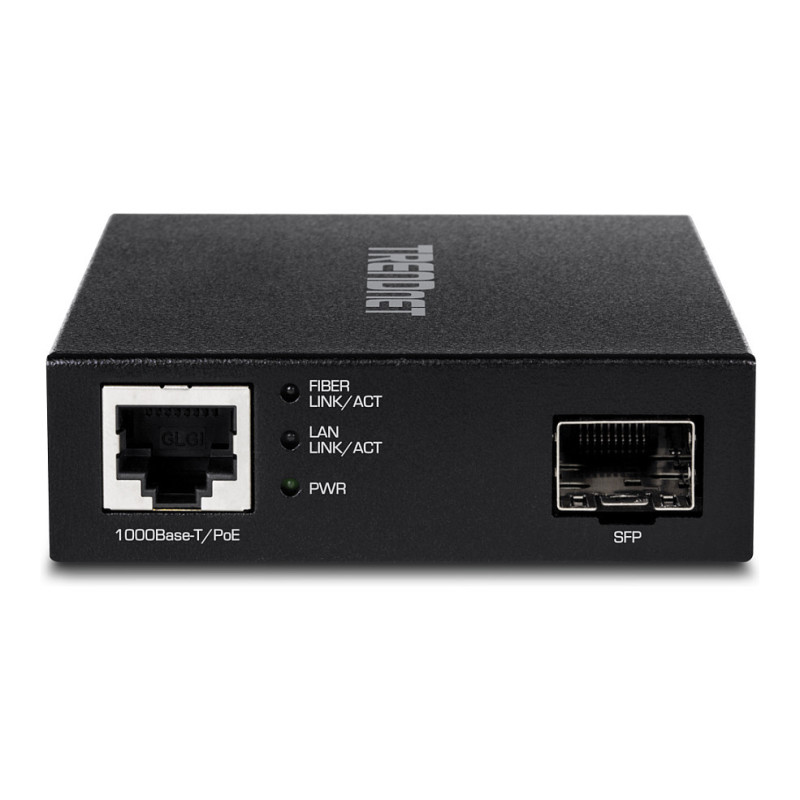

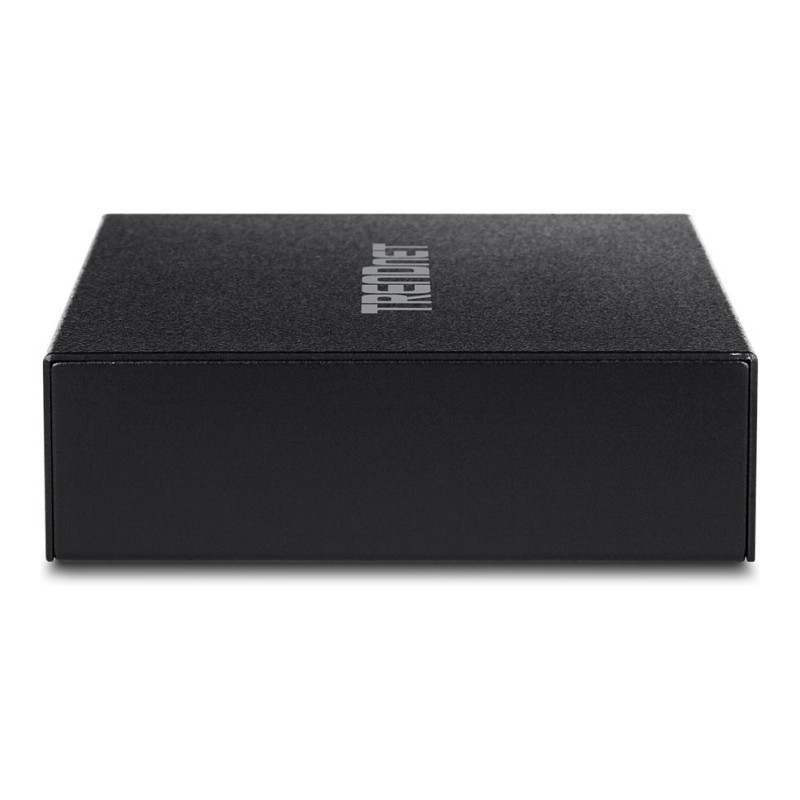

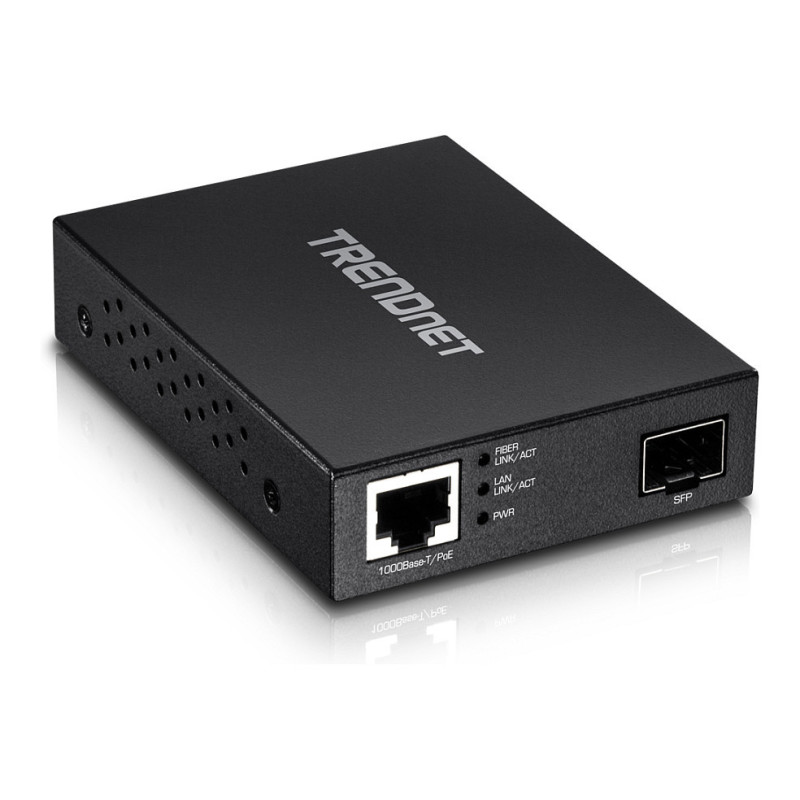

Trendnet TFC-PGSFP network media converter

Trendnet TFC-PGSFP. Maximum data transfer rate: 2000 Mbit/s, Converter input interface: 10Base-T, 100Base-T, Converter output interface: 100Base-LX, 100Base-SX, 1000Base-LX, 1000Base-SX. Product colour: Black. Fiber optic connector: SFP, Connectivity technology: Wired. Total Power over Ethernet (PoE) budget: 2.6 W. Width: 102 mm, Depth: 75 mm, Height: 23 mm

TRENDnet's Gigabit PoE PD SFP Fiber Media Converter, model TFC-PGSFP, converts 100/1000BASE-T copper Ethernet to 1000BASE-SX/LX Fiber SFP media and vice versa. The TFC-PGSFP is conveniently powered via PoE switch or injector, no power adapter is required. It features one gigabit PoE input port for power and data, plus one SFP slot that supports both multimode (SX) or single-mode (LX) SFP modules. The SFP slot accommodates both Fast Ethernet and Gigabit SFP modules providing further installation flexibility.

Network

Maximum data transfer rate: 2000 Mbit/s
Converter input interface: 10Base-T, 100Base-T
Converter output interface: 100Base-LX, 100Base-SX, 1000Base-LX, 1000Base-SX
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3z
Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Jumbo frames support
Jumbo frames: 9000
Duplex system: Full

Features

LED indicators: Yes
Product colour: Black

Ports & interfaces

Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Fiber ports quantity: 1
Fiber optic connector: SFP
Power over Ethernet plus (PoE+) ports quantity: 1

Power

Feature: Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget: 2.6 W

Weight & dimensions

Width: 102 mm
Depth: 75 mm
Height: 23 mm
Weight: 200 g

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Operating relative humidity (H-H): 0 - 90%

Packaging content

Feature: Quick installation guide

Certificates

Certification: CE, FCC

Logistics data

Harmonized System (HS) code: 85176990
