Trendnet TFC-10GSFP network media converter

Trendnet TFC-10GSFP. Maximum data transfer rate: 10000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3z, Ethernet interface type: 10 Gigabit Ethernet. Fiber optic connector: SFP+, Connectivity technology: Wired. Input voltage: 110 - 240 V, AC input frequency: 50 - 60 Hz, Output voltage: 5 V. Width: 105 mm, Depth: 75 mm, Height: 22 mm. Certification: CE FCC

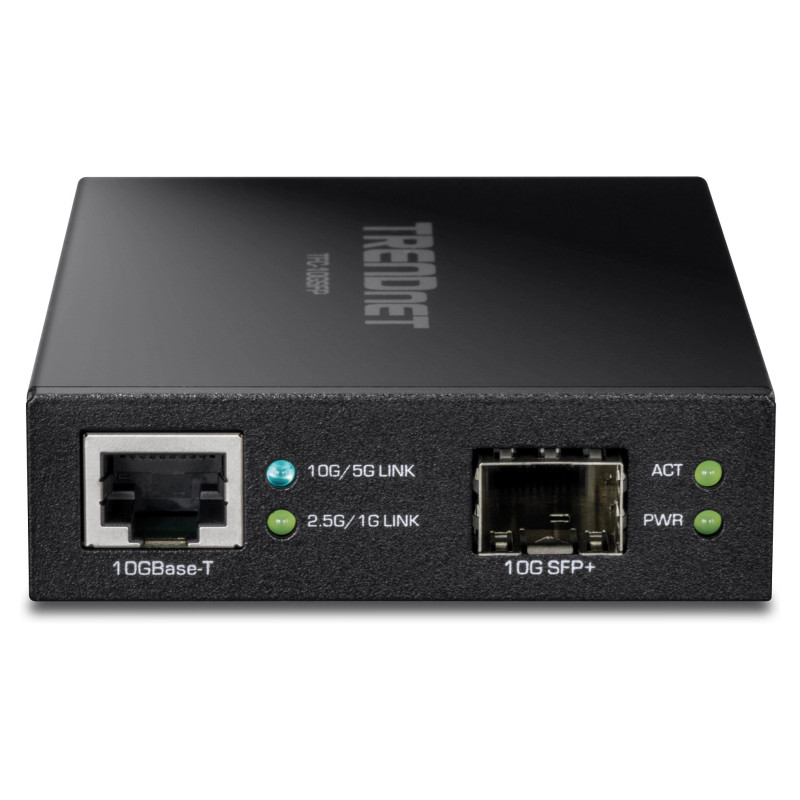

TRENDnet's compact 10GBASE-T to SFP Fiber Media Converter, model TFC-10GSFP, converts a 10GBASE-T (Copper 10Gbps) ethernet connection to 10G BASE-SX/LX (Fiber) SFP media connection , and vice versa. The 10GBASE-T RJ-45 port on the 10G SFP+ transceiver supports a full-duplex 10G connection at wire speed. The SFP slot supports both multimode (SX) or single-mode (LX) SFP modules.

Network

Maximum data transfer rate: 10000 Mbit/s
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3z
Ethernet interface type: 10 Gigabit Ethernet
Duplex system: Full

Ports & interfaces

Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Fiber ports quantity: 1
Fiber optic connector: SFP+

Power

Input voltage: 110 - 240 V
AC input frequency: 50 - 60 Hz

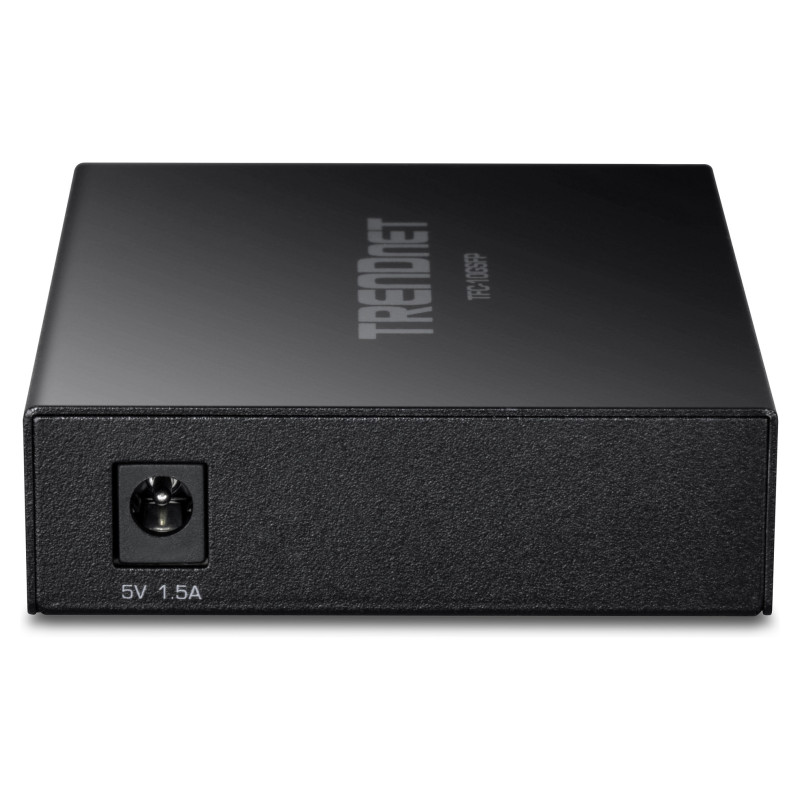

Output voltage: 5 V
Output current: 1.5 A
Power consumption (max): 4 W

Weight & dimensions

Width: 105 mm
Depth: 75 mm
Height: 22 mm
Weight: 188 g

Operational conditions

Operating temperature (T-T): 0 - 50 °C

Certificates

Certification: CEFCC
