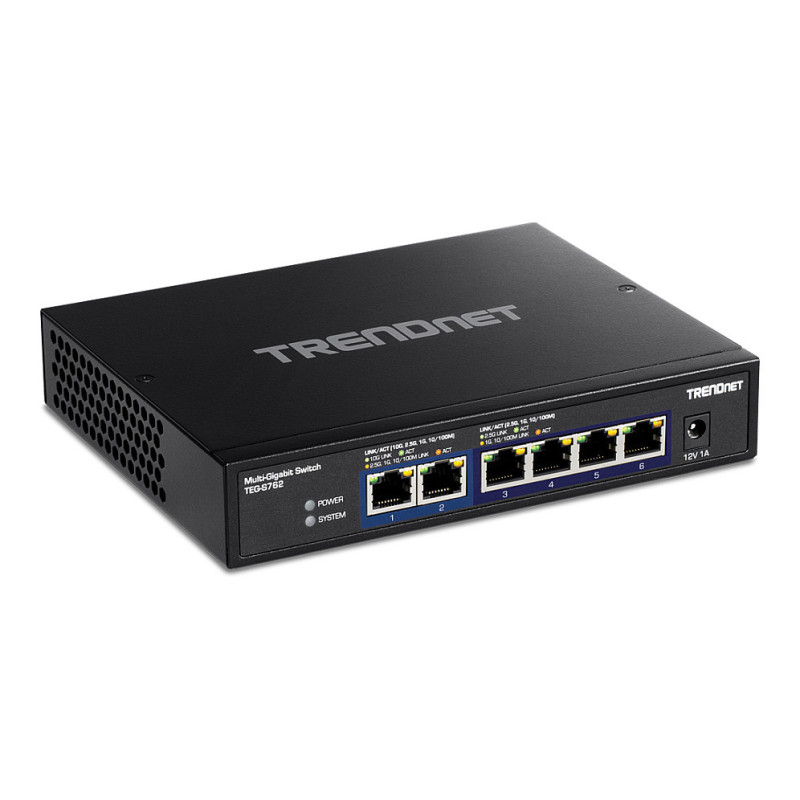

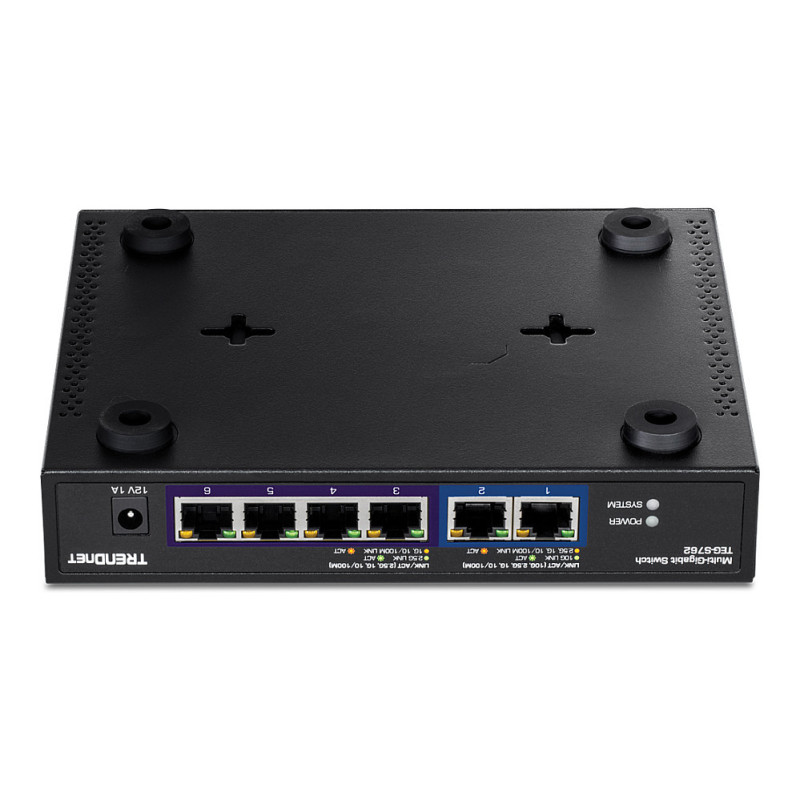

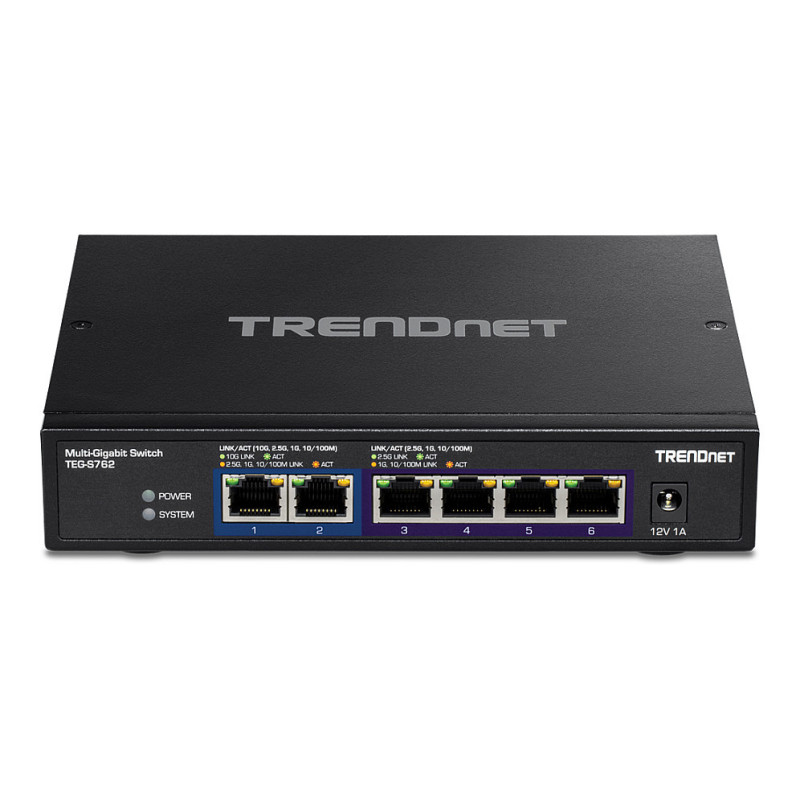

Trendnet TEG-S762 network switch

Trendnet TEG-S762. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 6. MAC address table: 16000 entries, Switching capacity: 60 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 6
Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000)

Network

Networking standards: IEEE 802.3ab, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u
Cable types supported: Cat5e, Cat6, Cat6a

Data transmission

Switching capacity: 60 Gbit/s
Forwarding rate: 44.64 Mpps
MAC address table: 16000 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Packet buffer memory: 2 MB

Design

LED indicators: Yes

Performance

Mean time between failures (MTBF): 379884 h

Power

Power source: AC
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (max): 11.9 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C

Weight & dimensions

Width: 145 mm
Depth: 180 mm
Height: 33 mm
Weight: 2.33 kg

Packaging content

Cables included: AC
Feature: User guide

Certificates

Certification: CEFCCIC
