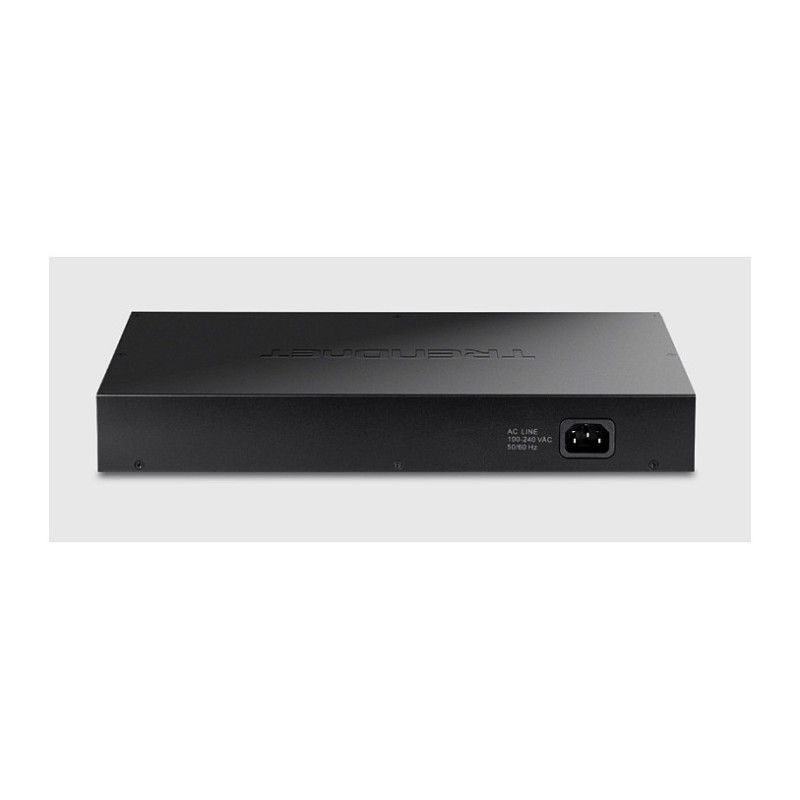

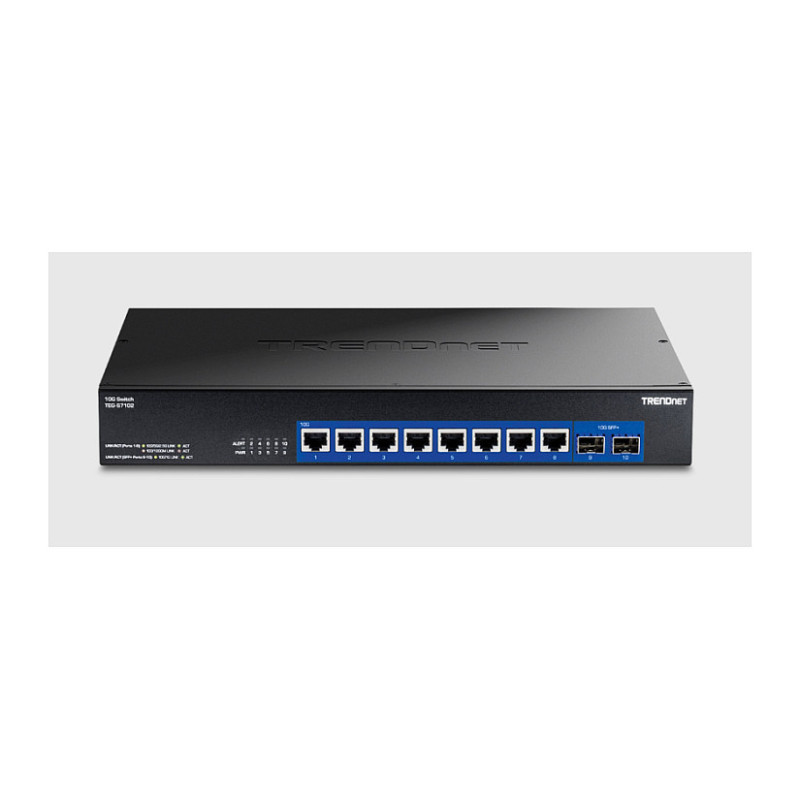

Trendnet TEG-S7102 network switch

Trendnet TEG-S7102. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 8, Installed SFP+ modules quantity: 2. Full duplex. MAC address table: 32000 entries, Switching capacity: 200 Gbit/s. Networking standards: IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u. Wall mountable, Rack mounting, Form factor: Desktop

Expand your network's bandwidth and reduce traffic bottlenecks with TRENDnet's Unmanaged 10G Switches. This 10G switch comes equipped with eight 10GBASE-T RJ-45 ports that provide speeds capable of up to 10Gbps over your existing Cat6A or better cabling. The 10G switch also offers two dedicated 10G SFP+ slots for high-speed network connections, providing a cost-effective solution in adding 10G link capability to an SMB network. The smart fan design lowers energy consumption and eliminates distracting operating noise. TRENDnet's reliable 10G switches are cost-effective solutions to increase your network's throughput.

10G Ports

Offers eight 10G ports, and two 10G SFP+ ports for high-speed network uplinks or downlink connections for a cost-effective solution in adding 10G link capability.

Smart Fan

The smart fan design lowers power consumption and energy costs, and eliminates distracting operating noise.

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 12KB), for increased performance.

Easy Installation

No configuration needed, simply connect network devices to the 10G switch

10G Ports

Equipped with 10GBASE-T RJ-45 ports that provide speeds capable of up to 10Gbps over existing Cat6A or better cabling

10G SFP+ Ports

The 10Gb switch features 10G SFP+ ports for high-speed network connections providing a cost-effective solution in adding 10G fiber link capability

Smart Fan

Smart fan design lowers energy consumption and eliminates distracting operating noise

Housing Design

Sturdy metal housing

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 12KB), for increased performance

LED Indicators

LED indicators on this 10Gb switch conveys port status

Management features

Switch type: Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000)
Installed SFP+ modules quantity: 2
SFP+ module slots quantity: 2
Fiber optic connector: RJ-45, SFP+
Power cables quantity: 1

Network

Networking standards: IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u
Feature: 10G support
Feature: Full duplex
Ethernet LAN data rates: 2500 Mbit/s

Data transmission

Switching capacity: 200 Gbit/s
Forwarding rate: 148.8 Mpps
MAC address table: 32000 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Jumbo frames: 12
Packet buffer memory: 2 MB

Design

Feature: Rack mounting
Form factor: Desktop
Product colour: Black
LED indicators: Yes
Feature: Redundant fans support
Feature: Wall mountable
Number of fans: 1 fan(s)

Performance

Noise level: 47 dB
Mean time between failures (MTBF): 151765 h

Power

Power source: AC/DC
Feature: Power supply included
AC input voltage: 90 - 264 V
AC input frequency: 47/63 Hz
Power consumption (max): 40 W
Power cable length: 1.5 m

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 0 - 90%

Weight & dimensions

Width: 230 mm
Depth: 330 mm
Height: 44 mm
Weight: 2.54 kg

Packaging content

Cables included: Power
Feature: Quick start guide
Feature: Rack mount kit

Packaging data

Feature: AC adapter included

Certificates

Compliance certificates: CE, ETL, Federal Communications Commission (FCC), Low Voltage Directive (LVD), National Defense Authorization Act (NDAA), Trade Agreements Act (TAA)
