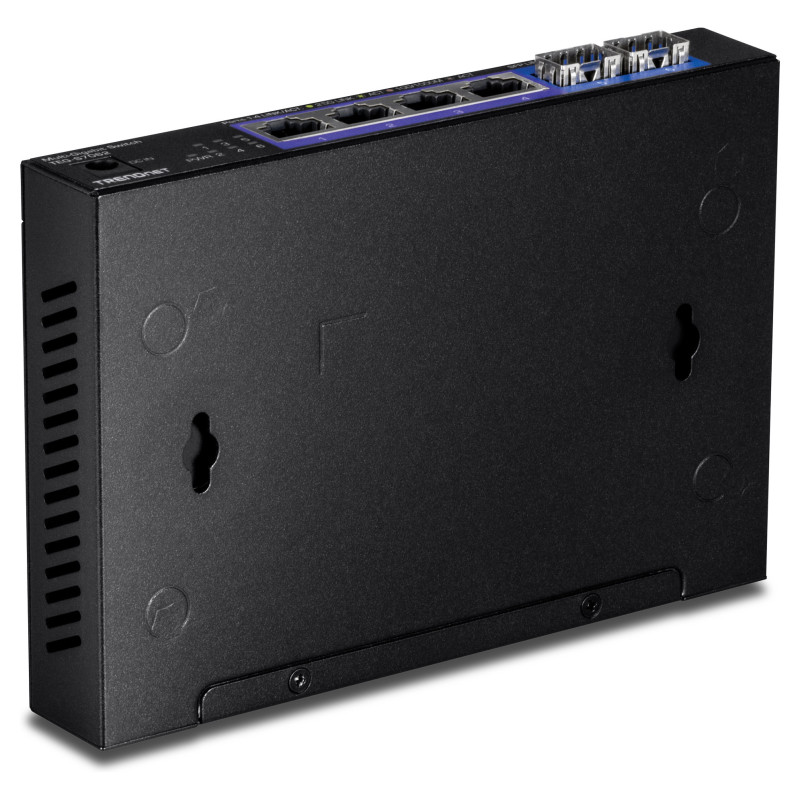

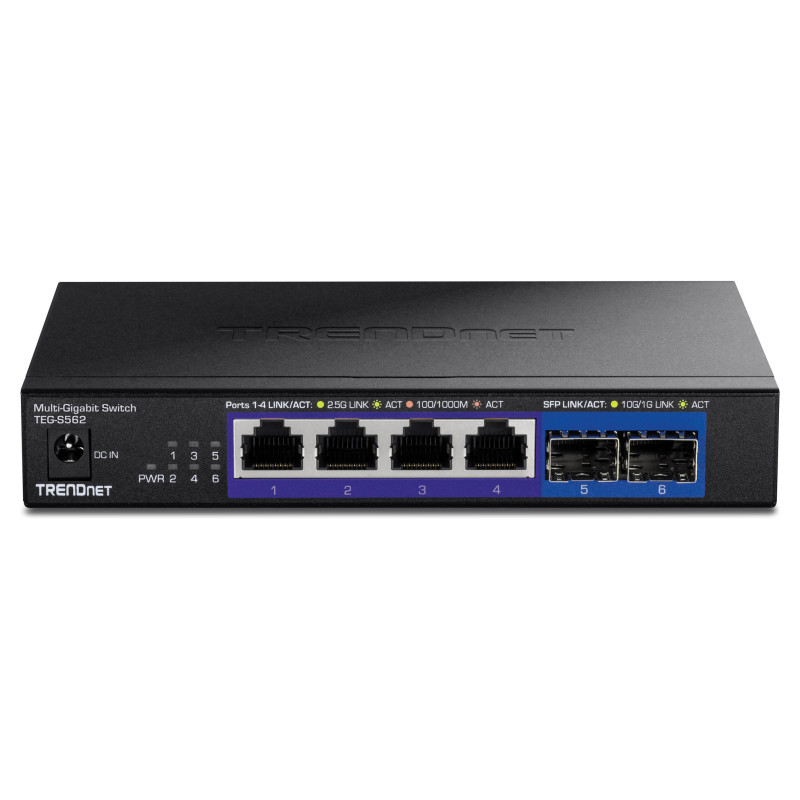

Trendnet TEG-S562 network switch

Trendnet TEG-S562. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 4. Full duplex. MAC address table: 4000 entries, Switching capacity: 60 Gbit/s. Networking standards: IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3bz

Expand your network's bandwidth and reduce traffic bottlenecks with TRENDnet's Unmanaged Multi-Gigabit Switches. This 2.5G switch with SFP+ support comes equipped with 2.5GBASE-T RJ-45 ports that provide higher gigabit speeds capable of up to 2.5Gbps over your existing Cat5e or better cabling. The 2.5G switch with 10G fiber also offers two dedicated 10G SFP+ ports for high-speed network connections, providing a cost-effective solution in adding 10G link capability to an SMB network. The fanless design lowers energy consumption and eliminates distracting operating noise. TRENDnet's reliable multi-gigabit switches are cost-effective solutions to increase your network's throughput.

Management features

Switch type: Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 4
Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
SFP+ module slots quantity: 2

Network

Networking standards: IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3bz
Feature: 10G support
Feature: Full duplex

Data transmission

Switching capacity: 60 Gbit/s
Forwarding rate: 44.64 Mpps
MAC address table: 4000 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Jumbo frames: 12000
Packet buffer memory: 1 MB

Design

Product colour: Black
LED indicators: Yes

Performance

Feature: Fanless

Power

Power source: AC/DC
AC input voltage: 90 - 264 V
AC input frequency: 47/63 Hz
Input current: 1 A
Power consumption (max): 5.86 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C

Weight & dimensions

Width: 160 mm
Depth: 110 mm
Height: 26 mm
Weight: 400 g

Packaging content

Feature: Quick start guide

Certificates

Certification: CEFCCLVD
