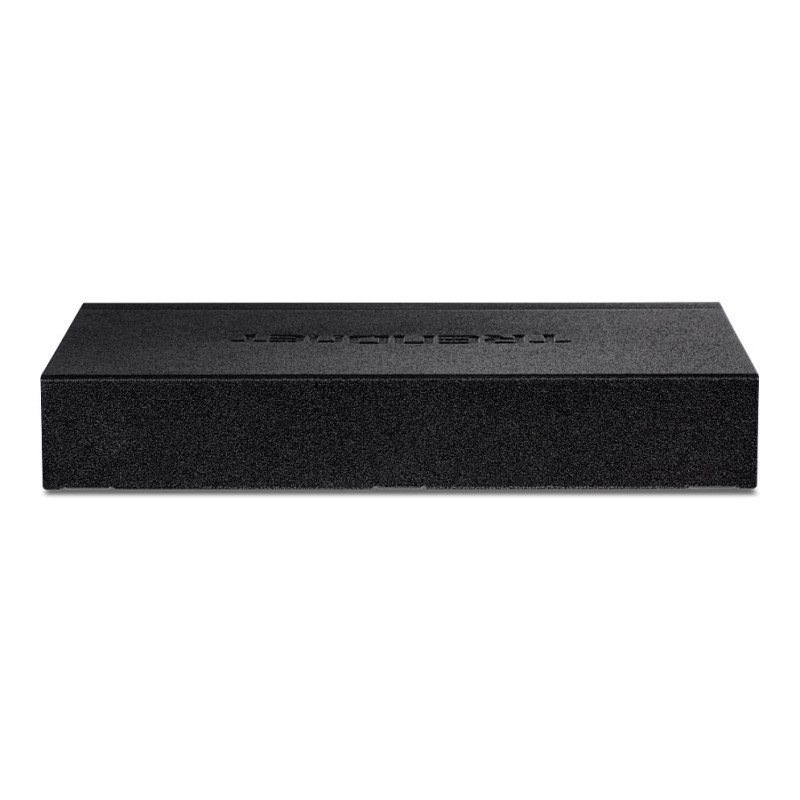

Trendnet TEG-S380 network switch

Trendnet TEG-S380. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 16000 entries, Switching capacity: 40 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. DC input voltage: 12 V. Wall mountable

8-Port Unmanaged 2.5G Switch

Expand your network's bandwidth and reduce digital bottlenecks with TRENDnet's Unmanaged 2.5G Switches. These 2.5G network switches come equipped with 2.5GBASE-T RJ-45 ports that provide higher gigabit speeds capable of up to 2.5Gbps over your existing Cat5e or better cabling. Each high-speed 2.5G switch features a durable metal enclosure and can be mounted to the wall for setup flexibility. The fanless design lowers energy consumption and eliminates distracting operating noise. TRENDnet's reliable 2.5G switches are cost-effective solutions to increase your network's throughput.

2.5G Ports

Equipped with 2.5GBASE-T RJ-45 ports that provide higher gigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling.

Wall Mountable

The 2.5G switches feature metal housing with a convenient wall mountable design for greater installation flexibility.

Fanless

The fanless design of the 2.5G switches lowers energy consumption costs and eliminates operating noise.

Easy Installation

No configuration needed, simply connect network devices to the 2.5G Ethernet switch

2.5G Ports

Equipped with 2.5GBASE-T RJ-45 ports that provide higher gigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling

Fanless

Fanless design lowers energy consumption and eliminates operating noise

Housing Design

Sturdy metal housing

Wall Mountable

Features a convenient wall mountable design for greater installation flexibility

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 12KB) for increased performance

LED Indicators

LED indicators on this 2.5G switch conveys port status

Management features

Switch type: Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Feature: Full duplex
Feature: Half duplex
Ethernet LAN data rates: 10,100,1000 Mbit/s

Data transmission

Switching capacity: 40 Gbit/s
Forwarding rate: 29.76 Mpps
MAC address table: 16000 entries
Feature: Jumbo frames support
Jumbo frames: 12000

Design

Product colour: Black
Housing material: Metal
LED indicators: Yes
Feature: Wall mountable

Performance

Mean time between failures (MTBF): 1401356 h

Power

Feature: Power supply included
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
DC input voltage: 12 V
Input current: 1.5 A
Power consumption (max): 12.4 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 0 - 90%

Weight & dimensions

Width: 240 mm
Depth: 103 mm
Height: 26 mm
Weight: 600 g

Packaging content

Feature: Quick start guide

Certificates

Certification: FCC, CE

Logistics data

Harmonized System (HS) code: 85176990
