Trendnet TEG-S3160 network switch

Trendnet TEG-S3160. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 16000 entries, Switching capacity: 80 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. Wall mountable, Rack mounting, Form factor: Desktop

Expand your network's bandwidth and reduce digital bottlenecks with TRENDnet's Unmanaged 2.5G Switches. These 2.5G network switches come equipped with 2.5GBASE-T RJ-45 ports that provide ultra-fast speeds capable of up to 2.5Gbps over your existing Cat5e or better cabling. Each high-speed 2.5G switch features a durable metal enclosure and can be mounted to the wall for setup flexibility. The fanless design lowers energy consumption and eliminates operating noise. The sturdy metal housing and included rackmount brackets are well-suited for wall mount or 19" 1U rack installations. TRENDnet's reliable 2.5G switches are cost-effective solutions to increase your network's throughput.

2.5G Ports

Equipped with 2.5GBASE-T RJ-45 ports that provide ultra-fast speeds capable of up to 2.5Gbps over existing Cat5e or better cabling.

Wall Mountable

The 2.5G switch features a durable metal housing with a convenient wall mountable design for greater installation flexibility.

Fanless

The fanless design of this 16-port 2.5G switch lowers energy consumption costs and eliminates operating noise.

Easy Installation
No configuration needed, simply connect network devices to the 16-port multi-gig switch


2.5G Ports
This 16-port multi-gigabit switch is equipped with 2.5GBASE-T RJ-45 ports that provide ultra-fast speeds capable of up to 2.5Gbps over existing Cat5e or better cabling

Switching Capacity

80Gbps switching capacity

Fanless

Fanless design on the 16-port 2.5G switch lowers energy consumption and eliminates operating noise

Housing Design

Sturdy desktop metal housing

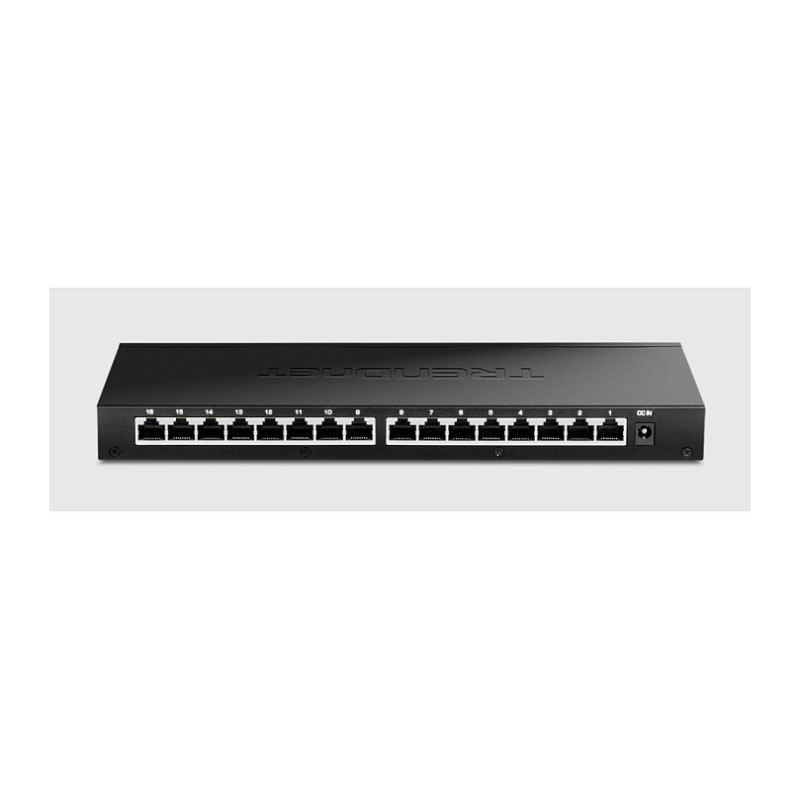

Rear Facing Ports

Hide cable clutter with rear facing ports on your desktop or rack

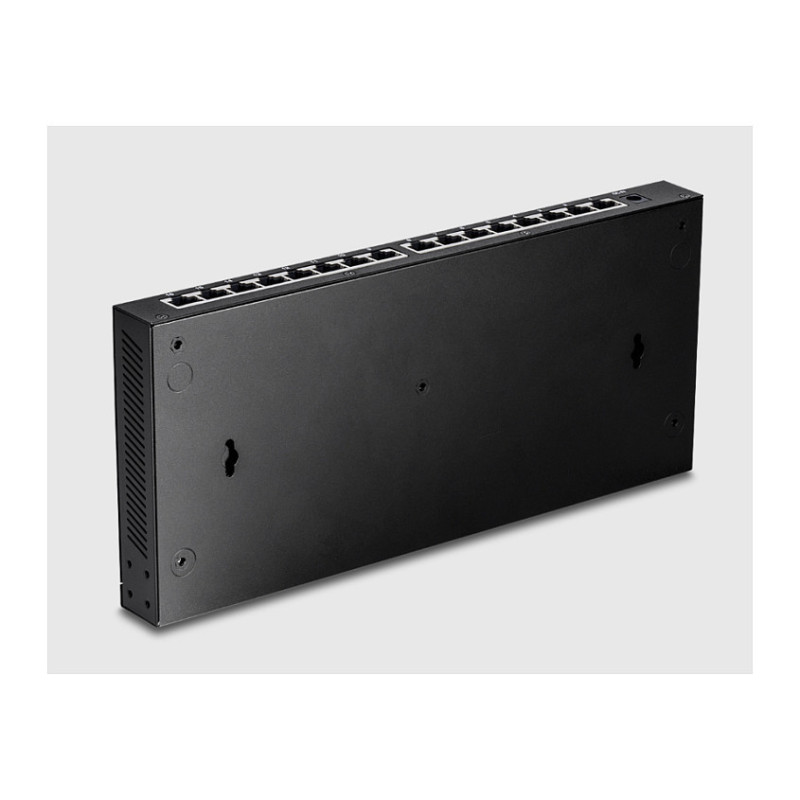

Wall Mountable

The 16-port 2.5G switch features a convenient wall mountable design for greater installation flexibility

19" Rackmount

Sturdy rack mountable metal housing with mounting kit included

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 12KB), for increased performance

LED Indicators

LED indicators on this 16-port 2.5G switch conveniently convey port status

Management features

Switch type: Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 16
Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Cable types supported: Cat5e
Feature: Full duplex
Feature: Half duplex
Ethernet LAN data rates: 100 Mbit/s

Data transmission

Switching capacity: 80 Gbit/s
Forwarding rate: 59.52 Mpps
MAC address table: 16000 entries
Feature: Jumbo frames support
Jumbo frames: 12
Packet buffer memory: 1.5 MB

Design

Feature: Rack mounting
Form factor: Desktop
Product colour: Black
LED indicators: Yes
Feature: Wall mountable

Performance

Feature: Fanless
Mean time between failures (MTBF): 223000 h

Power

Power source: AC/DC
Feature: Power supply included
AC input voltage: 90 - 264 V
AC input frequency: 47/63 Hz
Output voltage: 12 V
Output current: 3 A
Power consumption (max): 7.26 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 0 - 90%

Weight & dimensions

Width: 128 mm
Depth: 286 mm
Height: 27 mm
Weight: 982 g

Packaging content

Feature: Quick start guide
Feature: Rack mount kit

Packaging data

Feature: AC adapter included

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), National Defense Authorization Act (NDAA), Trade Agreements Act (TAA)
