Trendnet TEG-MGBS20 network media converter

Trendnet TEG-MGBS20. Maximum data transfer rate: 1250 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z. Maximum transfer distance: 20000 m, Wavelength: 1310 nm, Fiber mode structure: Single-mode. Product colour: Black, Stainless steel. Fiber optic connector: LC, SFP. Power consumption (typical): 0.8 W

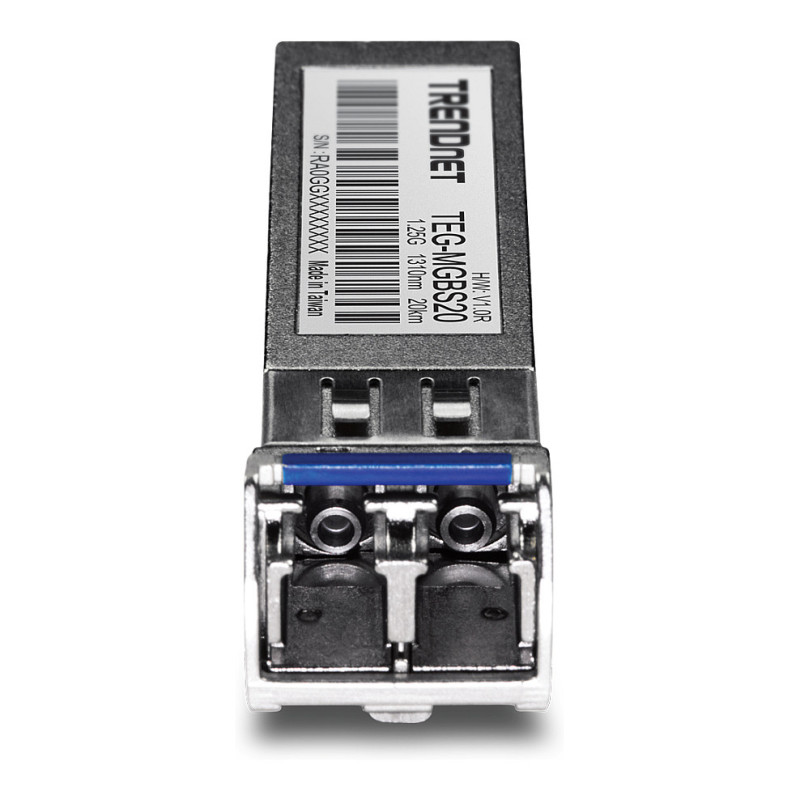

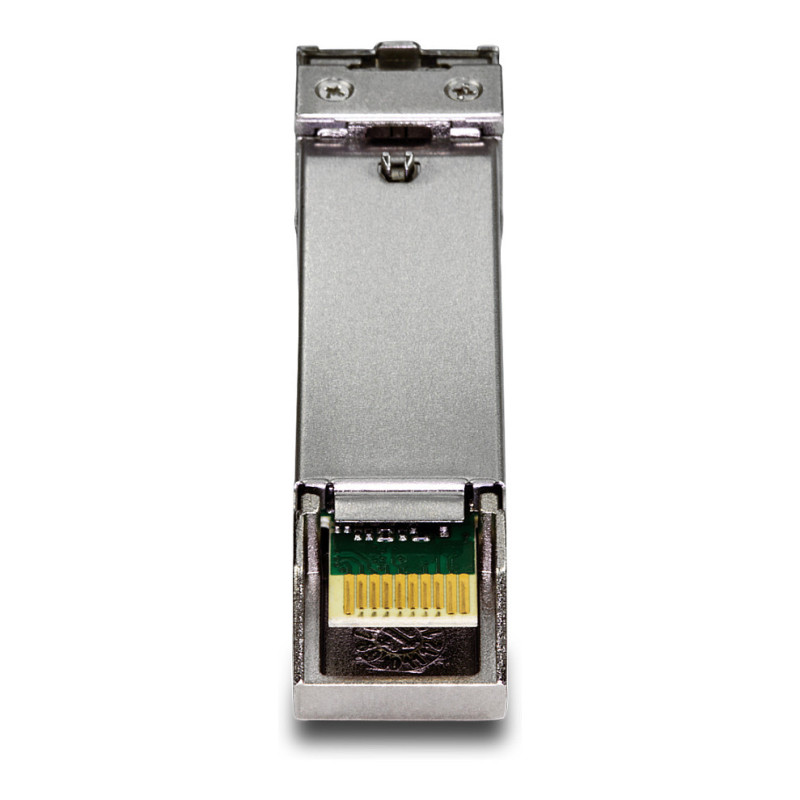

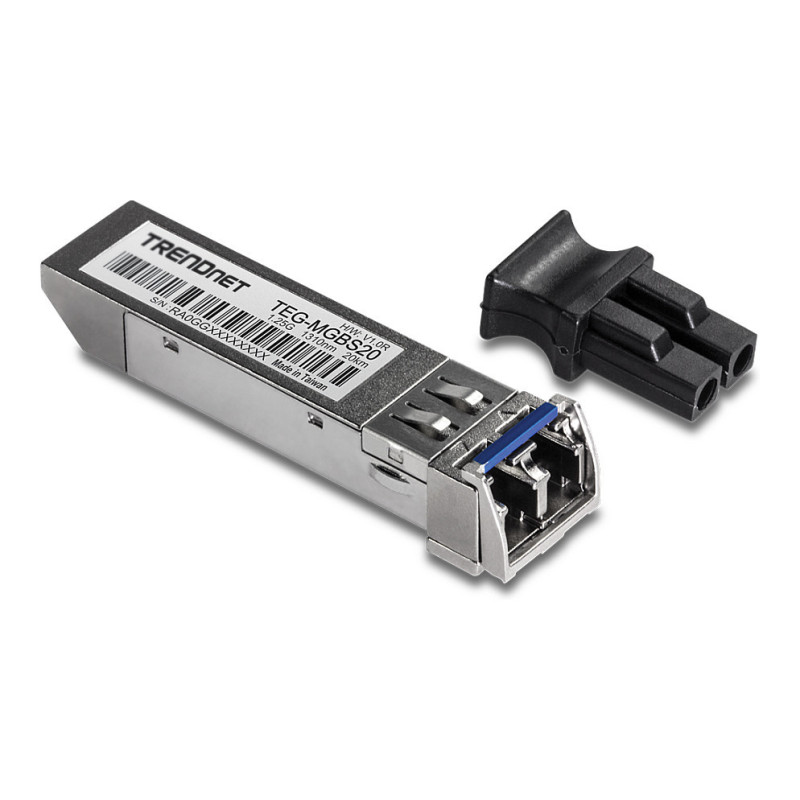

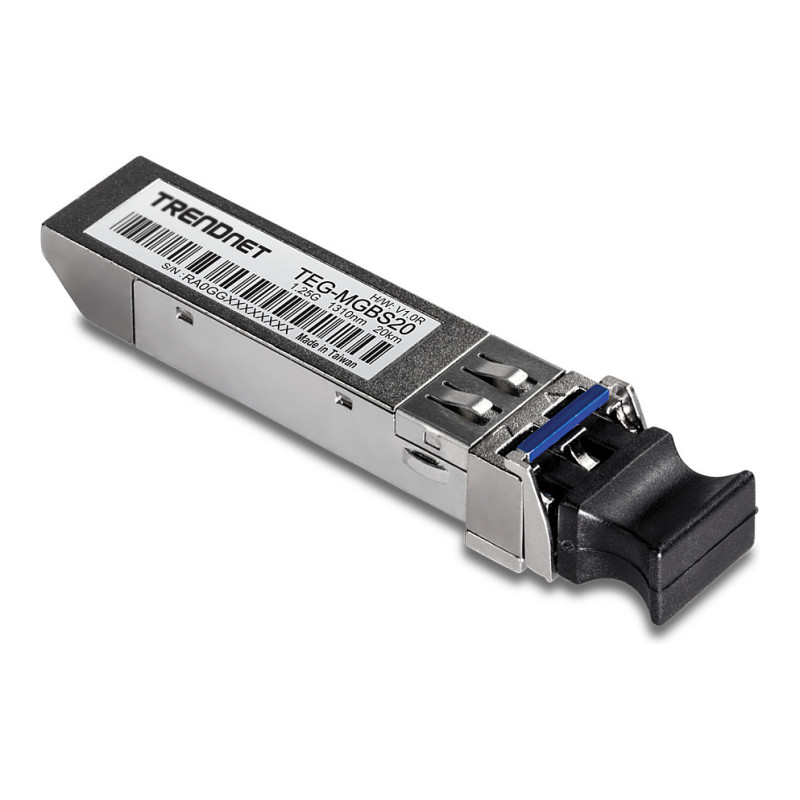

SFP Single Mode LC Module (20km)
TRENDnet's SFP Single Mode LC Module, model TEG-MGBS20, is compatible with standard SFP slots found on network switches and fiber media converters. Each TEG-MGBS20 single mode fiber SFP is equipped with a duplex LC fiber connection interface, supports high-speed data rates up to 1.25Gbps, and supports gigabit single mode fiber connections for long distance network applications up 20km (12.4 mi.).
Fiber Applications
Long distance fiber networking for manufacturing, business parks, and school campus applications.
Fiber Mode/Distance
Single-mode transceiver spans distances up to 20km (12.4 mi.) at gigabit speeds.
Compatibility
Hot-pluggable with an MSA compliant SFP slot and compatible with fiber cables with LC-type duplex connectors.
Hot-Pluggable SFP
Hot-pluggable SFP transceiver compatible with an MSA compliant SFP slot
Fiber Wavelength
Single mode fiber SFP compatible with 1310nm transmissions
Fiber Distance
Supports networking for distances up to 20km (12.4 mi.)
Fiber Interface
This single mode fiber SFP supports LC-type duplex connector

Network

Maximum data transfer rate: 1250 Mbit/s
Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z

Performance

Maximum transfer distance: 20000 m
Wavelength: 1310 nm
Fiber mode structure: Single-mode
Sensitivity: -22 dBmW

Features

Product colour: Black, Stainless steel

Ports interfaces

Fiber optic connector: LC, SFP

Power

Power consumption (typical): 0.8 W

Weight dimensions

Width: 57 mm
Depth: 13 mm
Height: 12 mm
Weight: 18 g

Operational conditions

Operating temperature (T-T): 0 - 70 °C
Operating relative humidity (H-H): 0 - 85%

Certificates

Certification: CE, FCC
