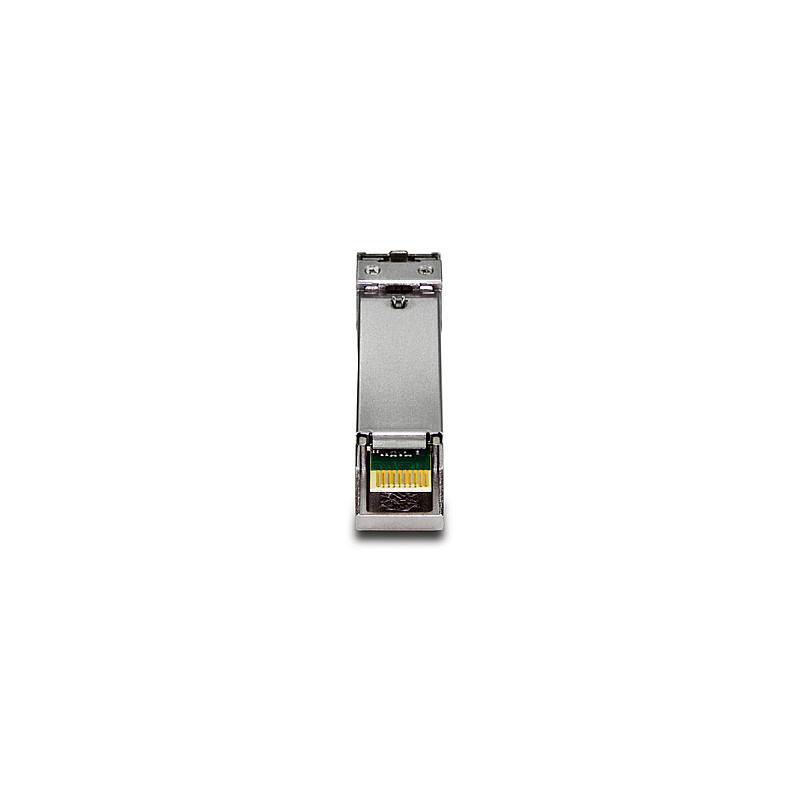

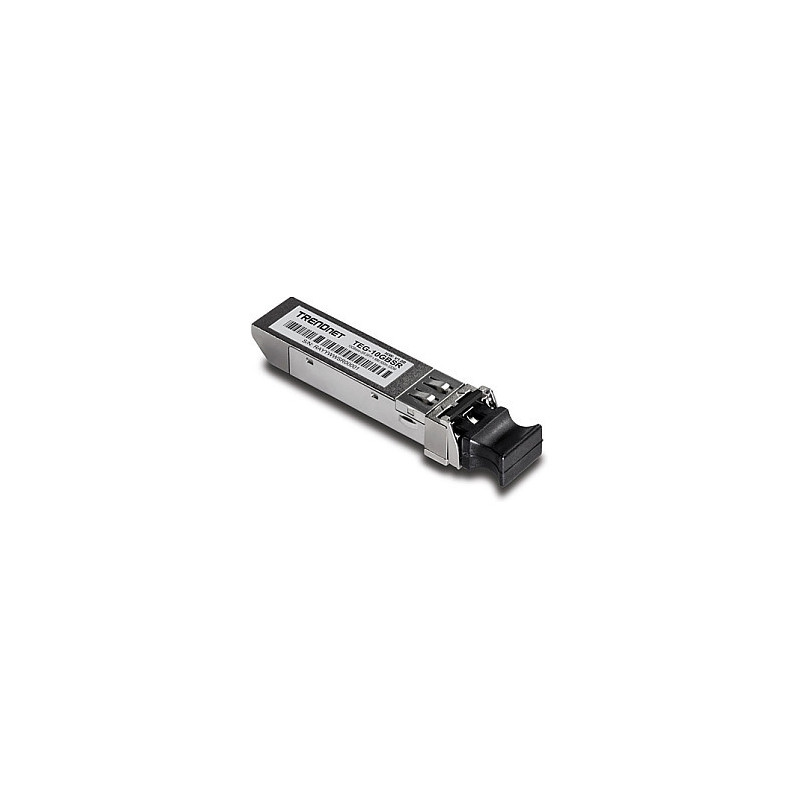

Trendnet TEG-10GBSR network transceiver module

Trendnet TEG-10GBSR. SFP transceiver type: Fiber optic, Maximum data transfer rate: 10000 Mbit/s, Interface type: SFP+. Power consumption (typical): 0.439 W. Width: 14.8 mm, Depth: 56.5 mm, Height: 11.8 mm

TRENDnet's hot-pluggable TEG-10GBSR, 10GBASE-SR SFP+ Multi Mode LC Module, works with a MSA compliant SFP+ slot. This Multi Mode transceiver spans distances up to 550 meters (1,804 feet), comes with a LC duplex connector, and supports up to 10.5 Gbps networking throughput speeds. Digital Diagnostics Monitoring (DDM) captures critical device parameters such as transmit/receive power, temperature, and voltage.

Hot-Pluggable SFP+
Hot-pluggable SFP+ transceiver works with a MSA compliant SFP+ slot

Fiber Wavelength
Compatible with Multi Mode 850 nm transmissions

Fiber Distance
Supports networking for distances up to 550 meters (1,804 feet)

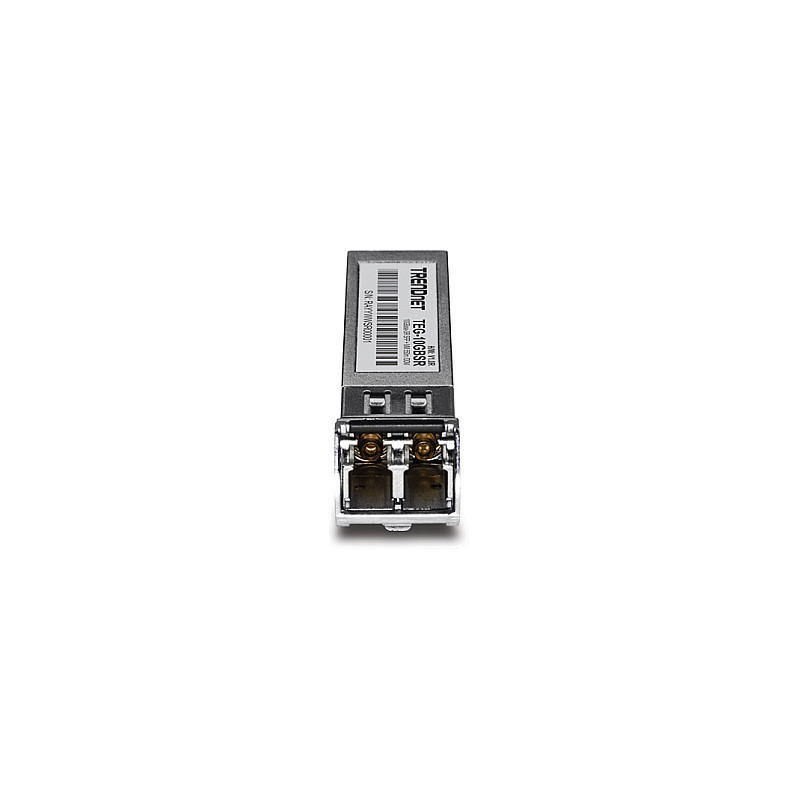

Fiber Port
LC-type duplex connector

DDM Support
Digital Diagnostics Monitoring (DDM) captures critical device parameters such as transmit/receive power, temperature, and voltage

Power Supply
Single 3.3 volt power supply

Operating Temperature
Rated for an operating temperature range of 0 to 70 °C (32 to 158 °F)

Standards
Compliant with SFF-8431, SFF-8432, SFF-8472, FC-PI-4,10G FC, and IEEE802.3ae 10GBASE-SR

Performance

SFP transceiver type: Fiber optic
Maximum data transfer rate: 10000 Mbit/s
Interface type: SFP+
Feature: Multi-mode fiber (MMF) supported
Fiber optic connector: LC
SFP transceiver standard: SR
Maximum transfer distance: 550 m
Wavelength: 850 nm
Networking standards: IEEE 802.3ae
Fiber ports quantity: 1

Features

Feature: Hot-Plug support

Power

Power consumption (typical): 0.439 W

Operational conditions

Operating temperature (T-T): 0 - 70 °C
Operating relative humidity (H-H): 0 - 95%

Weight & dimensions

Width: 14.8 mm
Depth: 56.5 mm
Height: 11.8 mm
Weight: 22 g

Logistics data

Harmonized System (HS) code: 85369010
