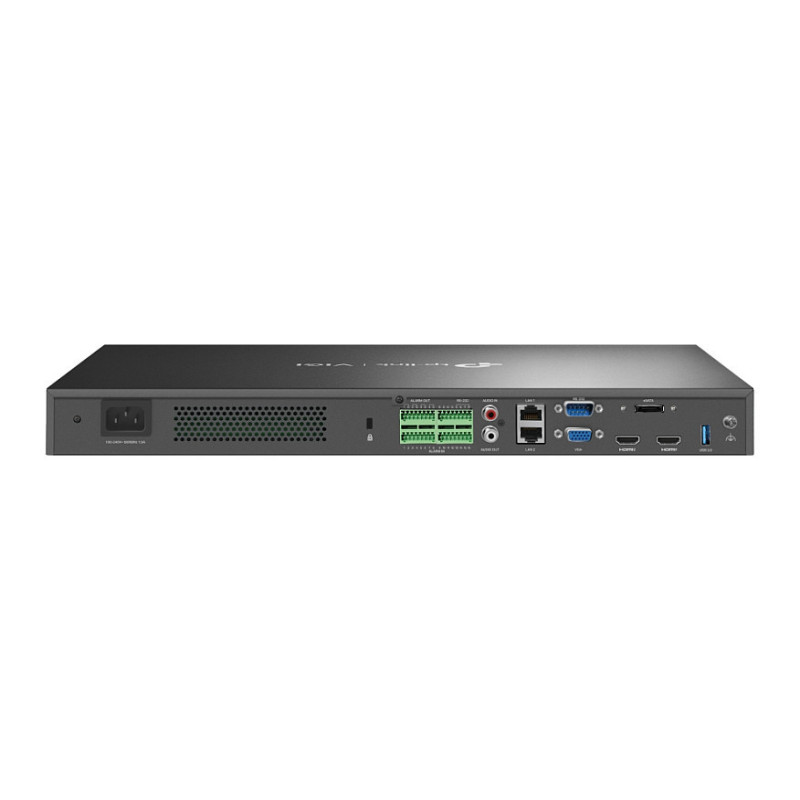

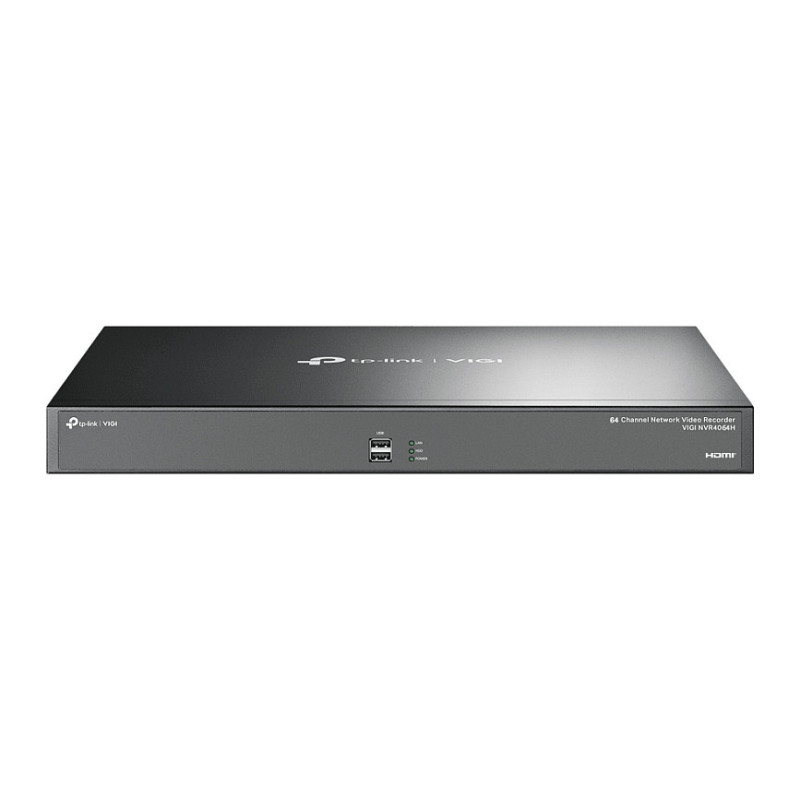

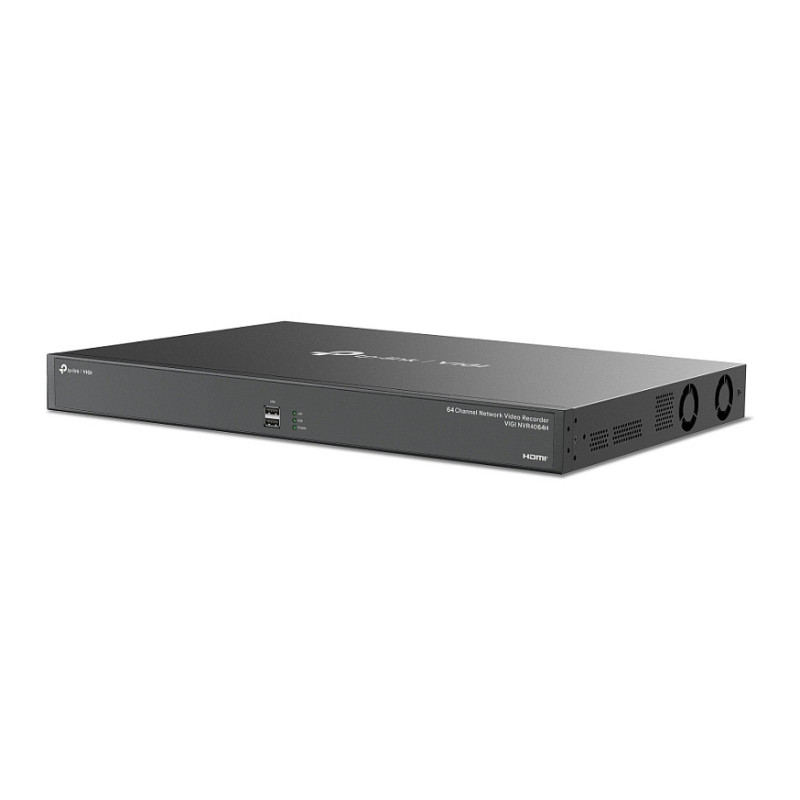

TP-Link VIGI NVR4064H network video recorder

TP-Link VIGI 64 Channel Network Video Recorder. Video input channels: 64 channels, Maximum resolution: 3840 x 2160 pixels, Number of simultaneously playbacked channels: 16 channels. Maximum storage capacity: 64 TB, HDD interface: SATA. Ethernet LAN data rates: 10,100,1000 Mbit/s, Supported network protocols: UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP,.... Product colour: Black. Power consumption (max): 48.38 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz

Security Never Shuts Down
64 Channel Network Video

Feature-Packed Ports for SMB Surveillance

Dual Ethernet Ports Design

Multi-Address Mode
Allows for the implementation of two different gateways

Network Fault-Tolerance
Creates a safeguard or redundancy for your data

Port Aggregation
Realizes bandwidth stack and mutual backup

One-Click System Initialize
VIGI NVRs enable quick camera additions, HDD initialization, and storage scheduling with a single click, reducing setup expenses.

Performance

Video input channels: 64 channels
Alarm input channels: 16
Alarm output channels: 4
Number of simultaneously playbacked channels: 16 channels
Video recording modes: 720p, 1080p
Maximum resolution: 3840 x 2160 pixels
Supported resolutions: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
Feature: Video motion detection
Feature: Video loss detection
Audio formats supported: G.711 A-law, G.711 μ-law, G.726
Video formats supported: H.264, H.264+, H.265, H.265+
Feature: Backup function
Playback modes: Digital zoom, Fast play, Forward, Full screen, Pause, Play, Stop
Input bandwidth: 320 Mbit/s
Output bandwidth: 320 Mbit/s
Recording modes: Manual, Schedule
Audio system: 2-way

Hard drive

HDD capacity: 0 GB
Number of HDDs supported: 4
Maximum storage capacity: 64 TB
HDD interface: SATA

Ports & interfaces

Ethernet LAN (RJ-45) ports: 2
Ethernet LAN data rates: 10,100,1000 Mbit/s
HDMI ports quantity: 2
VGA (D-Sub) output ports: 1
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
Audio RCA inputs: 1
Audio RCA outputs: 1
eSATA ports quantity: 1
Feature: eSATA
RS-232 ports: 1
Supported network protocols: UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP

Features

Feature: Rack mounting
Feature: Reset button
Feature: Buzzer off
Product colour: Black

Power

Power consumption (max): 48.38 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Output current: 1.5 A

System requirements

Mobile operating systems supported: Android, iOS
Browser supported: Chrome (57+), Firefox (52+), Edge (91+)

Operational conditions

Operating temperature (T-T): -10 - 55 °C
Operating relative humidity (H-H): 10 - 90%
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 10 - 90%

Technical details

Compliance certificates: BSMI, CE, Federal Communications Commission (FCC), KC, UKCA, VCCI

Weight & dimensions

Width: 440 mm
Depth: 330 mm
Height: 44 mm
Weight: 4 kg
Package width: 440 mm
Package depth: 528 mm
Package height: 100 mm
Package weight: 5 kg

Packaging content

Packaging content: - Mouse- Installation Guide- Power Cord- HDD Power Cables- HDD Data Cables- Terminal Blocks- Mounting Brackets- Screws- Rubber Feet
