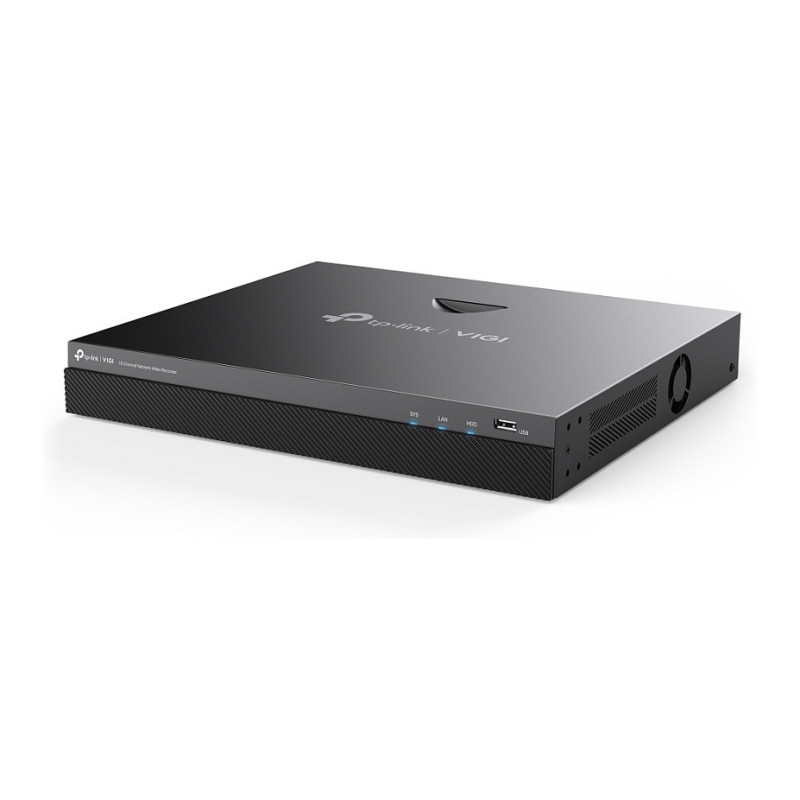

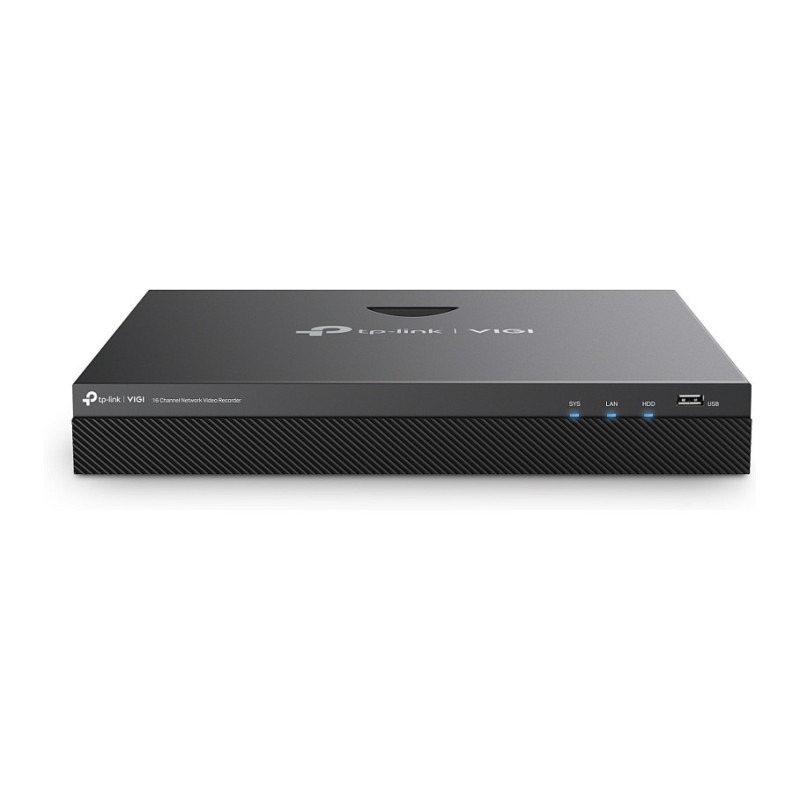

TP-Link VIGI NVR2016H network video recorder

TP-Link VIGI NVR2016H. Video input channels: 16 channels, Maximum resolution: 3840 x 2160 pixels, Number of simultaneously playbacked channels: 16 channels. Maximum storage capacity: 10 TB, HDD interface: SATA. Ethernet LAN data rates: 10,100 Mbit/s, Supported network protocols: UPnP (Plug and Play), NTP (Network Timing). Product colour: Black, Certification: CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI. Power consumption (max): 24.16 W, Output current: 3.3 A, Output voltage: 12 V

Security Never Shuts Down

Every Angle All on One Screen
4K HDMI Video Output & 16MP Decoding Capacity
Sharp image definition up to 8MP (4K) ensures you capture every detail. 8-ch@2MP decoding capacity allows you to enjoy more-channels live view and playback at the same time.†

Reviewing Footage is Faster than Ever
16-Channel Simultaneous Playback*
Replay the feed from up to 16 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.

More Compression. More Savings. More Quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

No Need to Check Long Compatibility Lists
ONVIF Ensures Compatibility
Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility. △

Plug & Play.
Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.

Security for Every Hour and Every Day
27/4 Continuous Recording
Automatically and continuously stores up to 20 TB of footage from connected cameras to secure your data for quick and convenient access.

Two-Way Audio
With voice intercom support, scare off any potential thieves or intruders from wherever you are.

Remote Management
Take full control over your security anytime and anywhere on the VIGI app or client.

Live Views and Real-Time Alerts
Easily check your business security via 24/7 live views. Get notifications as soon as the cameras detect something abnormal.

Easy & Smart Playback
Quickly review and locate certain video clips by event, vehicle, person, time, and more. This will greatly improve event backtracking efficiency and reduce labor costs.

Customized Monitoring Patterns
Based on your monitoring needs, you can freely preset motion zones, adjust the rotation angle, set zoom in & out, customize patrol routes, control patrol routes, and more.

Four-Way Management
Flexibly manage your cameras via the web UI, NVR UI, VIGI app, and VIGI Security Manager for ease and convenience.

One system. Full security.
Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you've worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.

Performance

Video input channels: 16 channels
Number of simultaneously playbacked channels: 16 channels
Video recording modes: 720p, 1080p
Maximum resolution: 3840 x 2160 pixels
Feature: Video motion detection
Audio formats supported: G.711 A-law, G.711 μ-law, G.726
Video formats supported: H.264, H.264+, H.265, H.265+
Playback modes: Digital zoom, Fast play, Forward, Full screen, Pause, Play, Stop
Feature: Playback controls
Maximum frame rate: 30 fps
Input bandwidth: 80 Mbit/s
Output bandwidth: 60 Mbit/s
Recording modes: Manual, Schedule

Hard drive

HDD capacity: 0 GB
Number of HDDs supported: 2
Maximum storage capacity: 10 TB
HDD interface: SATA

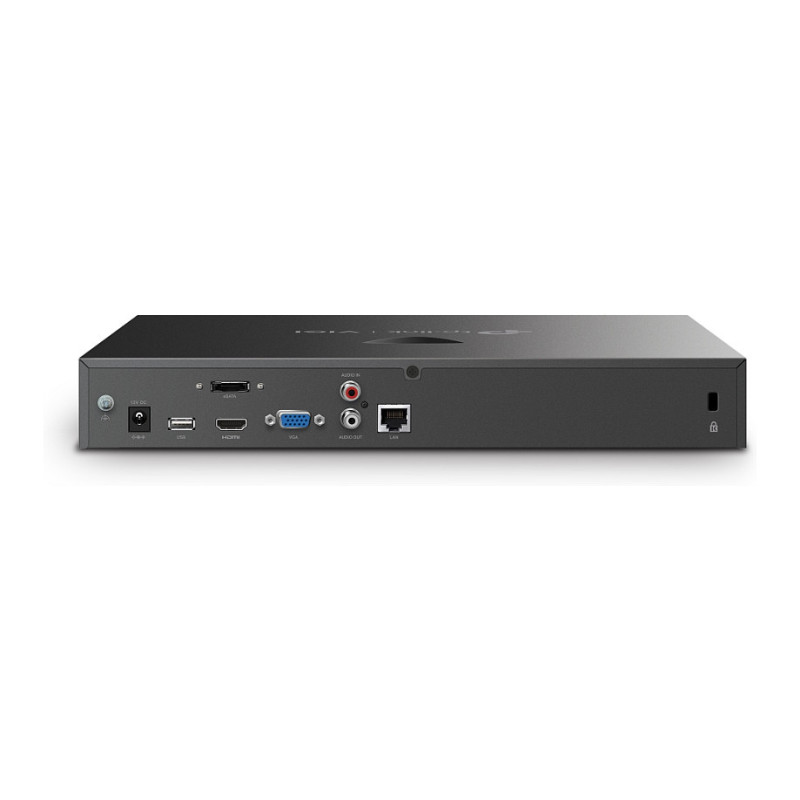

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100 Mbit/s
HDMI ports quantity: 1
VGA (D-Sub) output ports: 1
USB 2.0 ports quantity: 2
eSATA ports quantity: 1
Internal SATA ports quantity: 2
Feature: eSATA
Feature: Line-in
Audio output: 1
Feature: DC-in jack
Supported network protocols: UPnP (Plug and Play), NTP (Network Timing)

Features

Feature: Reset button
Product colour: Black
Certification: CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI

Power

Power consumption (max): 24.16 W
Output current: 3.3 A
Output voltage: 12 V

Operational conditions

Operating temperature (T-T): -10 - 55 °C
Operating relative humidity (H-H): 10 - 90%
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 330 mm
Depth: 285 mm
Height: 45 mm
Weight: 1.9 kg
Package weight: 3.2 kg
