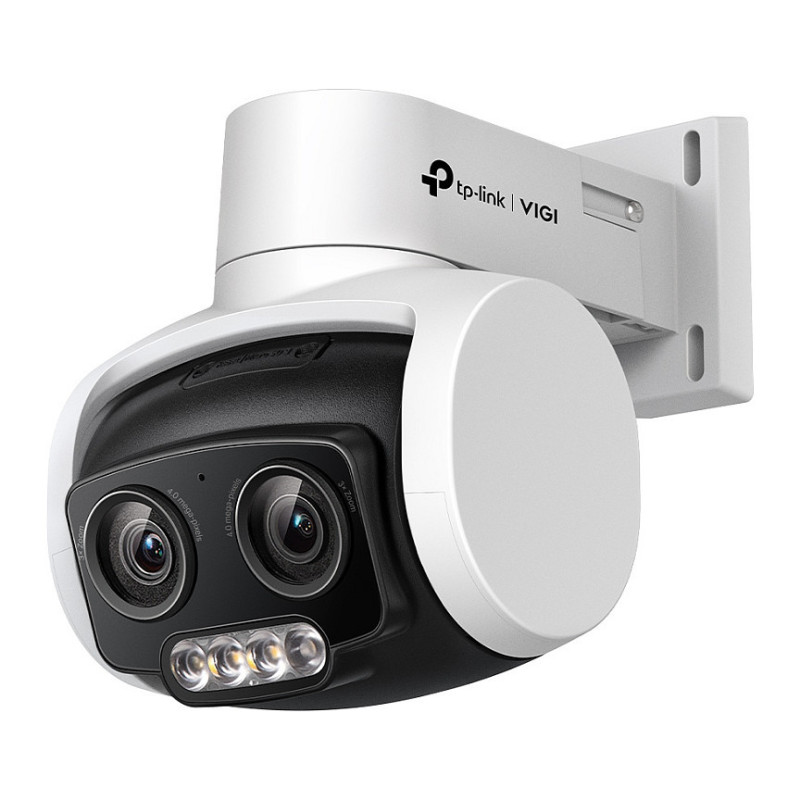

TP-Link VIGI C540V security camera

TP-Link VIGI 4MP Outdoor Full-Color Dual-Lens Varifocal Pan Tilt Network Camera. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Black, Housing material: Plastic. Lens viewing angle, horizontal: 84°, Lens viewing angle, vertical: 46°, Lens viewing angle, diagonal: 100°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Digital zoom: 3x, Focal length range: 4 - 12 mm

See More With Less
4MP Outdoor Full-Color Dual-Lens
Varifocal Pan Tilt Network Camera

Clarity and Colors, All in One
Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 4MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.

Powerful Pan Tilt
Cover every corner flexibly with VIGI's Pan Tilt camera. Customized patrol routes provide more intelligent and quick options to monitor key areas (up to 8 points for each route).

Human & Vehicle Classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.

Automatic Tracking
Continues following specified moving persons or vehicles with Pan Tilt cameras intelligently analyzing the image. Track the path efficiently when there should be little movement in the area.

Smart Detection for Efficient Monitoring
By setting the detection rules in advance, VIGI AI-powered cameras can accurately capture various abnormal events. This will greatly reduce false alarms and cover your specified monitoring needs in different scenarios.

Active Defense
Warn potential intruders instantly with sound and light when abnormal events are detected.

Two-Way Audio
With voice intercom support, carry two-way conversations while watching your feed from anywhere.

PoE & IP66
Outdoor PoE connection makes your wiring remarkably easy. Reliable IP66 enables stable outdoor performance.

Smart Video Coding by H.265+
Compresses the video size without sacrificing video quality, easing the network load and saving disk space.

Flexible Storage
Local storage is available for each method, as well as onbsoard storage with an SD card slot (up to 256 GB).

Remote Management
Take full control over your security anytime and anywhere on the VIGI app or client.

One system. Full security.
Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you've worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.

Performance

Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired
Feature: PTZ control
Certification: CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC

Design

Mounting type: Ceiling
Product colour: White, Black
Housing material: Plastic
International Protection (IP) code: IP66

Camera

Feature: Camera pan control
Feature: Camera tilt control
Lens viewing angle, horizontal: 84°
Lens viewing angle, vertical: 46°
Lens viewing angle, diagonal: 100°
Tilt angle range: 0 - 120°
Tilt speed: 40 °/sec
Pan range: 0 - 332°
Pan speed: 55 °/sec

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 3 mm (1 / 3")
Sensor type: CMOS

Lens system

Feature: Zoom capability
Digital zoom: 3x
Number of lenses: 1
Focal length range: 4 - 12 mm
Maximum aperture number: 1.6

Night vision

Feature: Night vision
Night vision distance: 30 m
LED type: IR
Number of illumination LEDs: 1
Infra-red wavelength: 850 nm

Video

Maximum resolution: 2560 x 1440 pixels
Total megapixels: 4 MP
Video formats supported: H.264, H.264+, H.265, H.265+
Supported graphics resolutions: 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440
Supported video modes: 720p, 1080p, 1440p
Feature: Video recording
Frame rate: 30 fps
Bit rate control: Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Bit rate: 256 Kbps - 4 Mbps

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 256 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1

Power

Power source type: PoE
Power consumption (typical): 2.9 W
Power consumption (max): 14 W
DC output voltage: 12

Operational conditions

Operating temperature (T-T): -30 - 60 °C
Storage temperature (T-T): -40 - 60 °C
Operating relative humidity (H-H): 5 - 95%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 136 mm
Depth: 139 mm
Height: 107 mm
Weight: 430 g

Packaging data

Package weight: 660 g
Package type: Box

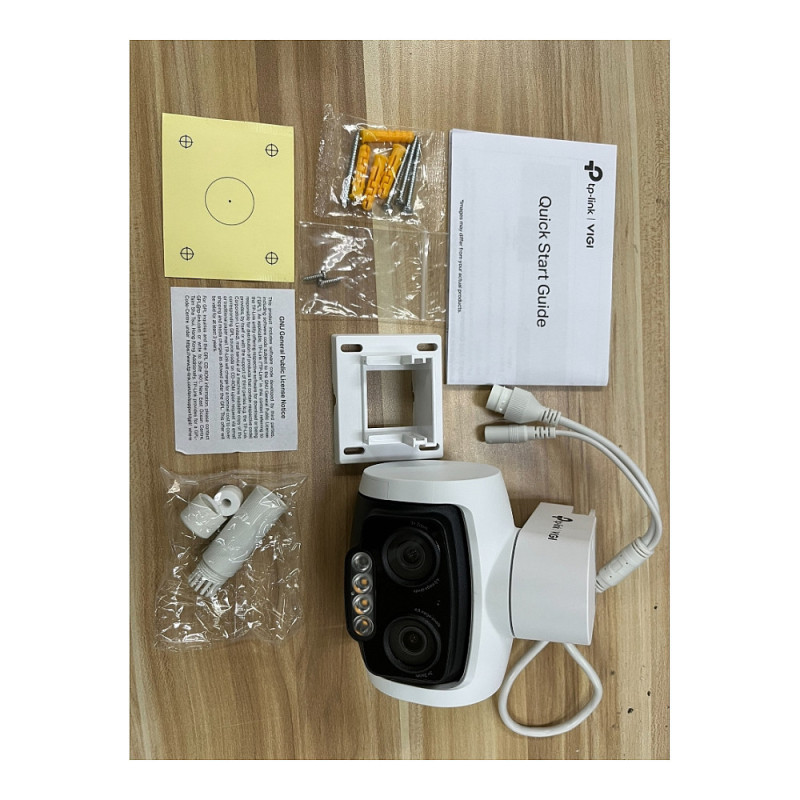

Packaging content

Number of cameras: 1
Feature: Manual
