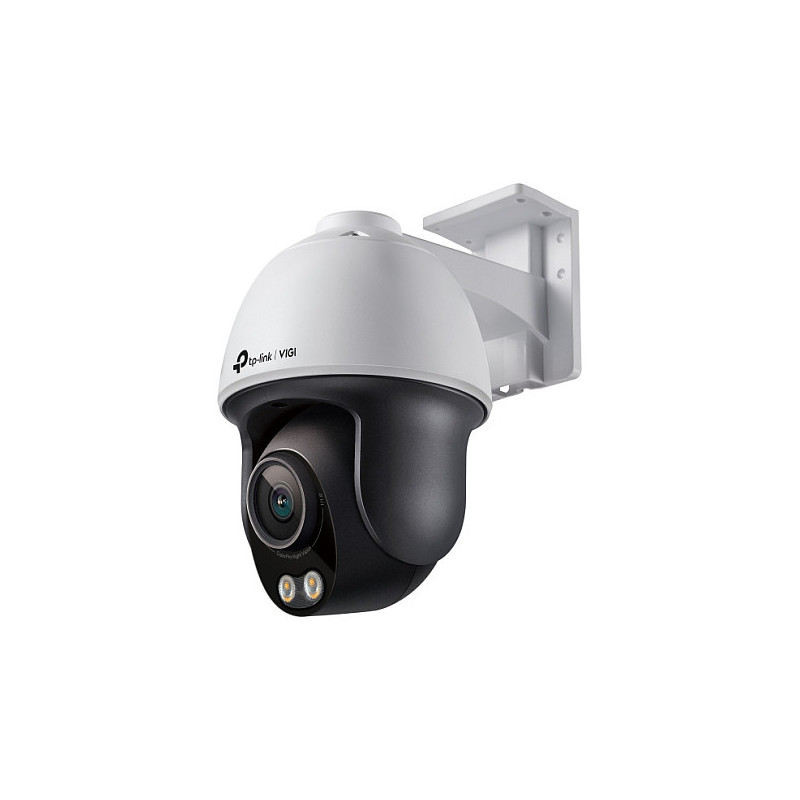

TP-Link VIGI C540S(4mm)

TP-Link VIGI C540S(4mm). Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Turret. Lens viewing angle, horizontal: 104°, Lens viewing angle, vertical: 55°, Lens viewing angle, diagonal: 127°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Detect distance: 63 m, Observe distance: 26 m, Recognize distance: 13 m

See Vivid Colors, Even in Darkness.
4MP Outdoor ColorPro Night Vision Pan Tilt Network Camera

VIGI ColorPro Night Vision
VIGI's industry-leading ColorPro Night Vision technology enables its cameras to pierce the night and see everything in fine detail. By adopting this best-in-class technology, VIGI C540S can provide 4MP high resolution and capture more vivid full-color images in extreme low-light conditions.

Better than the Naked Eye
Featuring high low-light sensitivity, VIGI's ColorPro Night Vision produces unparalleled colors along with amazingly crisp images in ultra-low light conditions, which can't be achieved with natural eyesight.**

Beyond IR, Beyond Full-Color
Images captured by IR cameras or traditional full-color cameras will suffer from digital noise and the loss of detail. VIGI's ColorPro Night Vision cameras reveal excellent image details even in extreme darkness.**

Less Light Pollution
Bright illumination is required by conventional full-color cameras to capture images at pitch-dark hours. But VIGI's ColorPro Night Vision cameras delivers true color and bright imaging even in extremely low light with no spotlights needed, greatly reducing environmental light pollution.

Core Technology

Powerful Pan Tilt
Cover every corner flexibly with VIGI's Pan Tilt camera. Customized patrol routes provide more intelligent and quick options to monitor key areas (up to 8 points for each route), reducing manual costs for adjusting pan & tilt angles repeatedly.

Human & Vehicle Classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.

Automatic Tracking
Automatically tracks persons or vehicles of interest and provides seamless and longer video. This way, you will better understand what's happening and take action without wasting time on irrelevant footage.

Comprehensive AI Detection with Pre-Set Rules Supported
By setting the detection rules in advance, VIGI AI-powered cameras can accurately capture various abnormal events. This will greatly reduce false alarms and cover your specified monitoring needs in different scenarios.

Set customized activity zones around key areas for more focused monitoring.

Face Recognition
VIGI's advanced built-in face recognition algorithm enables cameras to intelligently capture faces, extract facial features, and form unique facial data. By comparing the facial data with a face library, quickly match a human face, efficiently reducing the risk of unauthorized access.*

People & Vehicle Analytics
Quickly find people and vehicles of interest using a series of attributes.

People Analytics
Filter people of interest by various attributes, such as hair length, and clothing, allowing you to improve search efficiency.*

Vehicle Analytics
Identify and search for vehicles of interest based on vehicle color and type for targeting meaningful events in a short time.*

Active Defense
Warn potential intruders off instantly with sound and light to pro-actively protect your property, even while away from the scene.

Two-Way Audio
With voice intercom support, carry two-way conversations while watching your feed from anywhere.

Smart Video Coding by H.265+
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

PoE Connection, IP66 Weatherproof
PoE technology makes your wiring remarkably easy. Reliable IP66 enables stable outdoor performance.

Flexible Storage
Local storage is available for each method, as well as onboard storage with an SD card slot (up to 256 GB).

Remote Management
Take full control over your security anytime and anywhere on the VIGI app or client.

Live Views and Real-Time Alerts
Easily check your business security via 24/7 live views. Get notifications as soon as the cameras detect something abnormal.

Easy & Smart Playback
Quickly review and locate certain video clips by event, vehicle, person, time, and more. This will greatly improve event backtracking efficiency and reduce labor costs.

Customized Monitoring Patterns
Based on your monitoring needs, you can freely preset motion zones, adjust the rotation angle, set zoom in & out, customize patrol routes, control patrol routes, and more.

Four-Way Management
Flexibly manage your cameras via the web UI, NVR UI, VIGI app, and VIGI Security Manger for ease and convenience.

One system. Full security.
Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you've worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.

Performance

Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired
Feature: PTZ control
PTZ modes: Auto scan, Preset point
Feature: Preset points
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode
Certification: CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC

Design

Form factor: Turret
Mounting type: Ceiling/wall
Product colour: Black, White
Housing material: Plastic
International Protection (IP) code: IP66

Camera

Feature: Camera pan control
Feature: Camera tilt control
Lens viewing angle, horizontal: 104°
Lens viewing angle, vertical: 55°
Lens viewing angle, diagonal: 127°
Tilt angle range: 0 - 105°
Tilt speed: 44 °/sec
Pan range: 0 - 348°
Pan speed: 44 °/sec

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 3 mm (1 / 3")
Sensor type: CMOS

Lens system

Number of lenses: 1
Detect distance: 63 m
Observe distance: 26 m
Recognize distance: 13 m
Lens diameter: 4 mm
Identify distance: 6 m

Night vision

Feature: Night vision
Night vision distance: 30 m
LED type: IR

Video

Maximum resolution: 2688 x 1520 pixels
Total megapixels: 4 MP
Video compression formats: H.264, H.264+, H.265, H.265+
Supported graphics resolutions: 320 x 240, 352 x 288, 640 x 480 (VGA), 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440, 2688 x 1520
Frame rate: 30 fps
Feature: Video streaming
Image quality adjustment: Brightness, Contrast, DNR, Mirror, Saturation, Sharpness
Feature: Privacy masking
Bit rate: 256 Kbps - 6 Mbps
Feature: Back Light Compensation (BLC)
Feature: Highlight Compensation (HLC)
Feature: Digital Wide Dynamic Range (DWDR)
Feature: Region of Interest (ROI) encoding

Audio

Feature: Built-in speaker(s)
Audio system: 2-way
Audio input channels: 1.0 channels
Audio output channels: 1.0 channels
Feature: Built-in microphone
Bit rate range: 0 - 64 Kbit/s
Sample rates: 0 - 8 kHz

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet
Supported network protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Feature: Live view
Number of simultaneous live view channels: 3 channels

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 256 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Feature: DC-in jack

Security

Feature: Password protection
Feature: IP address filtering
Feature: HTTPS encryption
Intelligent Video Surveillance (IVS) system features: Abandoned object, Human detection, Vehicle detection
Feature: Mirror
Feature: Human and vehicle targets classification
Feature: Digest authentication

Management features

Feature: Web browser
Feature: Reset button
Behavior analysis: Intrusion detection, Line crossing detection, Region exiting detection
Feature: Smartphone/tablet remote support

Power

Power source type: DC, PoE
Power consumption (max): 13.13 W
Power consumption (Power over Ethernet (PoE)): 16.47 W
DC output voltage: 12

Operational conditions

Operating temperature (T-T): -30 - 60 °C
Storage temperature (T-T): -40 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%

Weight & dimensions

Width: 120 mm
Depth: 172 mm
Height: 203 mm

Packaging content

Number of cameras: 1
