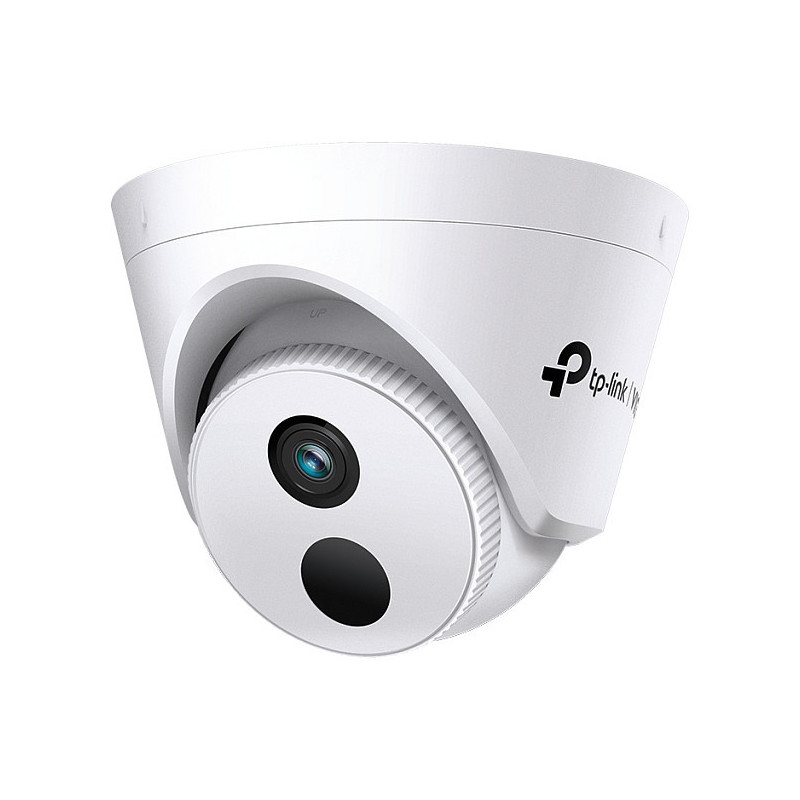

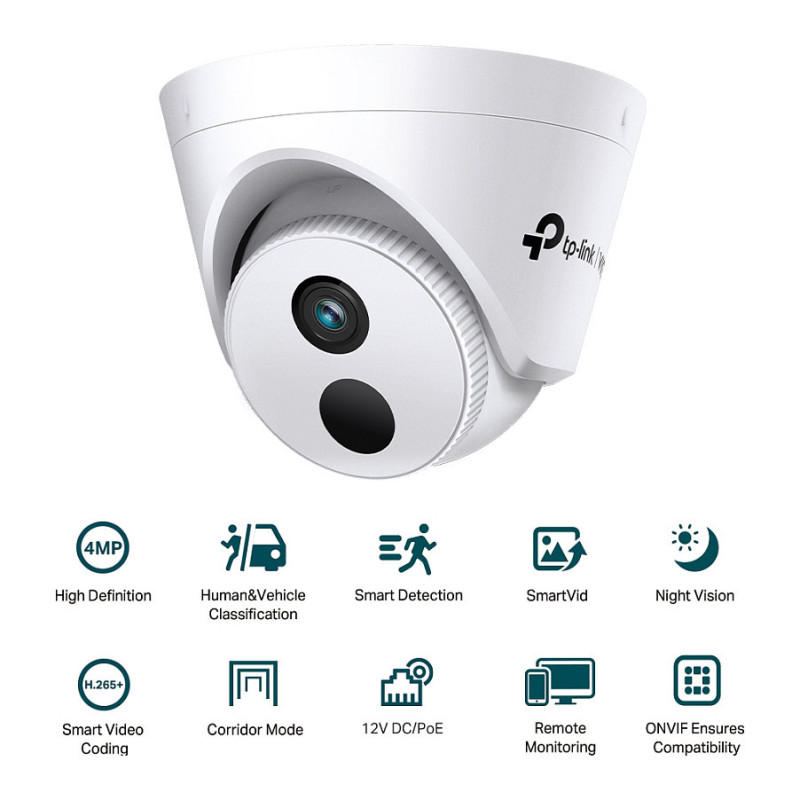

TP-Link VIGI C440I 2.8MM security camera

TP-Link VIGI C440I 2.8MM. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Turret. Minimum illumination: 0.1 lx, Lens viewing angle, horizontal: 88.8°, Lens viewing angle, vertical: 48.9°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Normal focusing range: 2.8 m

Security Never
Shuts Down
4MP IR Turret Network Camera

Looking for a higher resolution? It's right here.

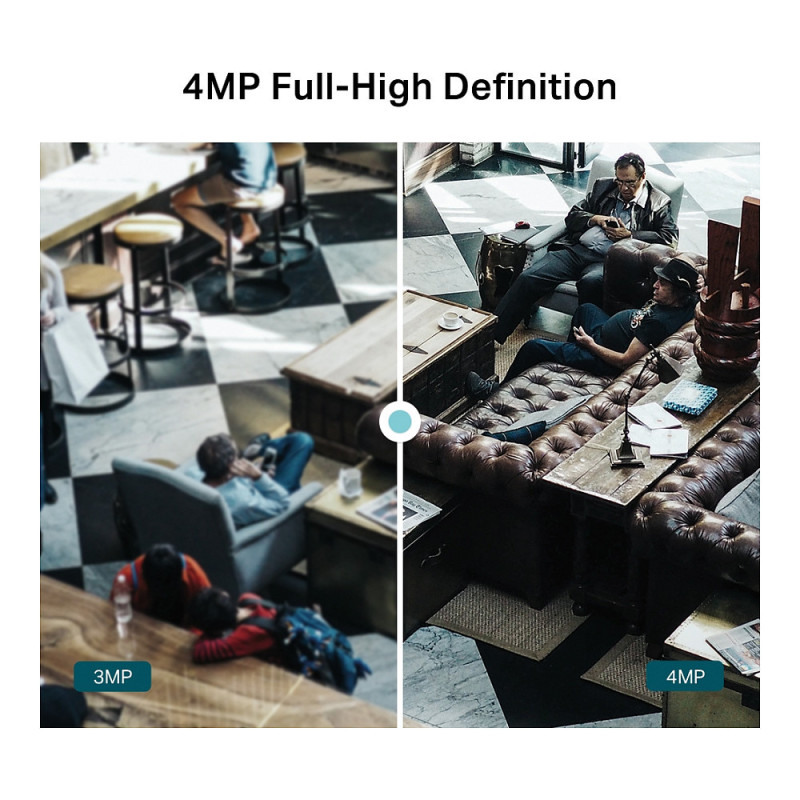

4MP Super-High Definition
The VIGI C440I camera comes with 4MP—more than enough pixels to pick up some of the more discrete details.

Human & Vehicle Classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.

We keep an eye on your business.

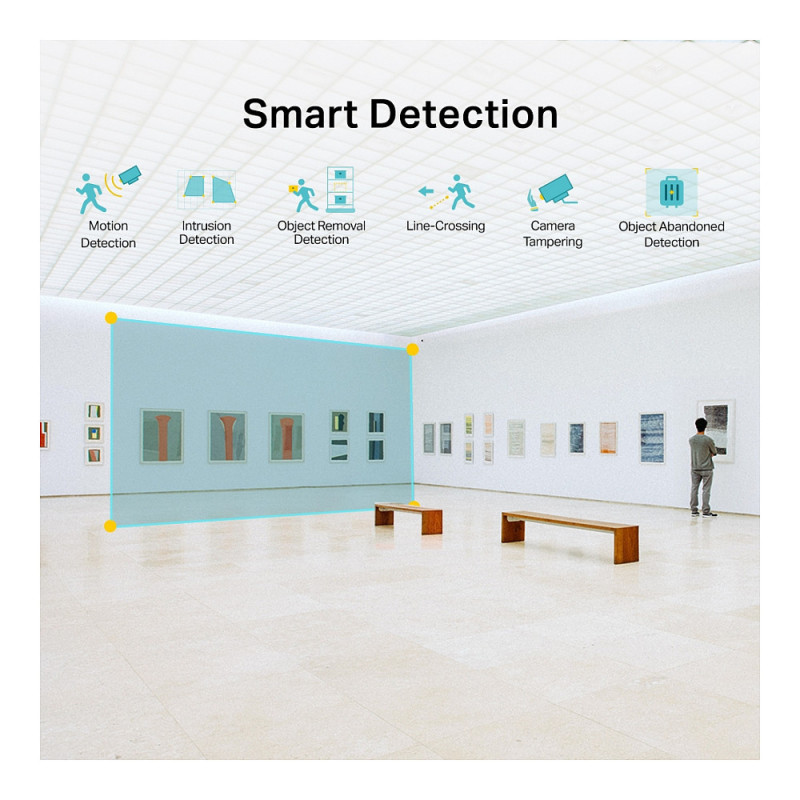

Smart Detection
Backed by AI algorithms, the VIGI camera offers more smart detection. You will receive notifications when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.

Never miss a detail.

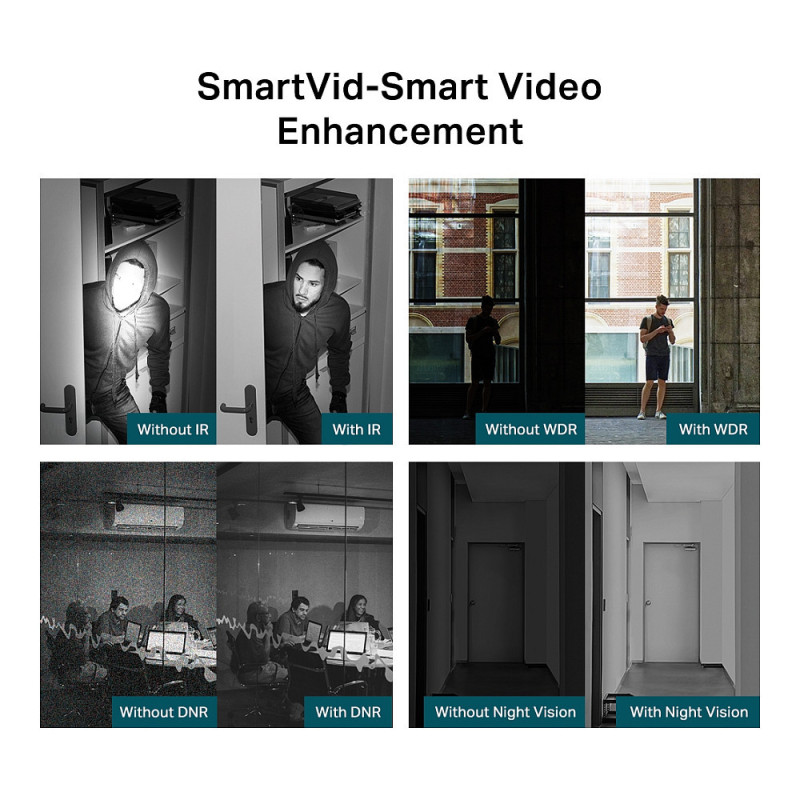

SmartVid-Smart Video Enhancement
VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.

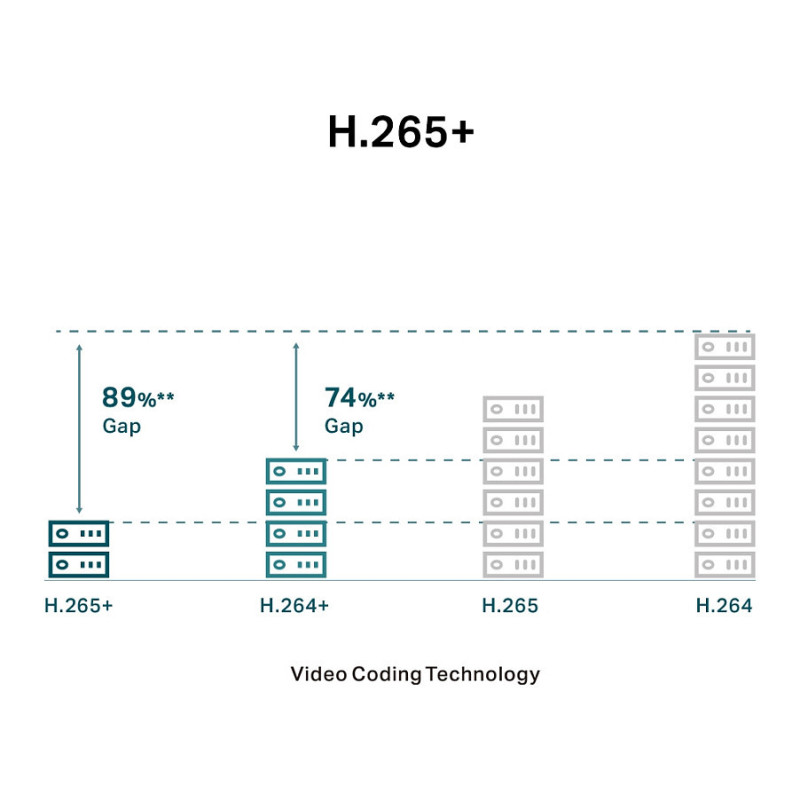

More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

Corridor Mode
Rotate the live image and lens 90° clockwise simultaneously. This way, your image aspect ratio changes from 16:9 to 9:16, helping you monitor long and narrow areas and providing a more natural viewing experience.

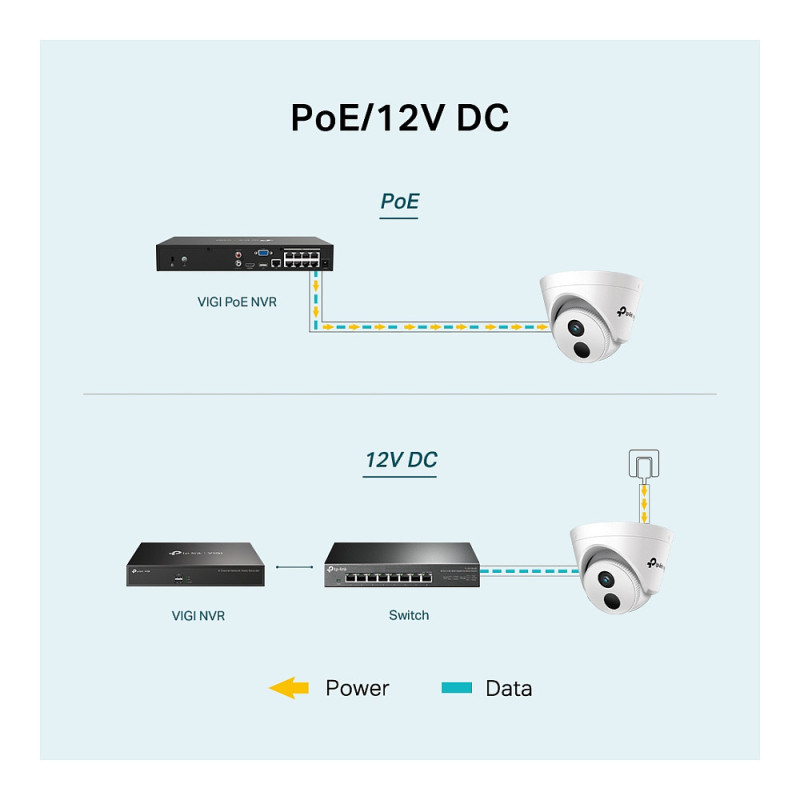

Discover the best way to power your camera.
PoE/12V DC
Two power supply ways not only give you more convenience but also make your wiring remarkably easy.

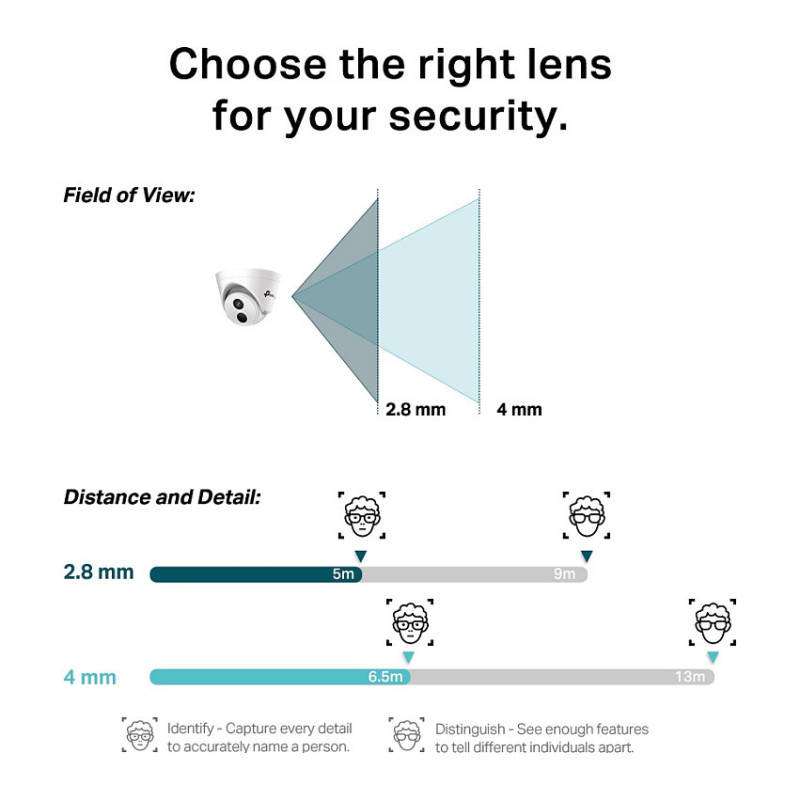

Choose the right lens for your security.
2.8/4 mm Lens
Whether you need a wide angle lens to cover enclosed spaces like elevators or a higher millimeter lens for longer distances in open spaces like parking lots, C440I comes with two different lens versions to better suit your security needs.

Flexible Installation
Easily route your camera's cable into a dropped ceiling or avoid drilling by slotting it through the camera's side outlet

Flexible Management
Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager.

One system. Full security.
Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you've worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.

Performance

Type: IP security camera
Placement supported: Indoor
Connectivity technology: Wired
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode
Feature: Infrared (IR) cut-off filter

Design

Form factor: Turret
Mounting type: Ceiling
Product colour: White
Housing material: Plastic

Camera

Minimum illumination: 0.1 lx
Lens viewing angle, horizontal: 88.8°
Lens viewing angle, vertical: 48.9°
Lens viewing angle, diagonal: 106.5°

Image sensor

Optical sensor size: 25.4 / 3 mm (1 / 3")
Feature: Progressive scan
Sensor type: CMOS

Lens system

Number of lenses: 1
Maximum aperture number: 2.2
Normal focusing range: 2.8 m

Night vision

Feature: Night vision
Night vision distance: 30 m
LED type: IR
Infra-red wavelength: 850 nm

Video

Maximum resolution: 2560 x 1440 pixels
Total megapixels: 4 MP
Video compression formats: H.264, H.264+, H.265, H.265+
Supported graphics resolutions: 320 x 240, 352 x 288, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440
Supported video modes: 240p, 480p, 720p, 1080p, 1280p, 1440p
Frame rate: 30 fps
Feature: Video streaming
Feature: Noise reduction
Noise reduction technology: 3D noise reduction
Image quality adjustment: Brightness, Contrast, DNR, Mirror, Saturation
Bit rate: 64 Kbps - 4 Mbps
Feature: Back Light Compensation (BLC)
Feature: Highlight Compensation (HLC)
Feature: Digital Wide Dynamic Range (DWDR)
Feature: Region of Interest (ROI) encoding
Feature: Smart IR
Feature: 3D positioning

Network

Feature: Ethernet LAN
Networking standards: IEEE 802.3af, IEEE 802.3at
Supported network protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Number of simultaneous live view channels: 3 channels

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1

Security

Feature: Password protection
Feature: Video motion detection
Feature: Active tampering alarm
Feature: IP address filtering
Feature: HTTPS encryption
Feature: Mirror
Feature: Password reset via email
Feature: Human and vehicle targets classification
Feature: Digest authentication

Management features

Behavior analysis: Intrusion detection, Line crossing detection, Object removal detection, Region entrance detection, Region exiting detection

Power

Power source type: DC, PoE
Power consumption (max): 5 W
DC output voltage: 12

Operational conditions

Operating temperature (T-T): -30 - 60 °C

Weight & dimensions

Width: 123 mm
Depth: 83 mm
Height: 123 mm

Packaging data

Package width: 163 mm
Package depth: 163 mm
Package height: 116 mm
Package weight: 350 g

Sustainability

Feature: Sustainability compliance
Compliance certificates: BSMI, CE

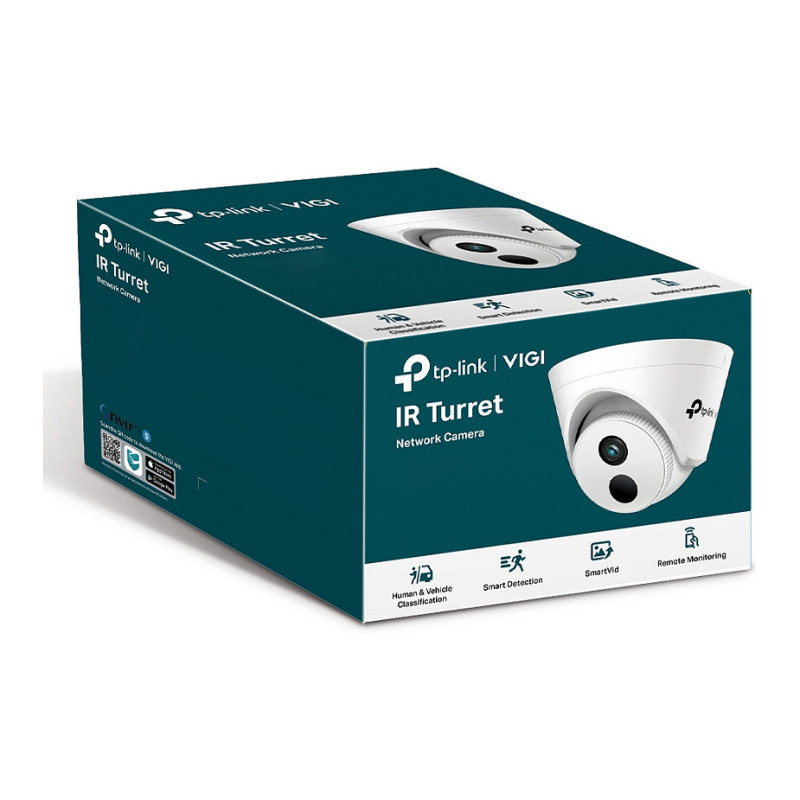

Packaging content

Number of cameras: 1
Feature: Mounting kit
Feature: Manual
