TP-Link VIGI C340I 2.8MM security camera

TP-Link VIGI C340I 2.8MM. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: Black, White, Form factor: Bullet. Minimum illumination: 0.01 lx, Lens viewing angle, horizontal: 88.8°, Lens viewing angle, vertical: 48.9°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Detect distance: 60 m, Observe distance: 25 m, Recognize distance: 12 m

Security Never Shuts Down

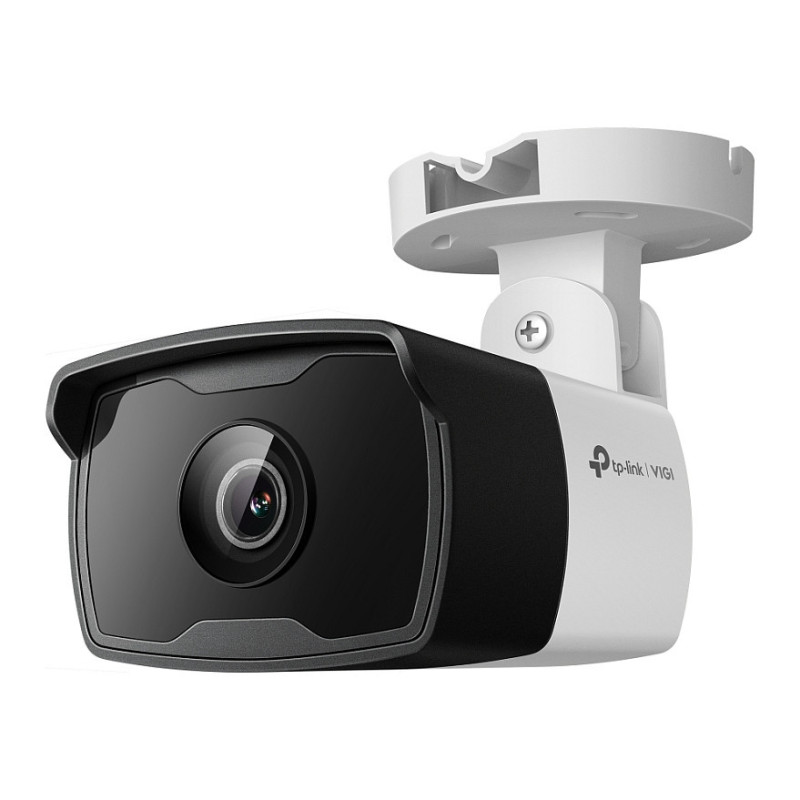

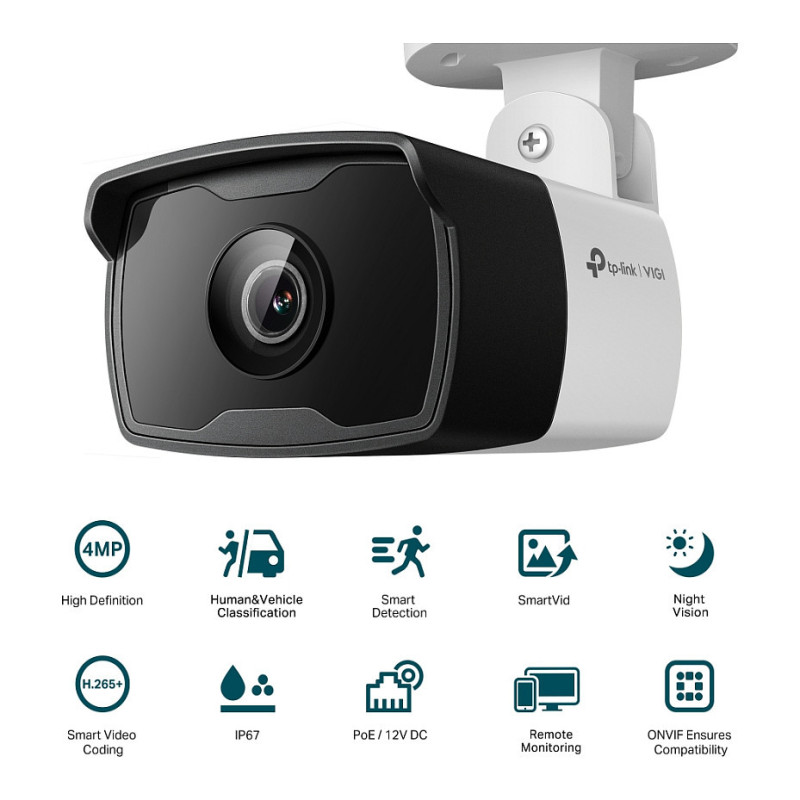

4MP Outdoor IR Bullet Network Camera

Looking for a higher resolution? It's right here.
4MP Super-High Definition
The VIGI C340I camera comes with 4MP—more than enough pixels to pick up some of the more discrete details.

Human & Vehicle Classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications

We keep an eye on your business.
Smart Detection
Backed by AI algorithms, the VIGI camera offers more smart detection. You will receive notifications when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.

Never miss a detail.

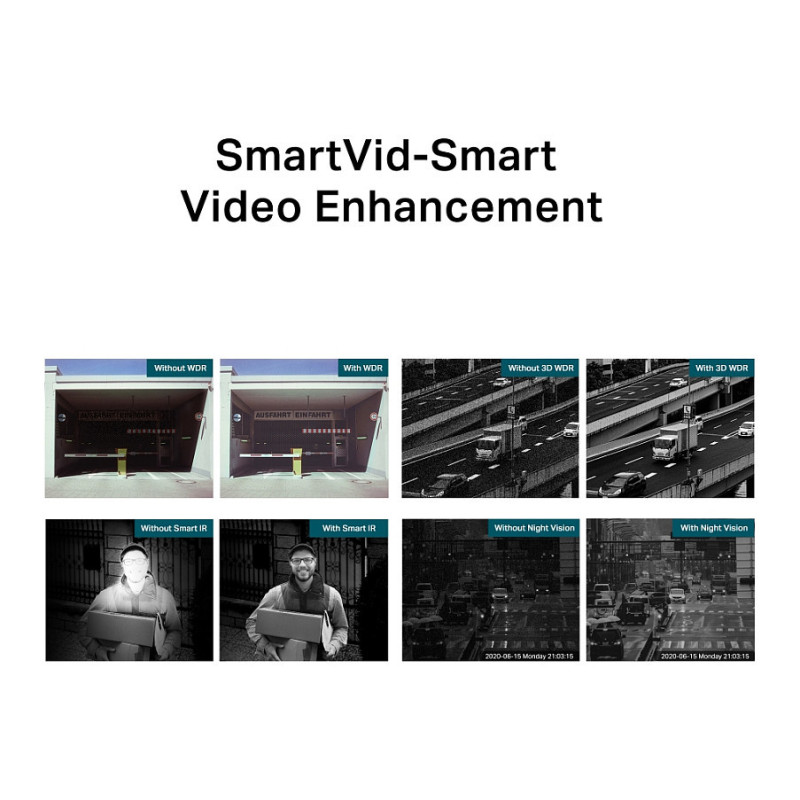

SmartVid-Smart Video Enhancement
VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.

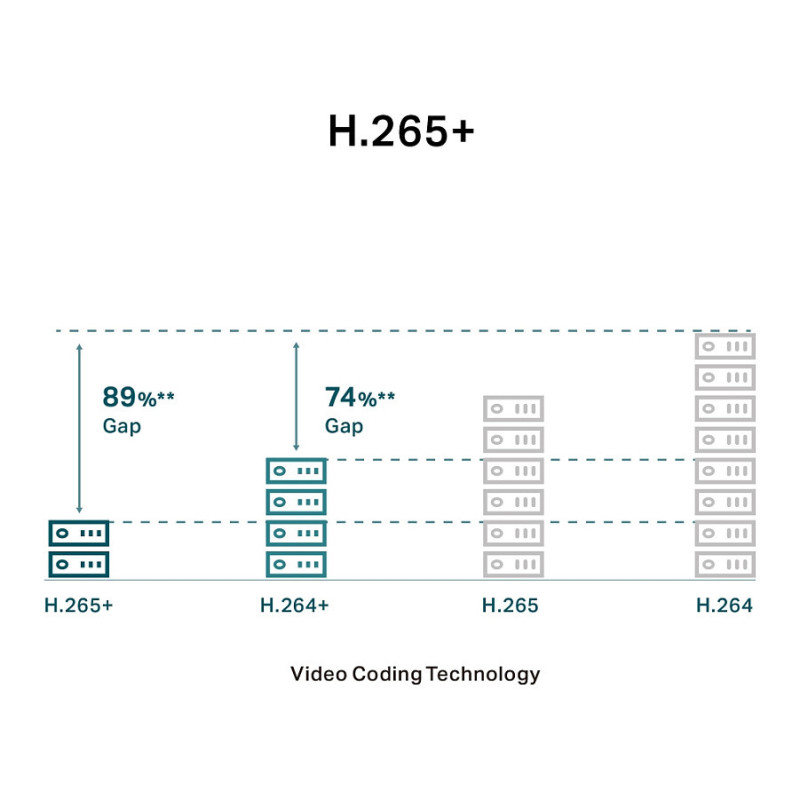

More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

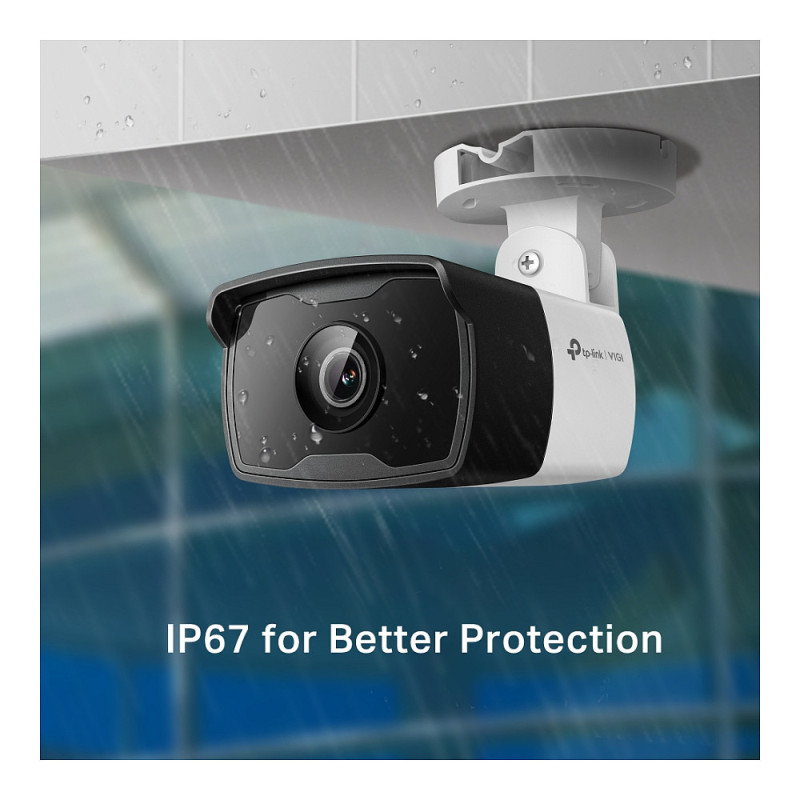

IP67 for Better Protection
Capable of withstanding temperatures from -30-60 °C (-22-140 °F), VIGI performs well even in harsh
environments with rain and dust.

Discover the best way to power your camera.
PoE/12V DC
Two power supply ways not only give you more convenience but also make your wiring remarkably easy.

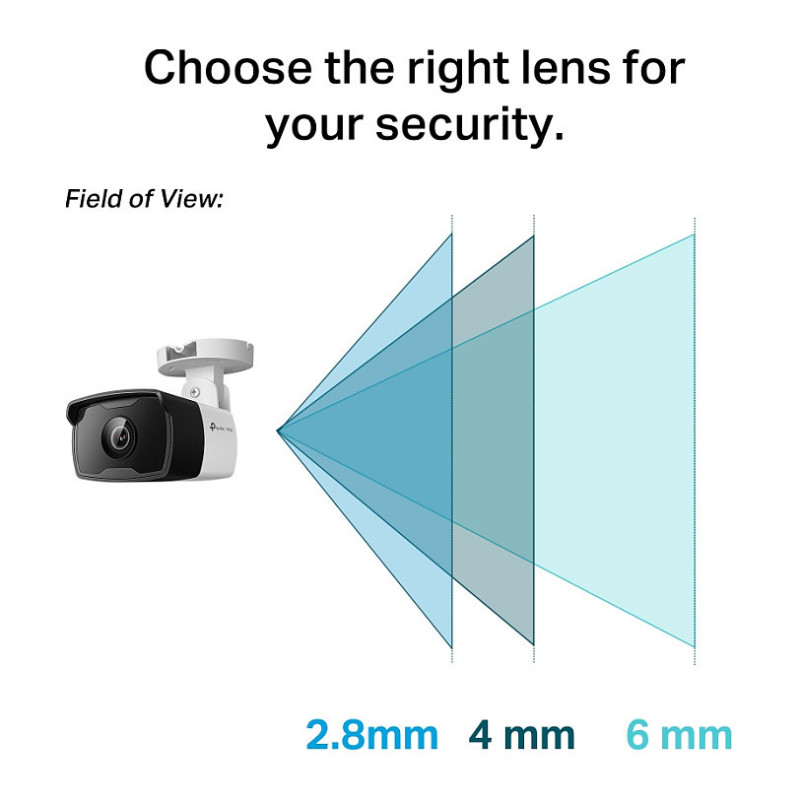

Choose the right lens for your security.
2.8/4/6 mm lens
Whether you need a wide angle lens to cover enclosed spaces like elevators or a higher millimeter lens for longer distances in open spaces like parking lots, C340I comes with three different lens versions to better suit your security needs.

Flexible Installation
Find the perfect vantage point by simply securing your camera to ceiling, pole or wall.

Flexible Management
Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager.

One system. Full security.
Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you've worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.

Performance

Type: IP security camera
Placement supported: Outdoor
Connectivity technology: Wired
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode
Feature: Infrared (IR) cut-off filter

Design

Form factor: Bullet
Mounting type: Ceiling/Wall/Pole
Product colour: Black, White
Housing material: Plastic
International Protection (IP) code: IP67

Camera

Minimum illumination: 0.01 lx
Lens viewing angle, horizontal: 88.8°
Lens viewing angle, vertical: 48.9°
Lens viewing angle, diagonal: 106.5°
Tilt angle range: -90 - 90°
Pan range: -90 - 90°
Camera shutter speed: 1/3 - 1/10000 s
Number of Privacy masking areas: 4

Image sensor

Optical sensor size: 25.4 / 3 mm (1 / 3")
Feature: Progressive scan
Sensor type: CMOS

Lens system

Number of lenses: 1
Detect distance: 60 m
Observe distance: 25 m
Recognize distance: 12 m
Maximum aperture number: 2.2
Identify distance: 6 m
Fixed focal length: 2.8 mm

Night vision

Feature: Night vision
Night vision distance: 30 m
LED type: IR
Number of illumination LEDs: 2
Infra-red wavelength: 850 nm

Video

Maximum resolution: 2560 x 1440 pixels
Total megapixels: 4 MP
Video compression formats: H.264, H.264+, H.265, H.265+
Supported graphics resolutions: 320 x 240, 352 x 288, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440
Supported video modes: 240p, 480p, 720p, 1080p, 1280p, 1440p
Frame rate: 30 fps
Feature: Video streaming
Image quality adjustment: Brightness, Contrast, Mirror, Saturation, Sharpness
Feature: Privacy masking
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate: 256 Kbps - 4 Mbps
Feature: Back Light Compensation (BLC)
Feature: Highlight Compensation (HLC)
Feature: Digital Wide Dynamic Range (DWDR)
Feature: Region of Interest (ROI) encoding
Feature: Smart IR
Feature: 3D positioning

Audio

Signal-to-Noise Ratio (SNR): 52 dB

Network

Feature: Ethernet LAN
Networking standards: IEEE 802.3af, IEEE 802.3at
Supported network protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Number of simultaneous live view channels: 3 channels

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Feature: DC-in jack

Security

Feature: Password protection
Feature: Video motion detection
Feature: IP address filtering
Feature: HTTPS encryption
Intelligent Video Surveillance (IVS) system features: Crossing line, Region entrance detection, Region exiting detection, Vehicle detection
Feature: Mirror
Feature: Password reset via email
Feature: Human and vehicle targets classification
Feature: Digest authentication
Feature: Network access storage (NAS)

Management features

Feature: Web browser
Behavior analysis: Intrusion detection, Line crossing detection, Object removal detection, Region entrance detection, Region exiting detection

Power

Power source type: DC, PoE
Power consumption (typical): 1.32 W
Power consumption (max): 5 W
DC output voltage: 12

Operational conditions

Operating temperature (T-T): -30 - 60 °C
Storage temperature (T-T): -40 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%

Weight & dimensions

Width: 73 mm
Height: 71 mm
Length: 174 mm
Weight: 200 g

Packaging data

Package width: 128 mm
Package depth: 218 mm
Package height: 103 mm
Package weight: 360 g
Package type: Box

Sustainability

Feature: Sustainability compliance
Compliance certificates: BSMI, CE, EAC, Federal Communications Commission (FCC), UKCA

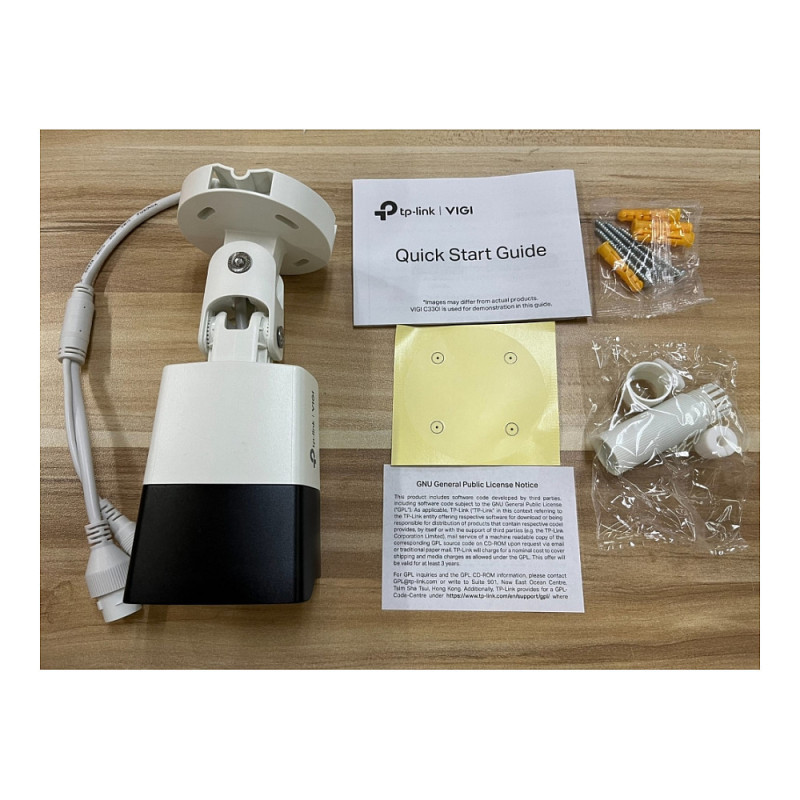

Packaging content

Number of cameras: 1
Feature: Mounting kit
Feature: Manual
